NCAR AIRBORNE O2 INSTRUMENT RESULTS
PROJECT = HIPPO3, FLIGHT = RF01, FILE = 100324a
PROCESSED Wed Nov 18 20:32:24 MST 2020

Text Notes File
AO2 Checksheet
MED Checksheet
Logfile
All Periods Data
Calibration Data
Calibration Parameters
Assigned Cylinder Values
~ 0.5 Hz Measured Data File
1 Hz 10-sec Median Data File - plain text format
1 Hz Interpolated Data File - NASA Ames format
1 Hz Interpolated Data File - NASA Ames format - O2 adjusted / CO2 screened (from medcomp.r)

Results

Using data from 0 to 84.03269 (Day of Year and Day Fraction)
Using data from 00:00:00 to 00:47:04 (HH:MM:SS)
Calibration gases:
HS: OK30069, CO2 (GMD) = 337.01, O2 (SIO) = -396.7
LS: OK30070, CO2 (GMD) = 410.11, O2 (SIO) = -1012.7
LT: OK170199, CO2 (GMD) = 384.74, O2 (SIO) = -808.7
WT: OK30053, CO2 (GMD) = 374.68, O2 (SIO) = -613.6
LP: OK30055, CO2 (GMD) = 343.55, O2 (SIO) = -456.6

Raw Data and Diagnostics Figures

High Rate Data
 Medium Rate Data 1
 Medium Rate Data 2
Medium Rate Data 3
 Medium Rate Data 4
 Medium Rate Data 5


Recalculated Data Figures

PdO2 and PdRef Corrections
 All Flight HR Jog Shape

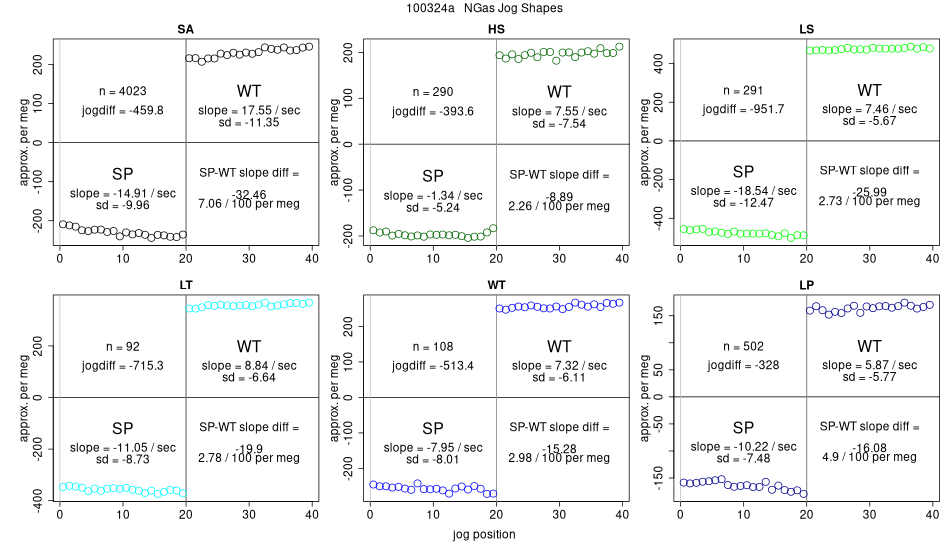

 HR Jog Shapes by NGAS

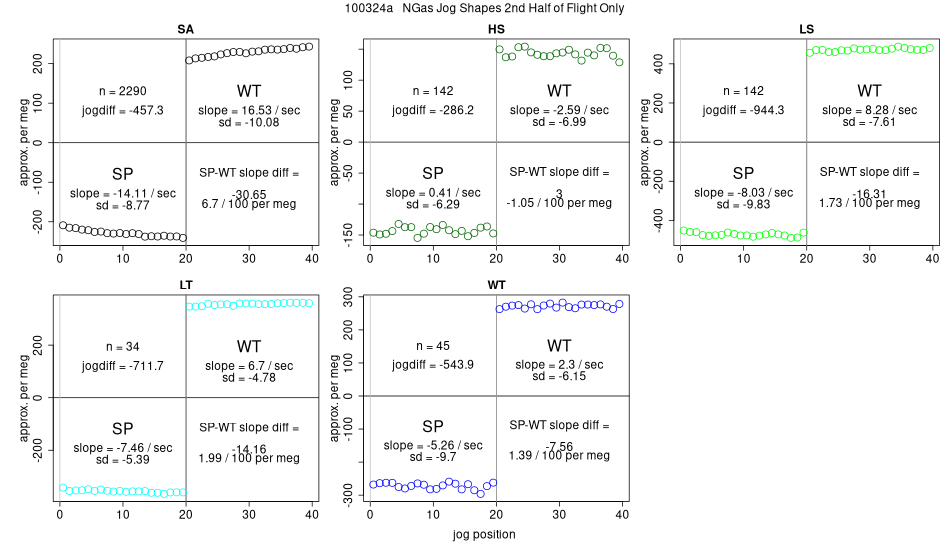

 HR Jog Shapes by NGAS 2
 HR PdO2 Jog Shapes by NGAS
HR Jog Shapes by Individual NGAS
 HR Jog Shapes by Individual NGAS
 HR Jog Shapes by Individual NGAS
Jog Shape Trends


Data Filtering Figures

Jog SD Filter
 Spikes and Level Shifts
 Li840 Cabin Pressure Senisitivity
 O2 PCab, H2O, PaO2 Senisitivity
SP-WT Slope Diff

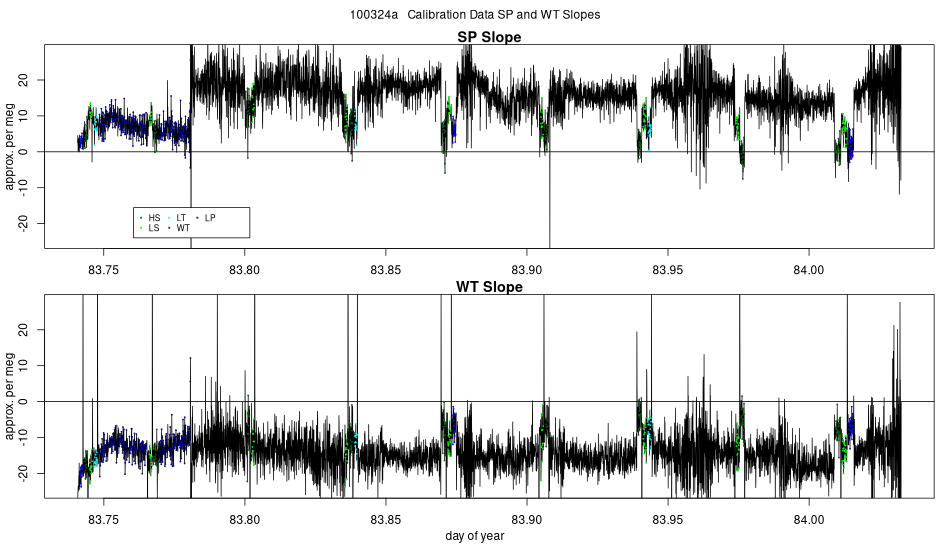

 SP and WT Slopes
 Total Slope and Jog Time
 LiH2O and PdO2

Calibration Figures

Calibration Data 1
 Calibration Data 2
 Calibration Data 3
Calibration Data 4
 Calibrations vs Cylinder Temps

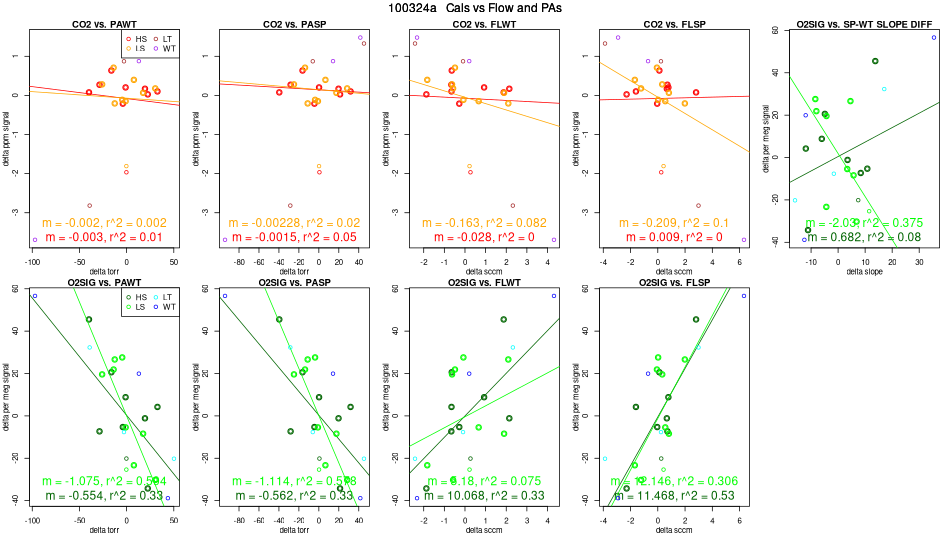

 Calibrations vs Cylinder Flows and PAs
Calibration Interval Shapes - O2

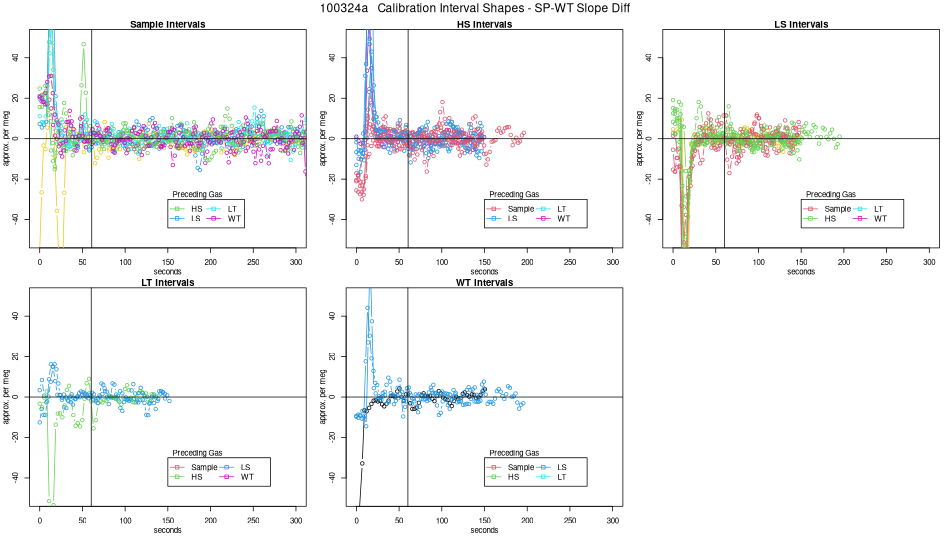

 Calibration Interval Shapes - SP-WT Slope Diff
