NCAR O2 CO2 CALIBRATION FACILITY RESULTS
RUN = 260901b
PROCESSED Mon Sep 21 03:30:05 PM MDT 2026

Notes
Logfile

Results

Using data from 245.115 to 245.24 (Day of Year and Day Fraction)
(Position, CylinderID, SIO_CO2, SIO_CO2_sigma, SIO_CO2_slope, GMD_CO2, GMD_CO2_sigma, GMD_CO2_slope, CO2_n, d(O2/N2), d(O2/N2)_sigma, d(O2/N2)_slope, d(O2/N2)_n)

5 CC203987 435.031 0.005 0.072 434.224 0.005 0.070 4 -949.98 1.50 -27.23 4
8 CC203969 436.296 0.007 0.048 435.455 0.007 0.047 4 -933.11 0.53 7.85 4
WT ND12480 402.306 0.017 0.436 402.250 0.016 0.428 24 992.71 2.81 -21.34 24
Text File

Raw Data and Diagnostics Figures

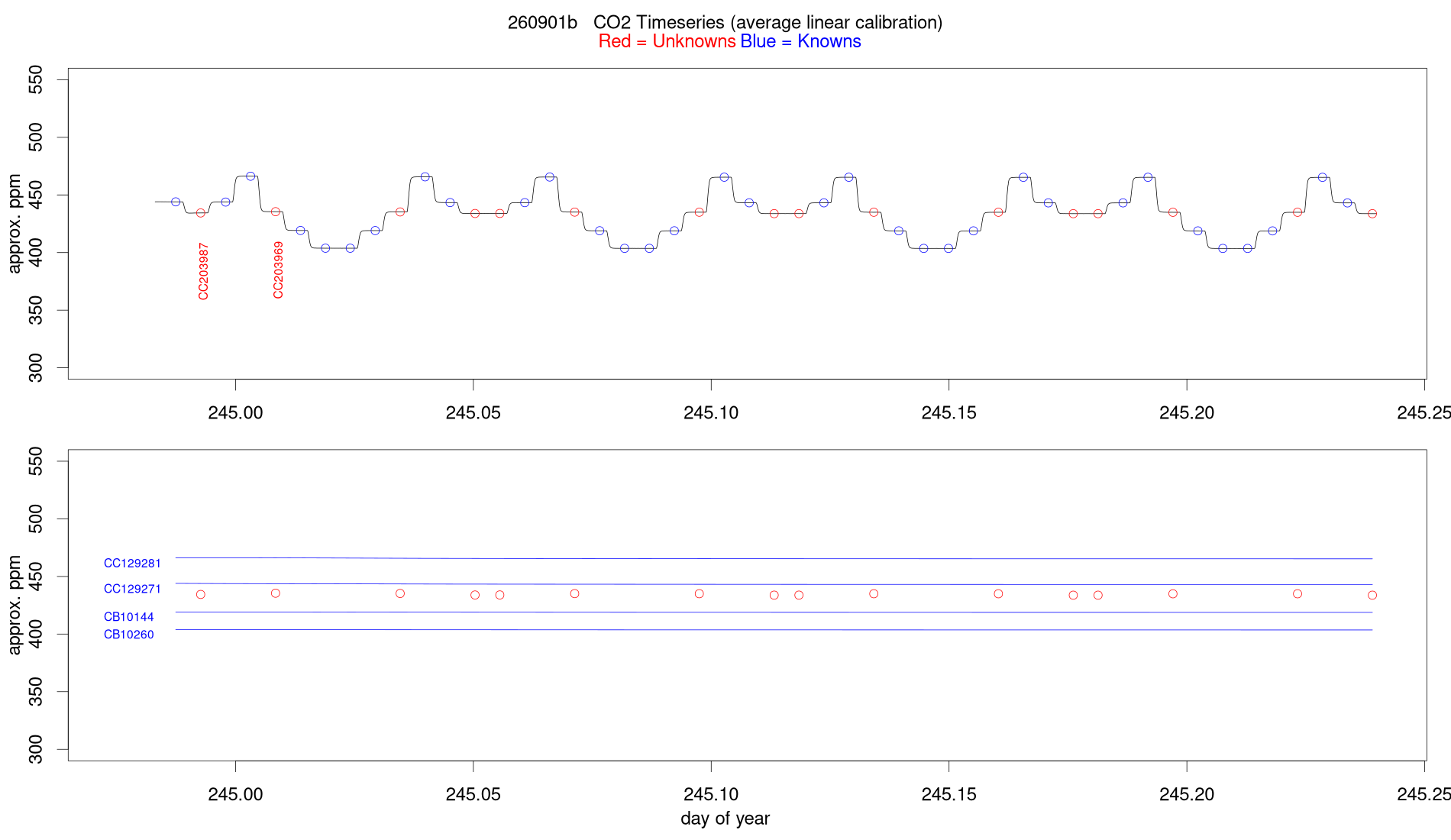

CO2 Timeseries

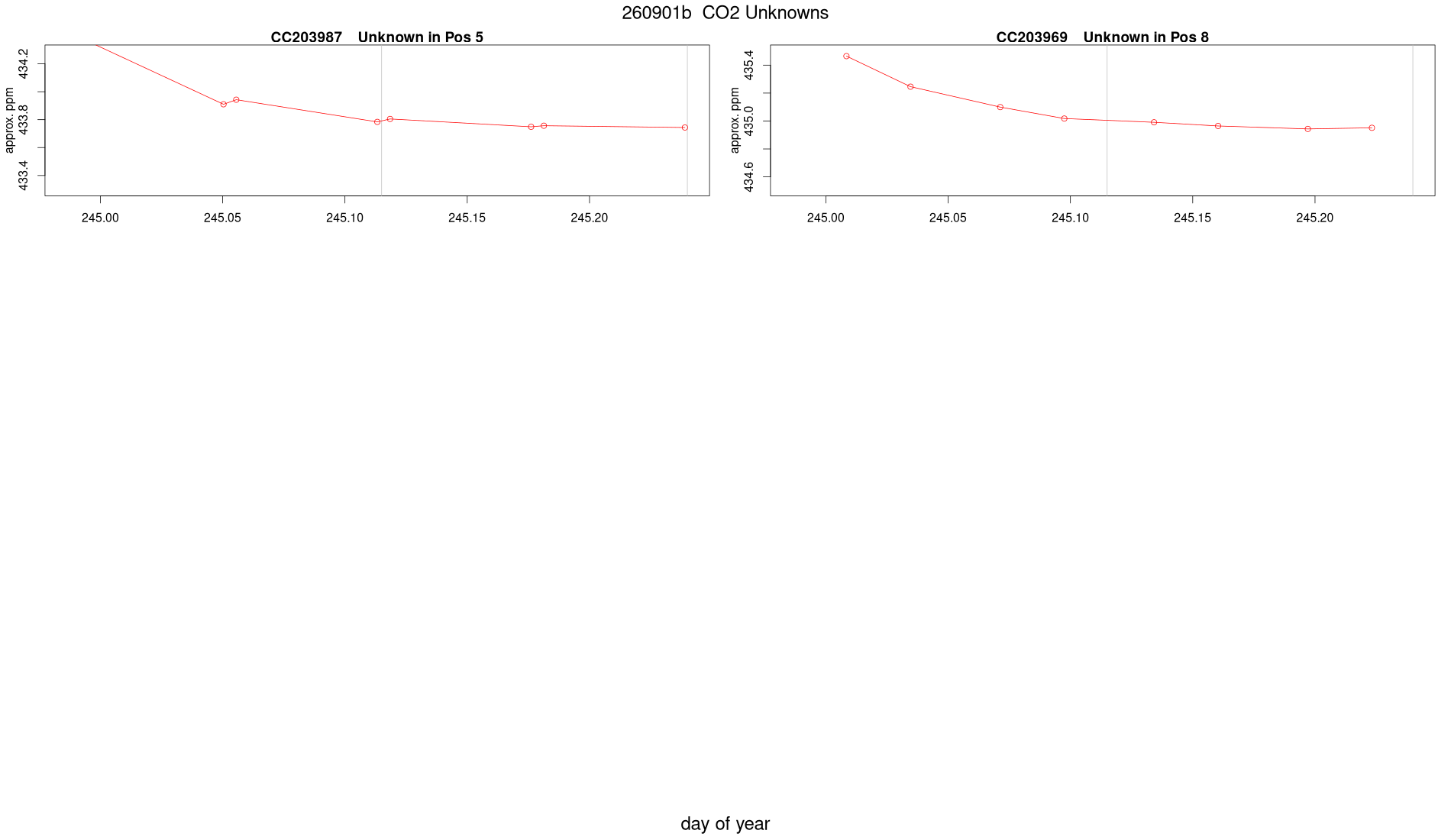

 CO2 Averages for Unknowns
 CO2 Averages for Knowns
Jog Ave. Diagnostics 1
 Jog Ave. Diagnostics 2

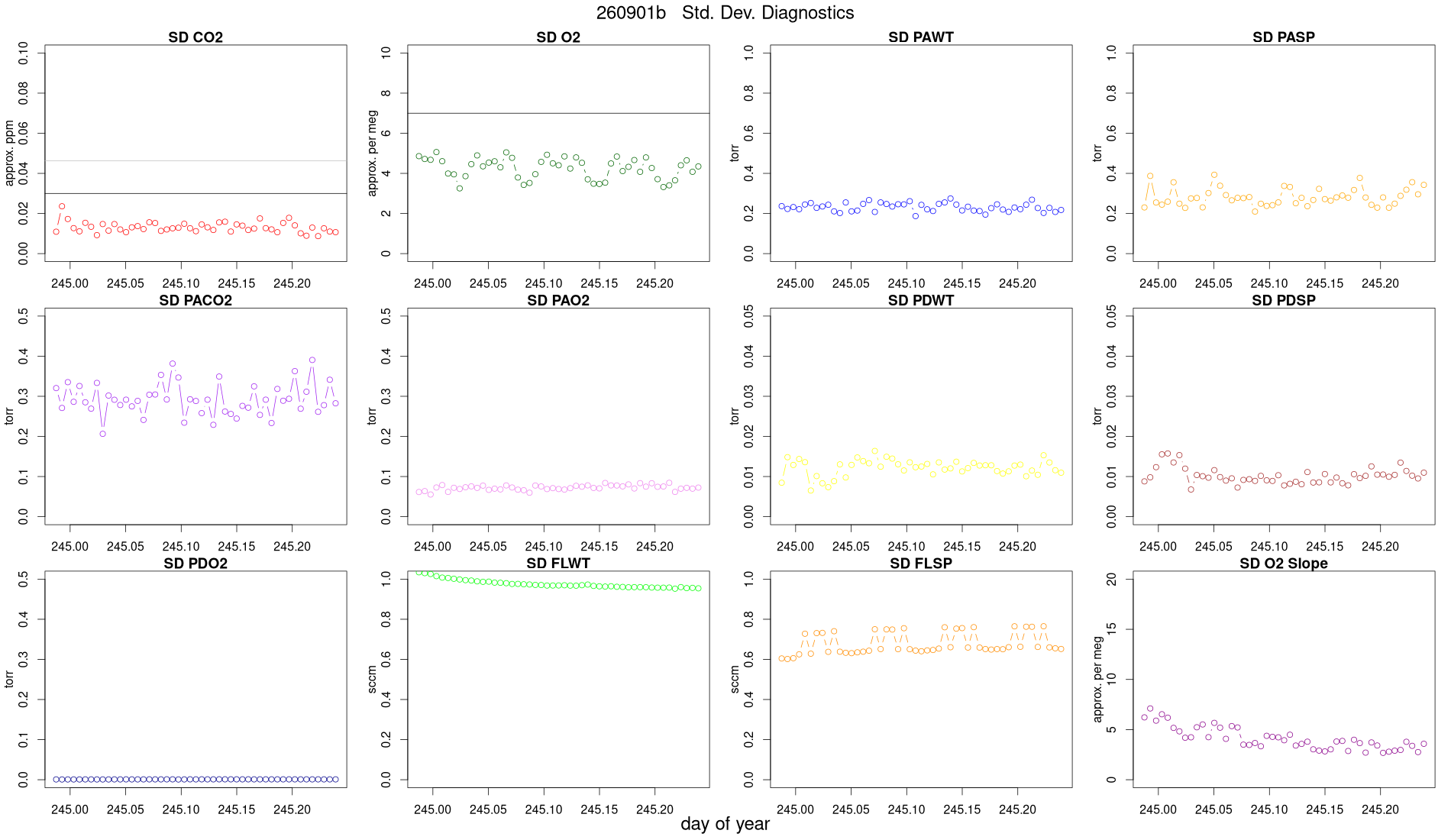

 Jog Std. Dev. Diagnostics
Jog Slope Diagnostics

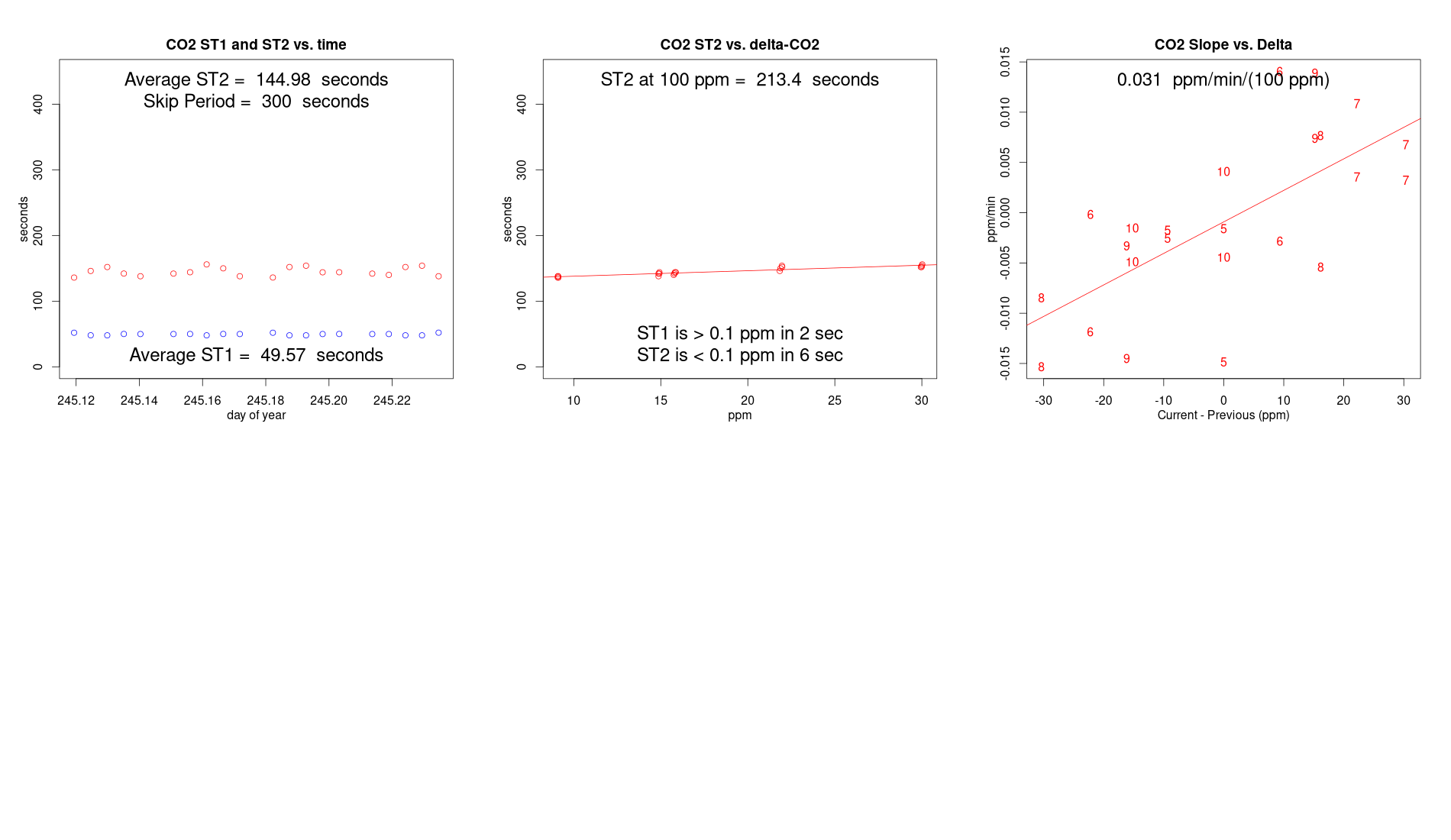

 Rollover Effect
 Flushing Effect
CO2 Parameters
 CO2 Results
 O2 Timeseries
O2 Averages for Unknowns

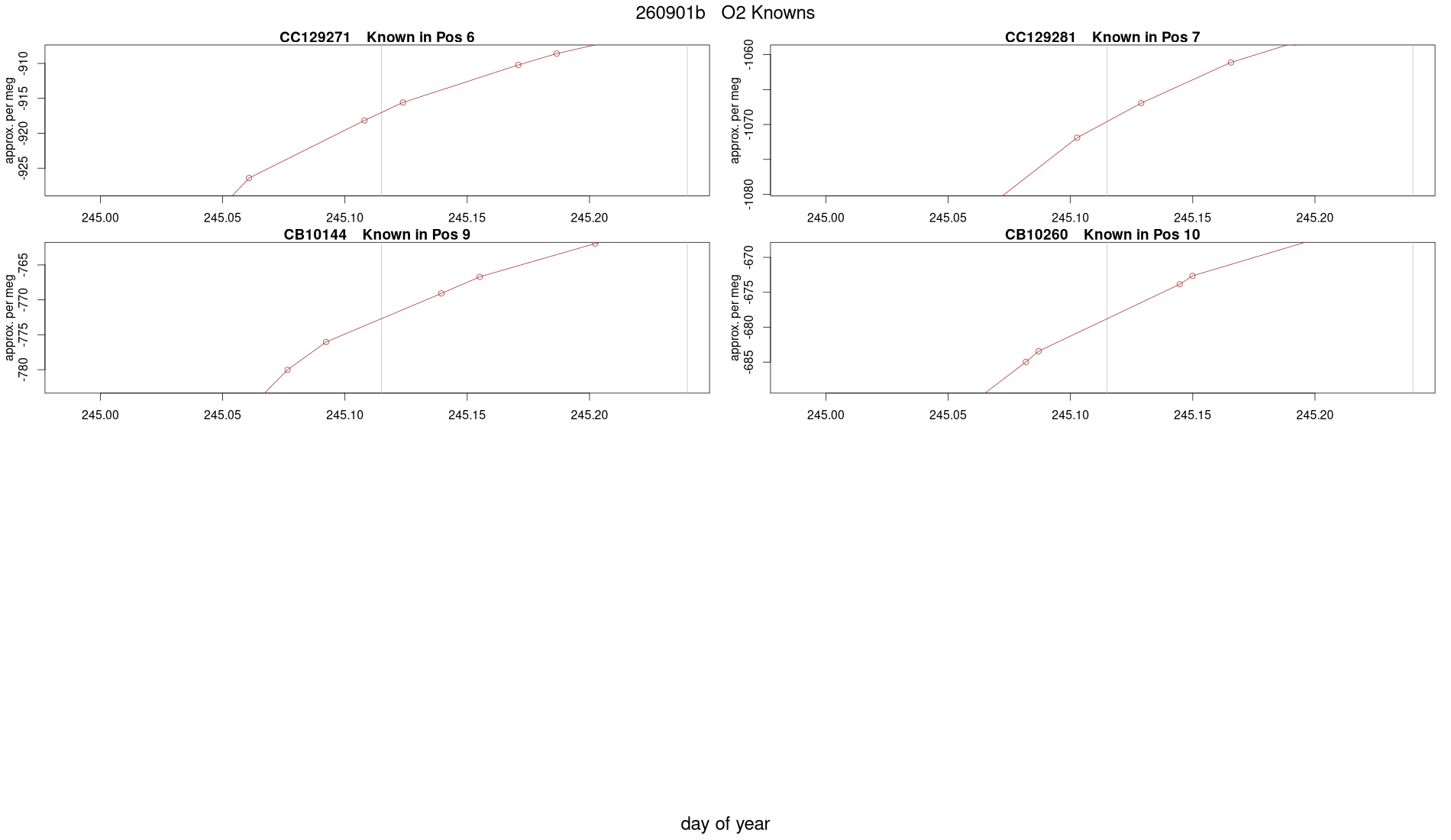

 O2 Averages for Knowns
 O2 Parameters
O2 Results
Residuals
 SP/WT Slopes

Reference Cylinders, Assigned Concentrations, and Calculated Offsets from Fit

(Position, Cylinder ID, SIO CO2 in ppm, SIO Delta-CO2, SIO CO2 sigma, GMD CO2 in ppm, GMD Delta-CO2, GMD CO2 sigma, CO2 n, d(O2/N2) in per meg, Delta-d(O2/N2), d(O2/N2) sigma, d(O2/N2) n, Plots)

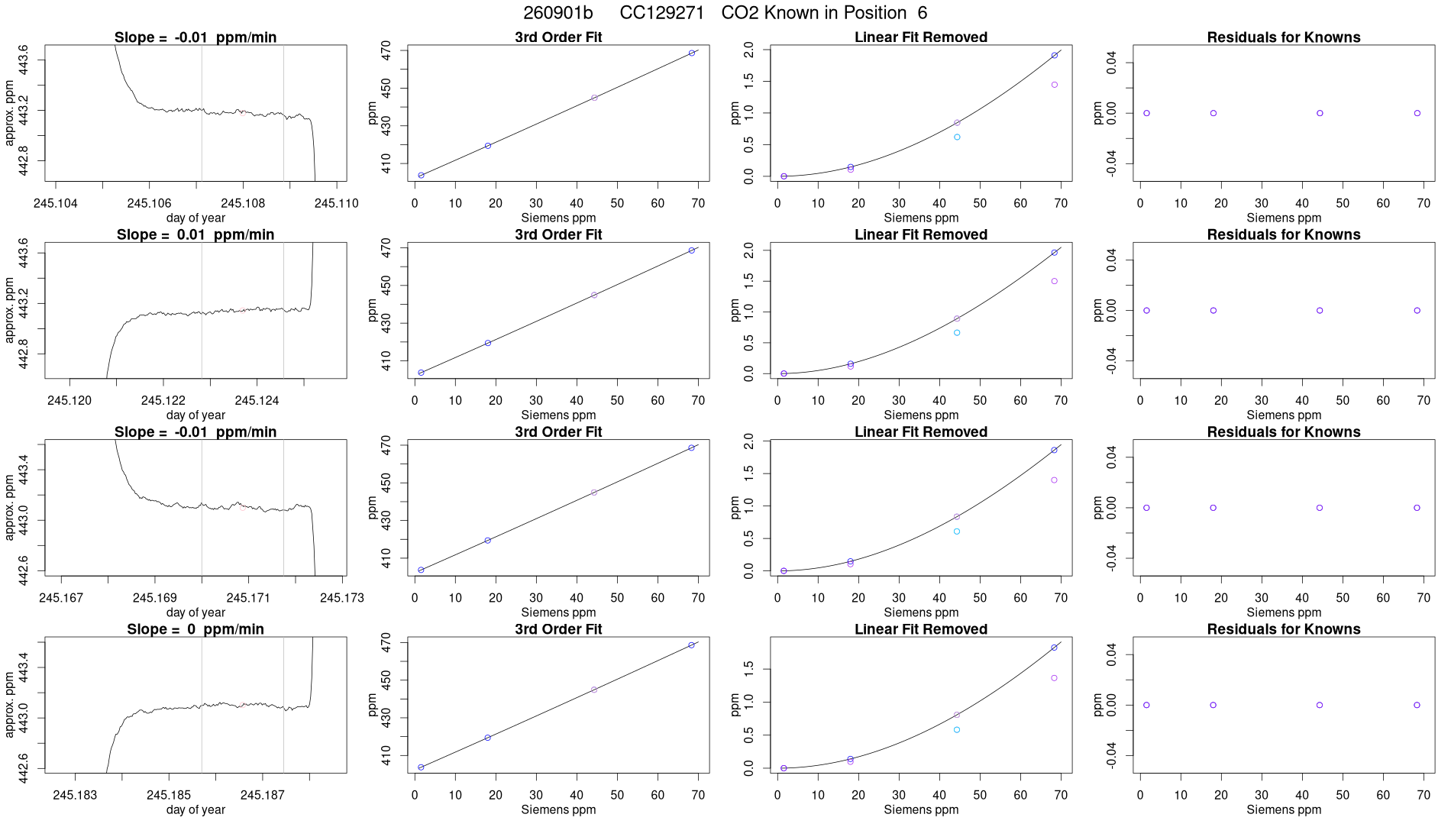

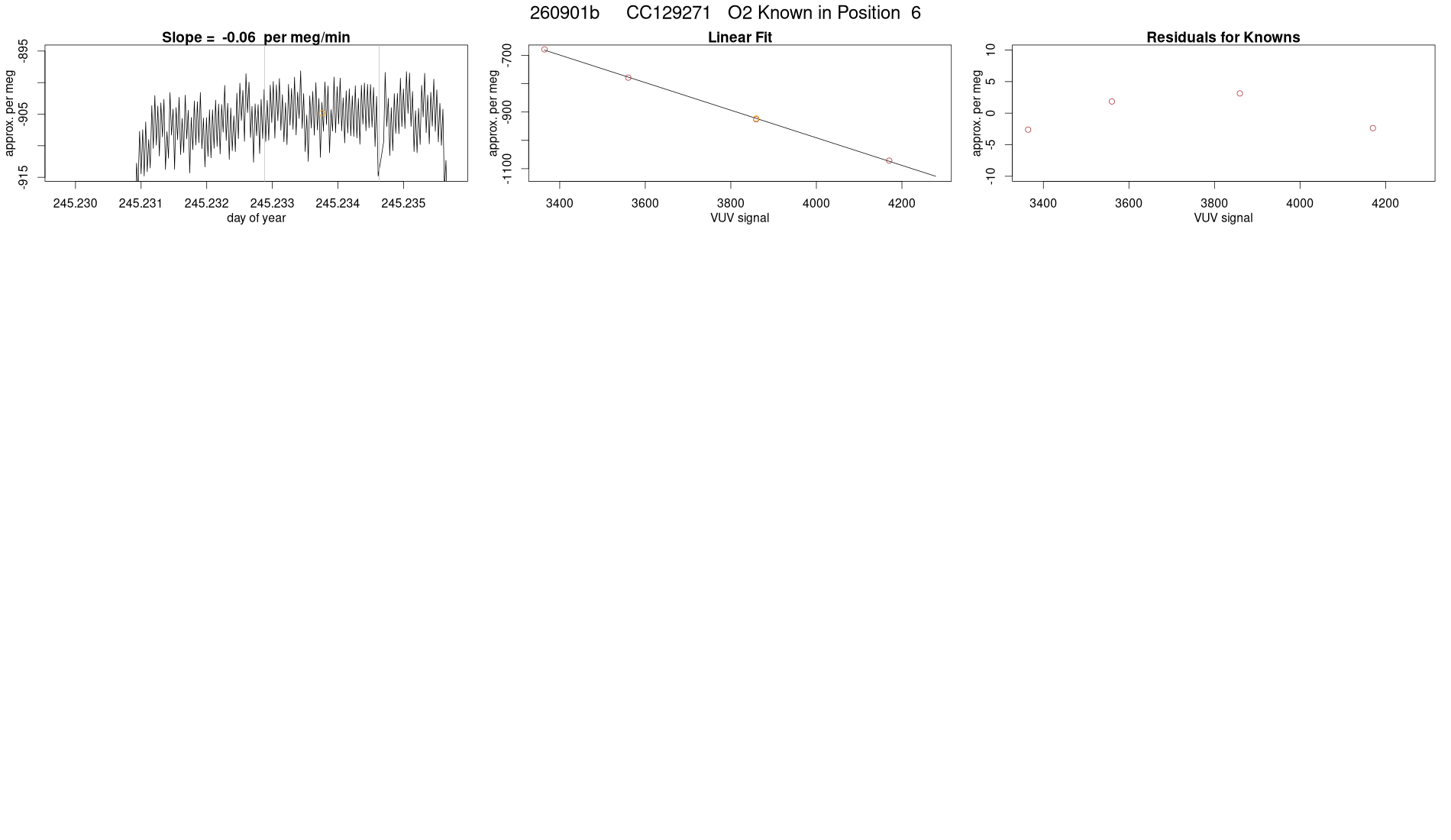

6 CC129271 444.896 0.000 0.000 443.824 0.000 0.000 4 -846.54 3.29 0.57 4    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3
7 CC129281 468.606 0.000 0.000 466.871 0.000 0.000 4 -969.98 -2.40 0.33 4    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

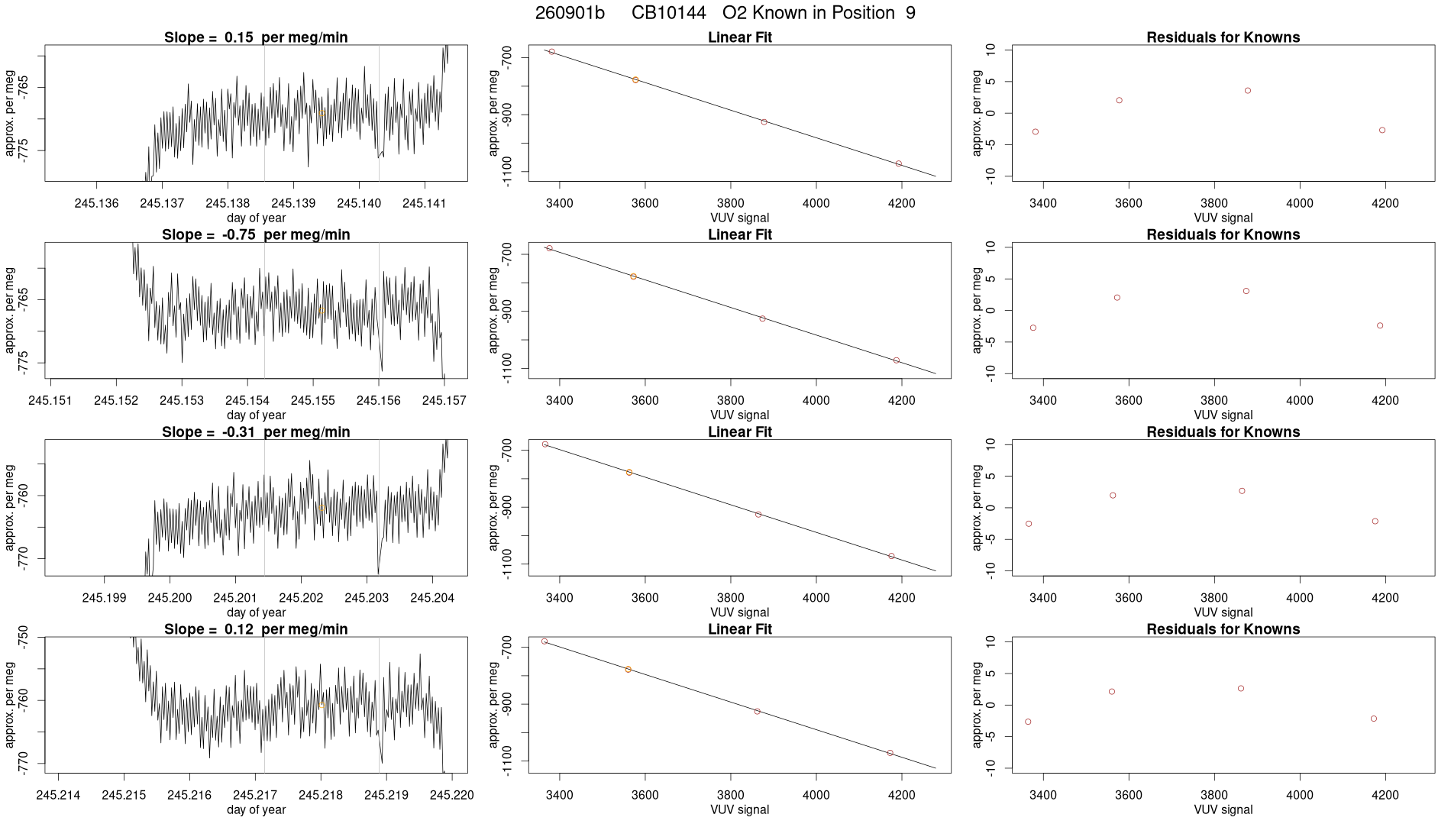

9 CB10144 419.419 0.000 0.000 419.000 0.000 0.000 4 -723.82 2.05 0.07 4    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2
10 CB10260 403.742 0.000 0.000 403.659 0.000 0.000 4 -639.01 -2.63 0.19 4    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

Measured Cylinders and Calculated Concentrations

(Position, Cylinder ID, Plots)
(Day of Year and Day Fraction, SIO CO2 in ppm, d(O2/N2) in per meg, GMD CO2 in ppm, Plots)

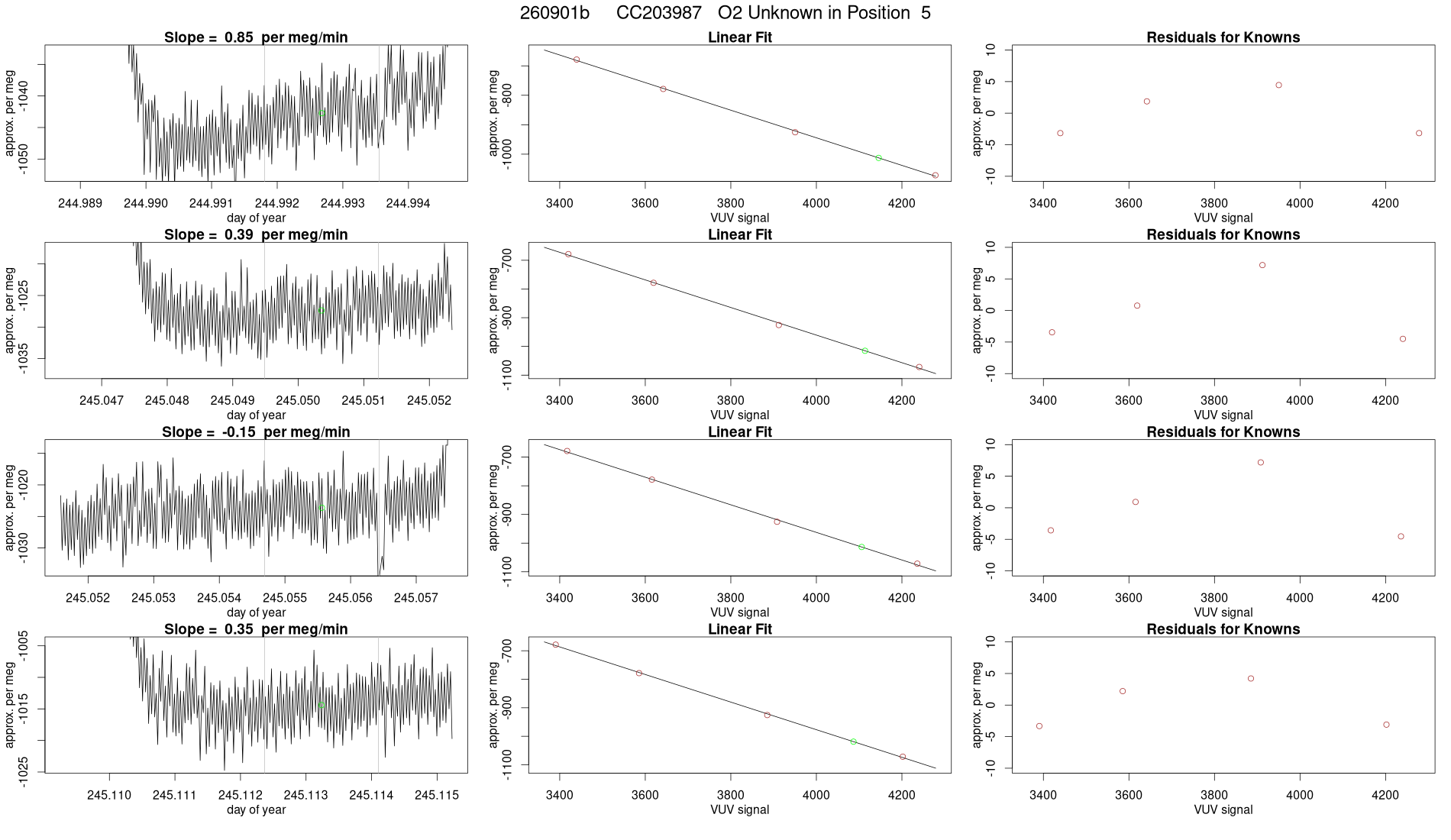

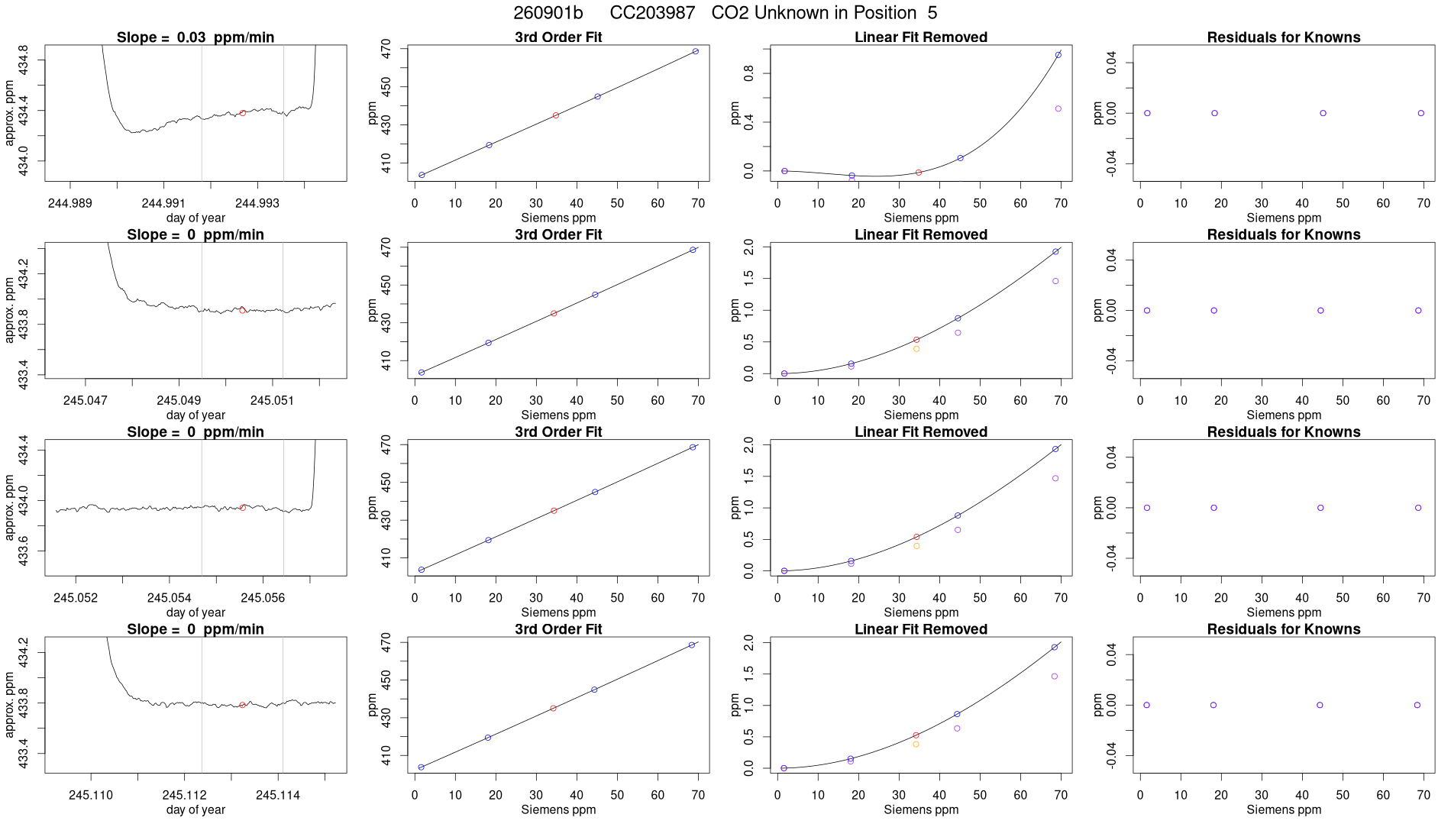

5 CC203987    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
244.993 435.032 -942.97 434.224
245.050 434.962 -945.66 434.156
245.056 435.018 -943.97 434.211
245.113 434.997 -949.35 434.190
245.118 435.028 -947.76 434.221
245.176 435.026 -950.67 434.219
245.181 435.034 -950.43 434.227
245.239 435.037 -951.06 434.229

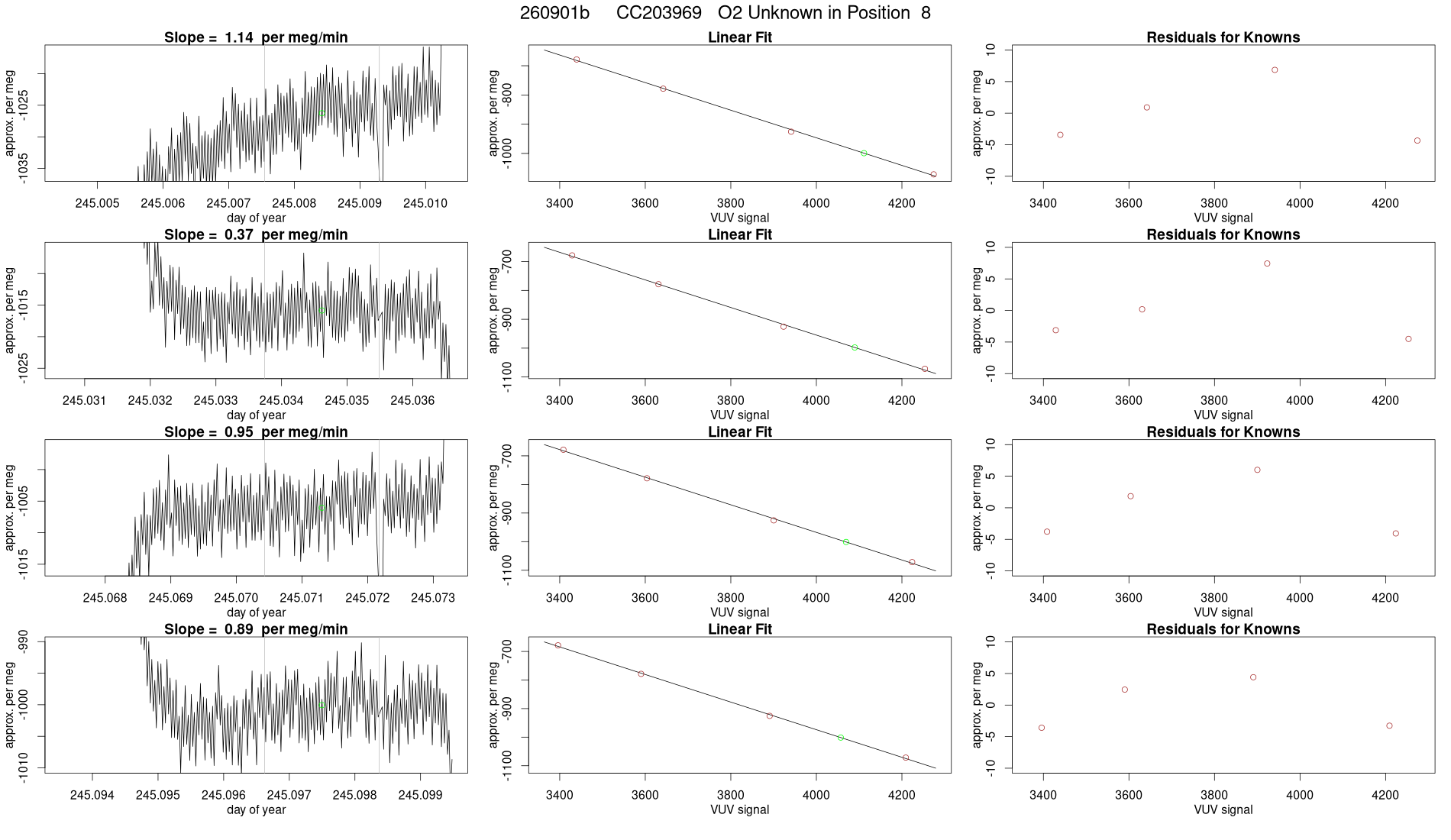

8 CC203969    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
245.008 436.284 -928.30 435.444
245.035 436.262 -926.95 435.422
245.071 436.284 -930.36 435.443
245.097 436.263 -930.64 435.423
245.134 436.295 -933.31 435.454
245.160 436.297 -933.22 435.456
245.197 436.287 -933.57 435.446
245.223 436.304 -932.34 435.463
