NCAR O2 CO2 CALIBRATION FACILITY RESULTS
RUN = 260616a
PROCESSED Mon Jun 22 03:29:28 PM MDT 2026

Notes
Logfile

Results

Using data from 167.151 to 167.528 (Day of Year and Day Fraction)
(Position, CylinderID, SIO_CO2, SIO_CO2_sigma, SIO_CO2_slope, GMD_CO2, GMD_CO2_sigma, GMD_CO2_slope, CO2_n, d(O2/N2), d(O2/N2)_sigma, d(O2/N2)_slope, d(O2/N2)_n)

1 CC498889 418.578 0.013 0.069 418.125 0.013 0.068 6 -699.85 2.49 -12.99 6
3 CC506414 405.439 0.015 -0.031 405.208 0.014 -0.030 6 -768.29 2.03 -9.63 6
4 CC498779 403.880 0.007 0.018 403.686 0.007 0.018 6 -769.26 2.15 -12.68 6
5 CC718421 417.422 0.012 0.063 416.983 0.012 0.062 6 -917.82 1.23 -8.55 6
8 CC498886 419.649 0.011 -0.004 419.184 0.011 -0.004 6 -672.29 1.32 -10.73 6
12 CB12416 403.981 0.008 0.021 403.785 0.008 0.020 6 -768.15 1.00 -2.92 6
WT ND12480 401.948 0.022 -0.162 401.805 0.021 -0.158 72 927.10 11.50 -87.45 72
Text File

Raw Data and Diagnostics Figures

CO2 Timeseries
 CO2 Averages for Unknowns

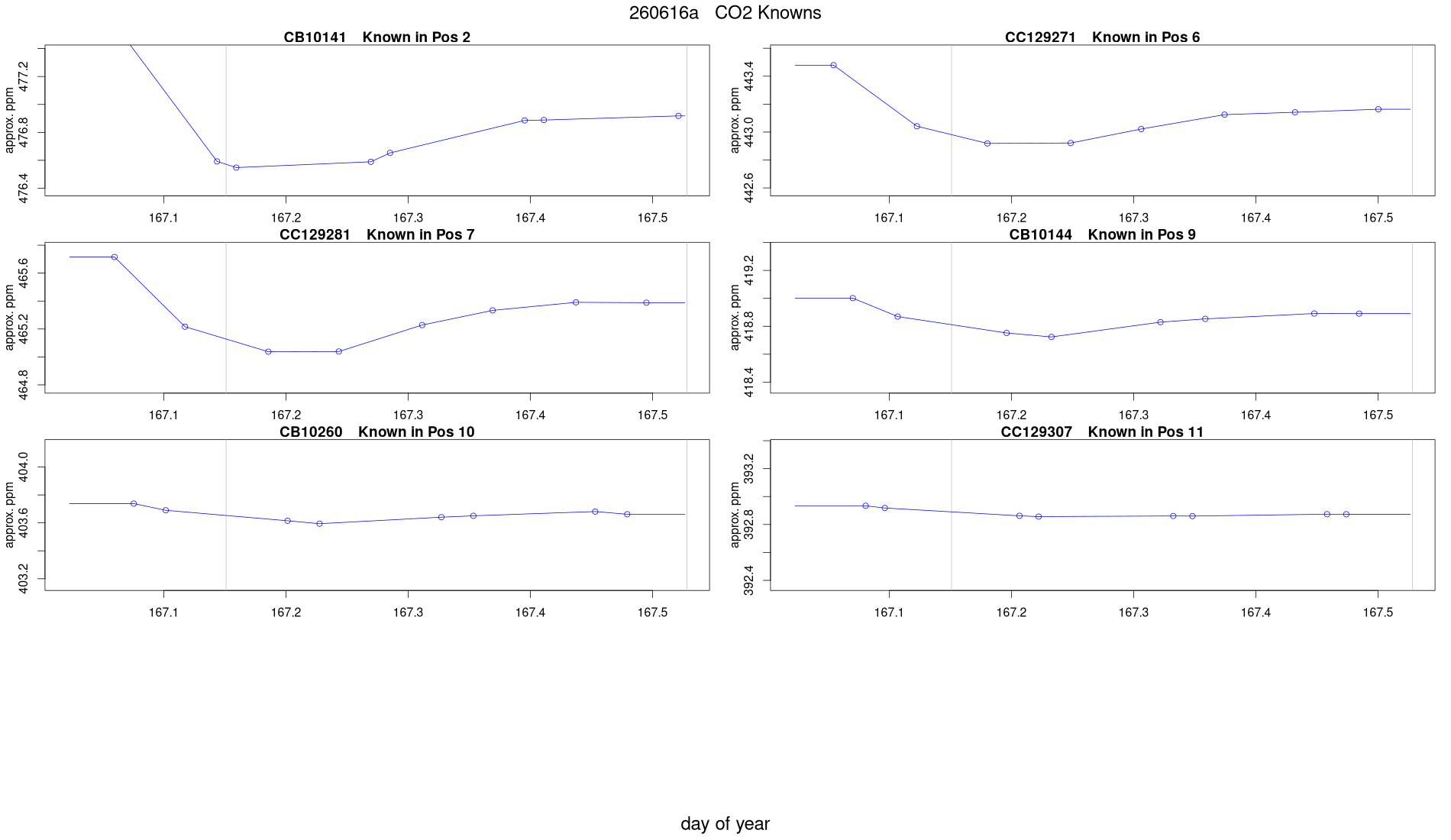

 CO2 Averages for Knowns
Jog Ave. Diagnostics 1
 Jog Ave. Diagnostics 2
 Jog Std. Dev. Diagnostics

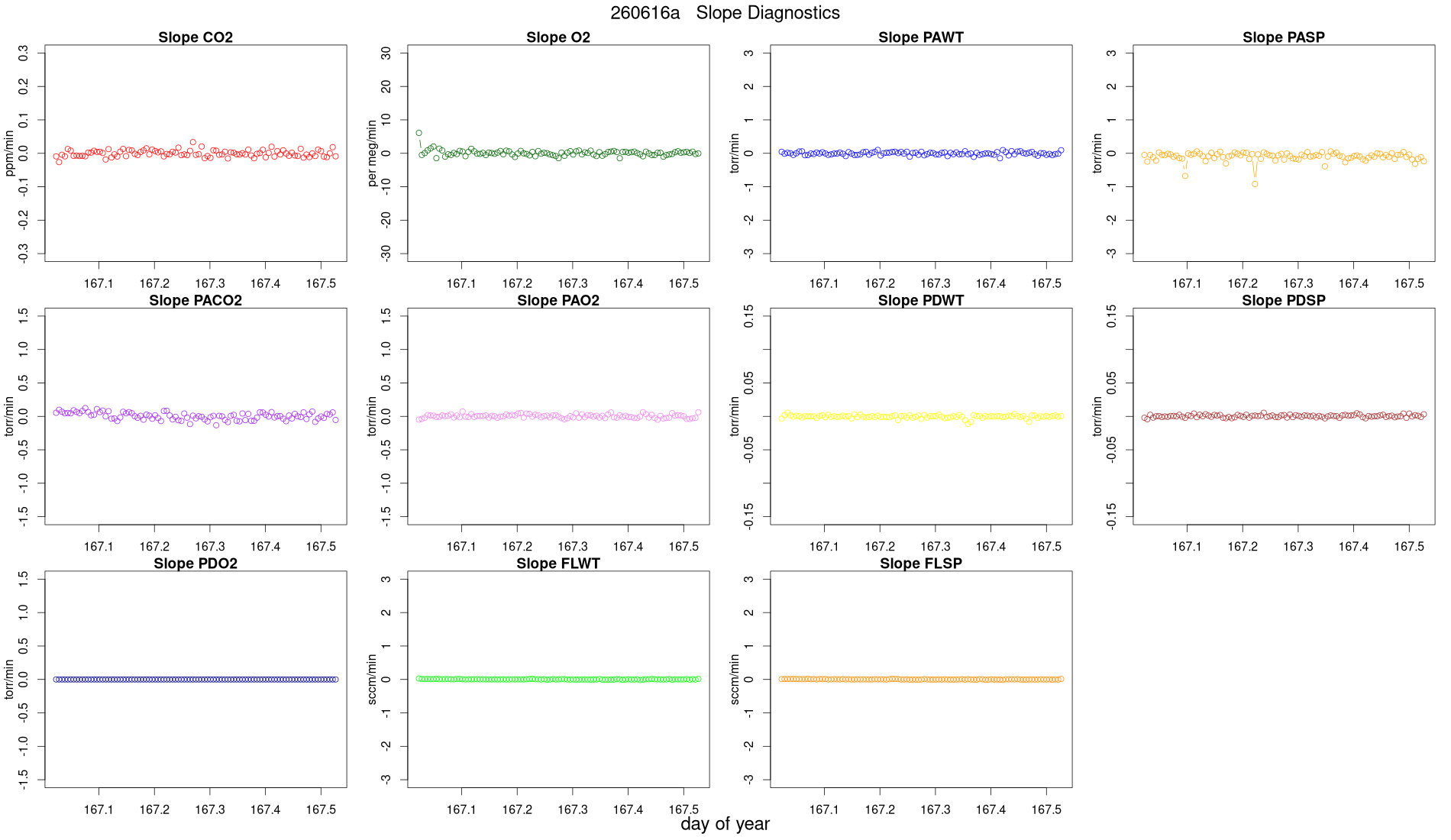

Jog Slope Diagnostics

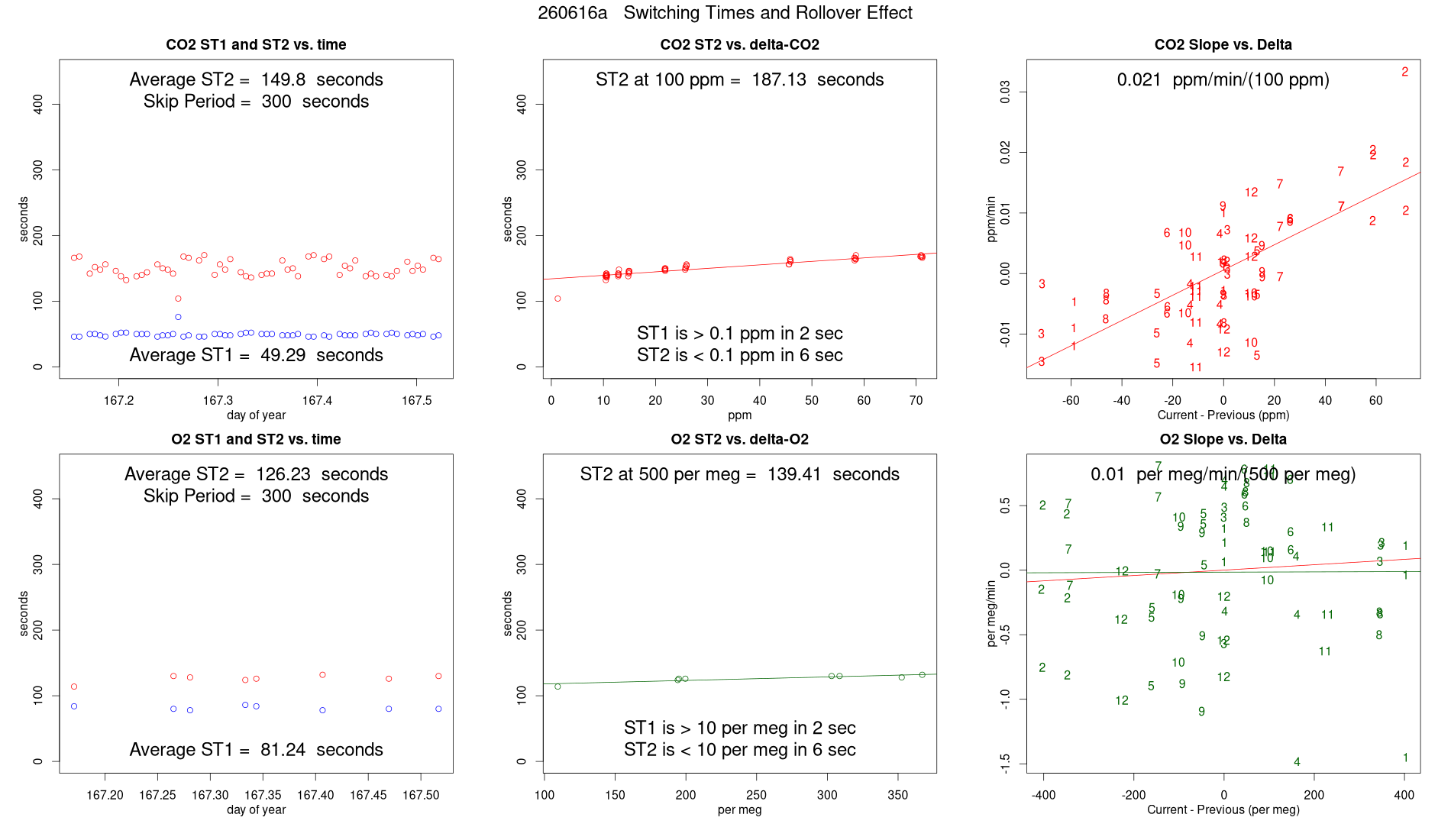

 Rollover Effect

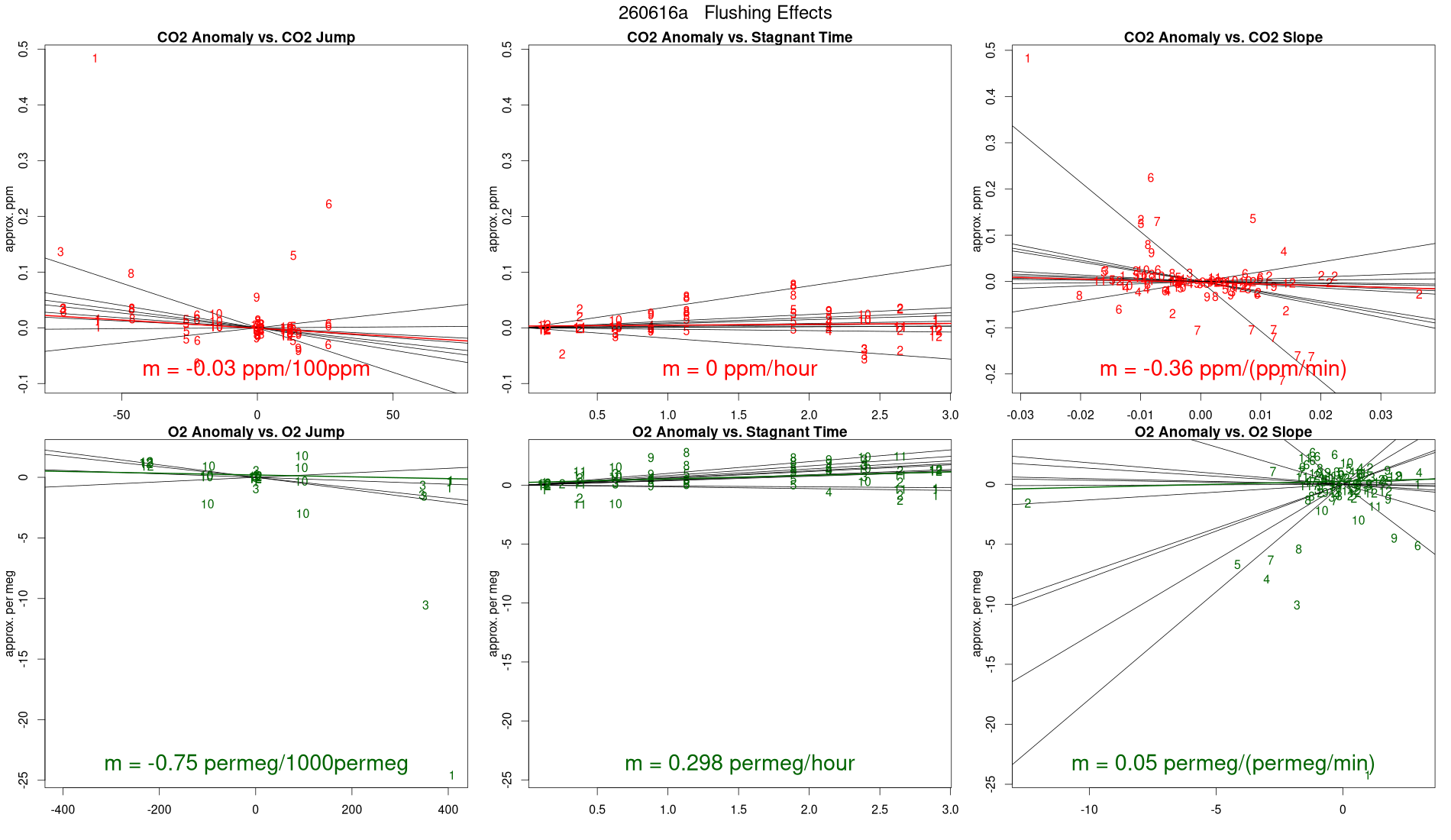

 Flushing Effect
CO2 Parameters
 CO2 Results
 O2 Timeseries
O2 Averages for Unknowns

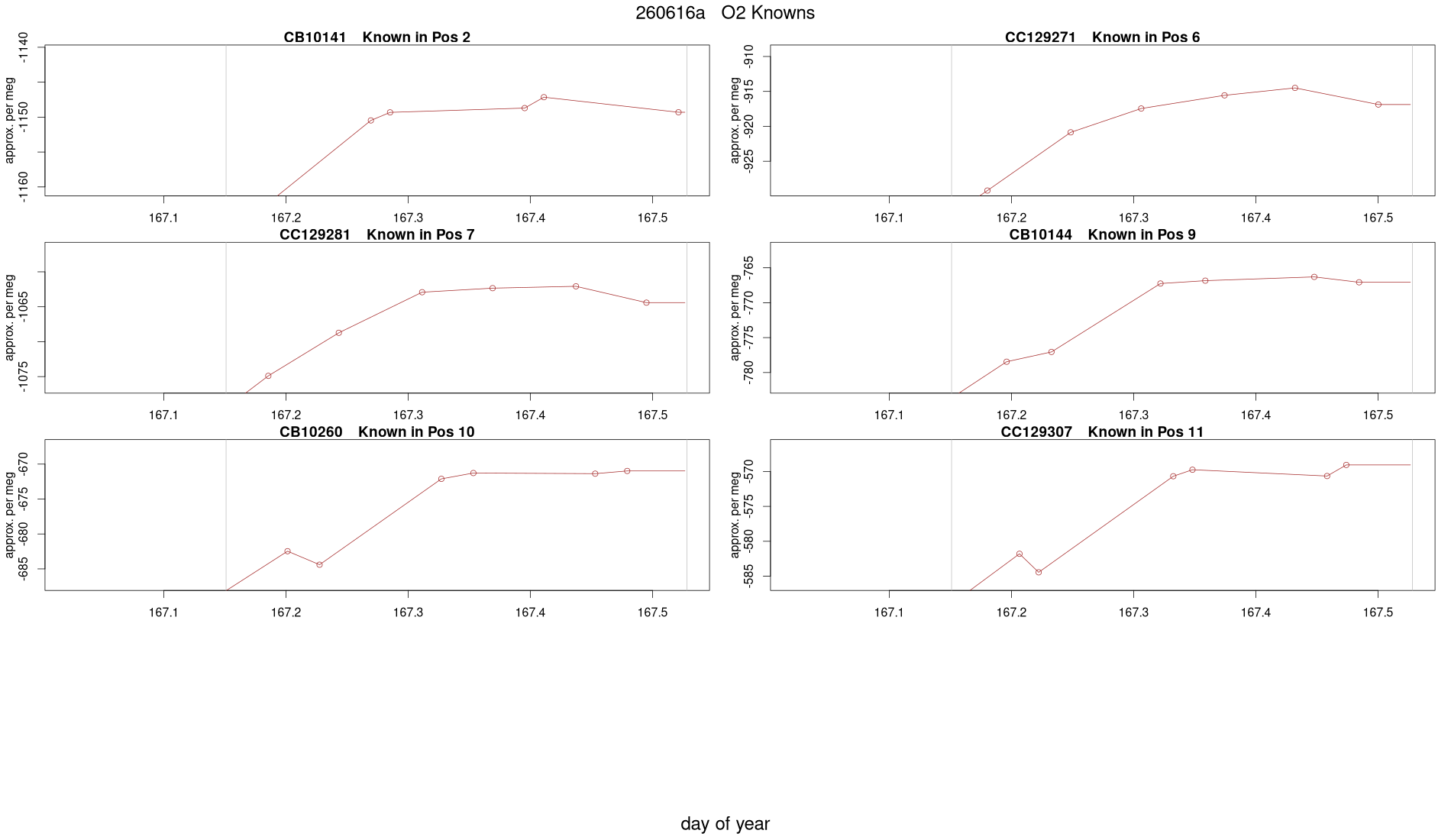

 O2 Averages for Knowns
 O2 Parameters
O2 Results

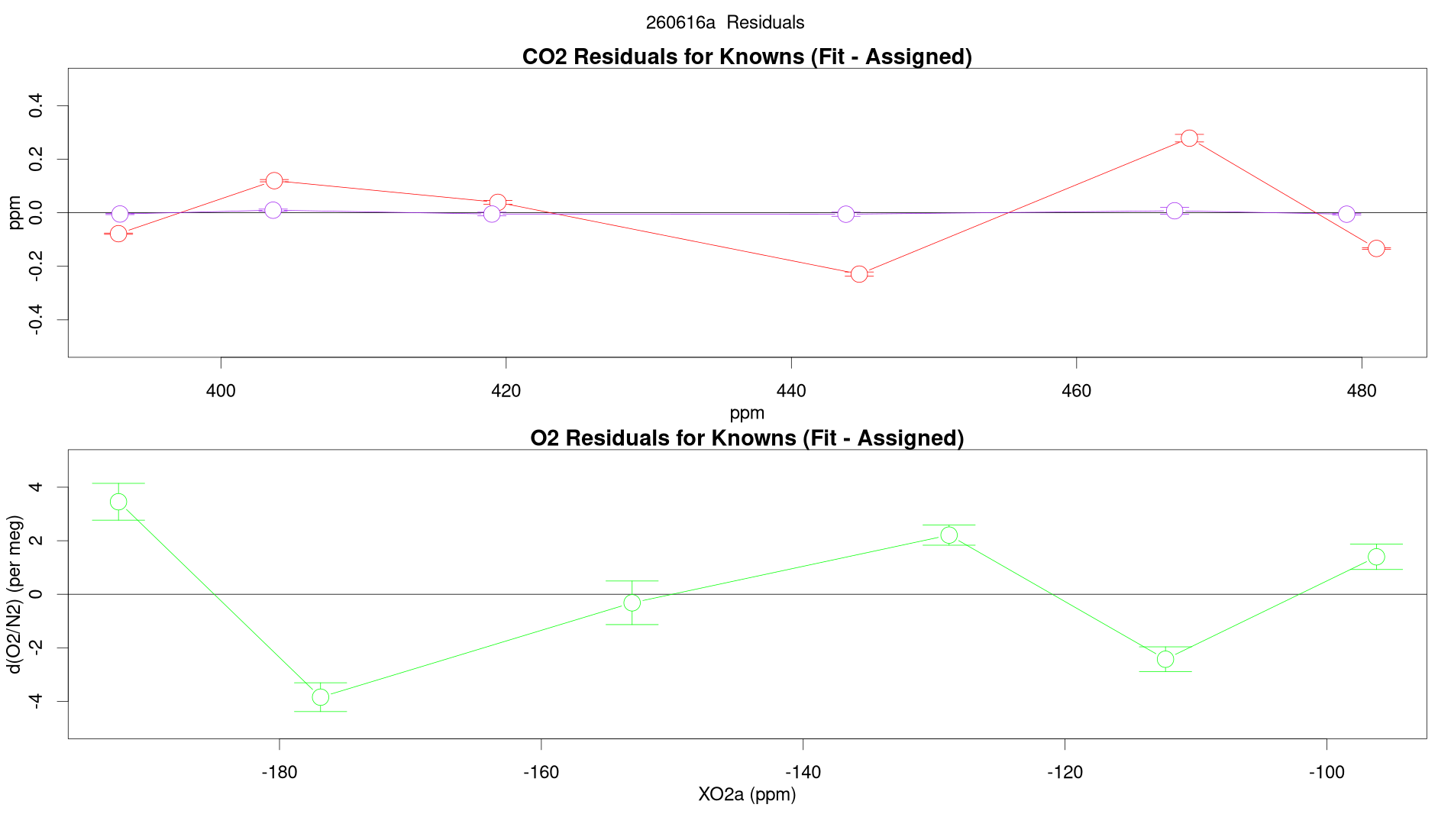

Residuals
 SP/WT Slopes

Reference Cylinders, Assigned Concentrations, and Calculated Offsets from Fit

(Position, Cylinder ID, SIO CO2 in ppm, SIO Delta-CO2, SIO CO2 sigma, GMD CO2 in ppm, GMD Delta-CO2, GMD CO2 sigma, CO2 n, d(O2/N2) in per meg, Delta-d(O2/N2), d(O2/N2) sigma, d(O2/N2) n, Plots)

2 CB10141 481.024 -0.133 0.003 478.936 -0.005 0.003 6 -1048.28 3.46 0.69 6    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3

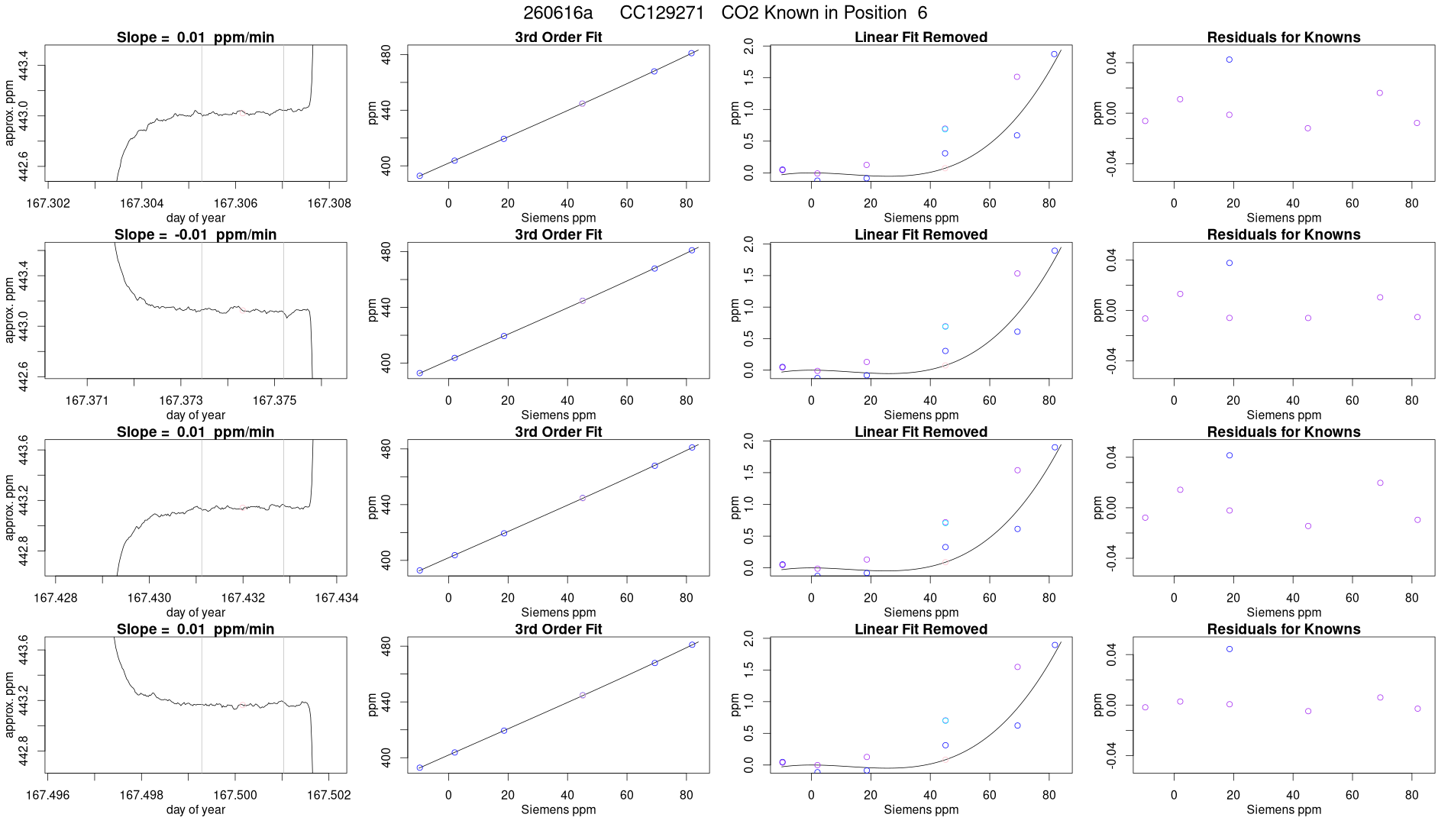

6 CC129271 444.760 -0.229 0.008 443.824 -0.005 0.008 6 -845.72 -0.32 0.81 6    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

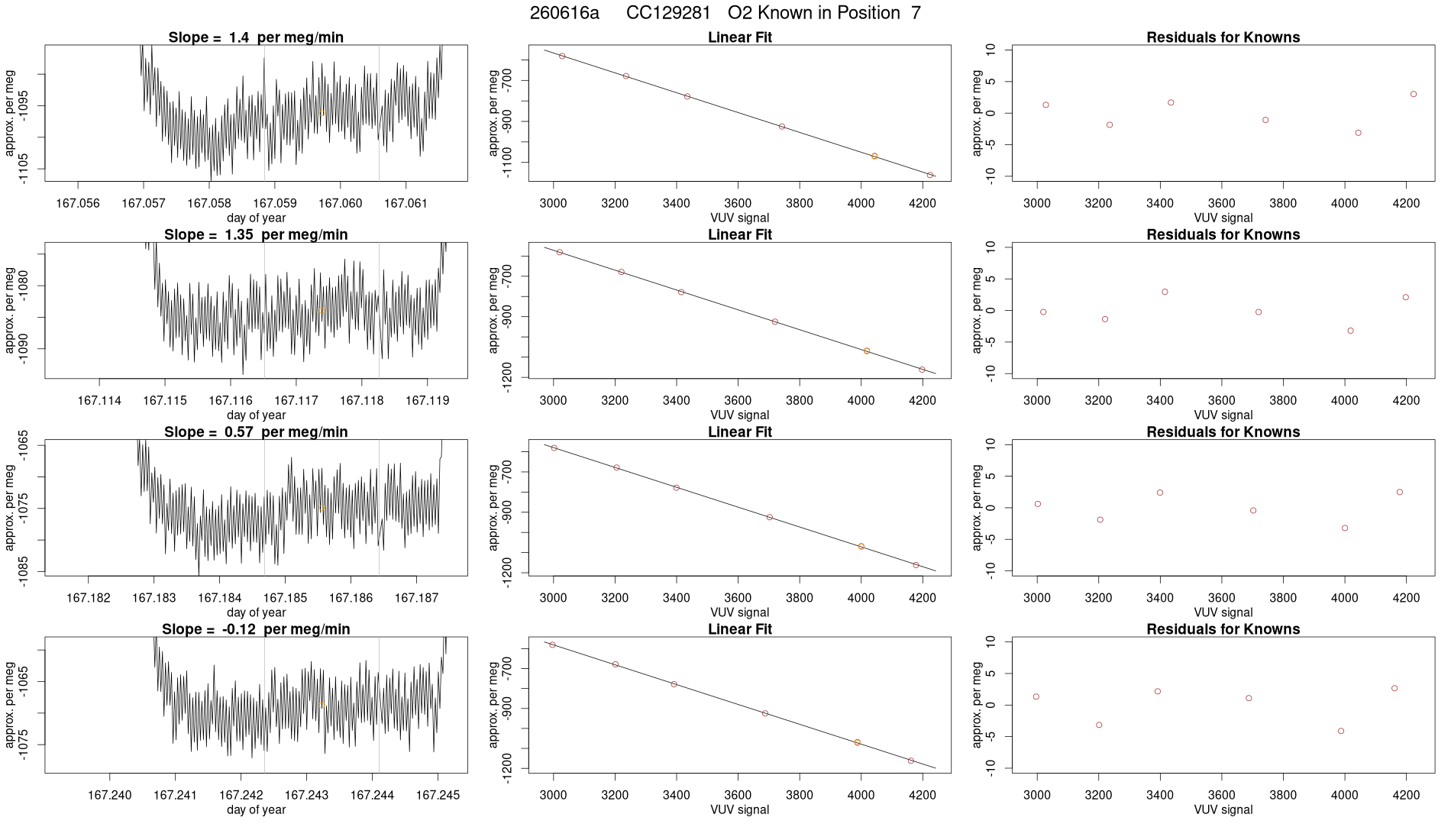

7 CC129281 467.909 0.279 0.014 466.871 0.007 0.013 6 -966.88 -3.84 0.54 6    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

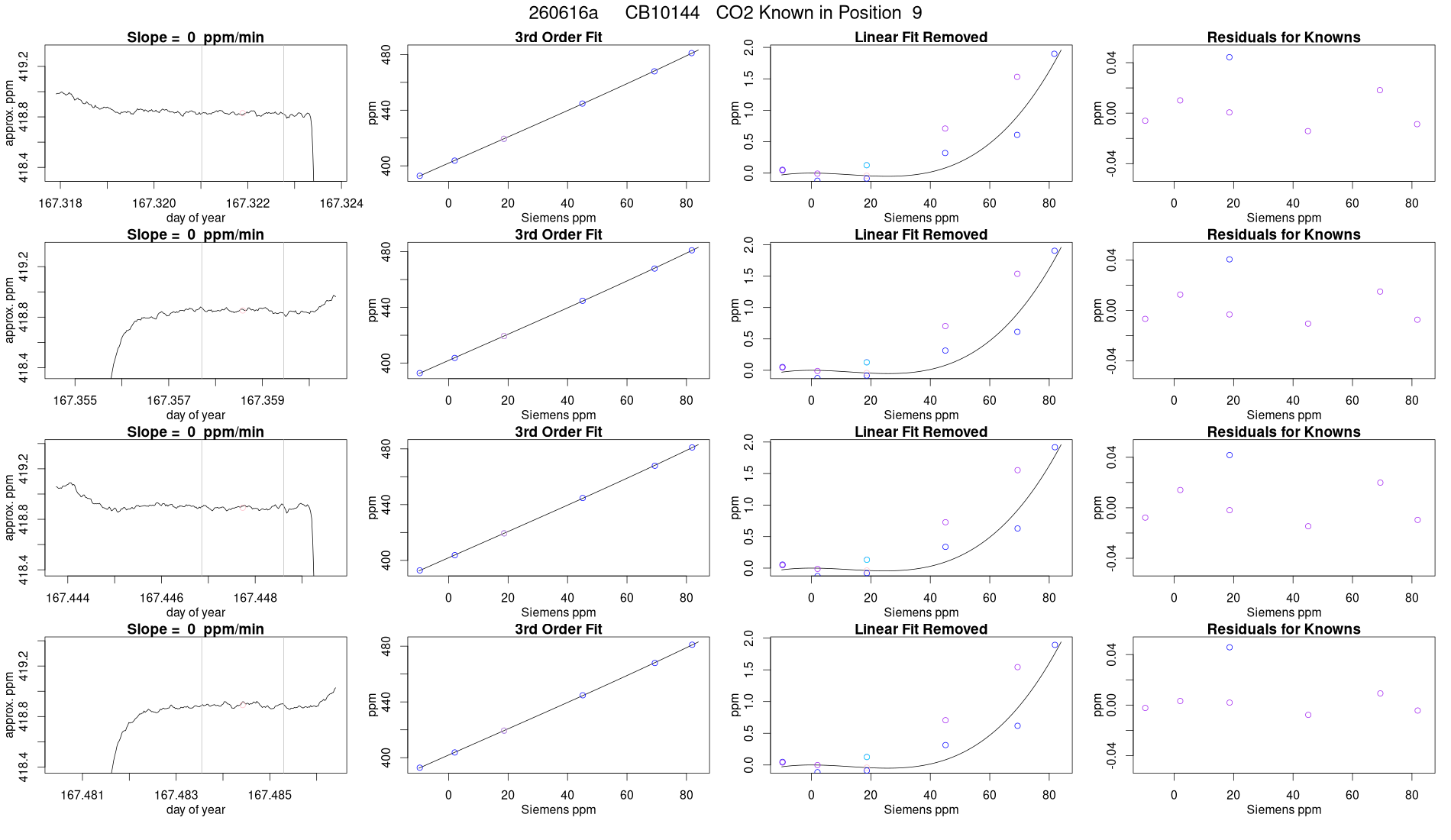

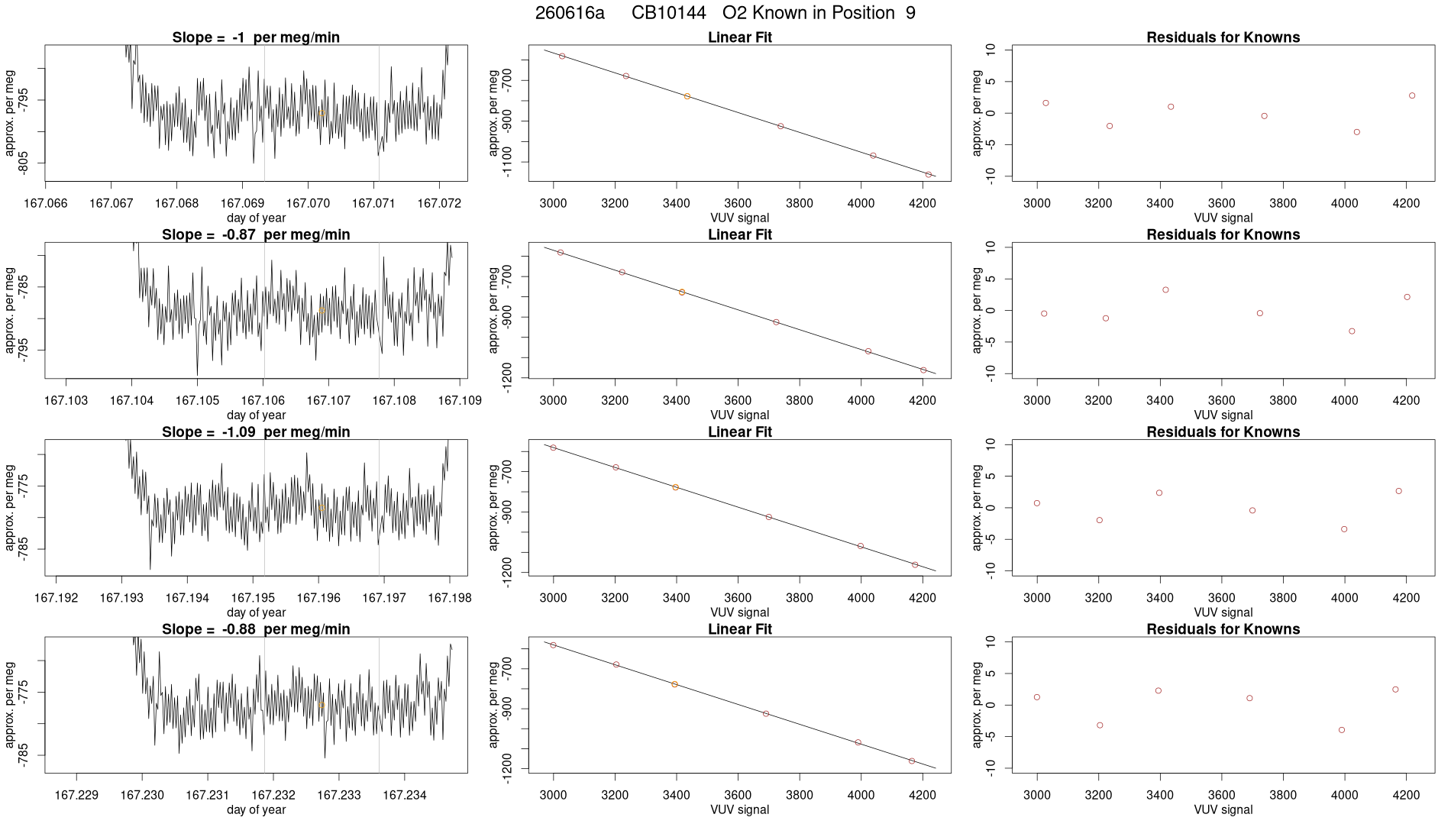

9 CB10144 419.419 0.039 0.007 419.000 -0.005 0.007 6 -723.82 2.21 0.38 6    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2
10 CB10260 403.742 0.120 0.004 403.659 0.010 0.004 6 -639.01 -2.43 0.46 6    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

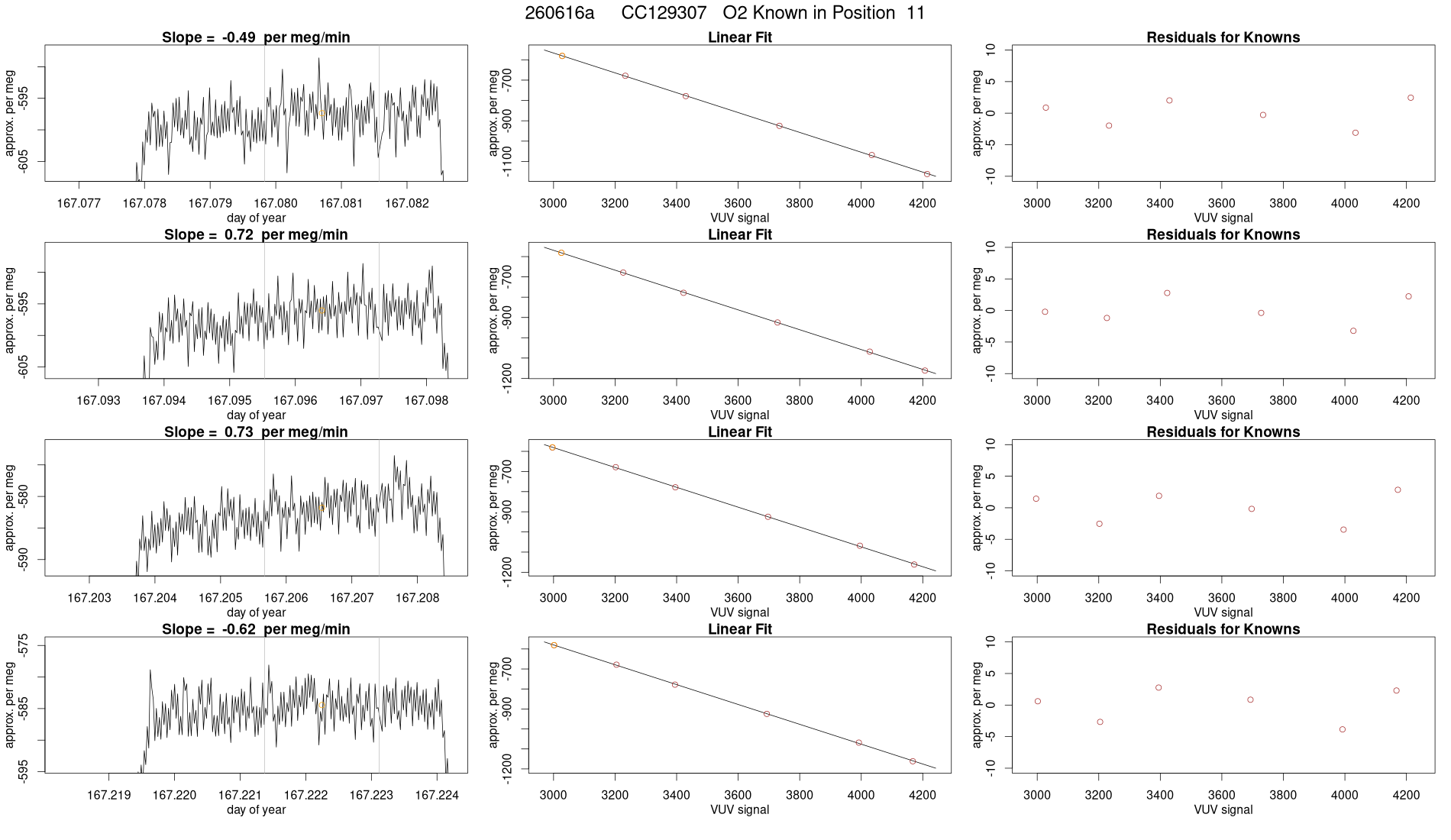

11 CC129307 392.818 -0.078 0.002 392.922 -0.005 0.002 6 -552.18 1.40 0.47 6    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

Measured Cylinders and Calculated Concentrations

(Position, Cylinder ID, Plots)
(Day of Year and Day Fraction, SIO CO2 in ppm, d(O2/N2) in per meg, GMD CO2 in ppm, Plots)

1 CC498889    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
167.028 418.813 -710.87 418.357
167.149 418.571 -699.29 418.118
167.154 418.554 -699.76 418.101
167.275 418.578 -697.05 418.125
167.280 418.581 -696.67 418.127
167.401 418.594 -701.70 418.141
167.406 418.579 -701.34 418.126
167.526 418.581 -702.56 418.128

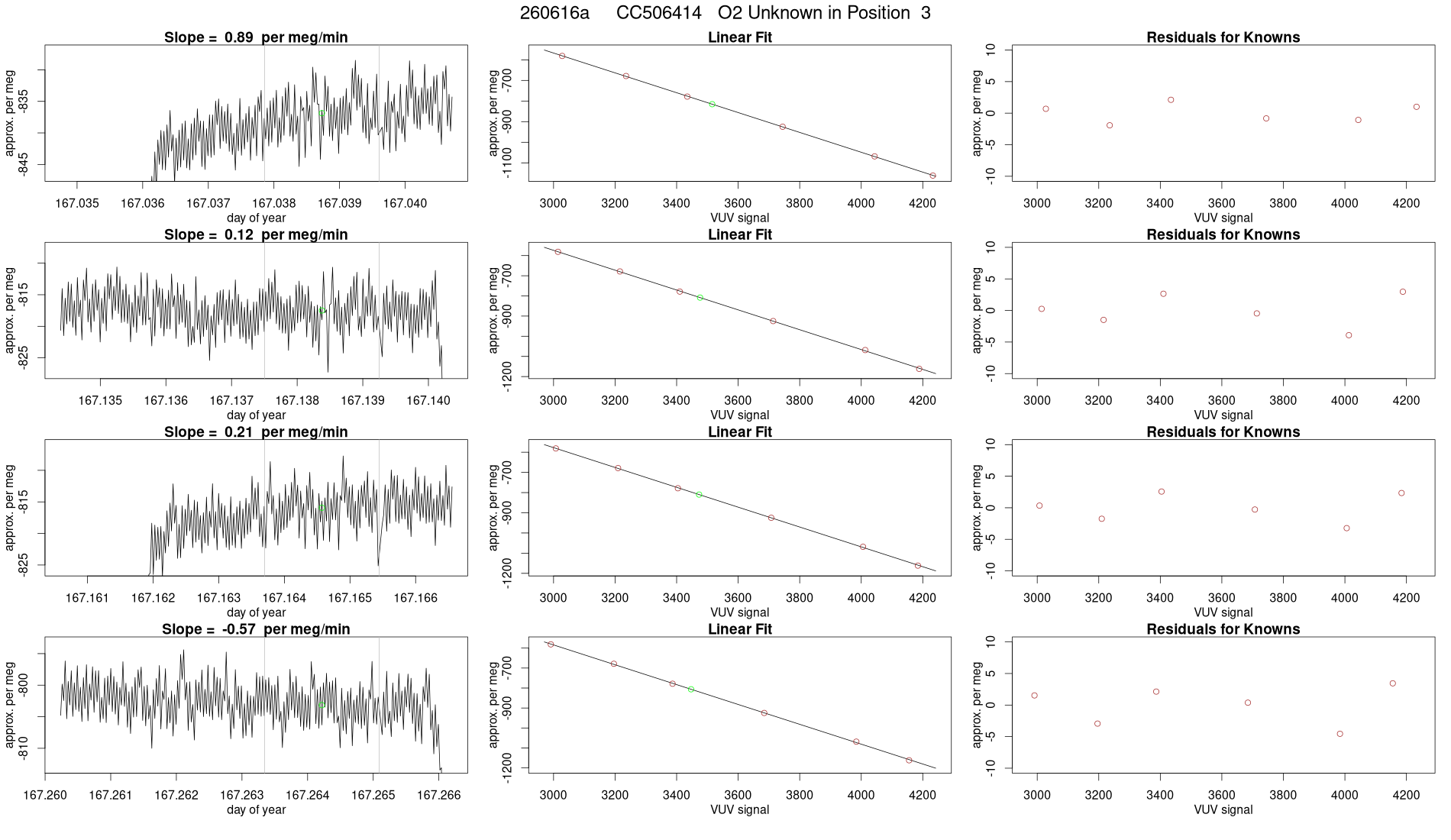

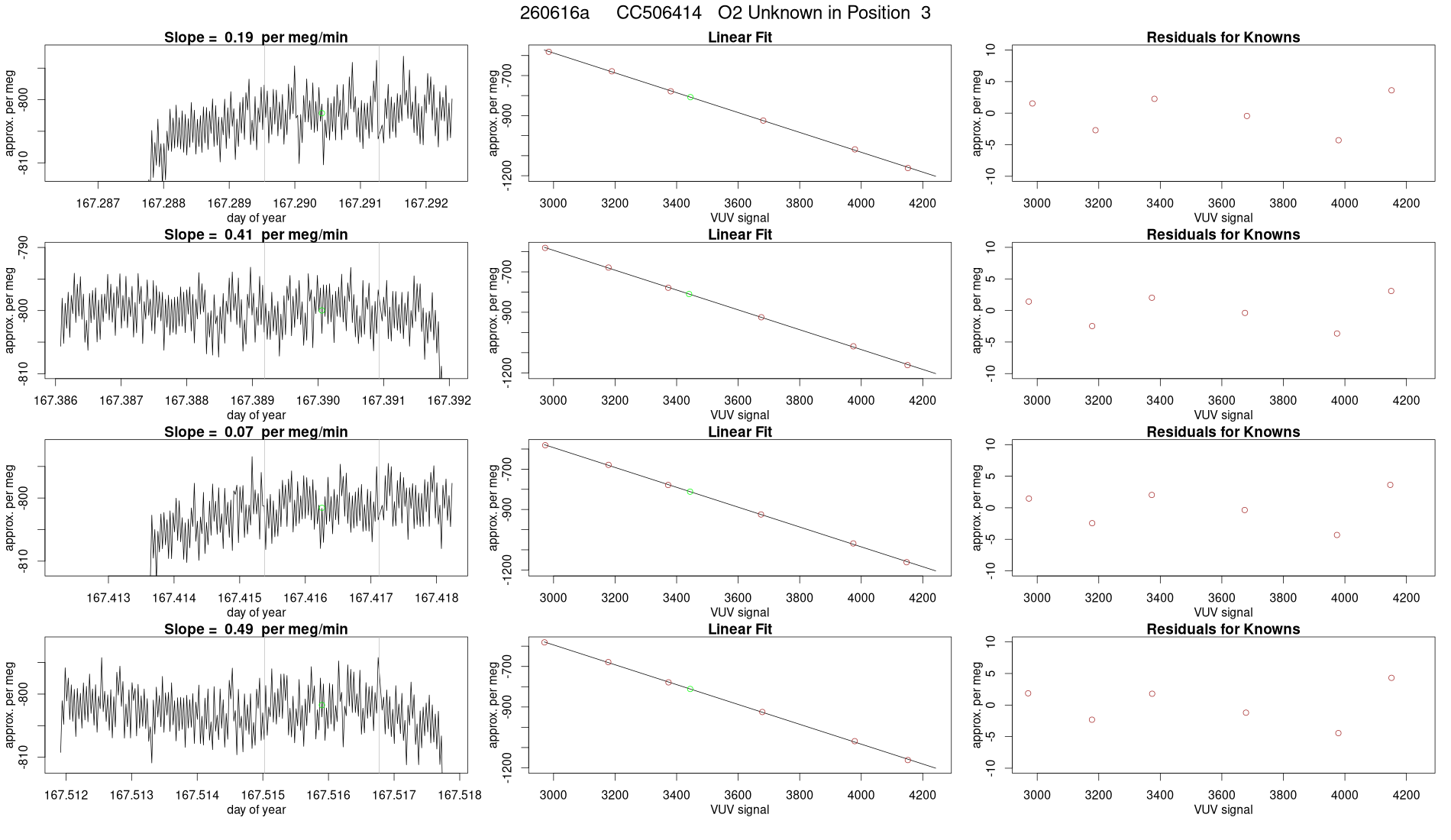

3 CC506414    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
167.039 405.505 -774.17 405.273
167.138 405.405 -767.19 405.175
167.165 405.445 -768.65 405.213
167.264 405.425 -765.13 405.193
167.290 405.457 -766.76 405.225
167.390 405.428 -768.68 405.197
167.416 405.454 -770.44 405.223
167.516 405.426 -770.10 405.195

4 CC498779    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
167.044 403.916 -773.97 403.722
167.133 403.872 -769.22 403.679
167.170 403.873 -769.18 403.679
167.259 403.882 -765.92 403.688
167.296 403.874 -768.29 403.680
167.385 403.891 -769.30 403.698
167.422 403.881 -770.61 403.687
167.511 403.877 -772.28 403.683

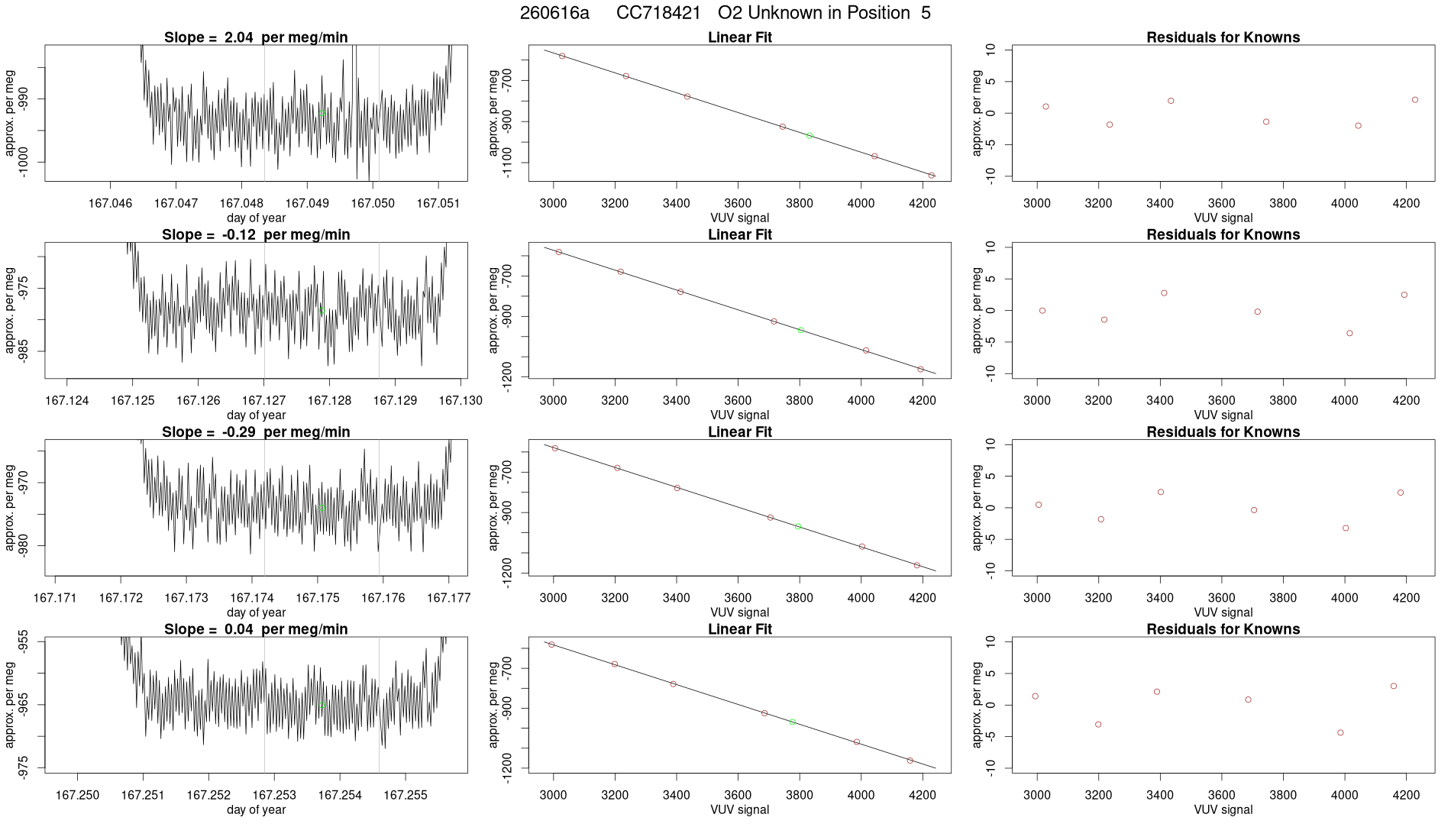

5 CC718421    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
167.049 417.496 -915.57 417.056
167.128 417.419 -915.36 416.980
167.175 417.402 -916.64 416.963
167.254 417.432 -916.19 416.993
167.301 417.414 -917.59 416.975
167.380 417.433 -918.63 416.994
167.427 417.423 -919.37 416.984
167.505 417.430 -918.49 416.990

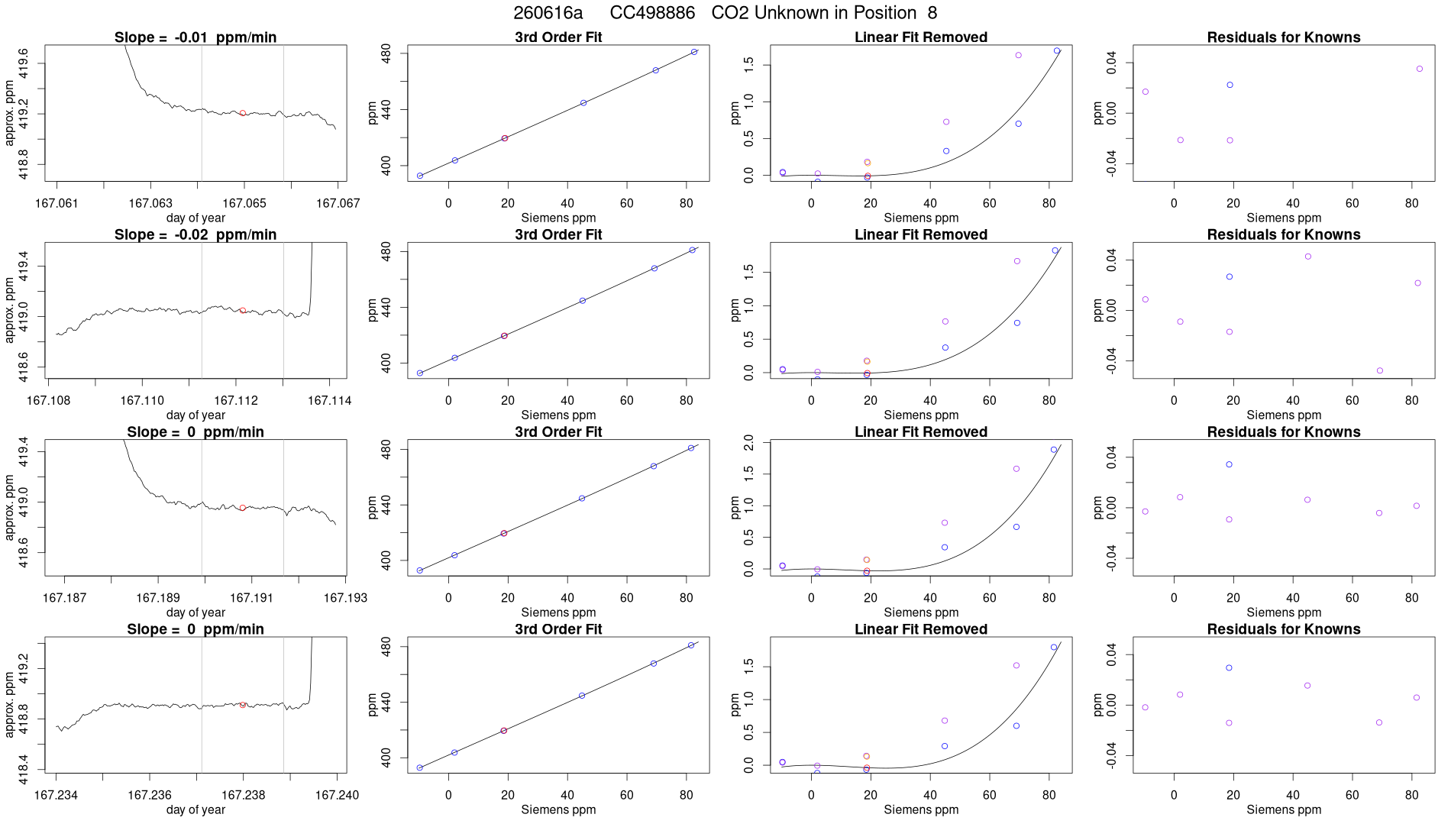

8 CC498886    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
167.065 419.651 -672.92 419.185
167.112 419.638 -669.51 419.172
167.191 419.656 -671.06 419.191
167.238 419.635 -671.33 419.170
167.317 419.663 -671.52 419.197
167.364 419.639 -672.18 419.173
167.442 419.657 -673.14 419.192
167.490 419.643 -674.51 419.178

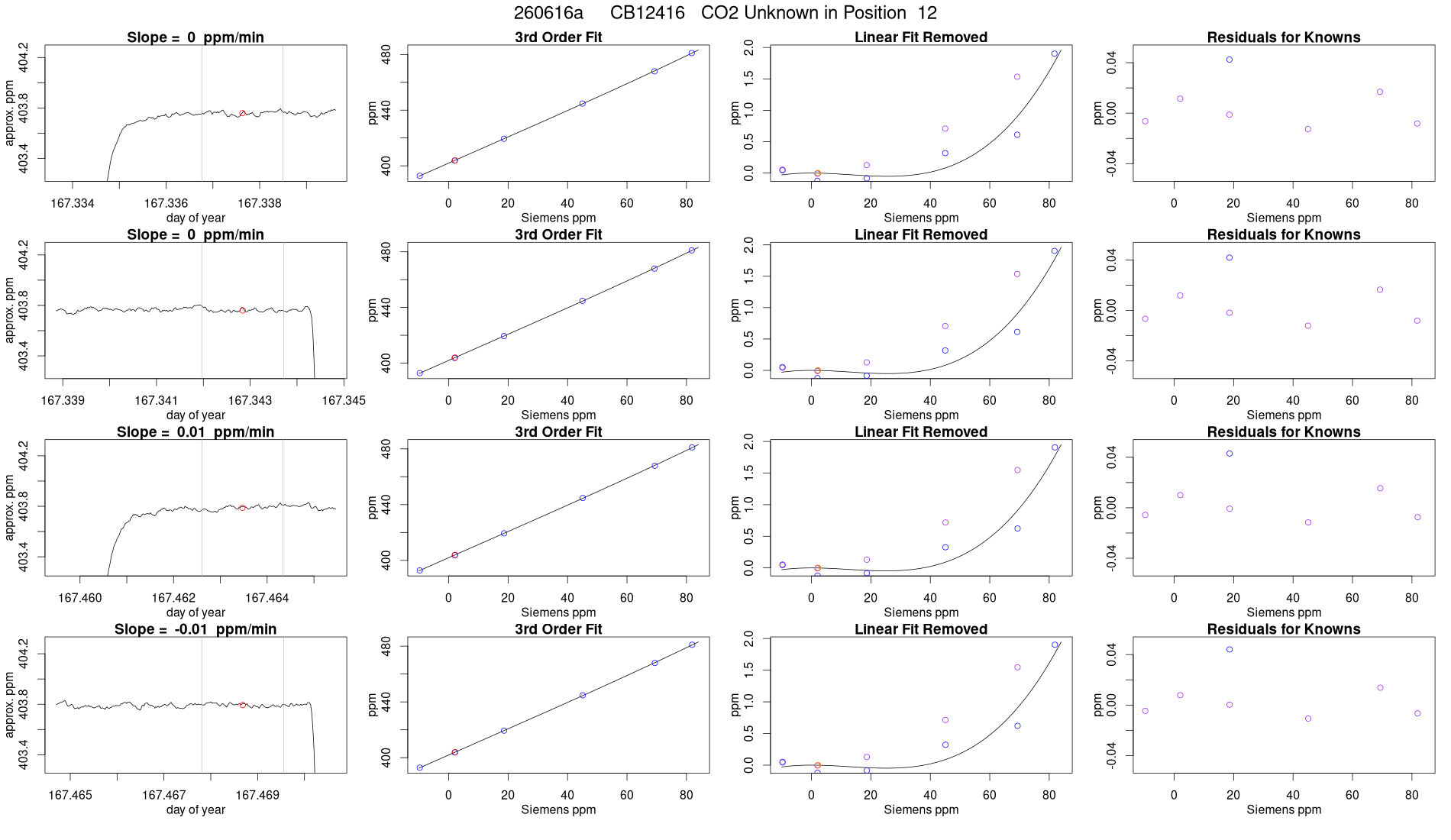

12 CB12416    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
167.086 403.957 -765.34 403.762
167.091 403.965 -766.99 403.769
167.212 403.967 -767.09 403.771
167.217 403.991 -767.57 403.794
167.338 403.981 -768.53 403.785
167.343 403.980 -769.67 403.784
167.463 403.980 -767.32 403.784
167.469 403.987 -768.74 403.791
