NCAR O2 CO2 CALIBRATION FACILITY RESULTS
RUN = 260611a
PROCESSED Fri Jun 12 06:17:51 PM MDT 2026

Notes
Logfile

Results

Using data from 163.081 to 163.457 (Day of Year and Day Fraction)
(Position, CylinderID, SIO_CO2, SIO_CO2_sigma, SIO_CO2_slope, GMD_CO2, GMD_CO2_sigma, GMD_CO2_slope, CO2_n, d(O2/N2), d(O2/N2)_sigma, d(O2/N2)_slope, d(O2/N2)_n)

1 CC498889 418.565 0.015 0.087 418.112 0.015 0.086 6 -702.51 4.05 -19.11 6
3 CC506414 405.423 0.017 0.029 405.192 0.016 0.029 6 -770.09 2.07 -10.16 6
4 CC498779 403.875 0.011 0.056 403.681 0.011 0.055 6 -770.33 2.09 -9.88 6
5 CC718421 417.423 0.014 0.043 416.984 0.014 0.043 6 -918.05 1.31 -6.22 6
8 CC498886 419.640 0.009 0.002 419.175 0.009 0.003 6 -673.71 1.56 -1.30 6
12 CB12416 403.982 0.012 0.018 403.786 0.011 0.017 6 -767.98 1.17 -5.49 6
WT ND12480 402.070 0.010 -0.068 401.925 0.010 -0.066 72 918.25 10.85 -72.09 72
Text File

Raw Data and Diagnostics Figures

CO2 Timeseries

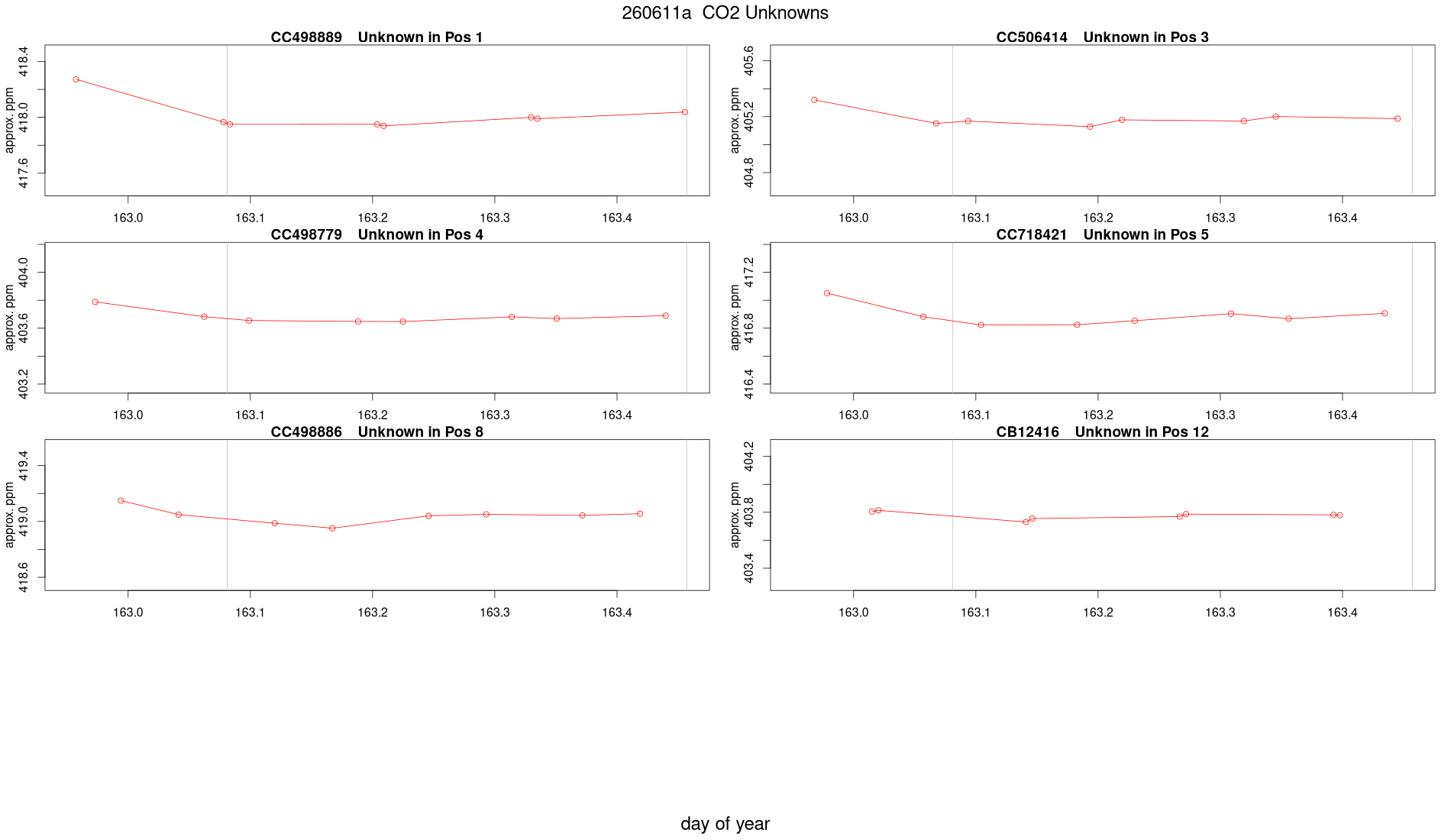

 CO2 Averages for Unknowns
 CO2 Averages for Knowns

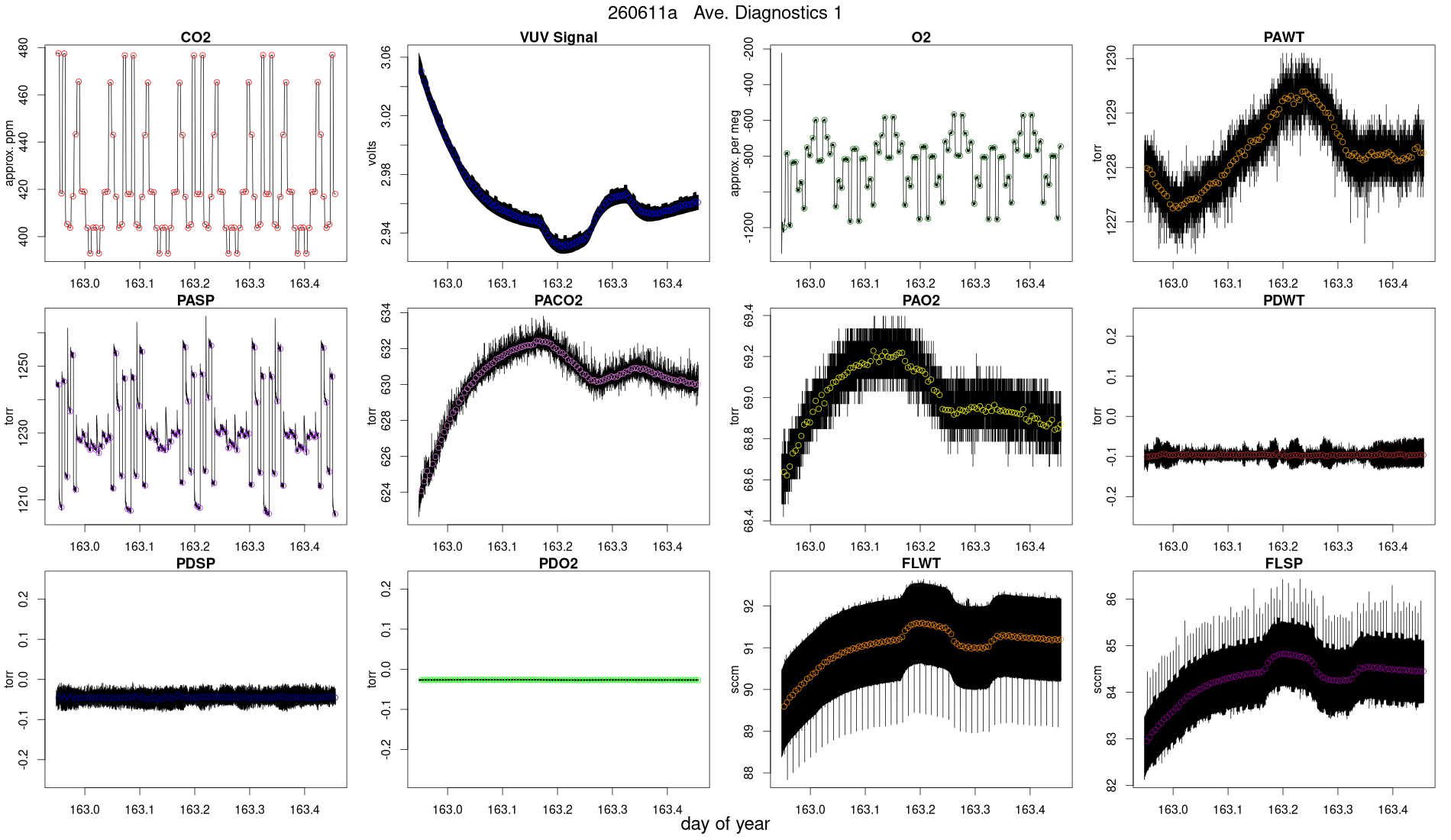

Jog Ave. Diagnostics 1
 Jog Ave. Diagnostics 2
 Jog Std. Dev. Diagnostics
Jog Slope Diagnostics

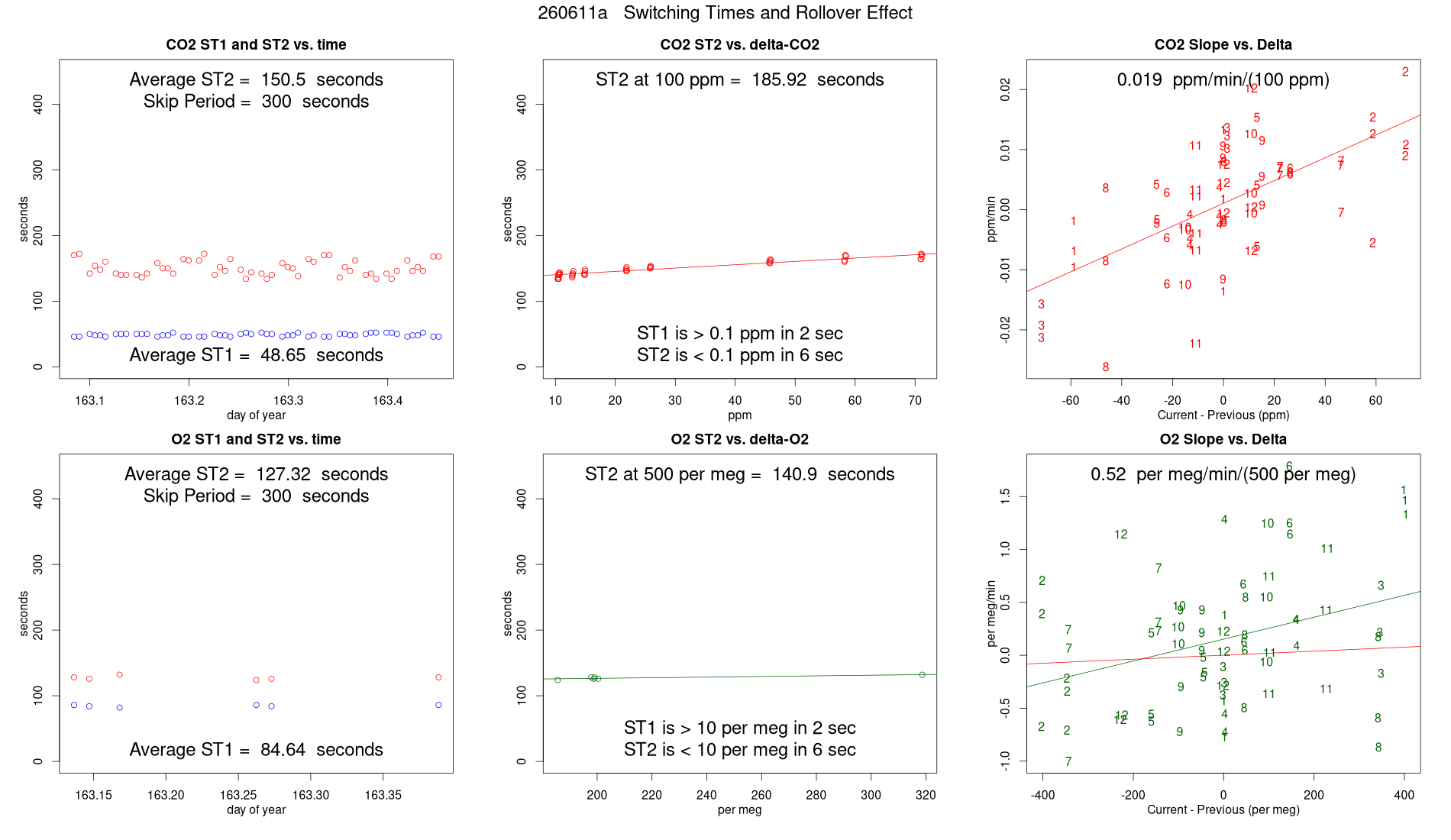

 Rollover Effect

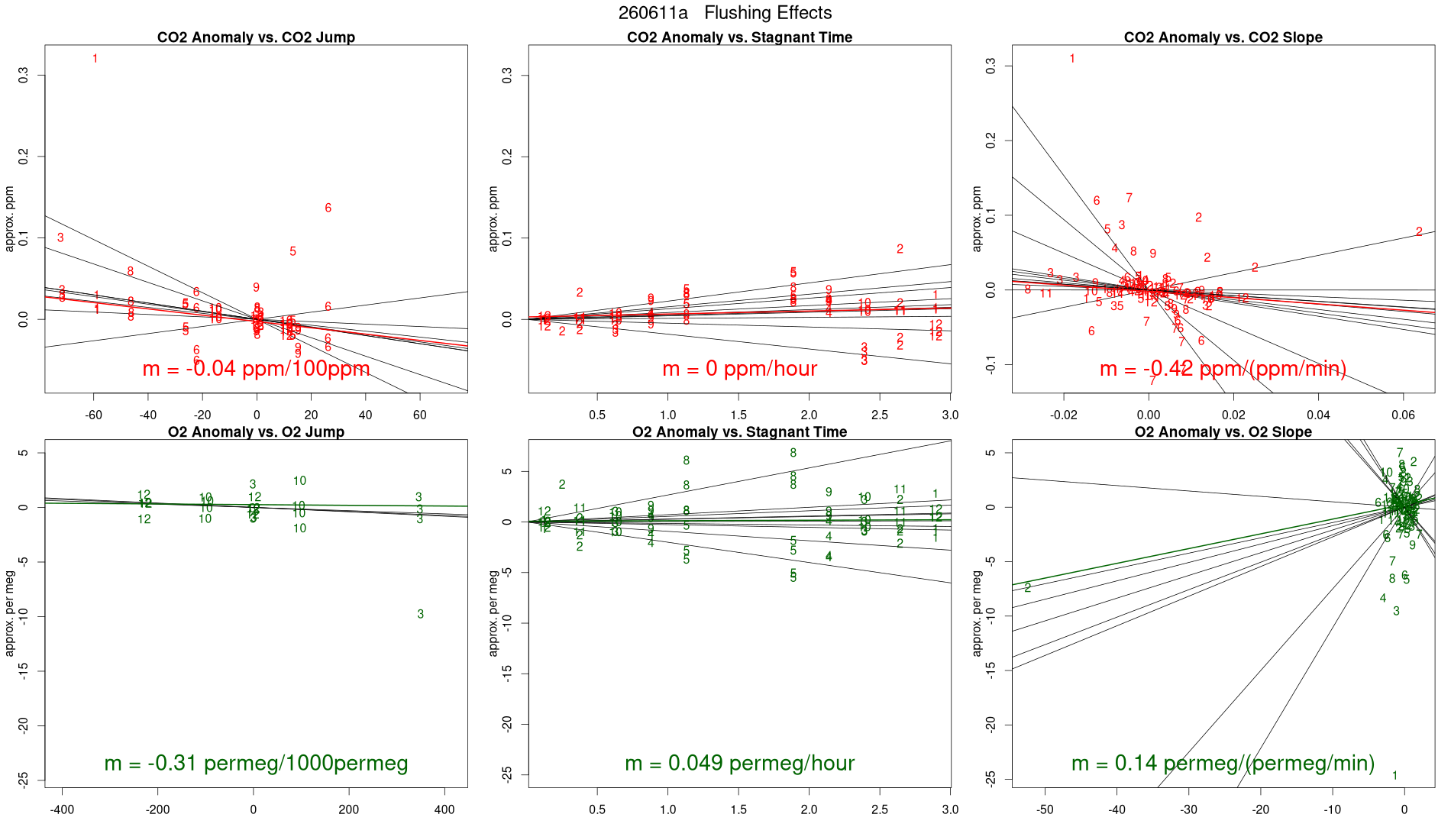

 Flushing Effect

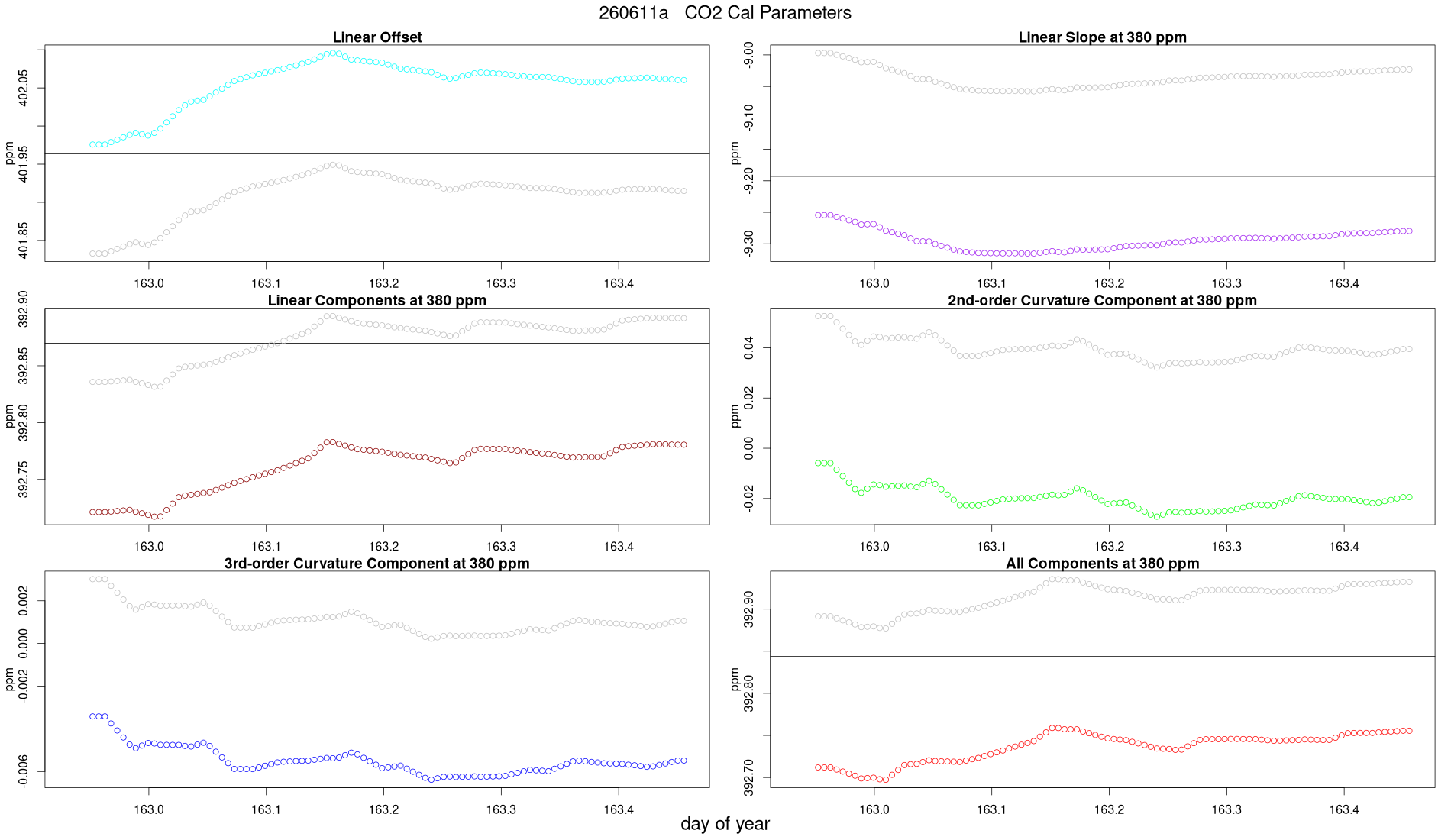

CO2 Parameters

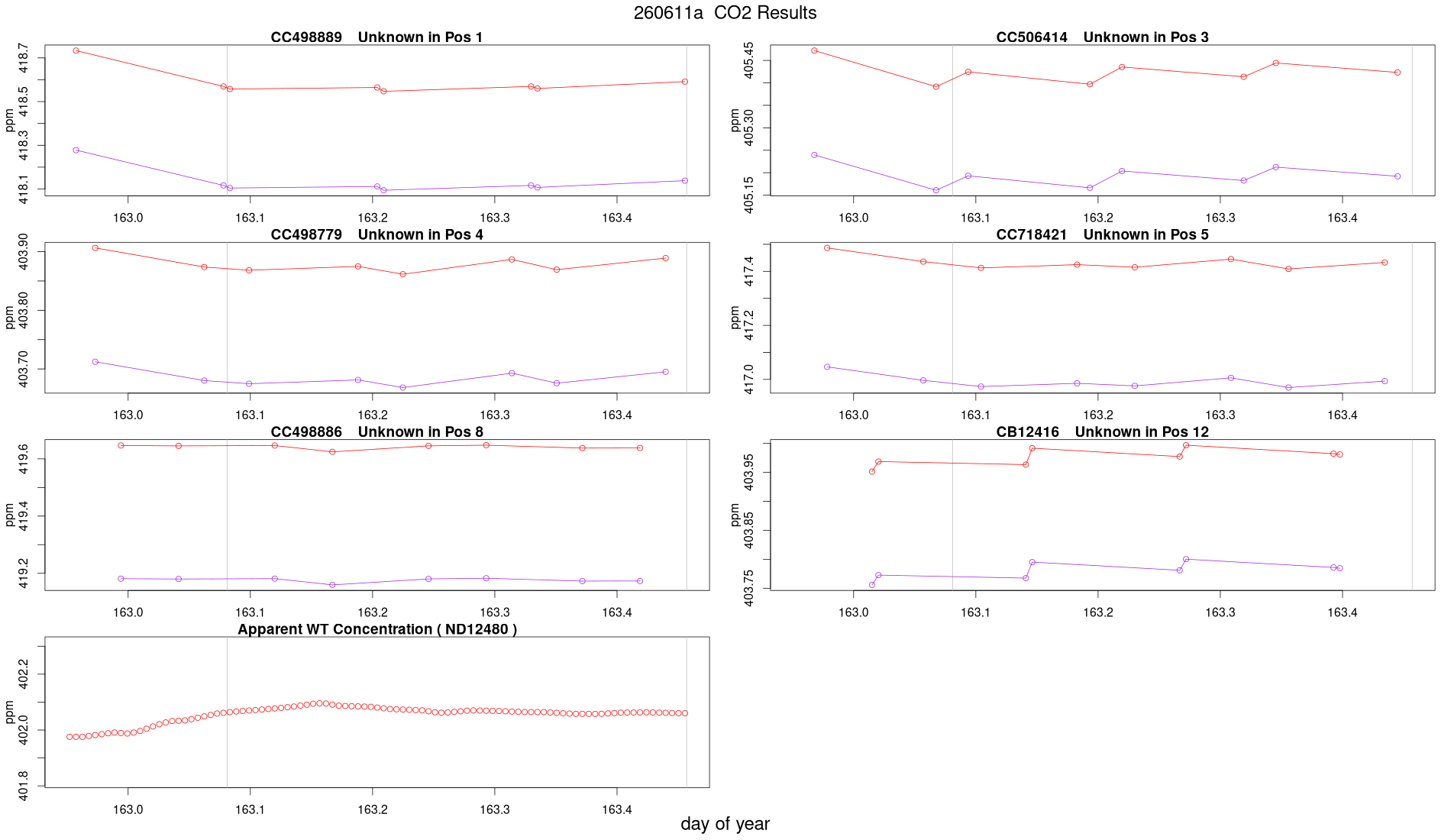

 CO2 Results
 O2 Timeseries

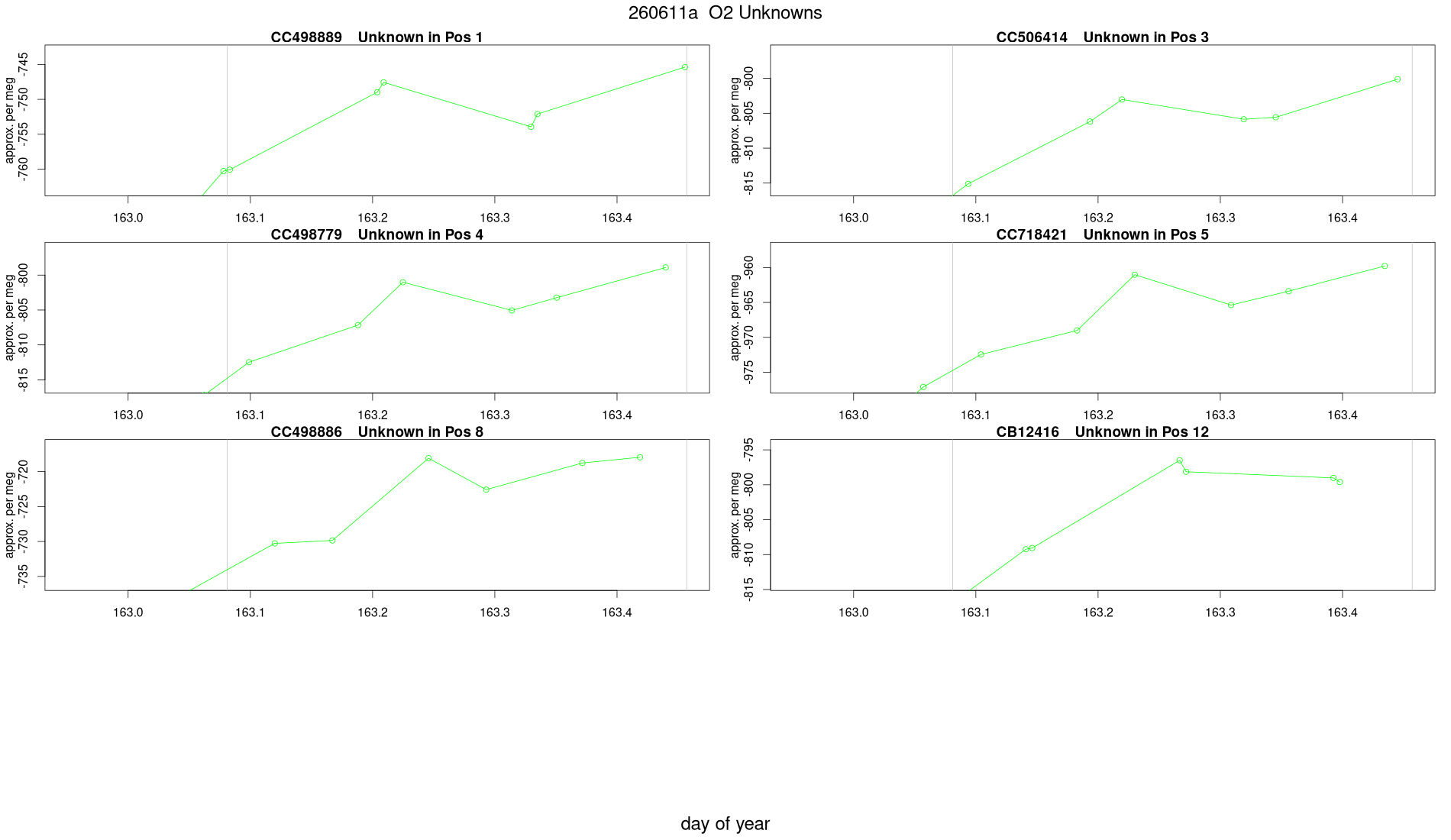

O2 Averages for Unknowns

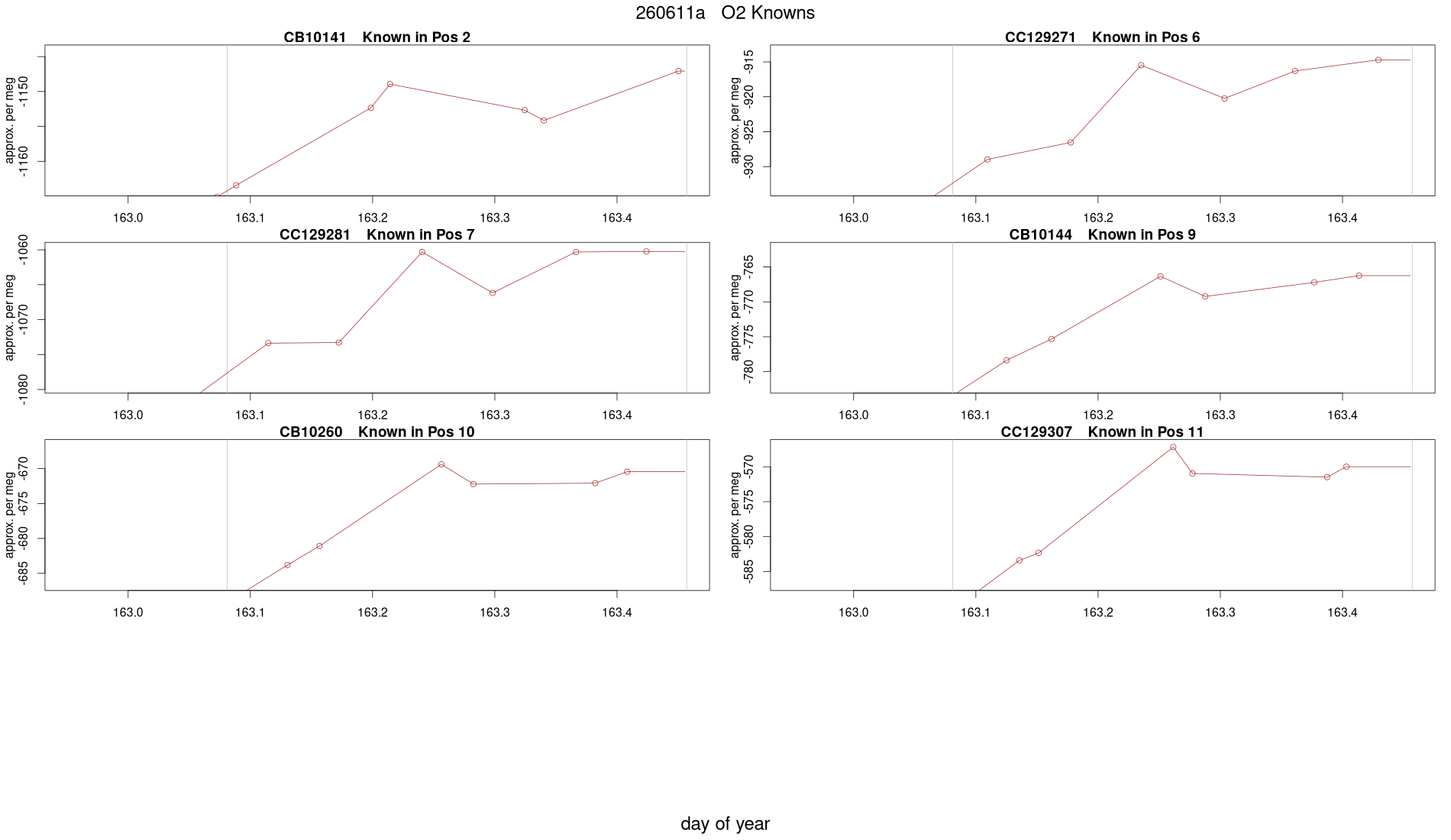

 O2 Averages for Knowns
 O2 Parameters
O2 Results

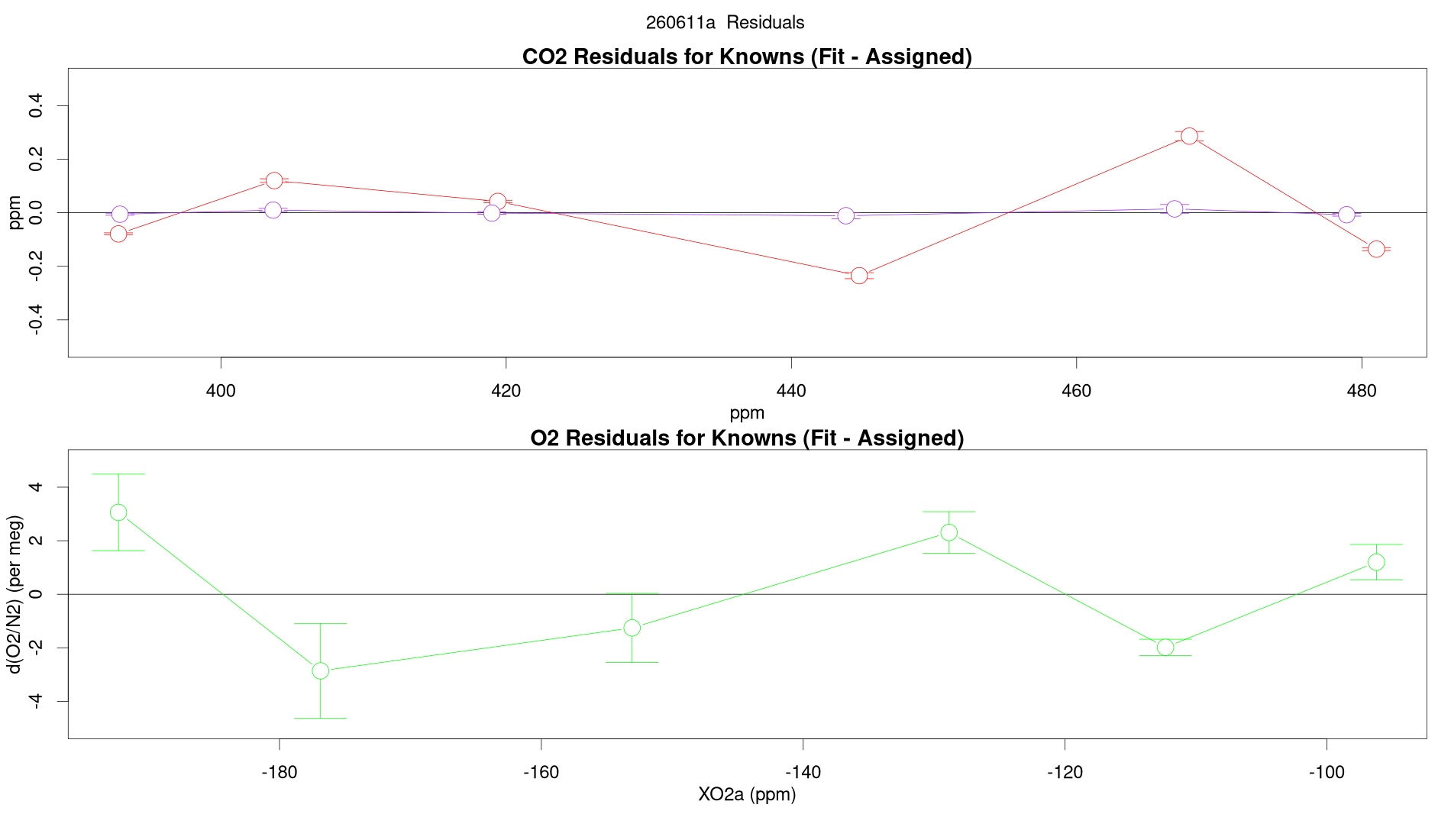

Residuals
 SP/WT Slopes

Reference Cylinders, Assigned Concentrations, and Calculated Offsets from Fit

(Position, Cylinder ID, SIO CO2 in ppm, SIO Delta-CO2, SIO CO2 sigma, GMD CO2 in ppm, GMD Delta-CO2, GMD CO2 sigma, CO2 n, d(O2/N2) in per meg, Delta-d(O2/N2), d(O2/N2) sigma, d(O2/N2) n, Plots)

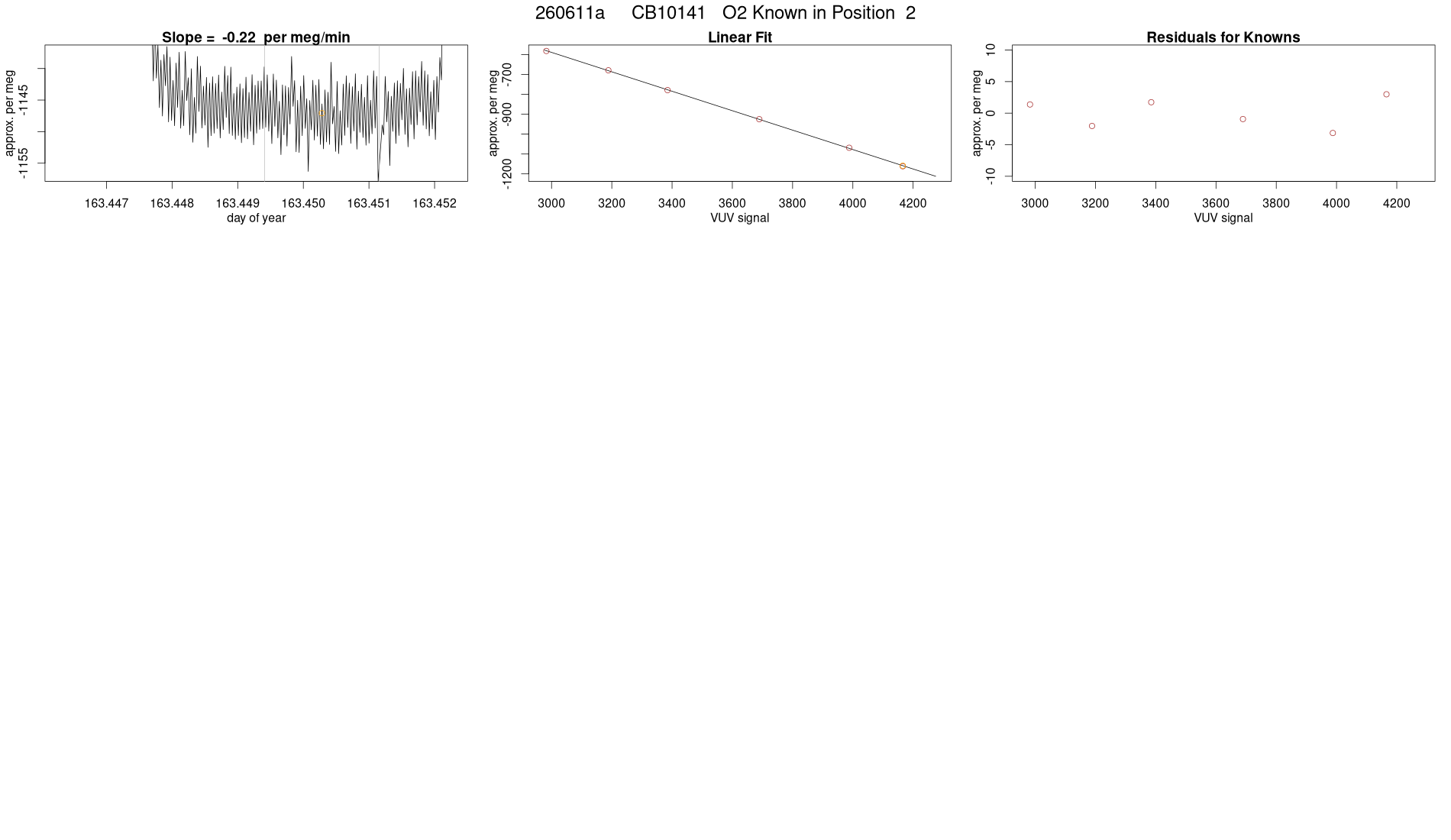

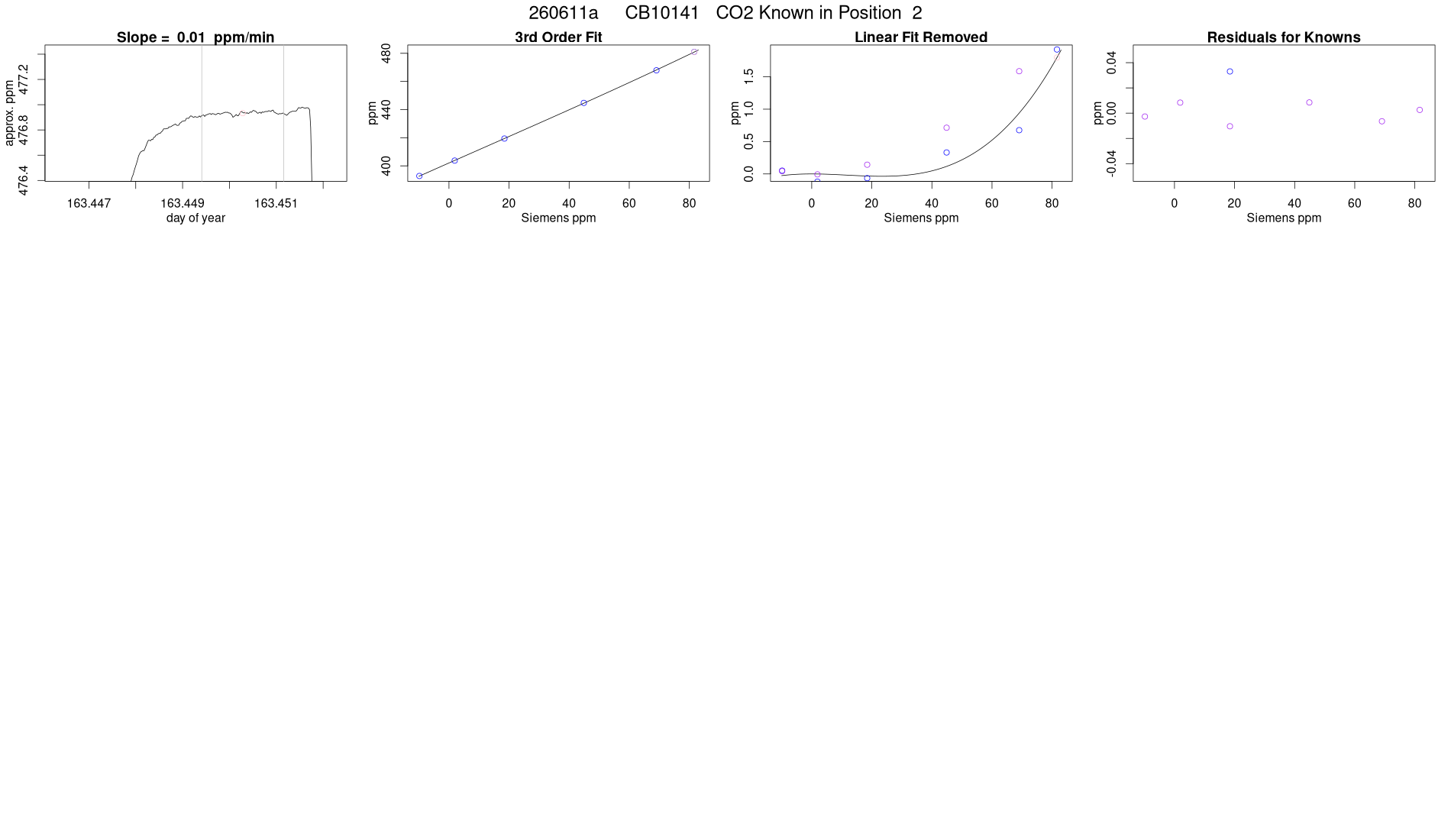

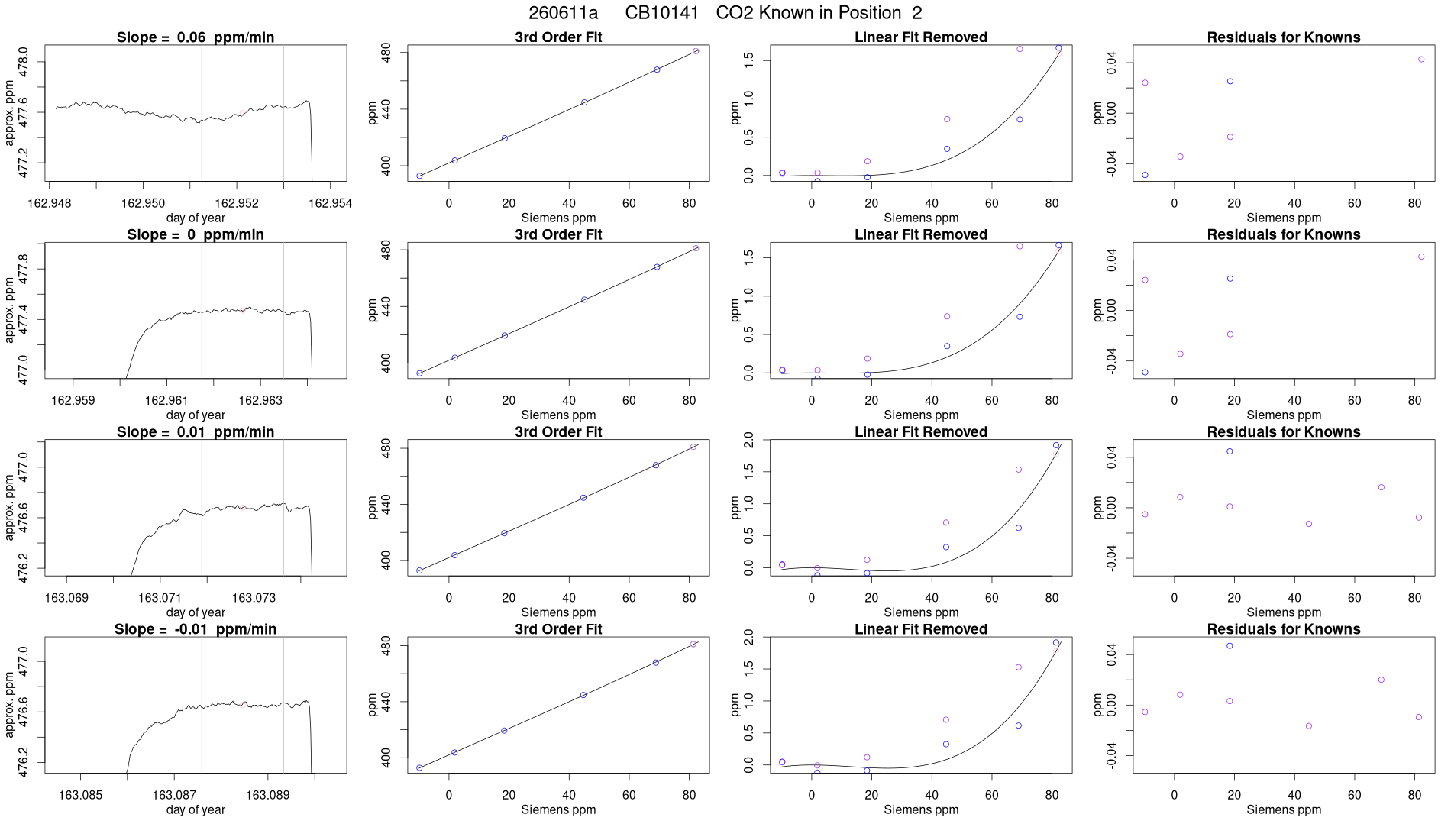

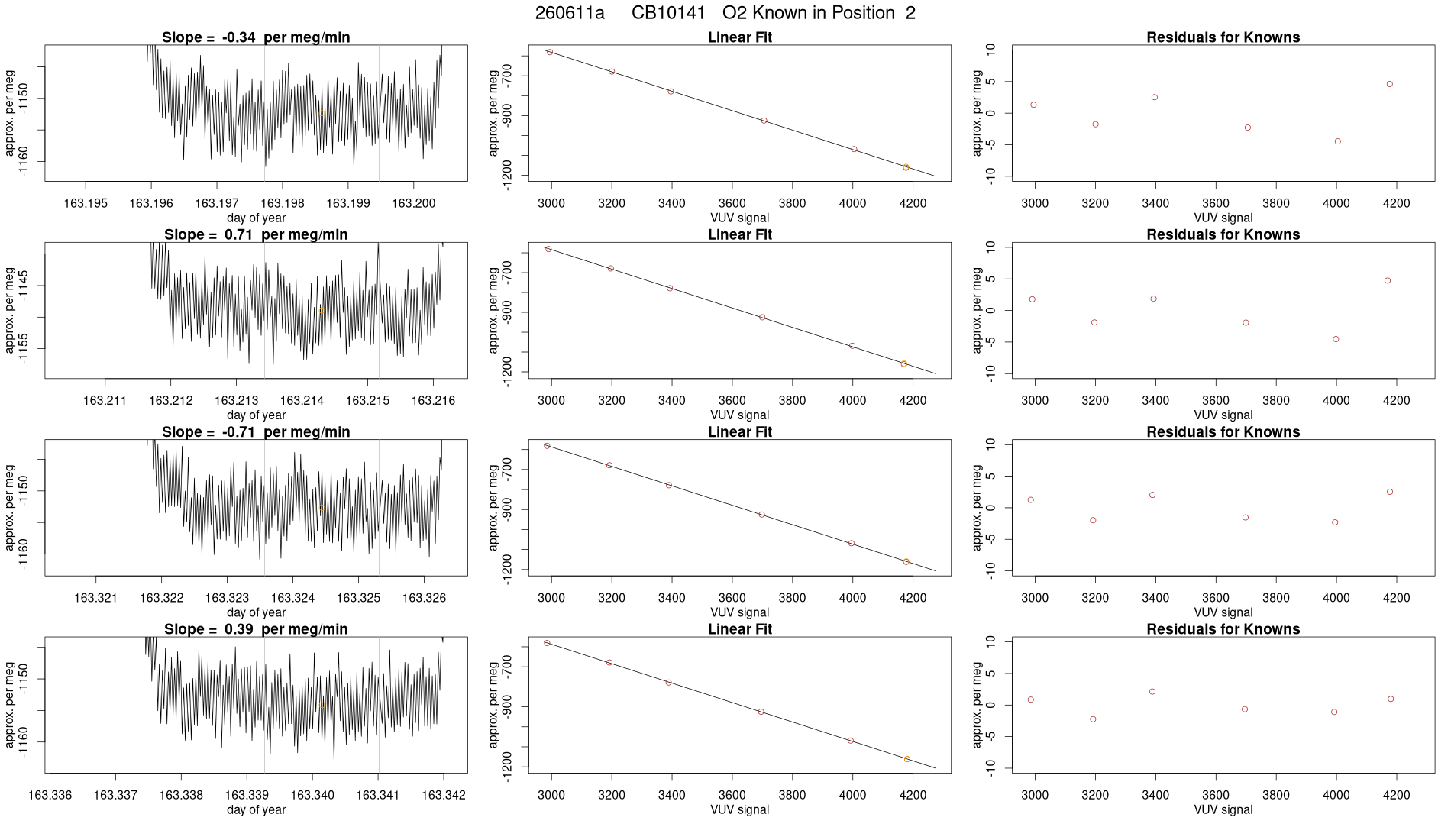

2 CB10141 481.024 -0.136 0.006 478.936 -0.007 0.005 6 -1048.28 3.06 1.43 6    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3

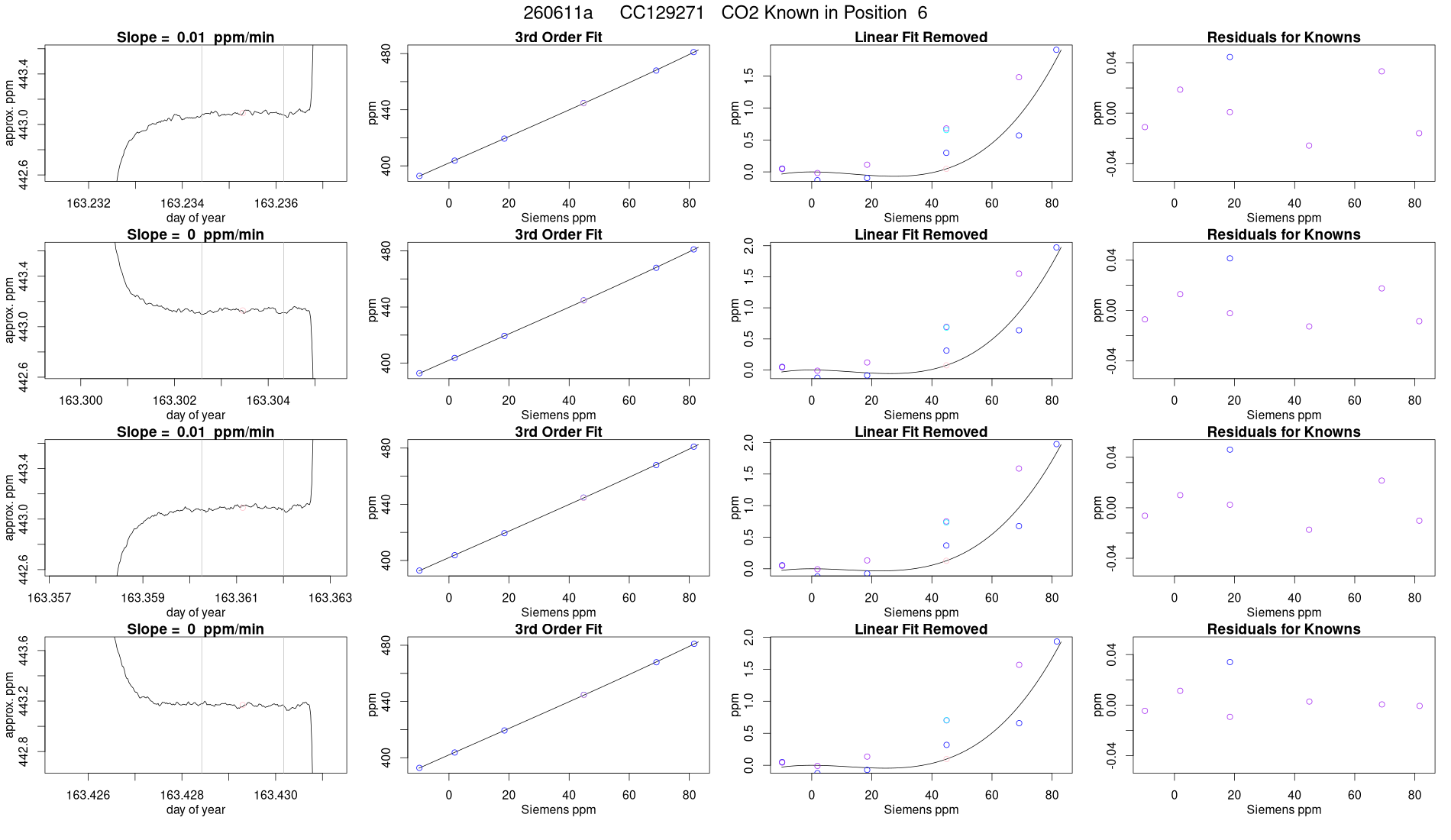

6 CC129271 444.760 -0.235 0.011 443.824 -0.011 0.011 6 -845.72 -1.25 1.29 6    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

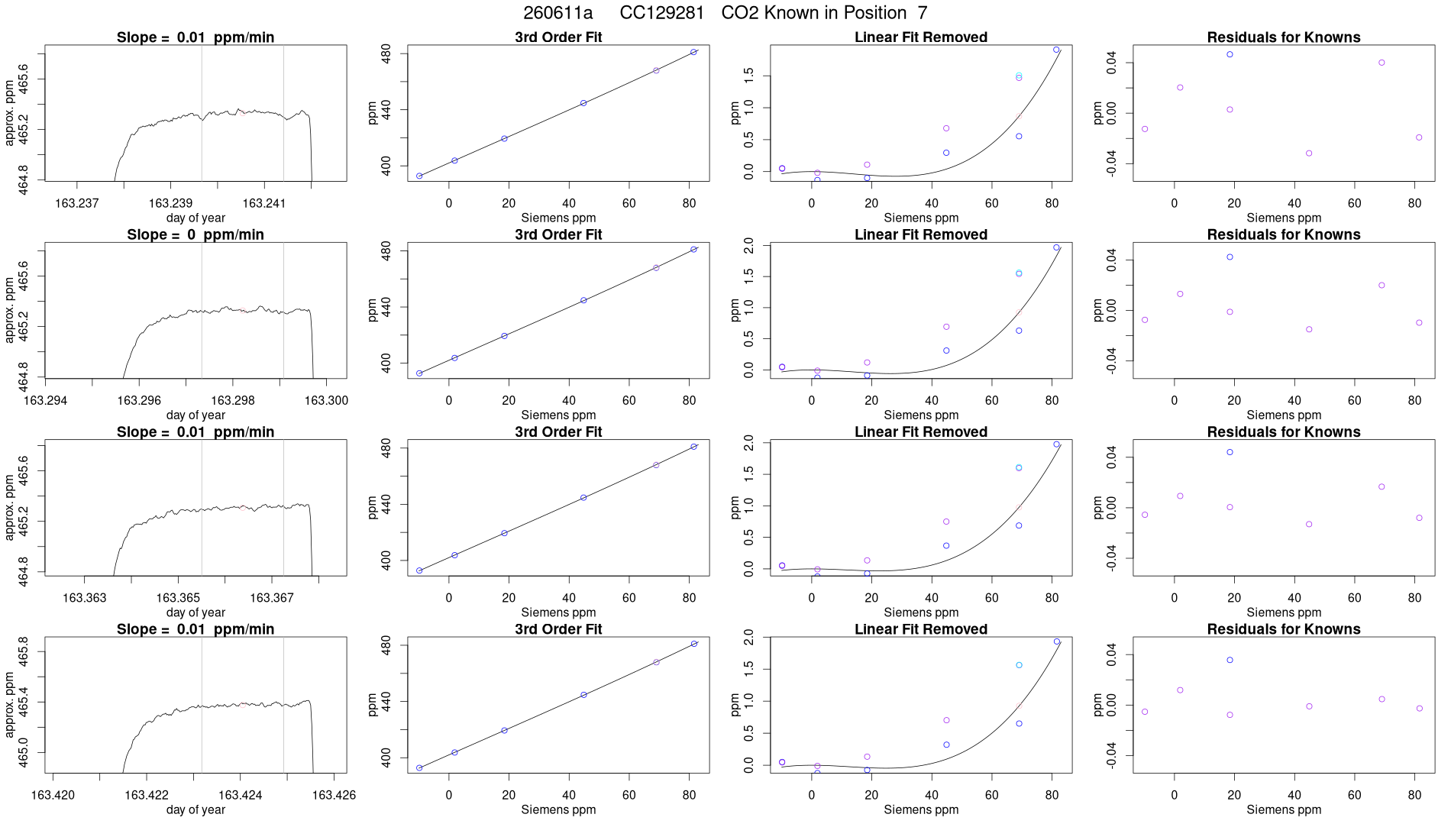

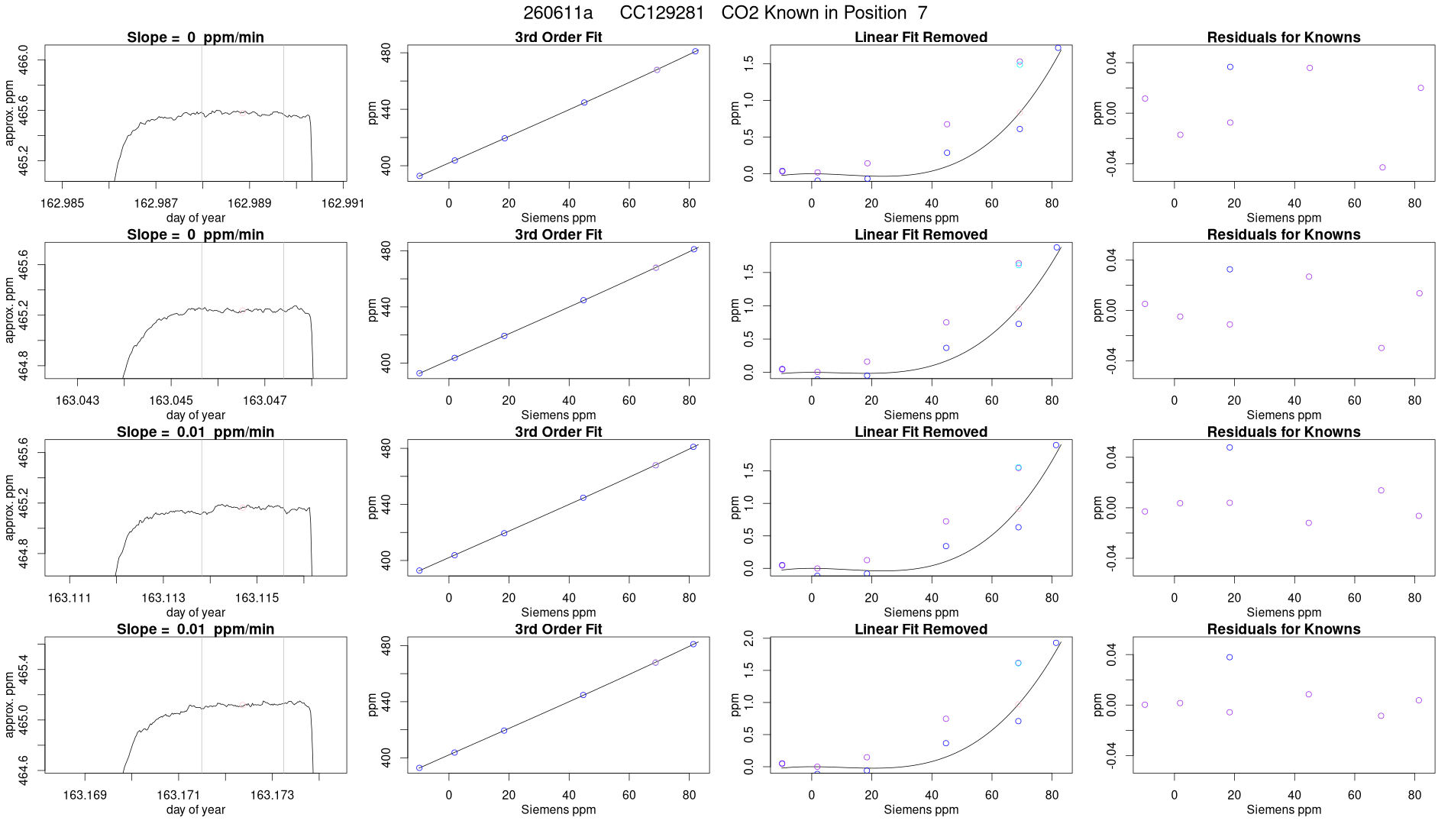

7 CC129281 467.909 0.286 0.017 466.871 0.014 0.016 6 -966.88 -2.86 1.77 6    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

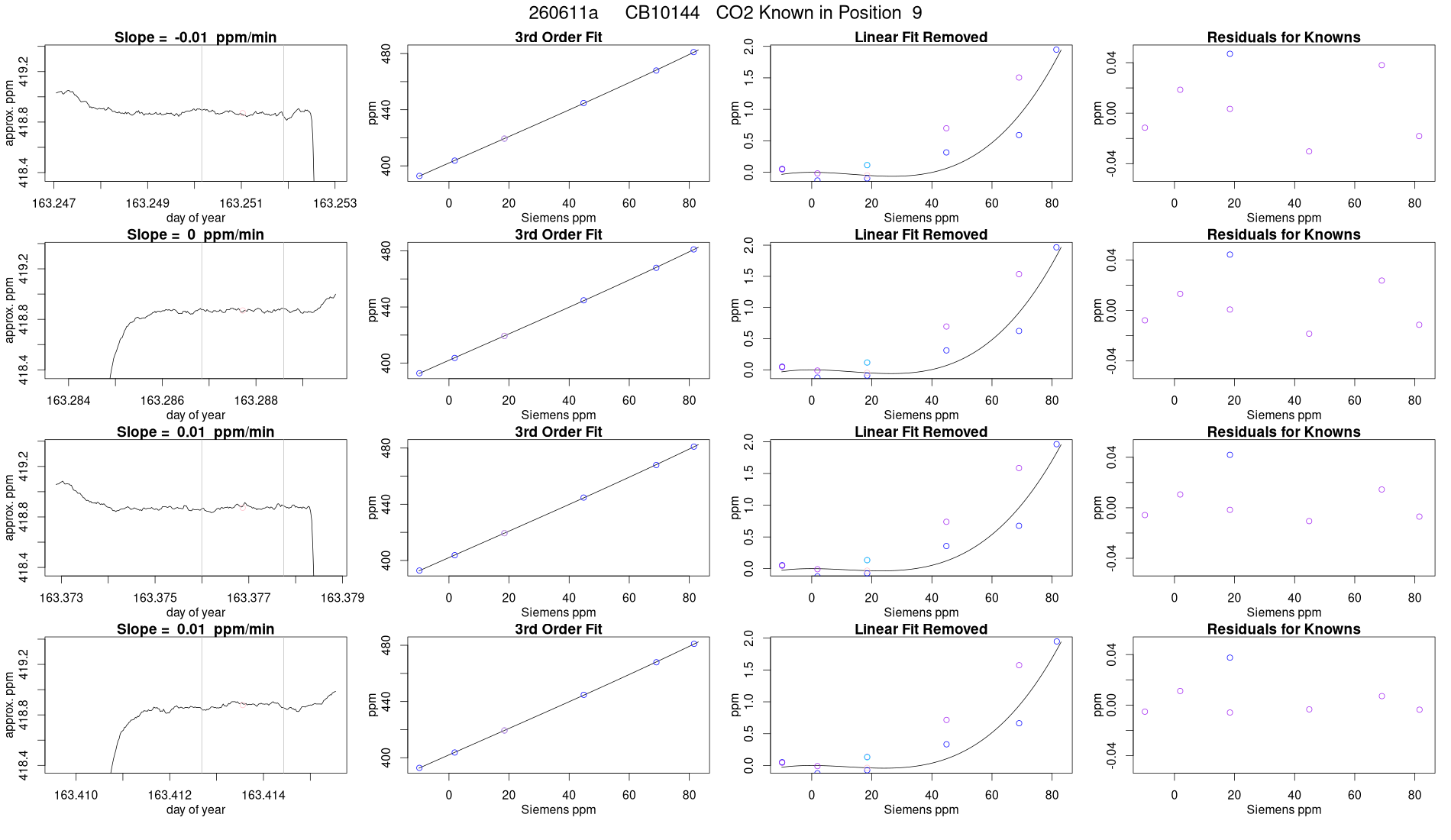

9 CB10144 419.419 0.042 0.004 419.000 -0.001 0.004 6 -723.82 2.31 0.78 6    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

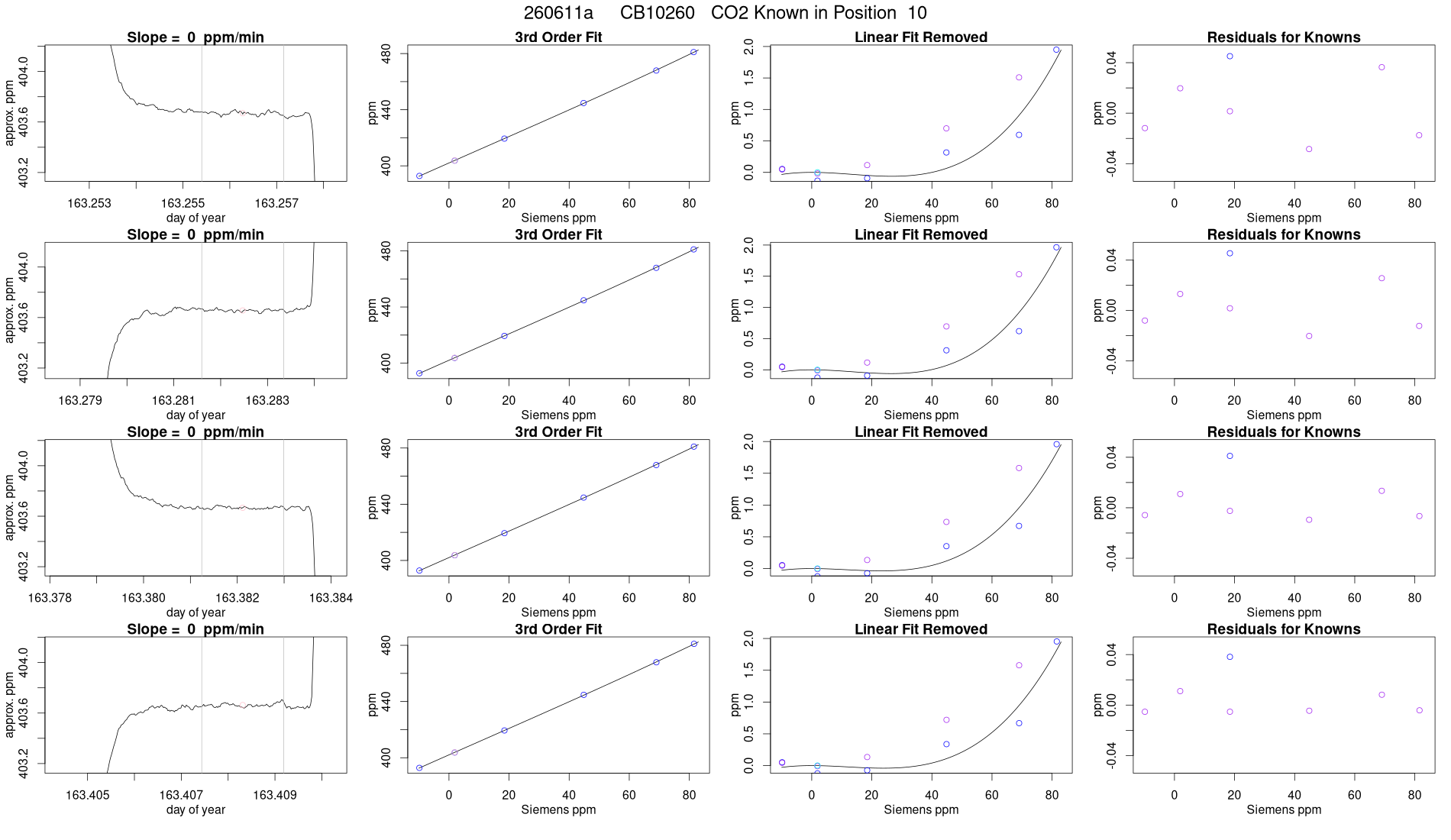

10 CB10260 403.742 0.120 0.007 403.659 0.010 0.007 6 -639.01 -1.98 0.30 6    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

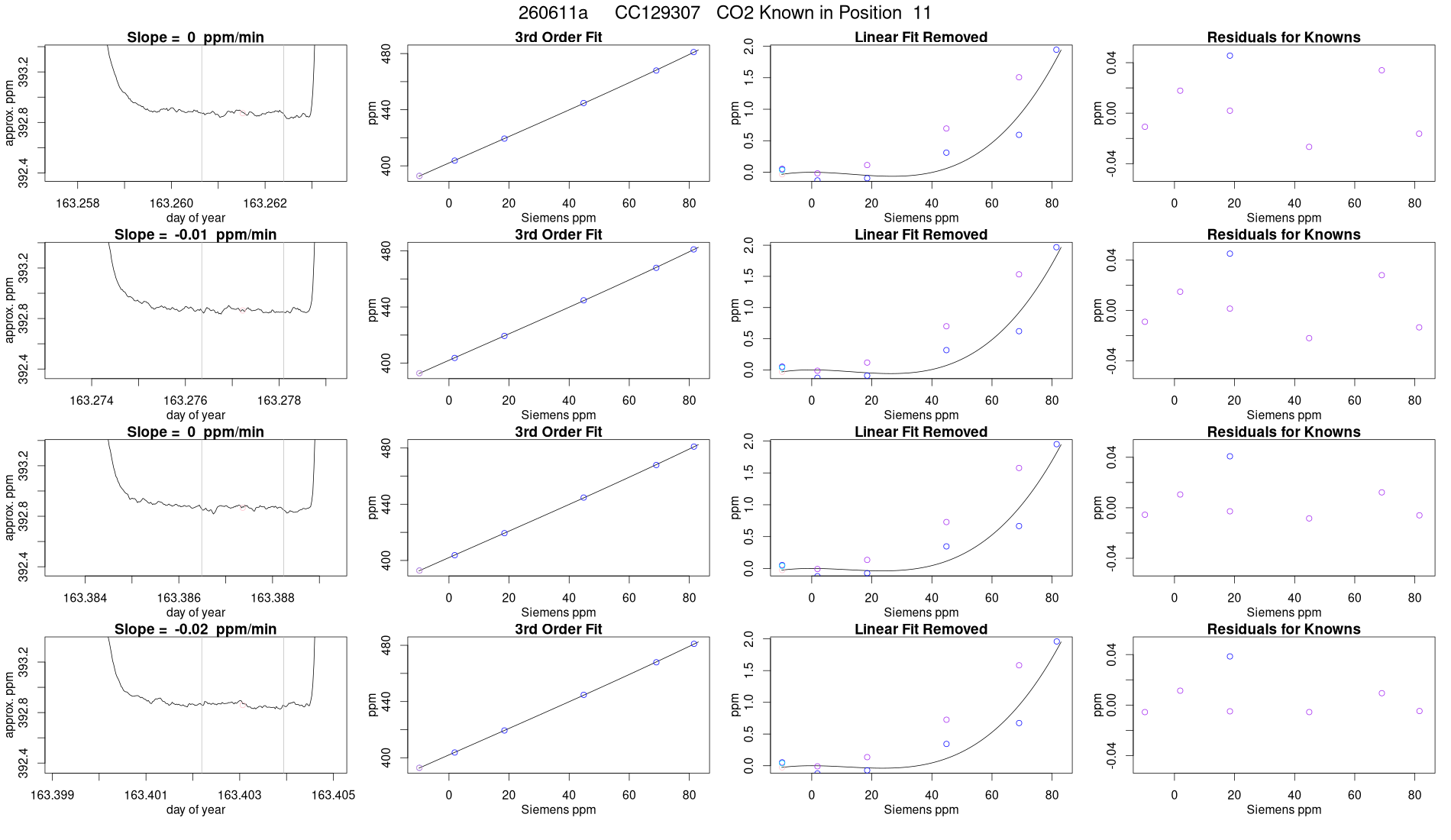

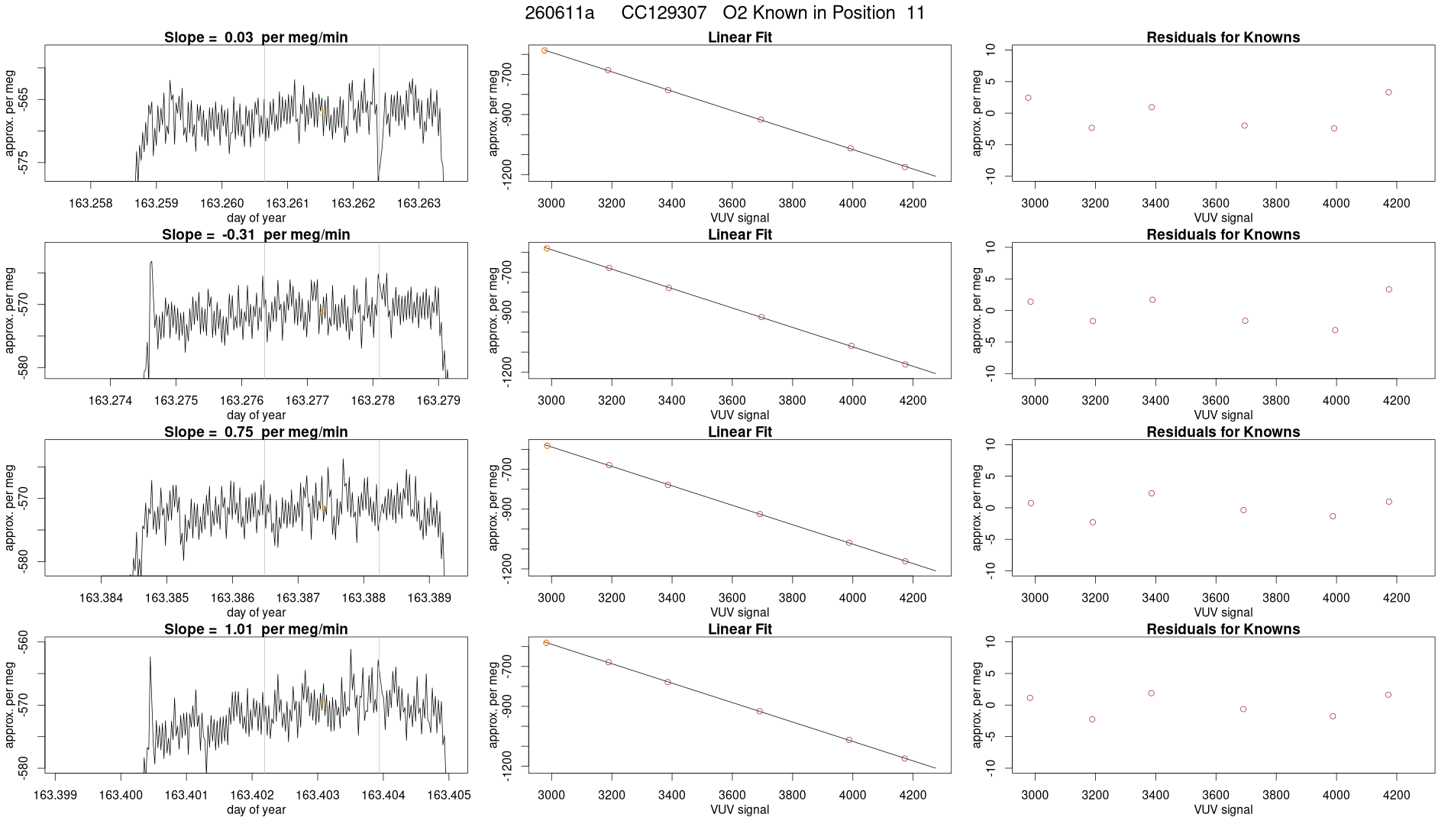

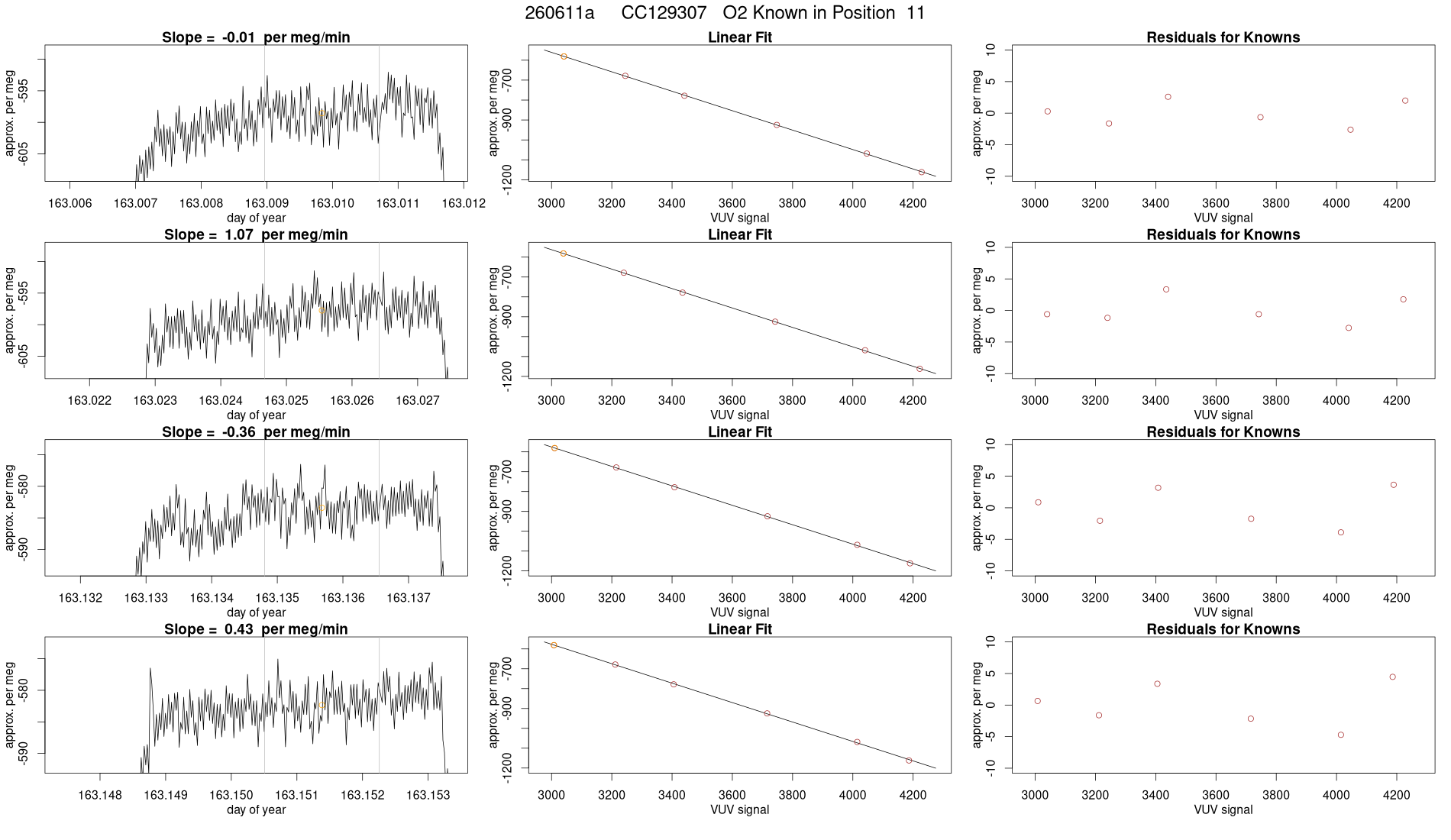

11 CC129307 392.818 -0.079 0.004 392.922 -0.006 0.004 6 -552.18 1.20 0.66 6    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

Measured Cylinders and Calculated Concentrations

(Position, Cylinder ID, Plots)
(Day of Year and Day Fraction, SIO CO2 in ppm, d(O2/N2) in per meg, GMD CO2 in ppm, Plots)

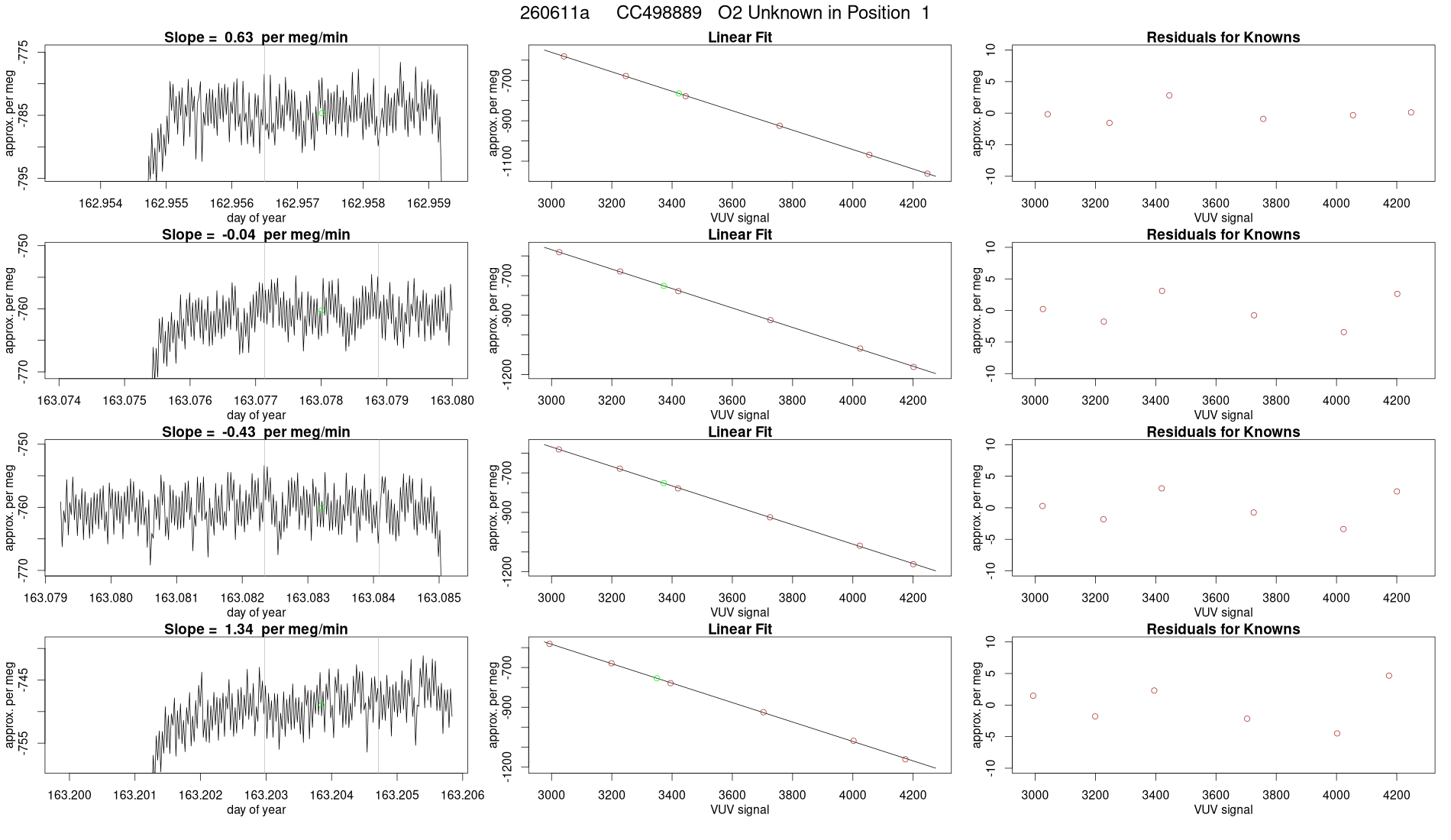

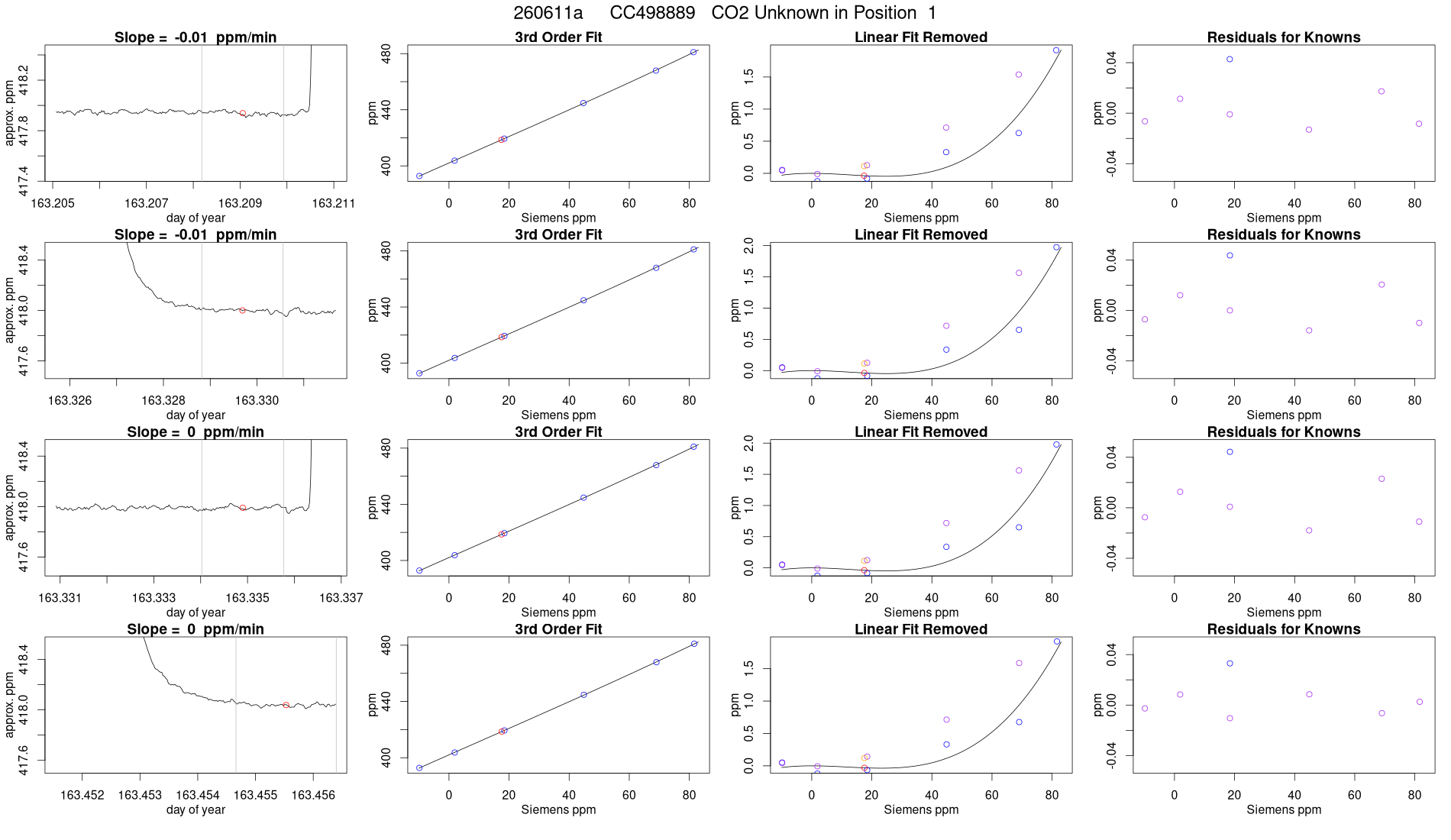

1 CC498889    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
162.957 418.733 -711.00 418.278
163.078 418.569 -697.91 418.116
163.083 418.557 -698.35 418.104
163.204 418.565 -700.21 418.112
163.209 418.547 -699.55 418.094
163.330 418.569 -708.33 418.116
163.335 418.560 -706.60 418.107
163.456 418.591 -702.00 418.138

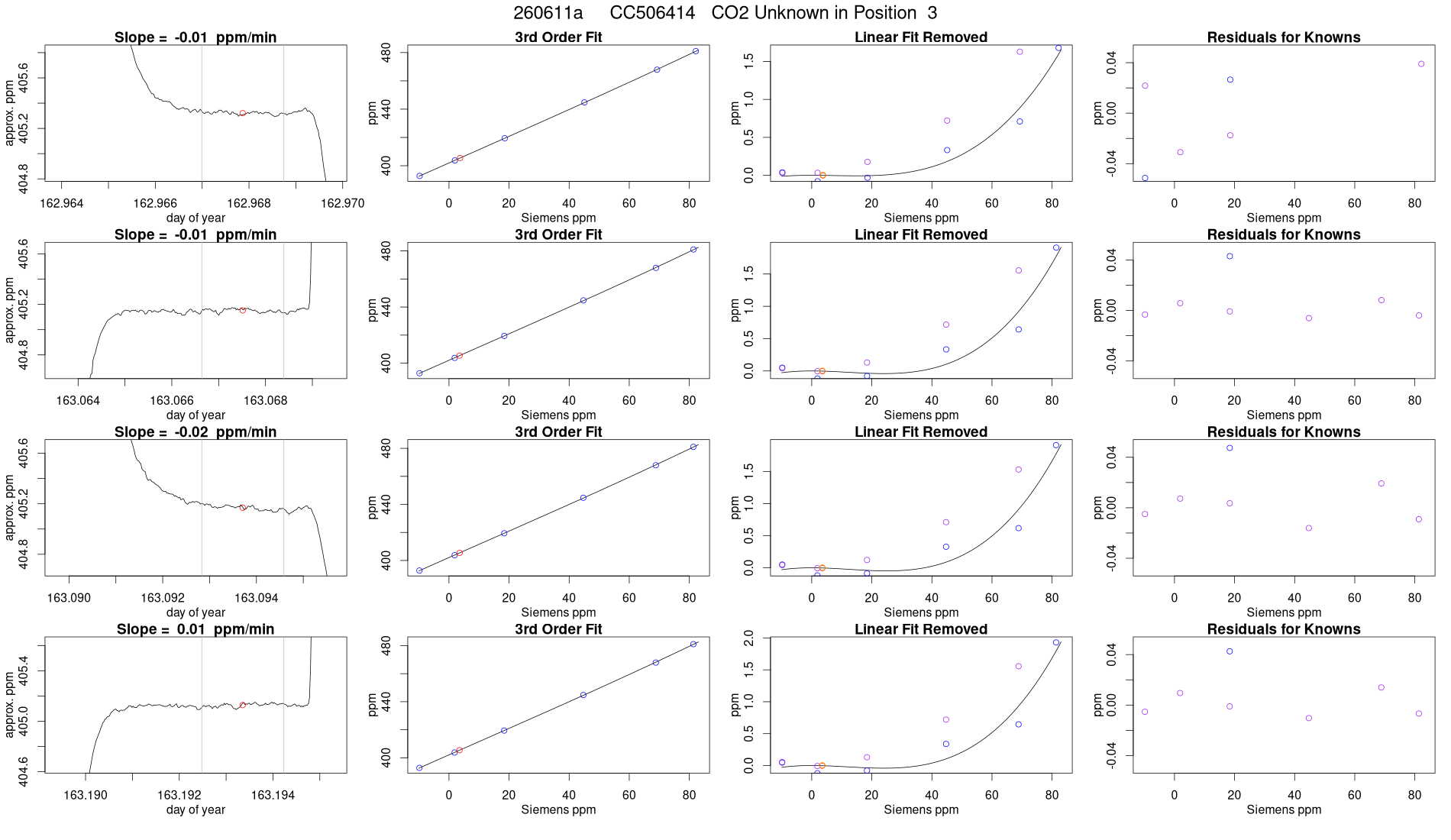

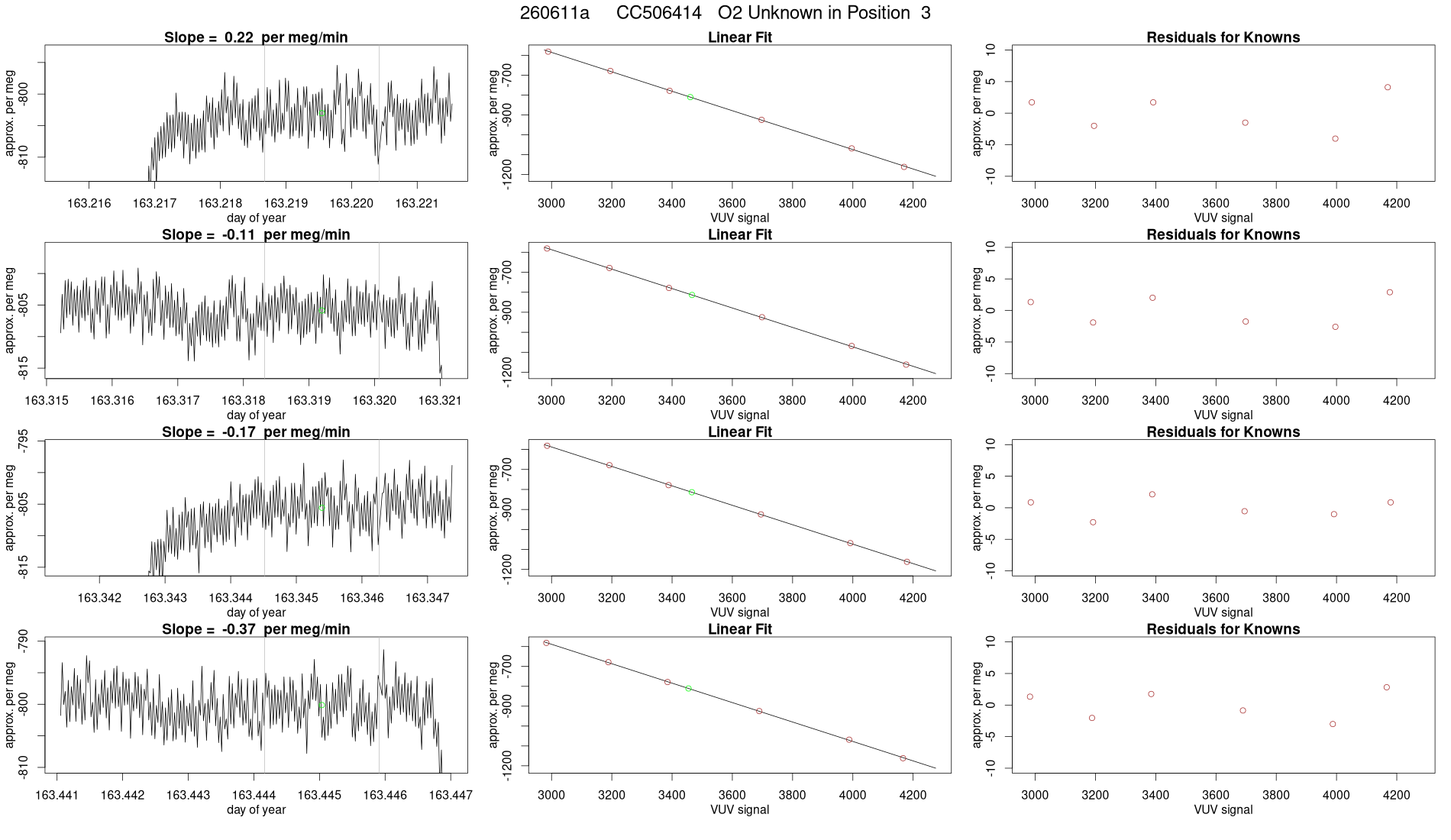

3 CC506414    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
162.968 405.472 -775.40 405.240
163.068 405.391 -768.04 405.161
163.094 405.424 -767.71 405.193
163.193 405.397 -768.74 405.166
163.220 405.435 -769.26 405.204
163.319 405.414 -772.54 405.183
163.345 405.444 -772.73 405.212
163.445 405.423 -769.57 405.192

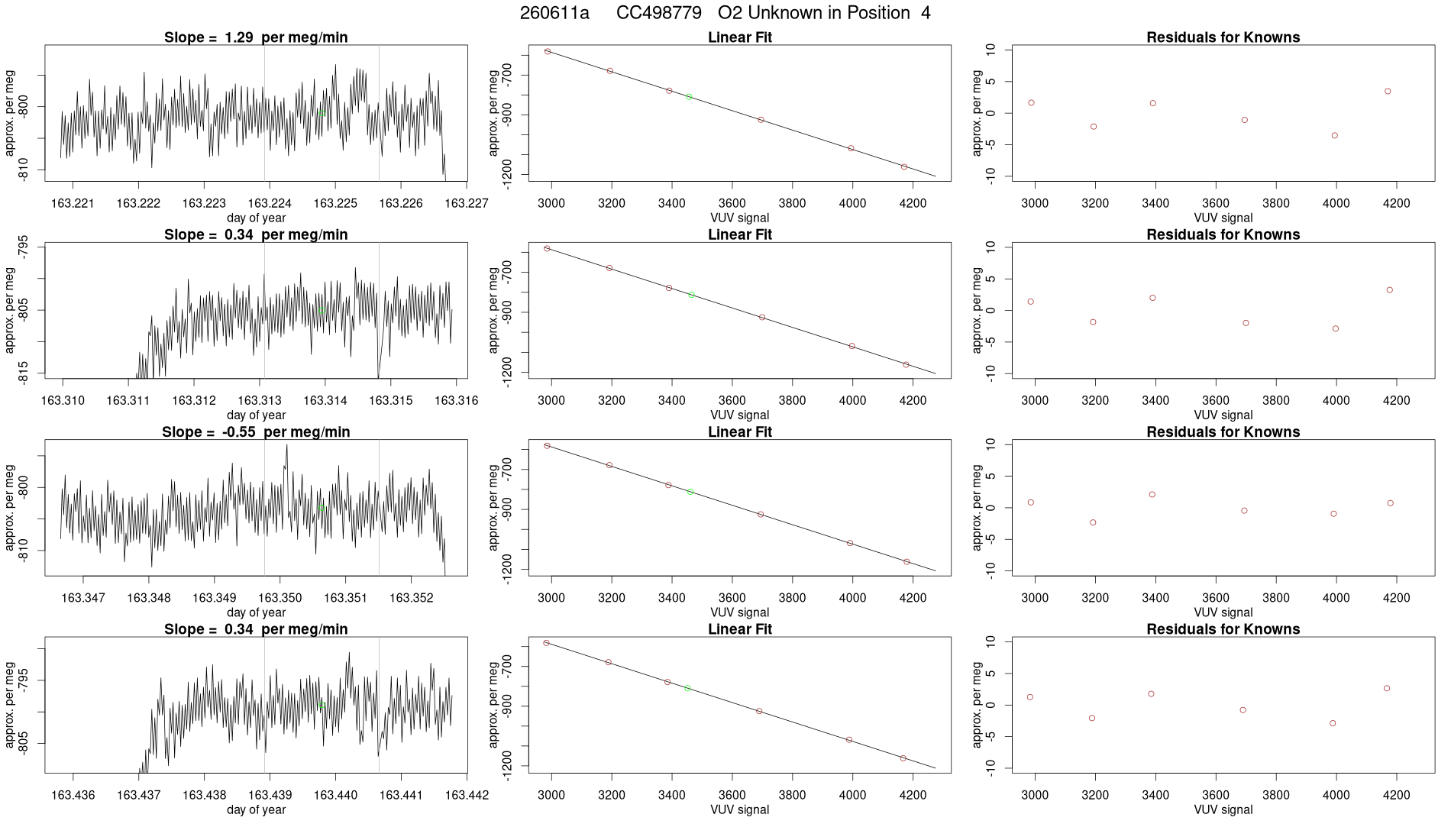

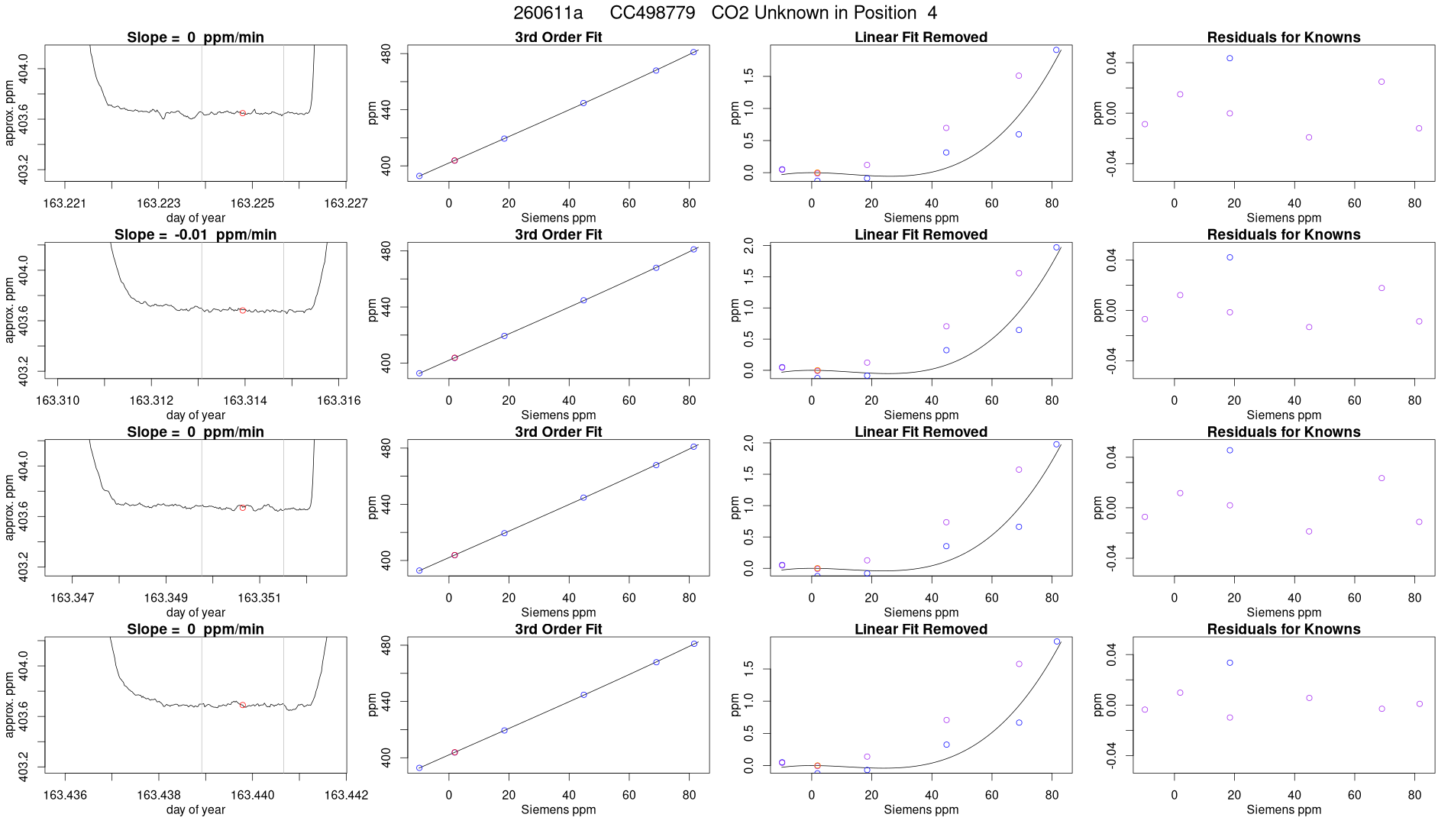

4 CC498779    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
162.973 403.906 -773.57 403.712
163.062 403.874 -767.45 403.680
163.099 403.868 -767.17 403.675
163.188 403.875 -770.44 403.681
163.225 403.861 -769.40 403.668
163.314 403.887 -773.10 403.693
163.351 403.869 -772.07 403.676
163.440 403.889 -769.79 403.695

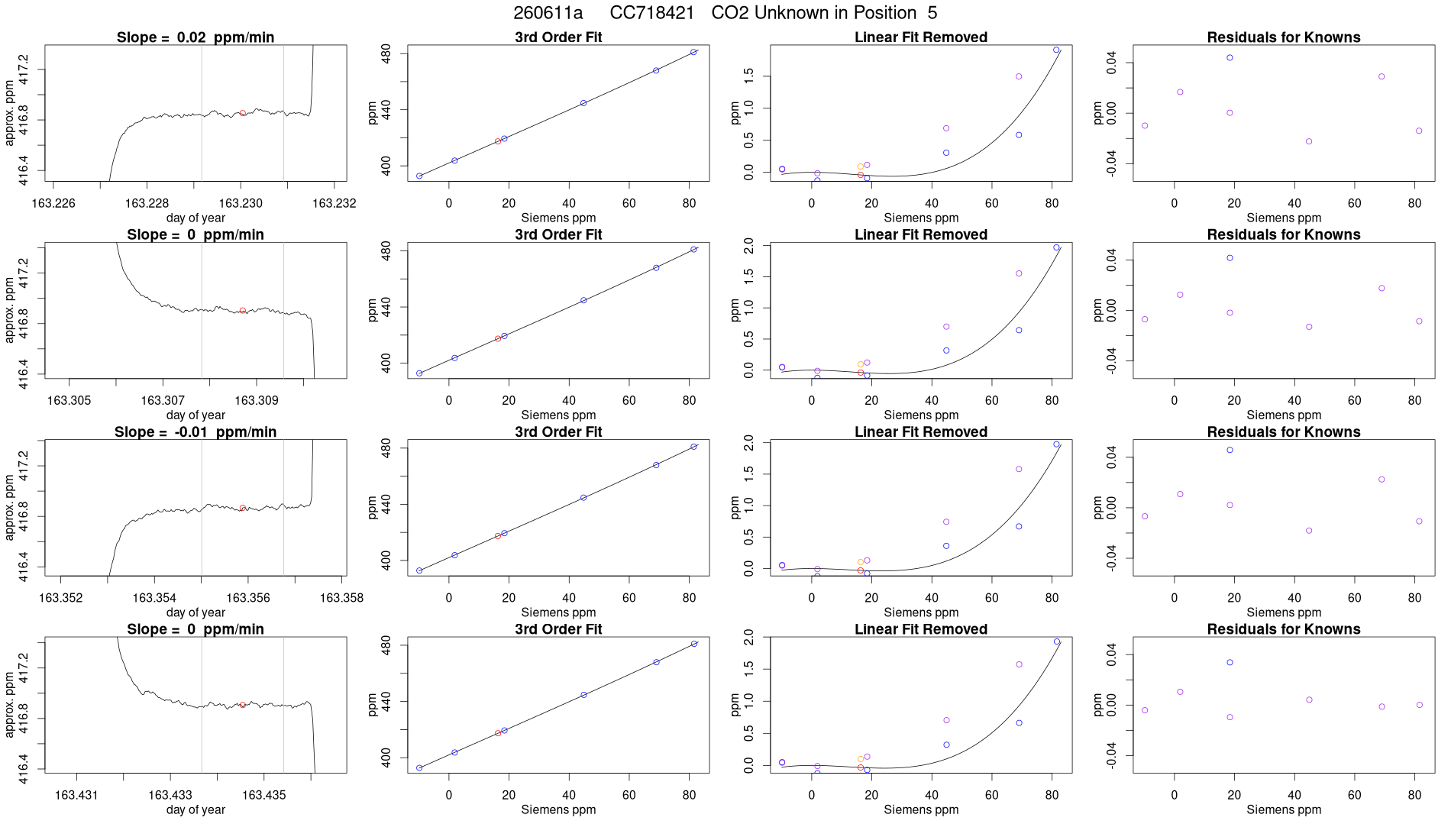

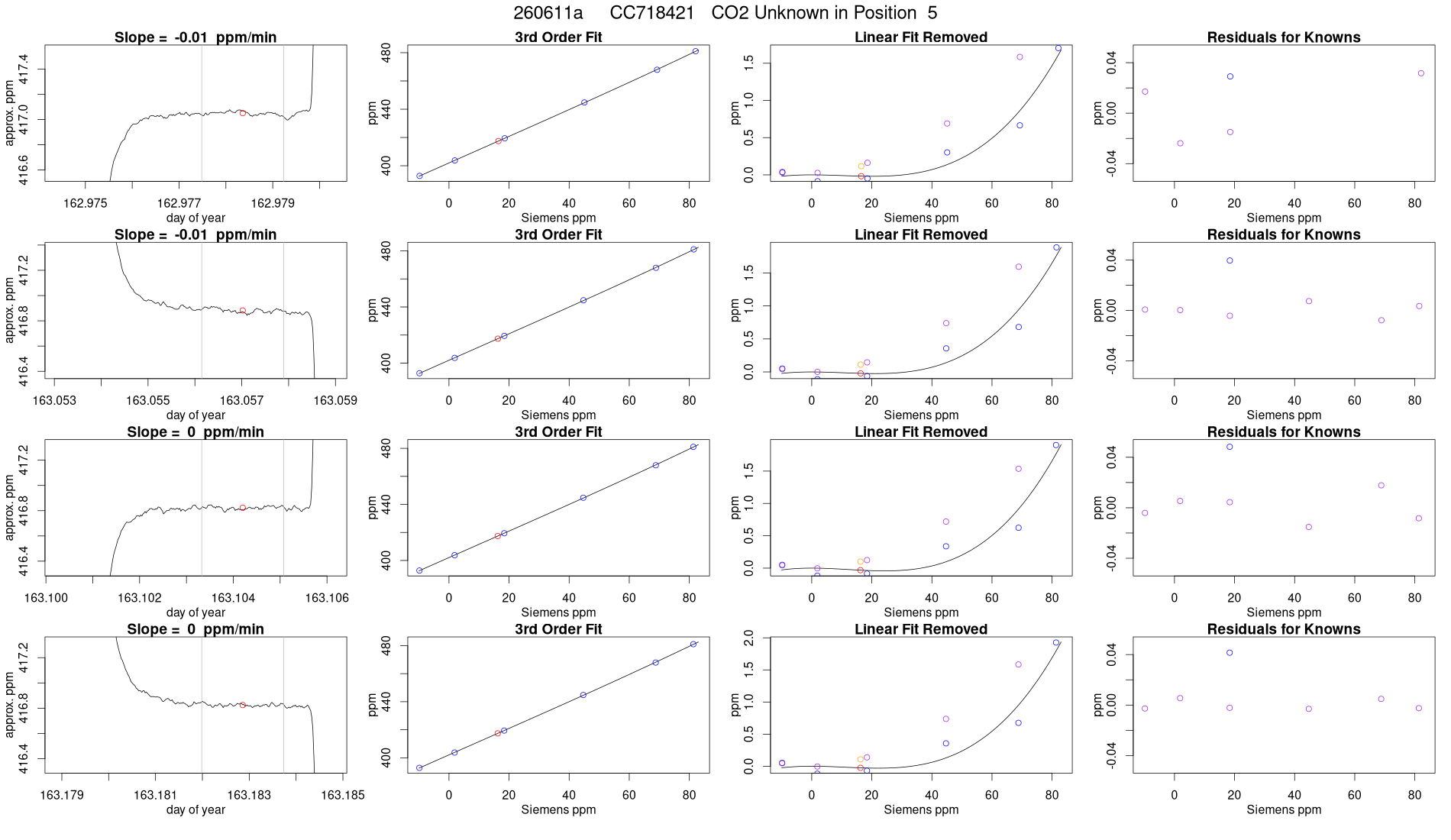

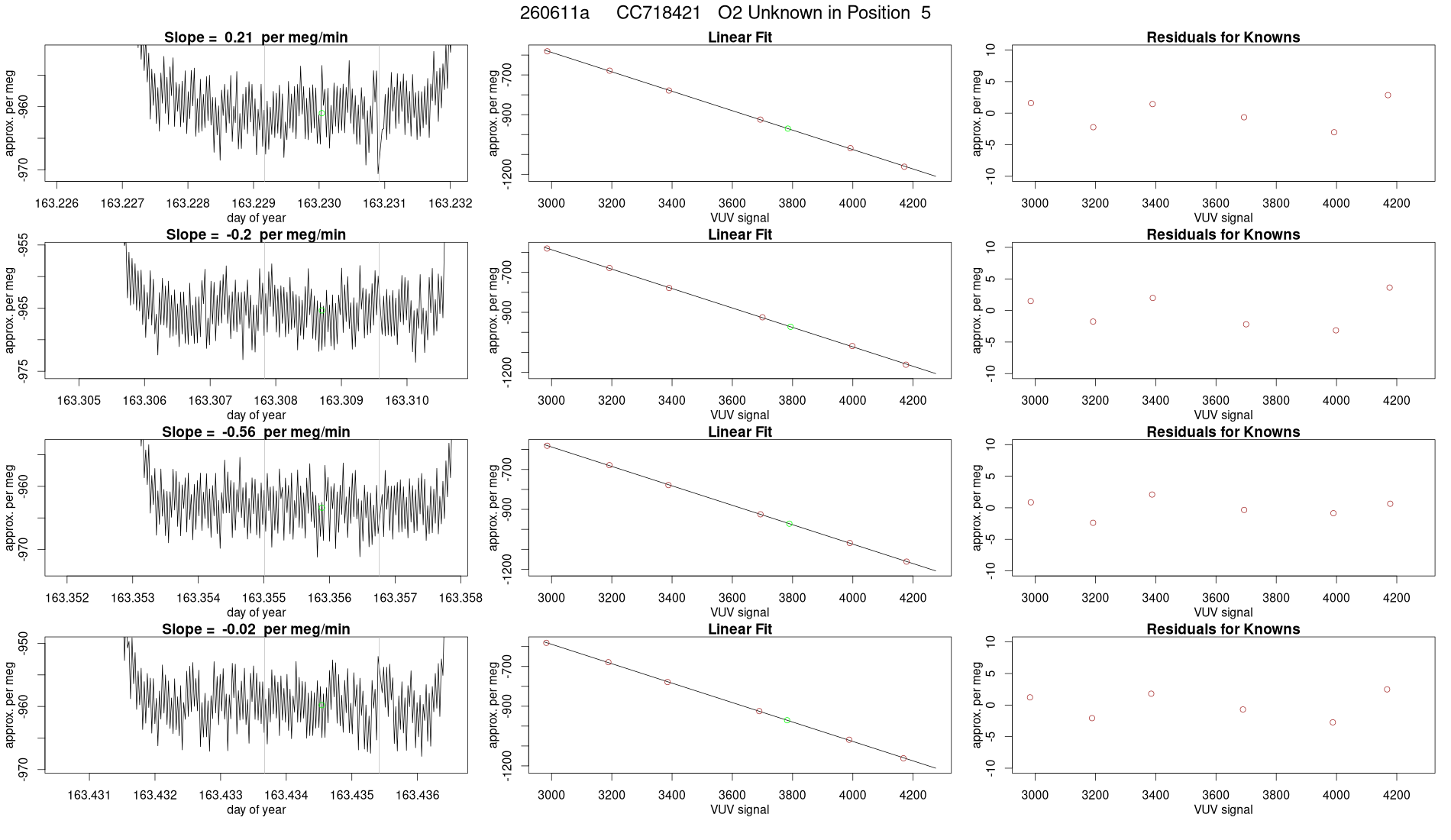

5 CC718421    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
162.978 417.487 -914.85 417.046
163.057 417.436 -914.64 416.997
163.104 417.413 -915.90 416.974
163.183 417.425 -918.60 416.986
163.230 417.415 -917.35 416.976
163.309 417.445 -919.50 417.006
163.356 417.409 -919.04 416.970
163.435 417.433 -917.89 416.994

8 CC498886    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
162.994 419.647 -677.92 419.181
163.041 419.645 -669.79 419.180
163.120 419.647 -671.52 419.181
163.167 419.625 -675.36 419.159
163.246 419.646 -673.35 419.180
163.293 419.648 -675.67 419.183
163.372 419.638 -672.92 419.173
163.419 419.638 -673.40 419.173

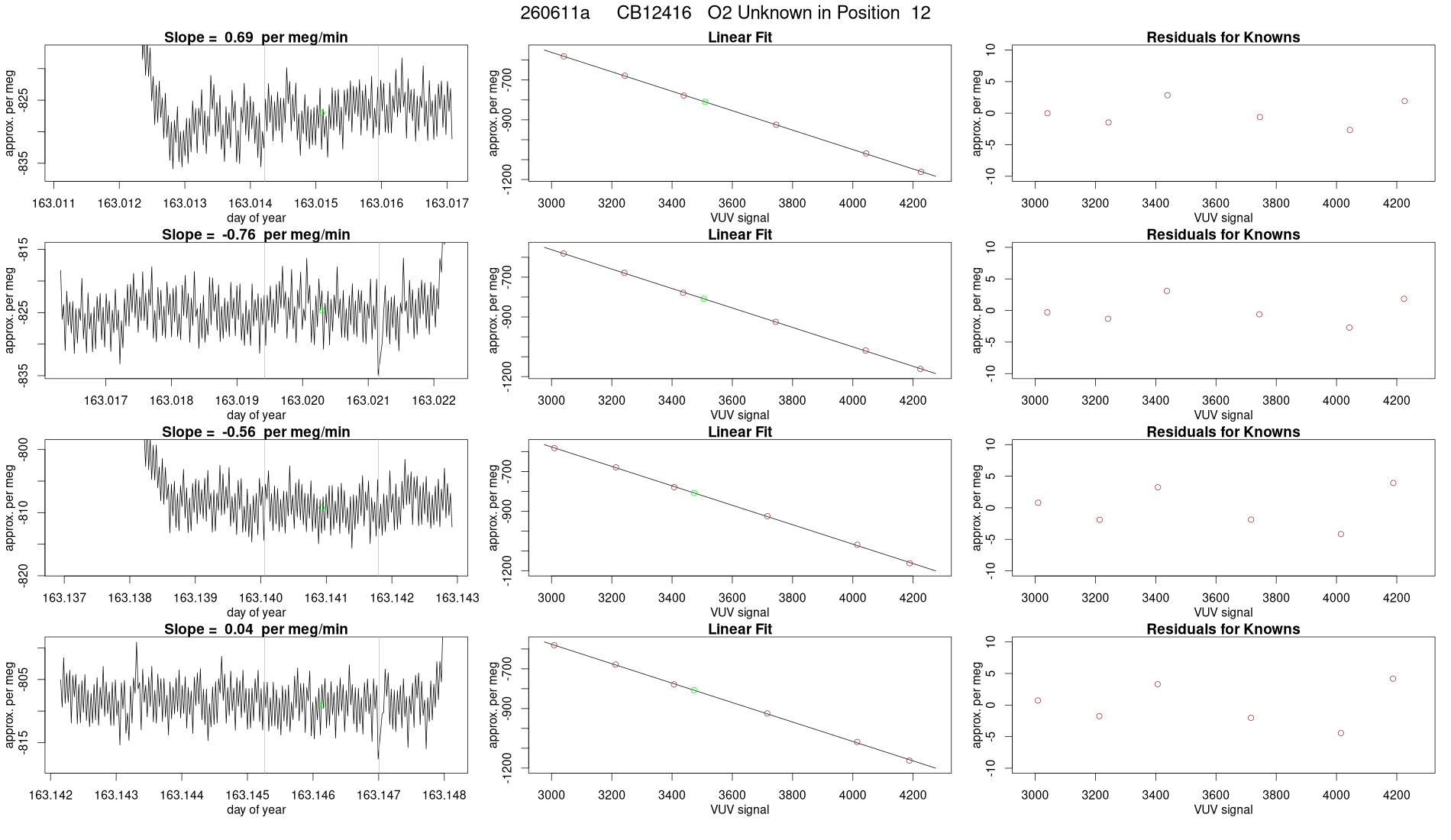

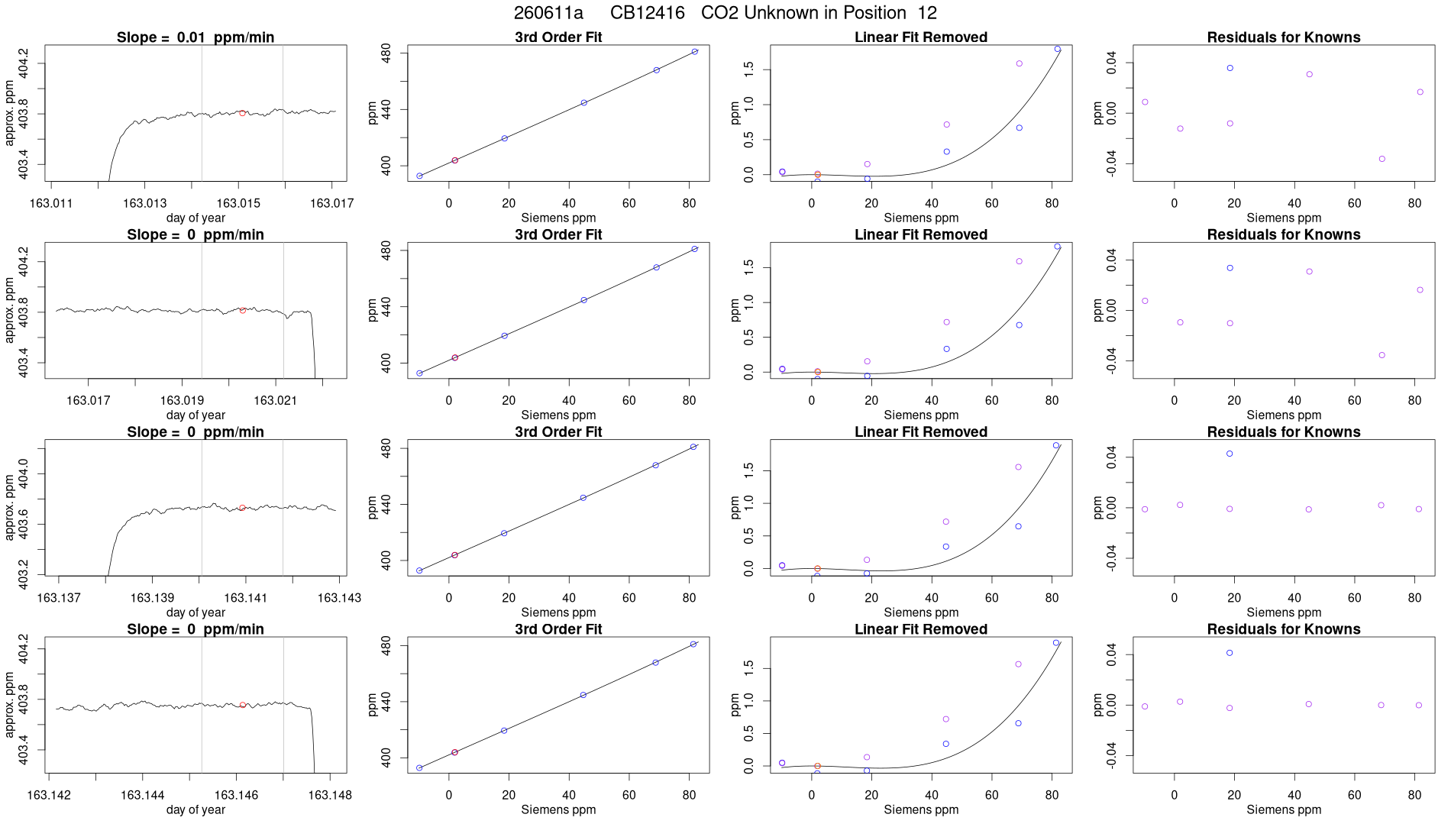

12 CB12416    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
163.015 403.951 -770.46 403.756
163.020 403.969 -768.82 403.773
163.141 403.963 -767.81 403.767
163.146 403.992 -767.97 403.795
163.267 403.977 -766.31 403.781
163.272 403.997 -767.30 403.800
163.393 403.982 -768.83 403.786
163.398 403.981 -769.68 403.785
