NCAR O2 CO2 CALIBRATION FACILITY RESULTS
RUN = 250618z
PROCESSED Thu Jun 11 03:10:00 PM MDT 2026

Notes
Logfile

Results

Using data from 169.578 to 169.74 (Day of Year and Day Fraction)
(Position, CylinderID, SIO_CO2, SIO_CO2_sigma, SIO_CO2_slope, GMD_CO2, GMD_CO2_sigma, GMD_CO2_slope, CO2_n, d(O2/N2), d(O2/N2)_sigma, d(O2/N2)_slope, d(O2/N2)_n)

4 CC498779 403.770 0.023 0.062 403.675 0.022 0.061 3 -800.47 2.16 -37.01 3
6 CC718421 417.392 0.017 0.326 416.996 0.017 0.319 3 -951.89 2.16 -39.88 3
8 CC498886 419.630 0.020 0.308 419.185 0.019 0.302 3 -660.80 1.13 -18.66 3
12 CB12416 403.875 0.014 0.036 403.778 0.014 0.035 4 -801.02 1.49 0.39 4
WT ND12480 403.323 0.044 0.879 403.238 0.043 0.860 31 -421.84 3.77 -78.12 31
Text File

Raw Data and Diagnostics Figures

CO2 Timeseries
 CO2 Averages for Unknowns
 CO2 Averages for Knowns
Jog Ave. Diagnostics 1
 Jog Ave. Diagnostics 2
 Jog Std. Dev. Diagnostics
Jog Slope Diagnostics
 Rollover Effect
 Flushing Effect
CO2 Parameters
 CO2 Results
 O2 Timeseries

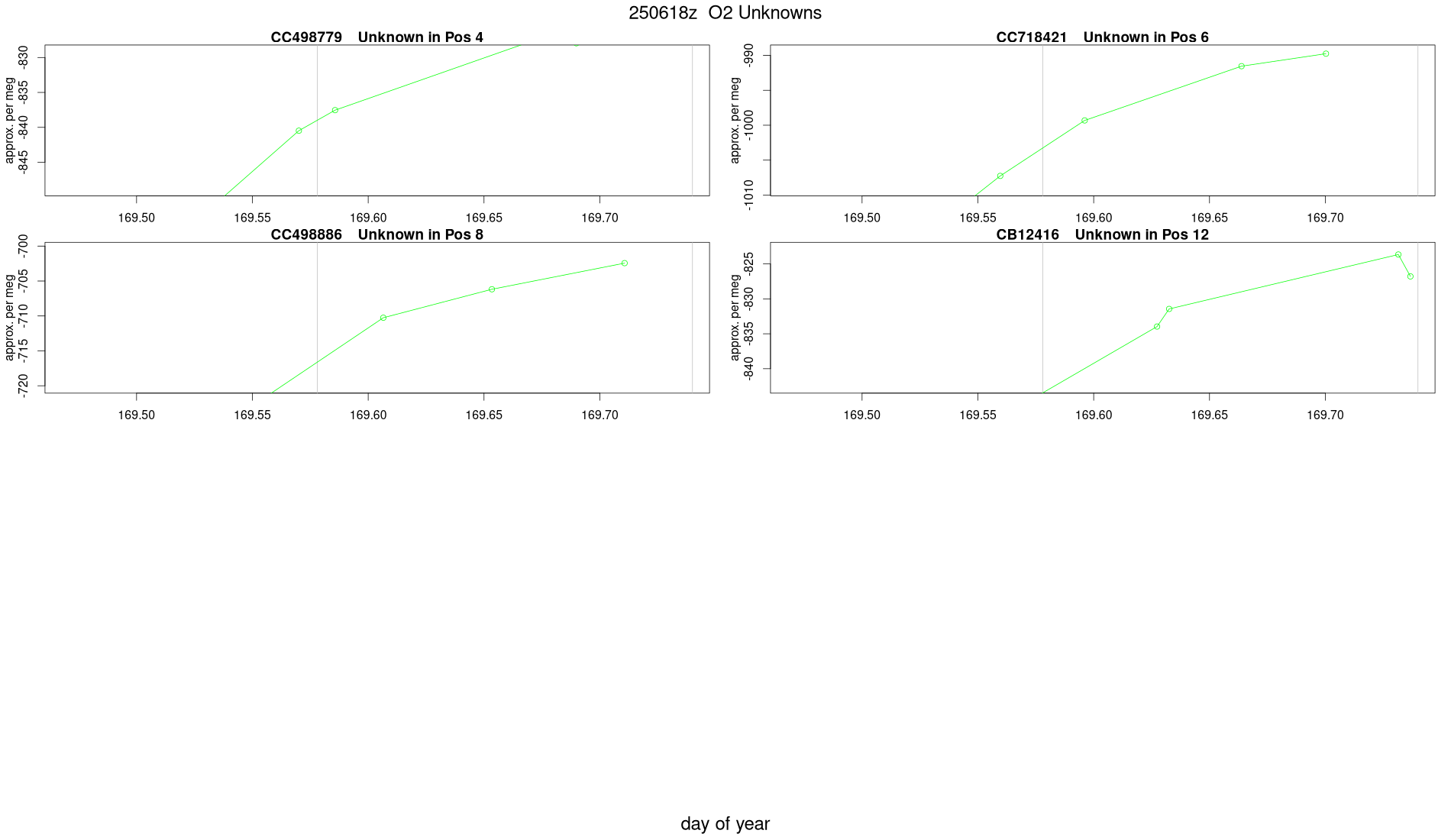

O2 Averages for Unknowns

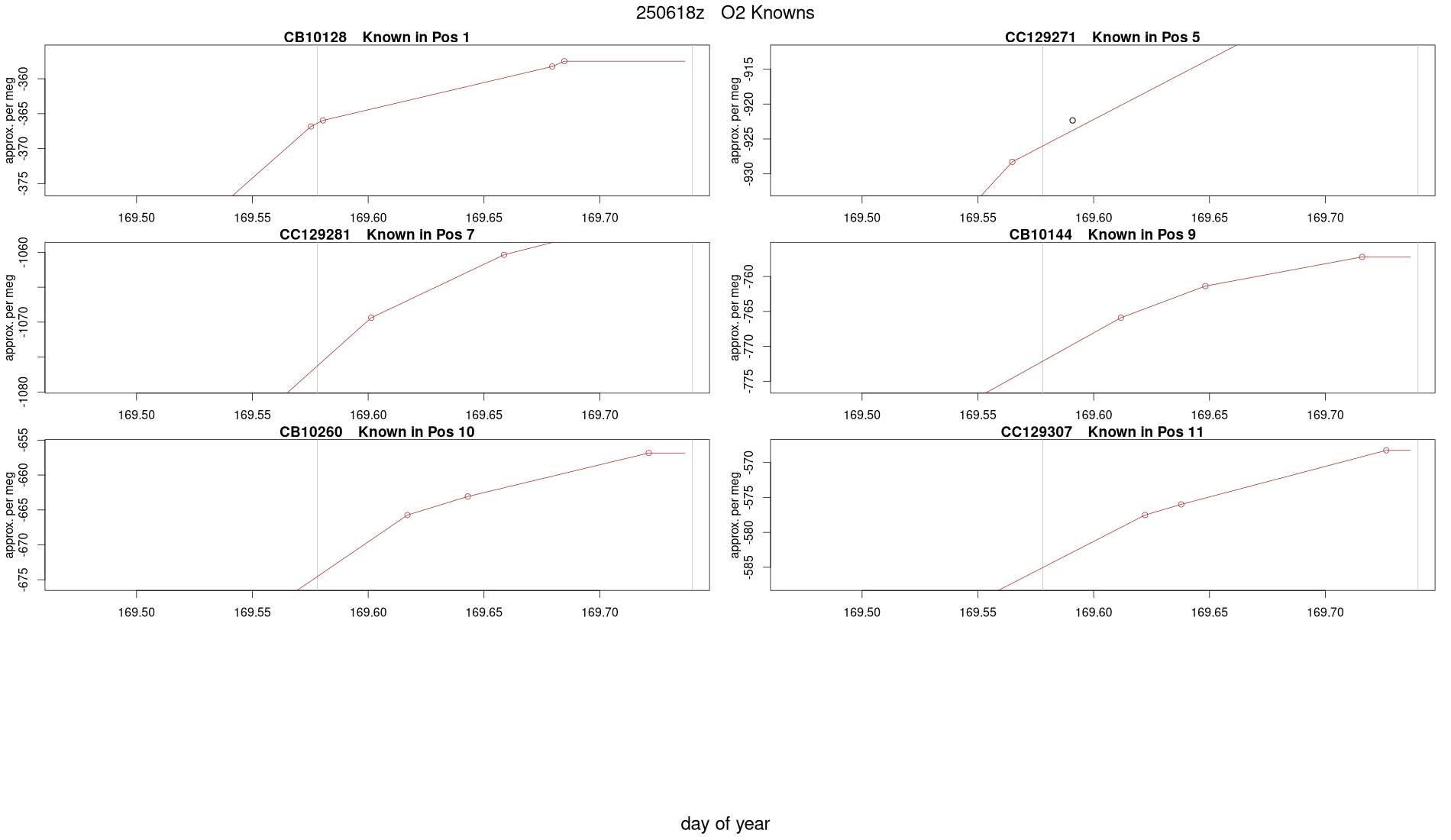

 O2 Averages for Knowns
 O2 Parameters
O2 Results
Residuals
 SP/WT Slopes

Reference Cylinders, Assigned Concentrations, and Calculated Offsets from Fit

(Position, Cylinder ID, SIO CO2 in ppm, SIO Delta-CO2, SIO CO2 sigma, GMD CO2 in ppm, GMD Delta-CO2, GMD CO2 sigma, CO2 n, d(O2/N2) in per meg, Delta-d(O2/N2), d(O2/N2) sigma, d(O2/N2) n, Plots)

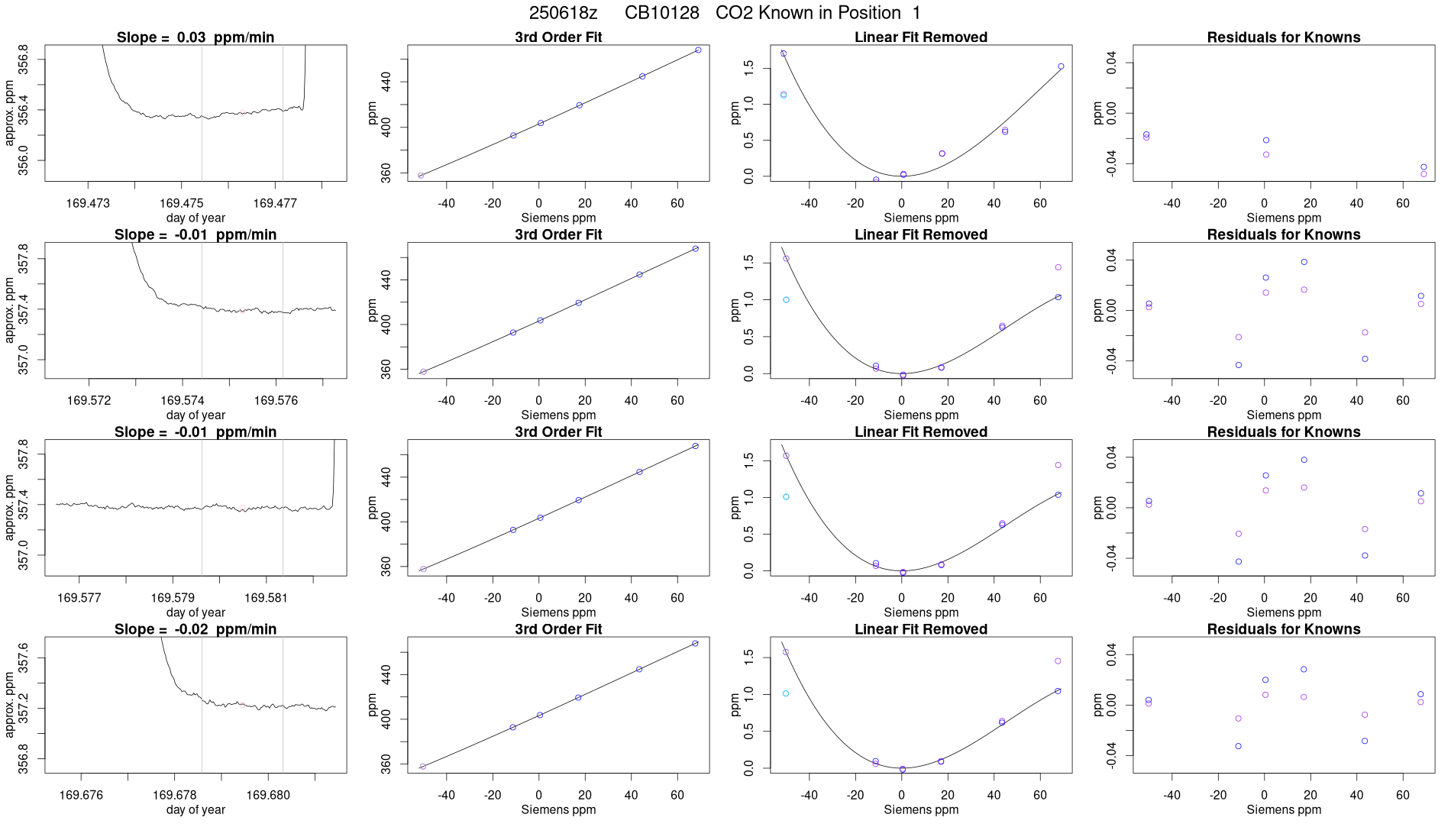

1 CB10128 357.783 0.005 0.001 358.143 0.002 0.001 3 -366.95 -4.72 0.53 3    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

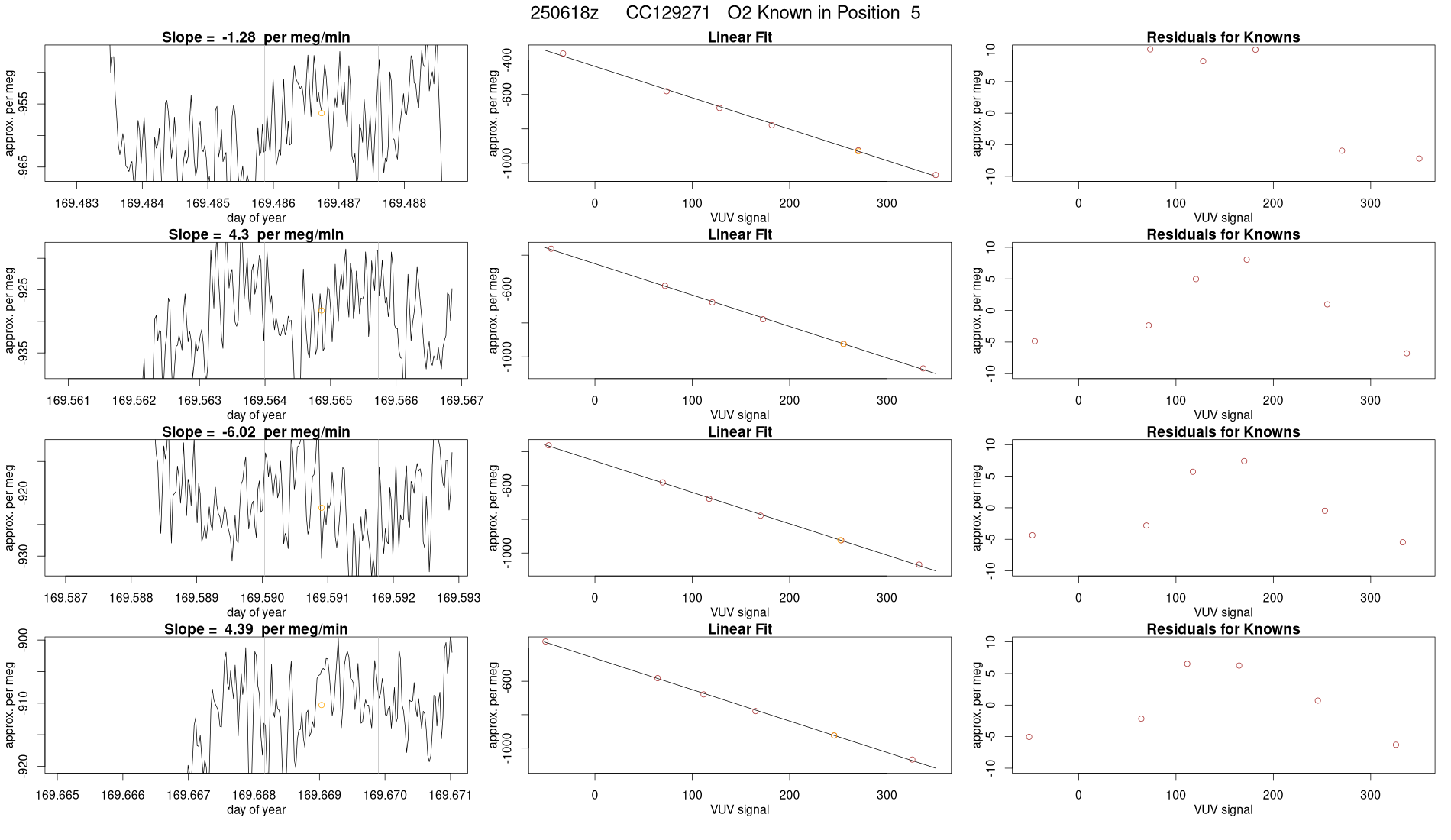

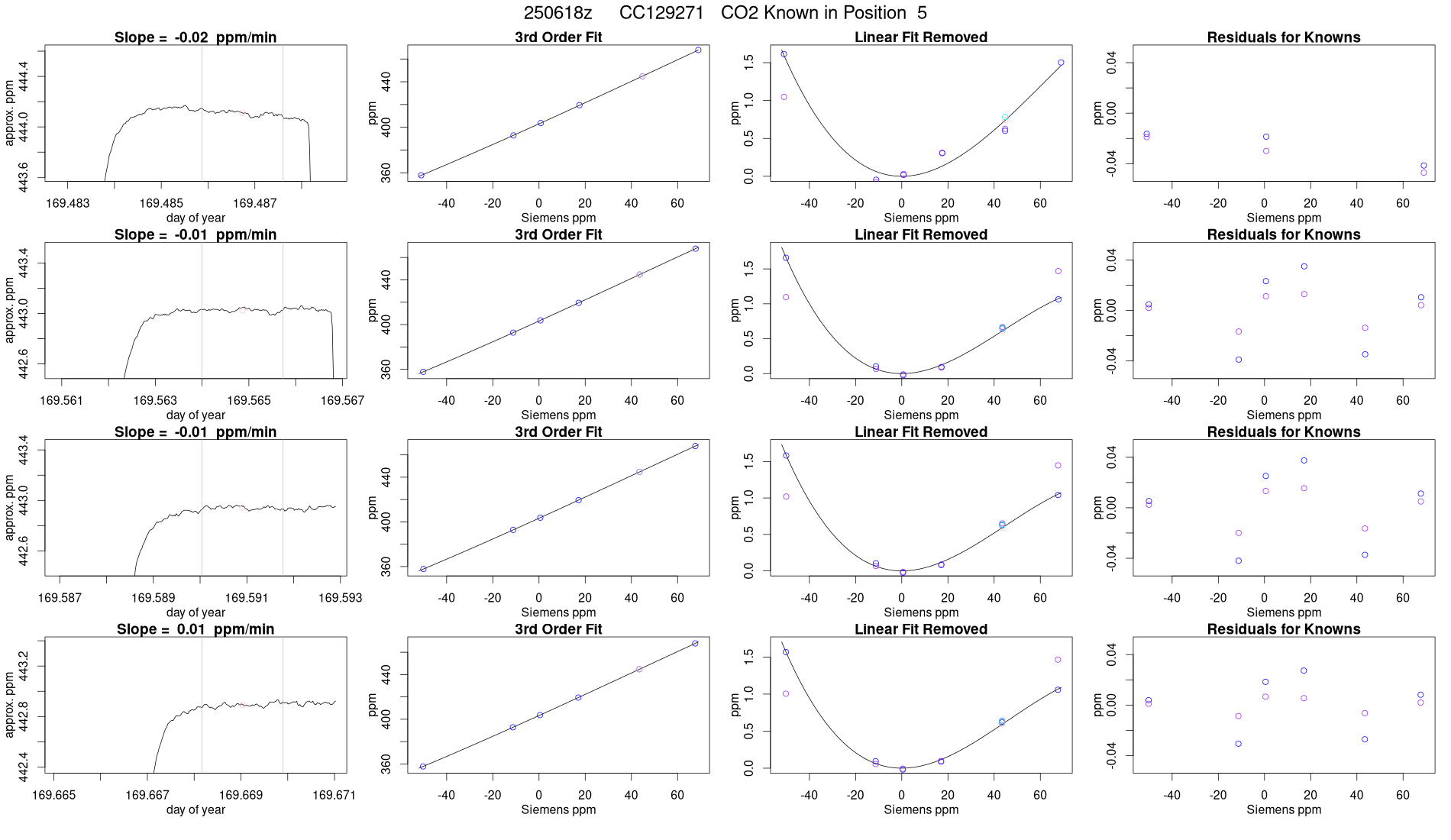

5 CC129271 444.760 -0.031 0.005 443.824 -0.011 0.005 3 -845.72 -0.06 1.07 2    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2
7 CC129281 467.909 0.009 0.001 466.871 0.002 0.001 3 -966.88 -5.47 0.44 3    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2
9 CB10144 419.419 0.024 0.005 419.000 0.002 0.005 3 -723.82 7.07 0.41 3    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

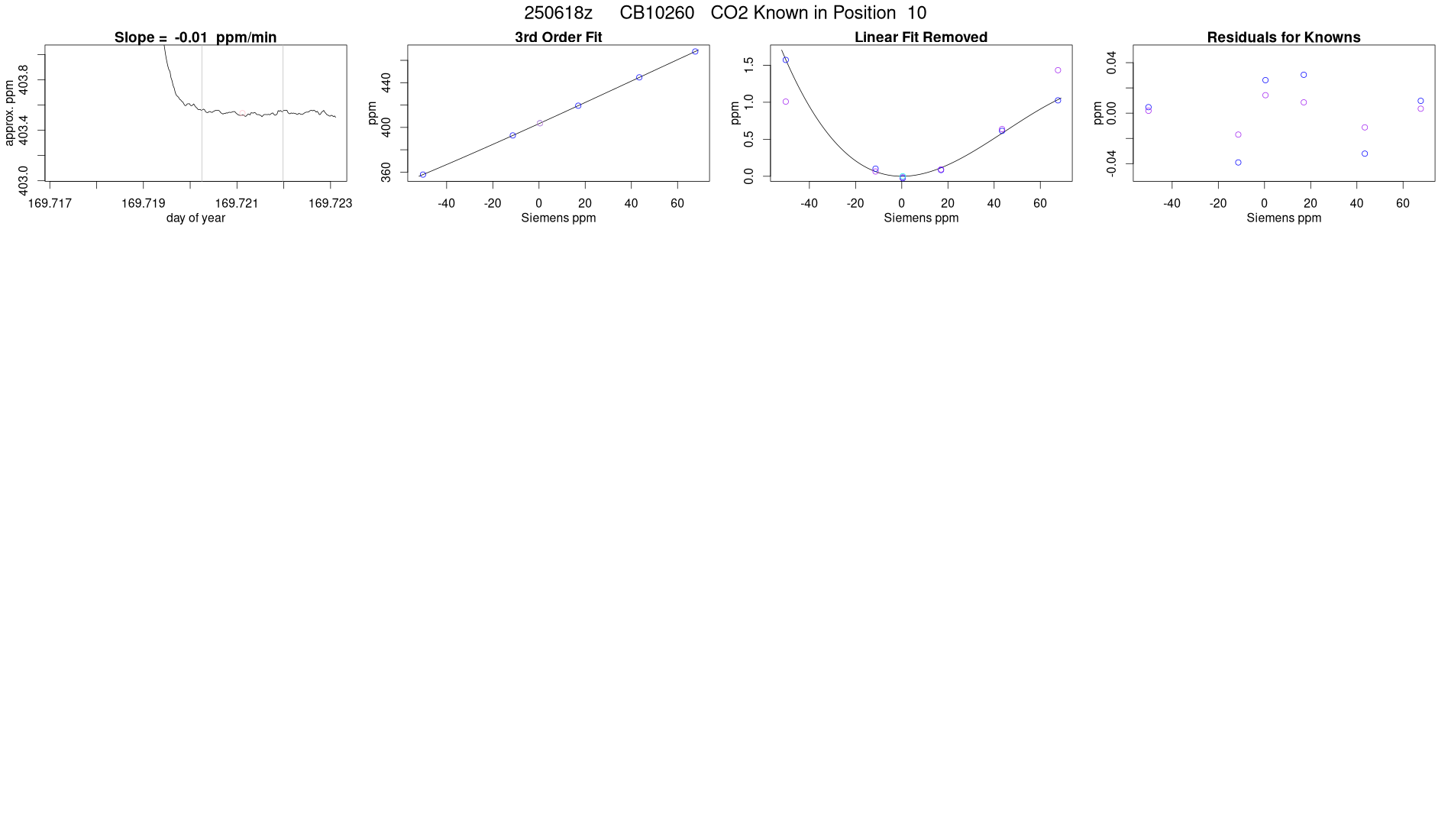

10 CB10260 403.742 0.021 0.006 403.659 0.009 0.006 3 -639.01 7.42 0.48 3    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

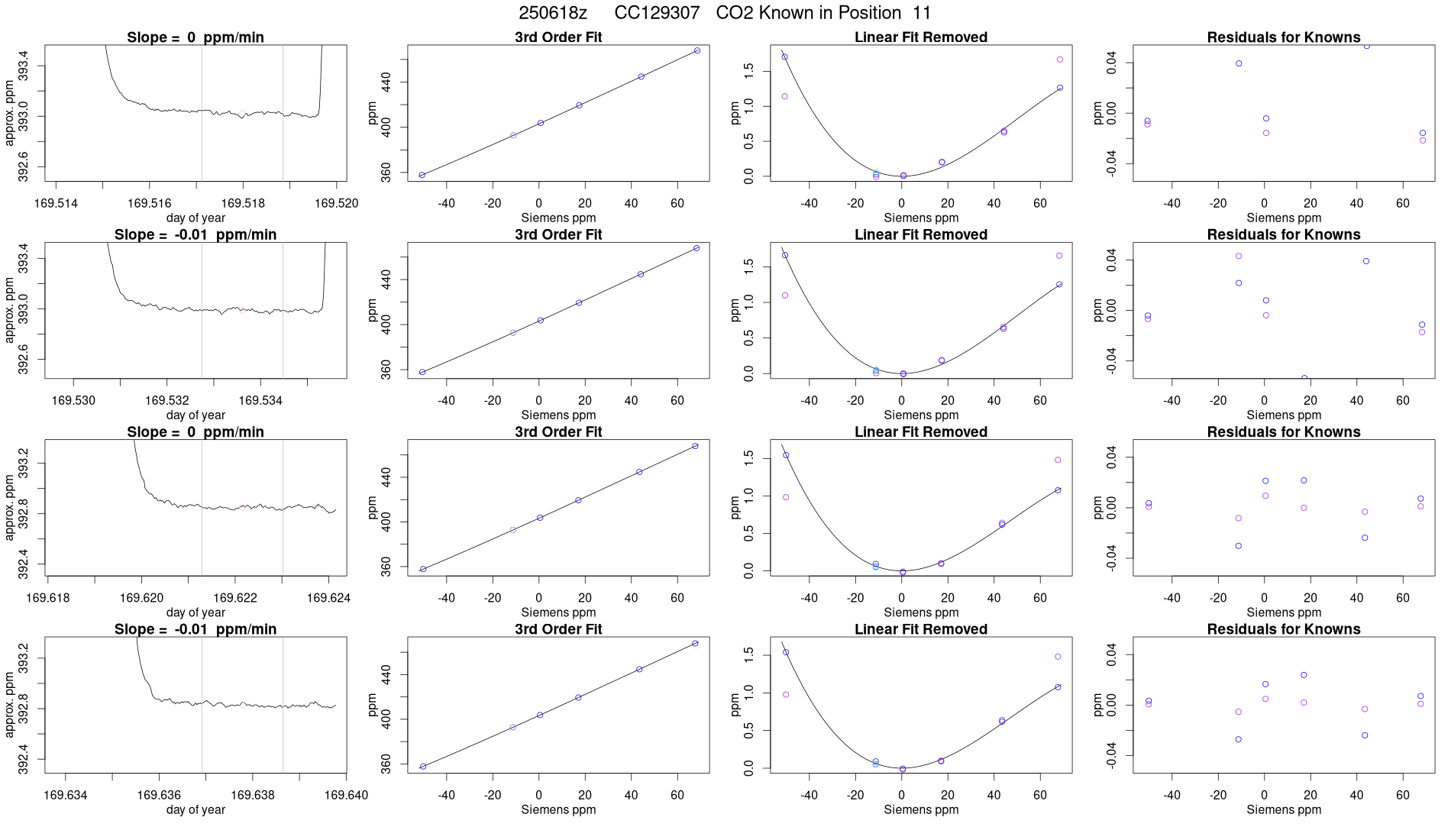

11 CC129307 392.818 -0.033 0.007 392.922 -0.011 0.007 3 -552.18 -1.43 1.12 3    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

Measured Cylinders and Calculated Concentrations

(Position, Cylinder ID, Plots)
(Day of Year and Day Fraction, SIO CO2 in ppm, d(O2/N2) in per meg, GMD CO2 in ppm, Plots)

4 CC498779    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
169.471 403.939 -809.18 403.840
169.482 403.857 -802.33 403.760
169.570 403.789 -797.70 403.693
169.586 403.762 -798.18 403.668
169.674 403.796 -800.76 403.700
169.690 403.752 -802.47 403.657

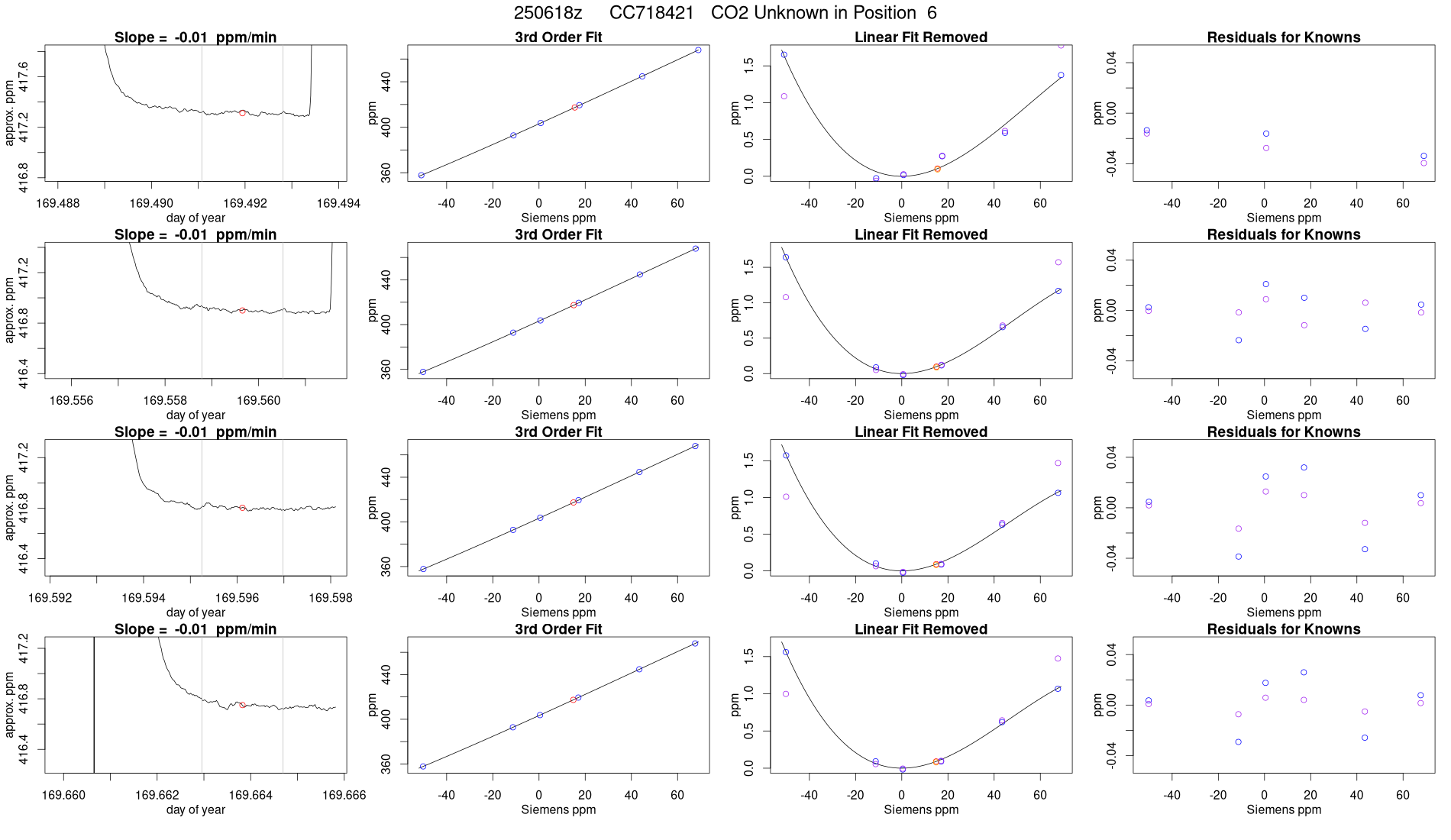

6 CC718421    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
169.492 417.386 -945.68 416.989
169.560 417.366 -948.40 416.971
169.596 417.374 -949.41 416.978
169.664 417.393 -952.86 416.997
169.700 417.409 -953.40 417.012

8 CC498886    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
169.502 419.588 -666.62 419.142
169.549 419.563 -660.27 419.119
169.607 419.622 -659.50 419.177
169.653 419.616 -661.39 419.171
169.711 419.653 -661.51 419.207

12 CB12416    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
169.523 403.852 -799.05 403.755
169.528 403.859 -798.38 403.761
169.627 403.862 -801.98 403.765
169.633 403.886 -800.14 403.788
169.732 403.864 -799.42 403.767
169.737 403.889 -802.55 403.792
