NCAR O2 CO2 CALIBRATION FACILITY RESULTS
RUN = 250515b
PROCESSED Mon May 19 12:20:38 PM MDT 2025

Notes
Logfile

Results

Using data from 135.818 to 136.258 (Day of Year and Day Fraction)
(Position, CylinderID, SIO_CO2, SIO_CO2_sigma, SIO_CO2_slope, GMD_CO2, GMD_CO2_sigma, GMD_CO2_slope, CO2_n, d(O2/N2), d(O2/N2)_sigma, d(O2/N2)_slope, d(O2/N2)_n)

2 CC177841 376.355 0.011 0.003 376.712 0.011 0.003 7 -253.00 1.91 -11.88 7
3 CC178444 404.152 0.004 0.002 404.049 0.004 0.002 7 -652.86 1.13 -6.22 7
4 CC178269 376.533 0.007 0.012 376.889 0.007 0.012 7 -198.97 2.03 -10.60 7
6 CC177811 407.347 0.002 0.006 407.174 0.002 0.006 7 -980.66 0.53 0.70 7
8 CC180655 395.143 0.007 0.007 395.224 0.007 0.007 7 -919.96 0.62 0.24 7
12 CC177837 401.569 0.004 0.023 401.521 0.004 0.022 7 -650.09 1.15 -2.15 7
WT ND12480 402.609 0.010 0.072 402.539 0.009 0.071 84 1224.91 2.29 -3.28 84
Text File

Raw Data and Diagnostics Figures

CO2 Timeseries
 CO2 Averages for Unknowns
 CO2 Averages for Knowns
Jog Ave. Diagnostics 1
 Jog Ave. Diagnostics 2
 Jog Std. Dev. Diagnostics
Jog Slope Diagnostics
 Rollover Effect
 Flushing Effect
CO2 Parameters
 CO2 Results
 O2 Timeseries
O2 Averages for Unknowns
 O2 Averages for Knowns
 O2 Parameters
O2 Results
Residuals
 SP/WT Slopes

Reference Cylinders, Assigned Concentrations, and Calculated Offsets from Fit

(Position, Cylinder ID, SIO CO2 in ppm, SIO Delta-CO2, SIO CO2 sigma, GMD CO2 in ppm, GMD Delta-CO2, GMD CO2 sigma, CO2 n, d(O2/N2) in per meg, Delta-d(O2/N2), d(O2/N2) sigma, d(O2/N2) n, Plots)

1 CB10128 357.783 0.004 0.000 358.143 0.001 0.000 7 -366.95 1.22 0.42 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3
5 CC129271 444.760 -0.026 0.001 443.824 -0.005 0.001 7 -845.72 2.06 0.55 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3
7 CC129281 467.909 0.008 0.000 466.871 0.002 0.000 5 -966.88 -0.66 0.41 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3
9 CB10144 419.419 0.022 0.003 419.000 0.000 0.003 7 -723.82 1.55 0.66 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3
10 CB10260 403.742 0.027 0.004 403.659 0.015 0.004 7 -639.01 -4.03 0.75 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3
11 CC129307 392.818 -0.035 0.002 392.922 -0.013 0.002 7 -552.18 0.13 0.54 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3

Measured Cylinders and Calculated Concentrations

(Position, Cylinder ID, Plots)
(Day of Year and Day Fraction, SIO CO2 in ppm, d(O2/N2) in per meg, GMD CO2 in ppm, Plots)

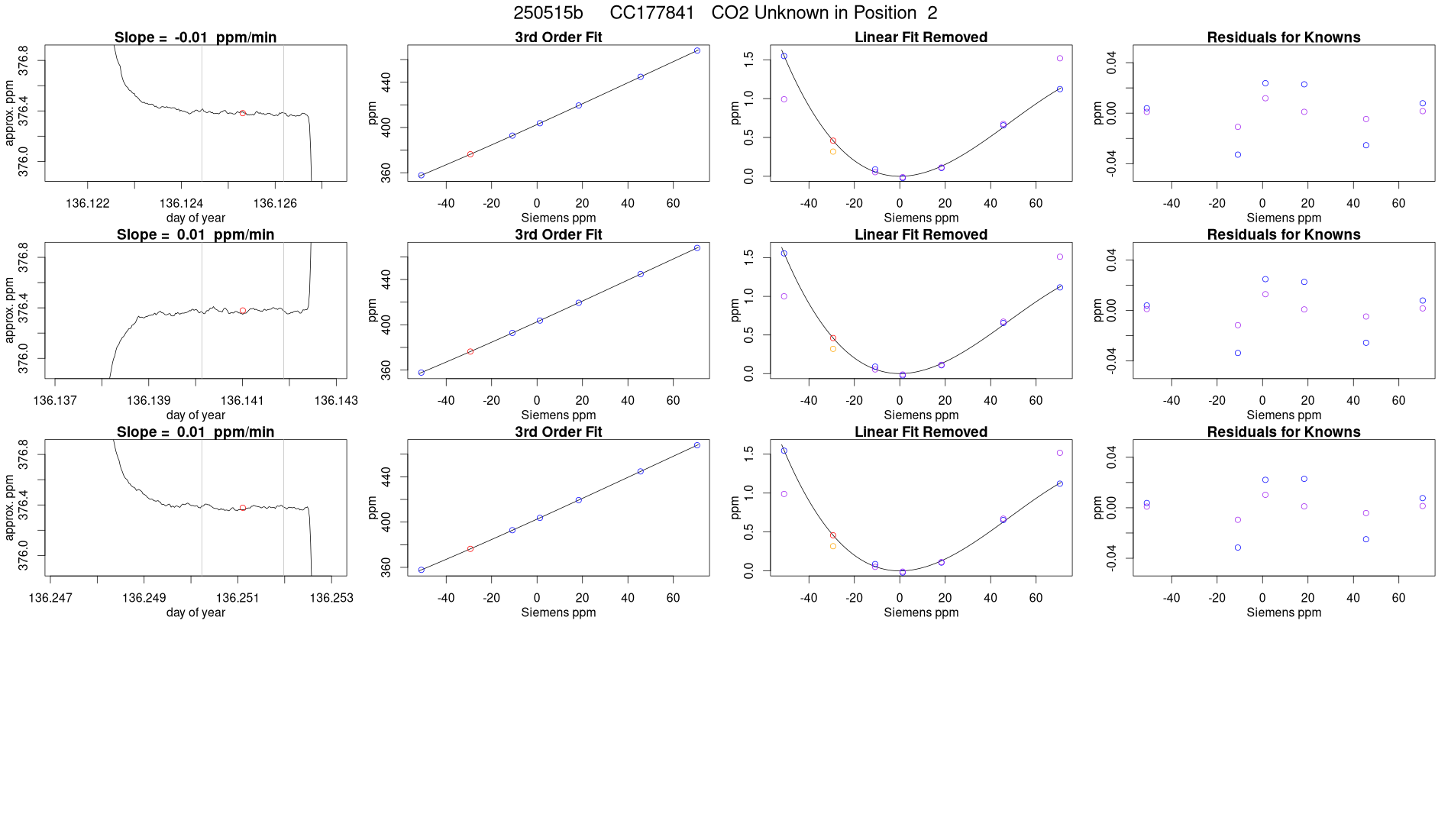

2 CC177841    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3
135.627 376.353 -251.61 376.711
135.638 376.359 -251.50 376.717
135.748 376.371 -247.83 376.728
135.764 376.359 -250.44 376.716
135.874 376.362 -251.75 376.720
135.889 376.337 -251.88 376.695
136.000 376.374 -251.77 376.731
136.015 376.348 -250.94 376.706
136.125 376.356 -253.65 376.714
136.141 376.353 -255.03 376.711
136.251 376.353 -255.95 376.710

3 CC178444    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3
135.643 404.138 -652.05 404.035
135.743 404.151 -650.38 404.047
135.769 404.156 -651.58 404.053
135.868 404.147 -652.20 404.044
135.895 404.158 -652.54 404.054
135.994 404.155 -651.45 404.052
136.020 404.147 -651.83 404.044
136.120 404.156 -653.60 404.053
136.146 404.152 -654.28 404.048
136.246 404.152 -654.07 404.049

4 CC178269    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3
135.648 376.507 -206.91 376.863
135.737 376.538 -195.13 376.894
135.774 376.531 -196.85 376.887
135.863 376.532 -198.96 376.888
135.900 376.531 -196.96 376.887
135.989 376.541 -198.17 376.897
136.026 376.523 -196.78 376.879
136.115 376.536 -200.37 376.892
136.151 376.527 -198.93 376.883
136.241 376.541 -202.61 376.897

6 CC177811    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3
135.659 407.344 -976.24 407.171
135.727 407.341 -976.11 407.169
135.785 407.332 -980.01 407.160
135.853 407.345 -981.02 407.172
135.910 407.348 -980.16 407.175
135.979 407.346 -981.50 407.173
136.036 407.344 -980.05 407.171
136.104 407.349 -980.93 407.176
136.162 407.347 -980.27 407.174
136.230 407.348 -980.69 407.175

8 CC180655    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3
135.669 395.146 -918.41 395.228
135.716 395.140 -920.35 395.222
135.795 395.144 -918.93 395.226
135.842 395.134 -920.72 395.216
135.921 395.140 -920.22 395.222
135.968 395.151 -919.14 395.233
136.047 395.152 -919.11 395.234
136.094 395.141 -920.00 395.223
136.172 395.135 -920.07 395.217
136.220 395.145 -920.43 395.227

12 CC177837    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3
135.690 401.555 -649.15 401.507
135.695 401.564 -648.19 401.516
135.816 401.568 -649.16 401.520
135.821 401.563 -648.47 401.515
135.942 401.568 -650.09 401.520
135.947 401.565 -651.41 401.516
136.068 401.572 -648.89 401.524
136.073 401.573 -651.51 401.525
136.193 401.567 -650.40 401.519
136.199 401.574 -649.83 401.526
