NCAR AIRBORNE O2 INSTRUMENT RESULTS
PROJECT = ATOM3, FLIGHT = RF11, FILE = 171023a
PROCESSED Sat Feb 6 07:53:45 MST 2021

Notes
Logfile
All Periods Data
Calibration Data
Calibration Parameters
Assigned Cylinder Values
~ 0.5 Hz Measured Data File
1 Hz 10-sec Median Data File - plain text format
1 Hz Interpolated Data File - ICARTT format
1 Hz Interpolated Data File - ICARTT format - O2 adjusted / CO2 screened (from medcomp.r)

Results

Using data from 0 to 367 (Day of Year and Day Fraction)
Using data from 00:00:00 to 00:00:00 (HH:MM:SS)
Calibration gases:
HS: OK30767, CO2 (GMD) = 378.56, O2 (SIO) = -548.1
LS: OK30768, CO2 (GMD) = 408.58, O2 (SIO) = -692.5
LT: OK30772, CO2 (GMD) = 393.23, O2 (SIO) = -578.9
WT: OK30770, CO2 (GMD) = 398.3, O2 (SIO) = -702.7
LP: OK30771, CO2 (GMD) = 391.13, O2 (SIO) = -445.9

Raw Data and Diagnostics Figures

High Rate Data
 Medium Rate Data 1

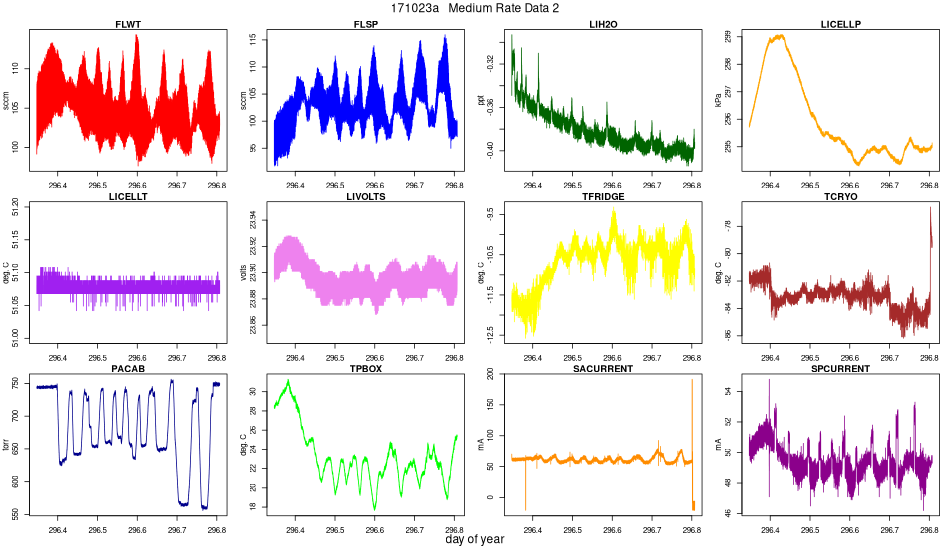

 Medium Rate Data 2

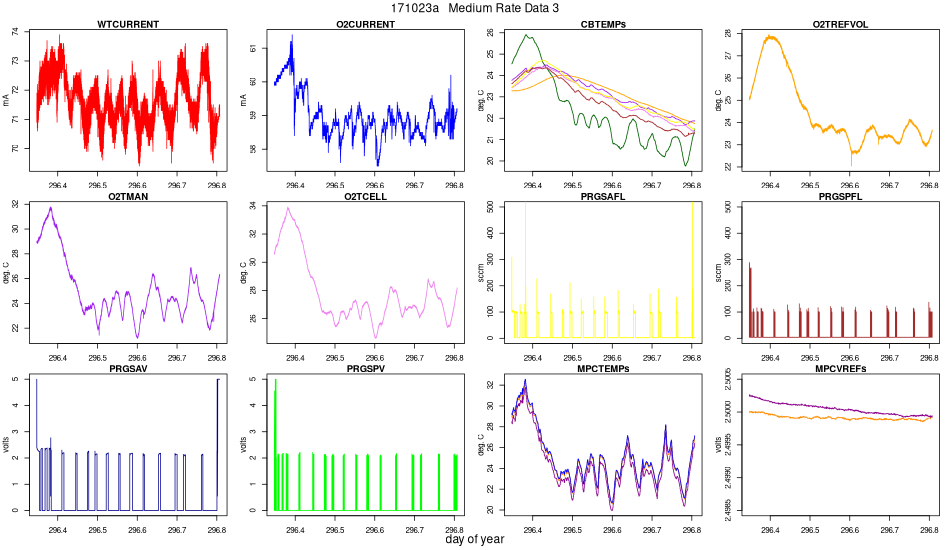

Medium Rate Data 3

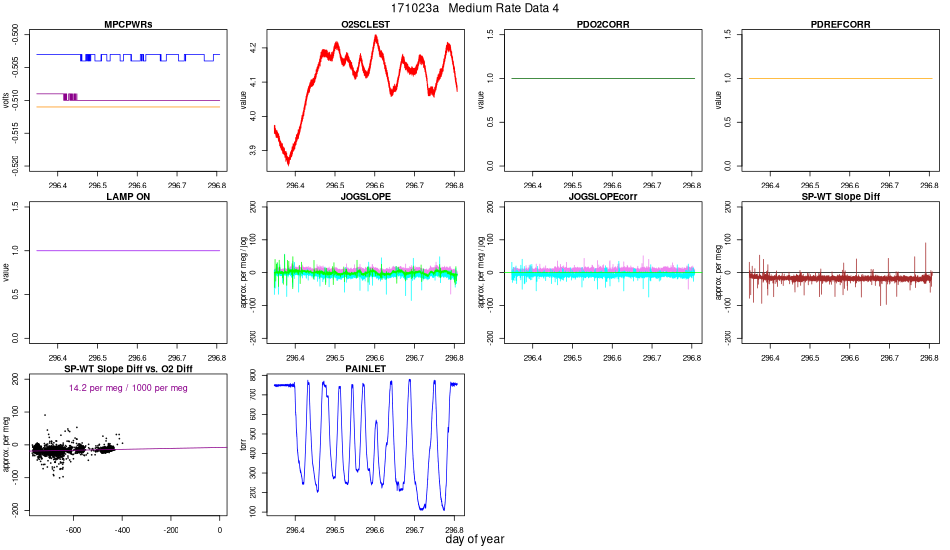

 Medium Rate Data 4

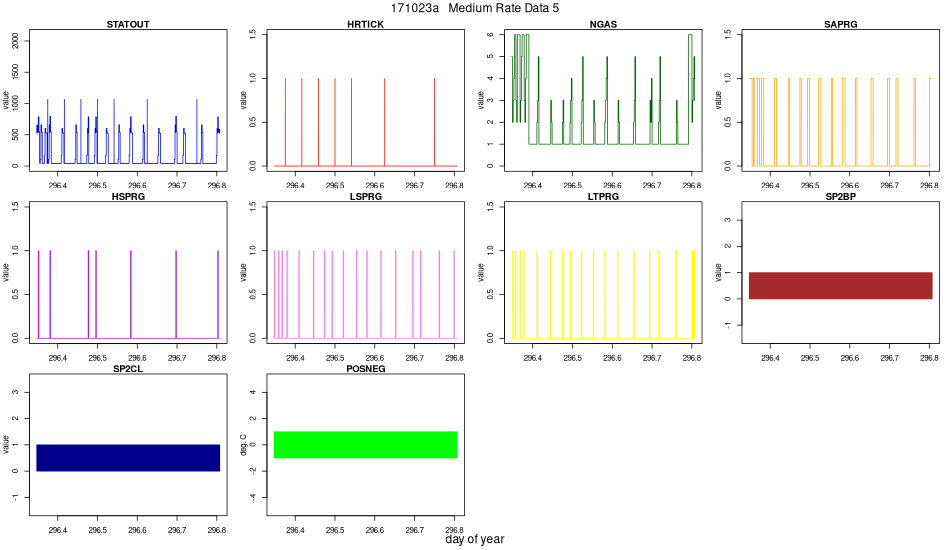

 Medium Rate Data 5


Recalculated Data Figures

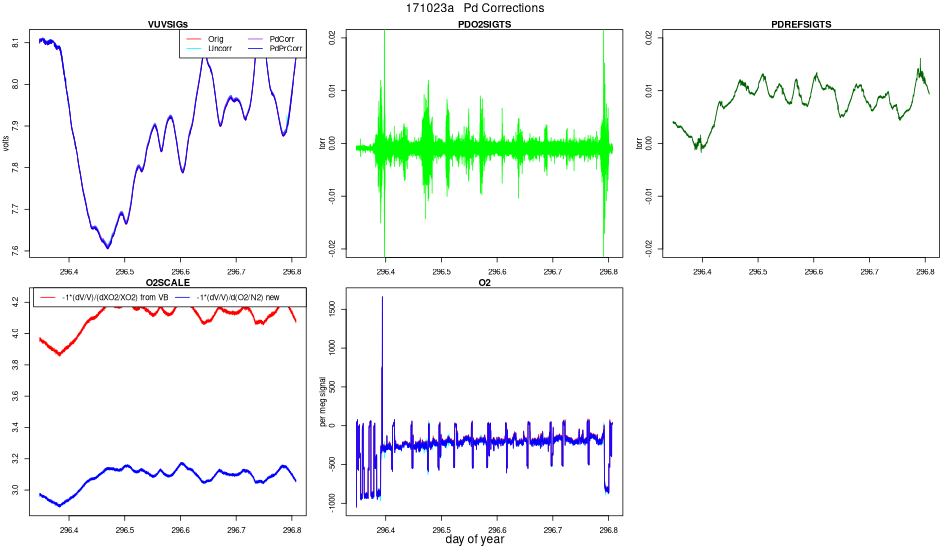

PdO2 and PdRef Corrections

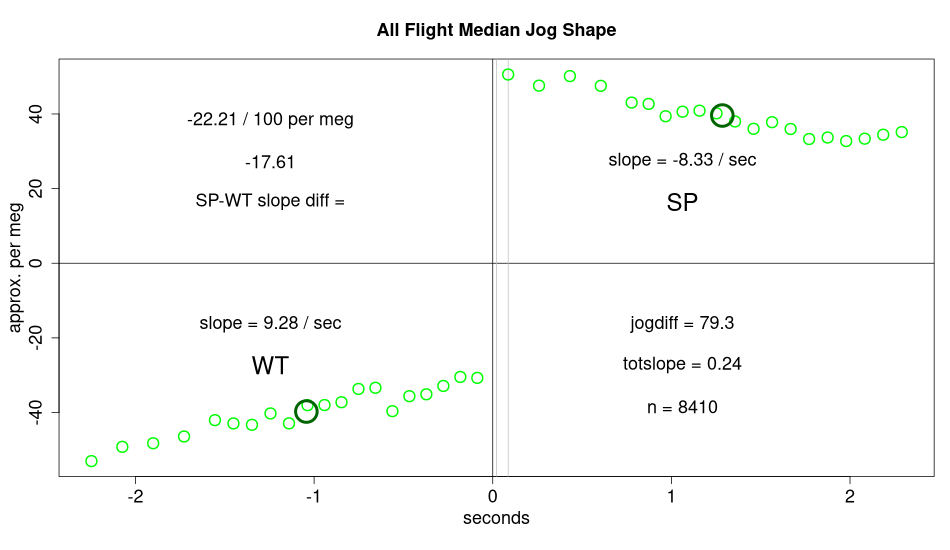

 All Flight HR Jog Shape
 HR Jog Shapes by NGAS
 HR Jog Shapes by NGAS 2

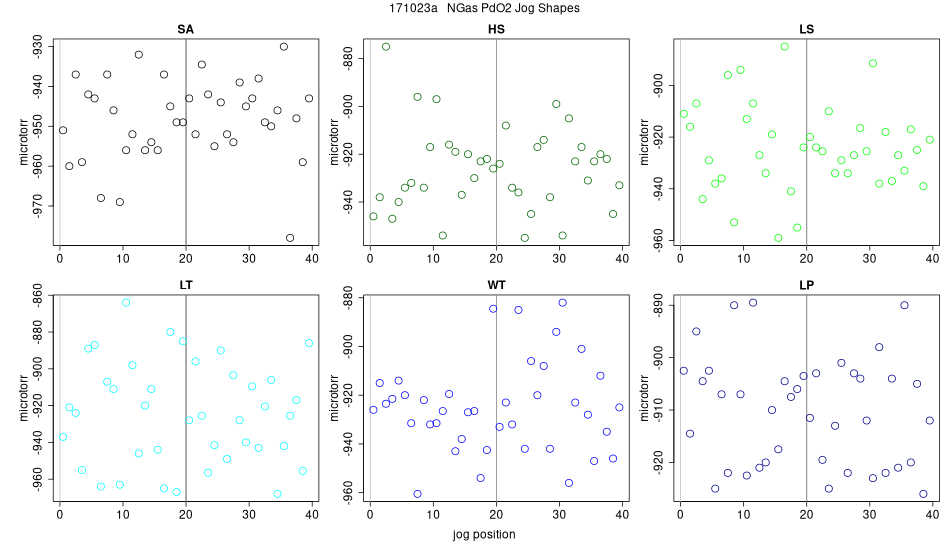

 HR PdO2 Jog Shapes by NGAS

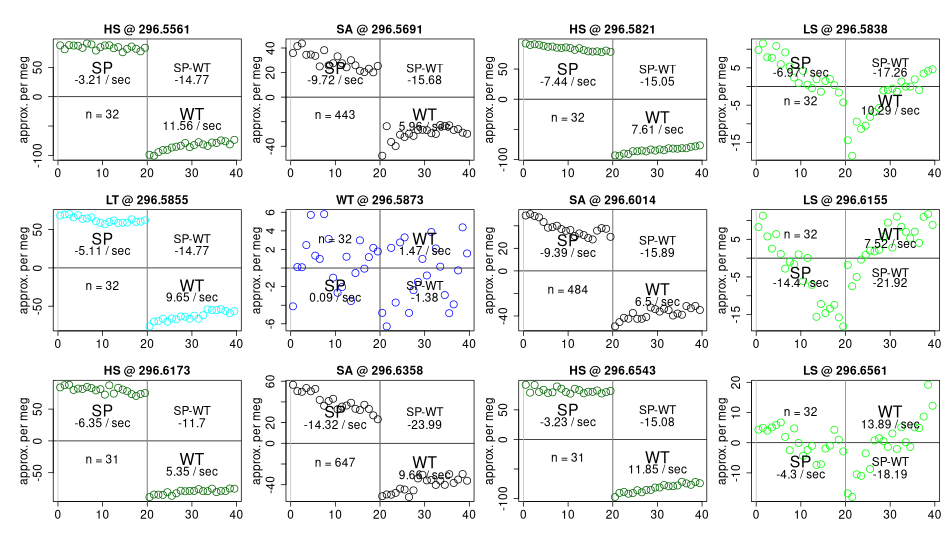

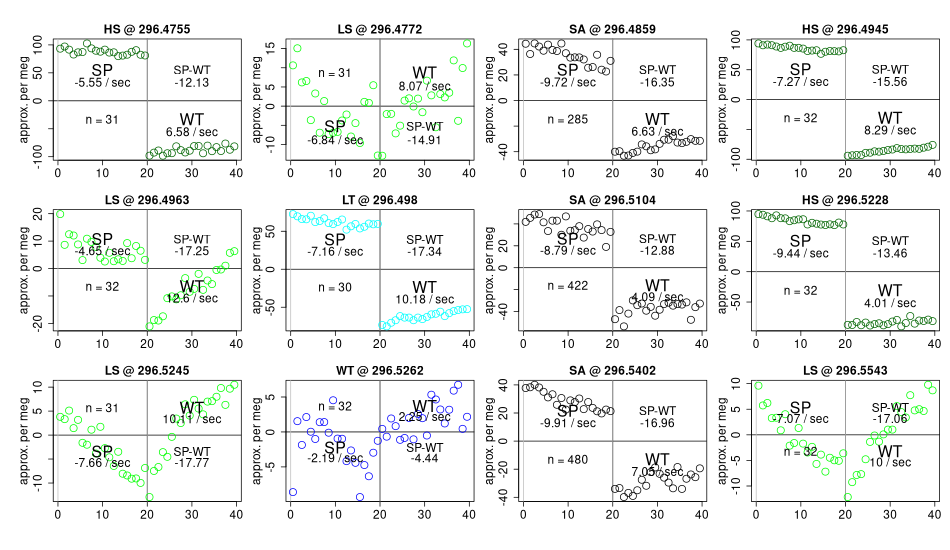

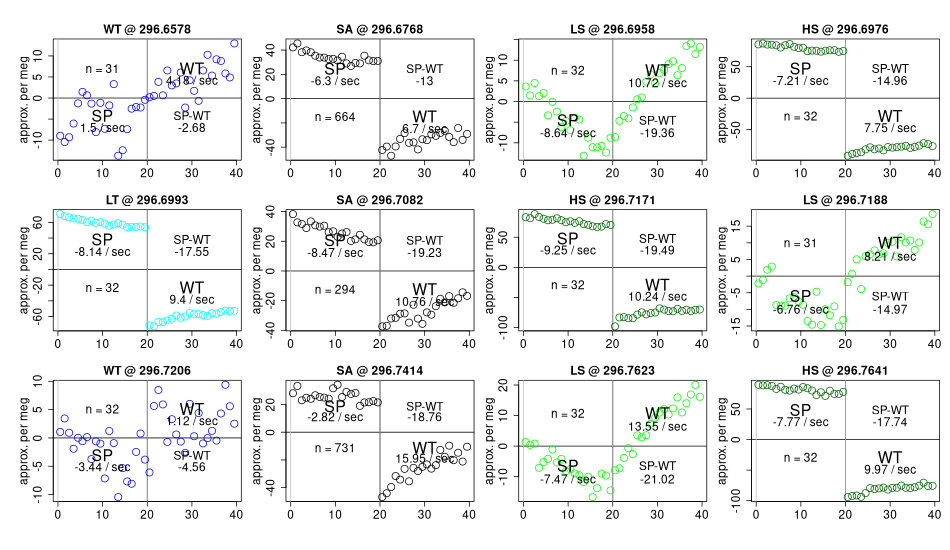

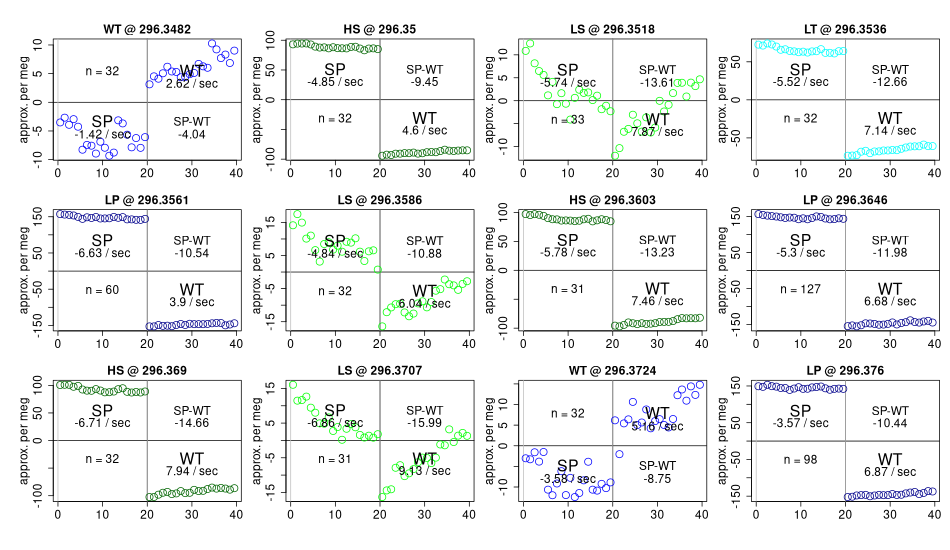

HR Jog Shapes by Individual NGAS
 HR Jog Shapes by Individual NGAS
 HR Jog Shapes by Individual NGAS
 HR Jog Shapes by Individual NGAS
 HR Jog Shapes by Individual NGAS

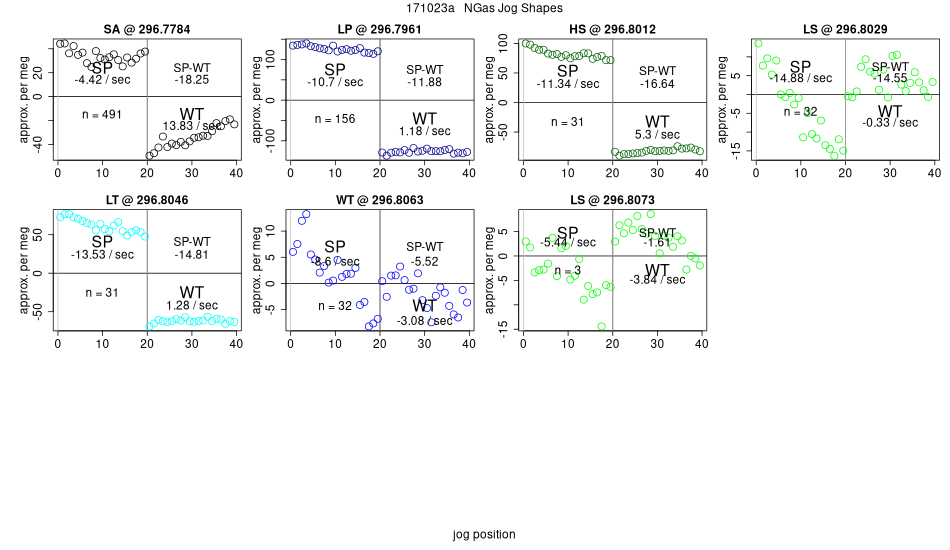

 HR Jog Shapes by Individual NGAS

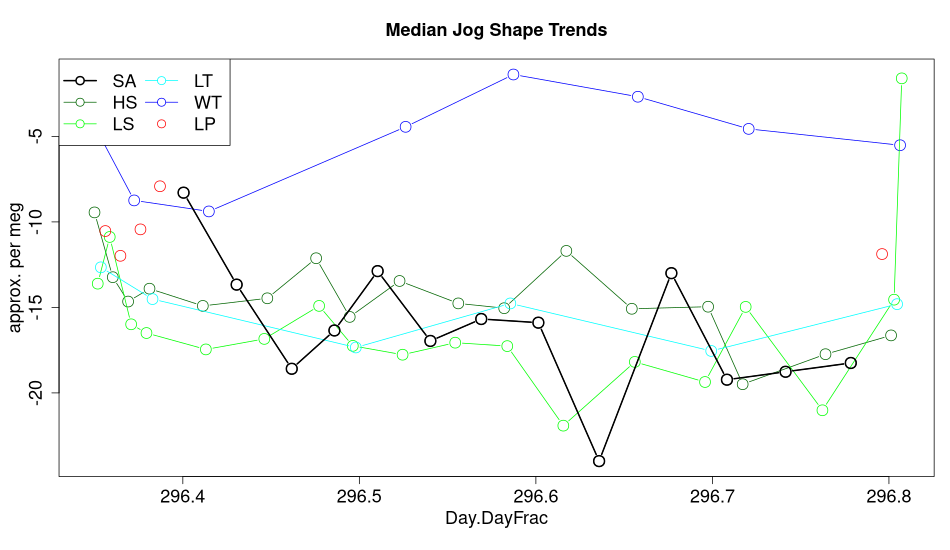

Jog Shape Trends

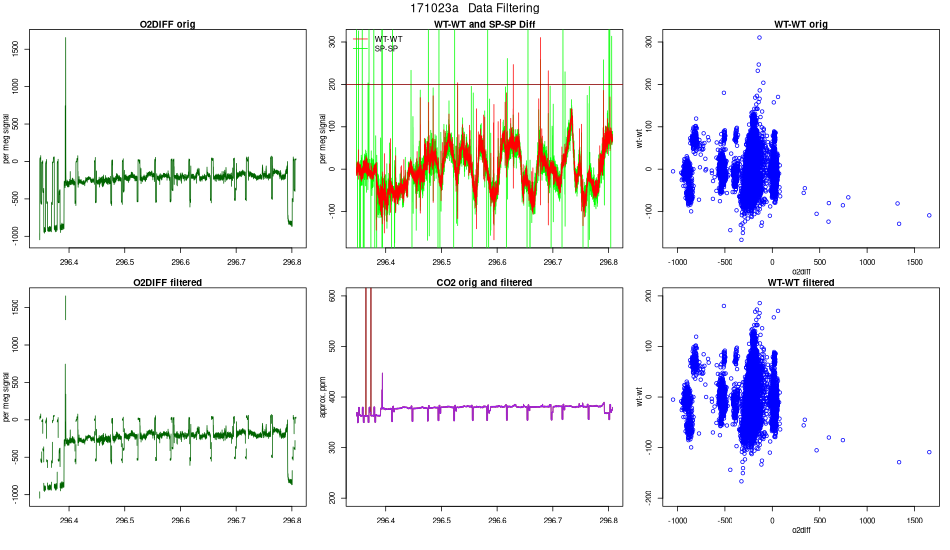

Data Filtering Figures

Jog SD Filter
 Spikes and Level Shifts

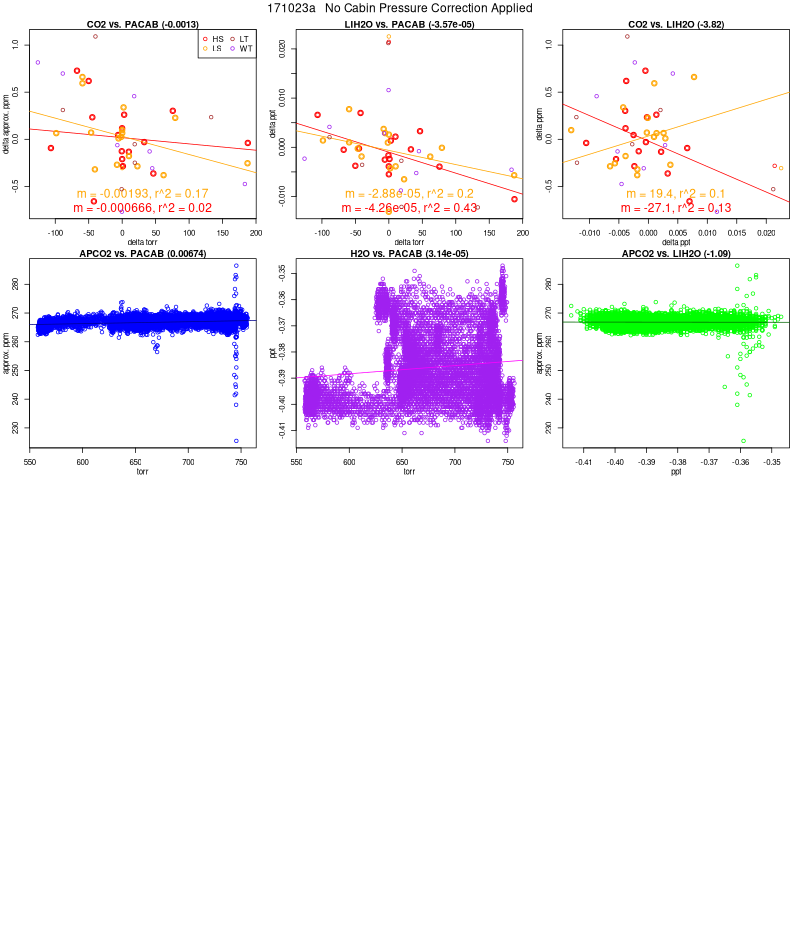

 Li840 Cabin Pressure Senisitivity

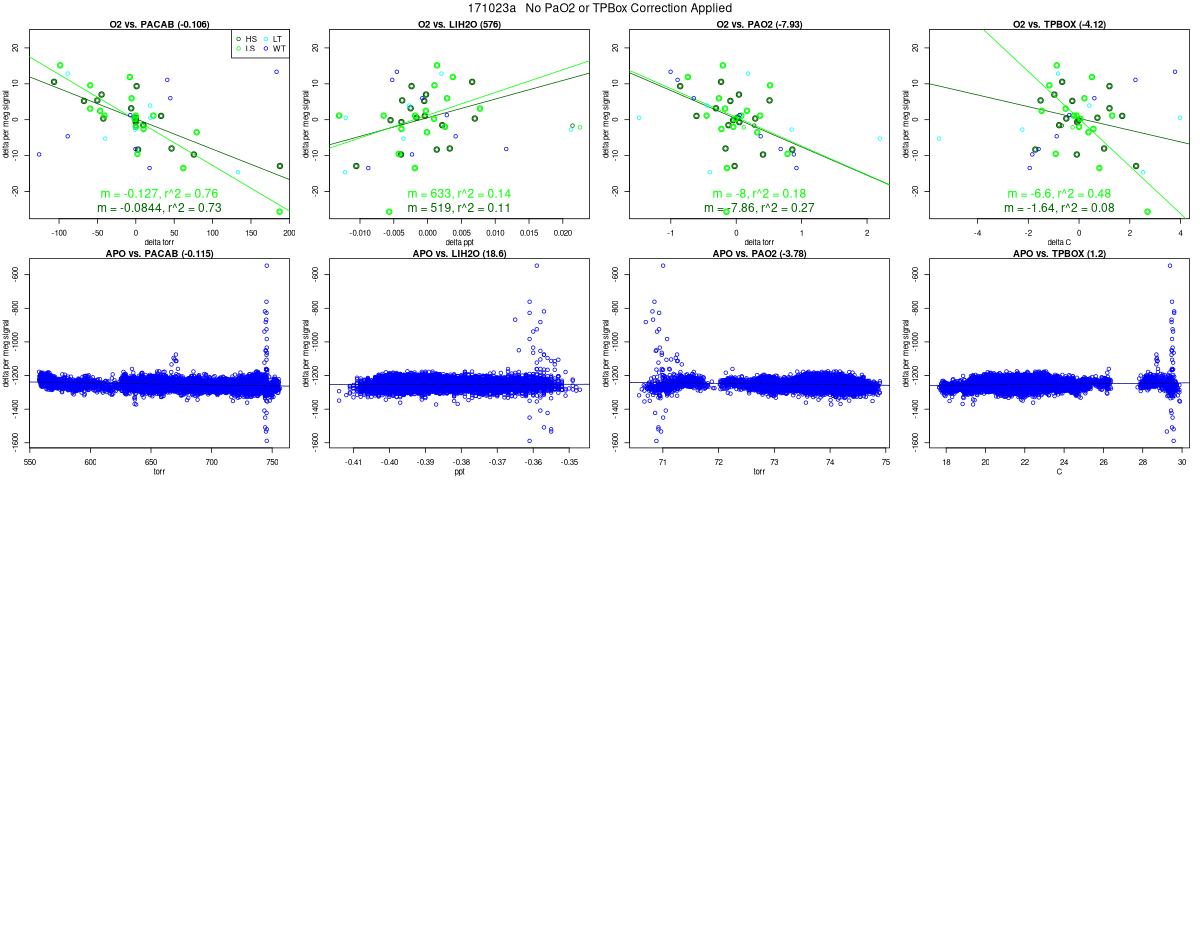

 O2 PCab, H2O, PaO2 Senisitivity

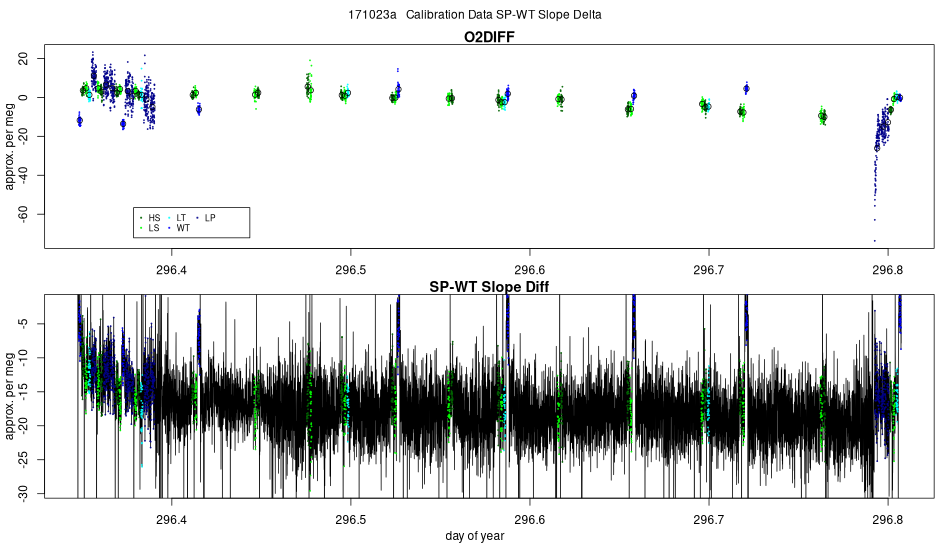

SP-WT Slope Diff

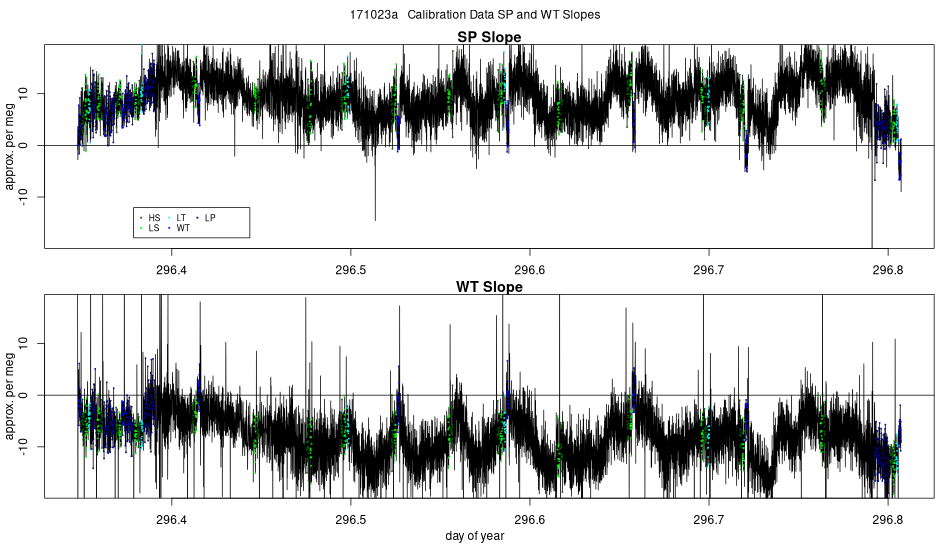

 SP and WT Slopes

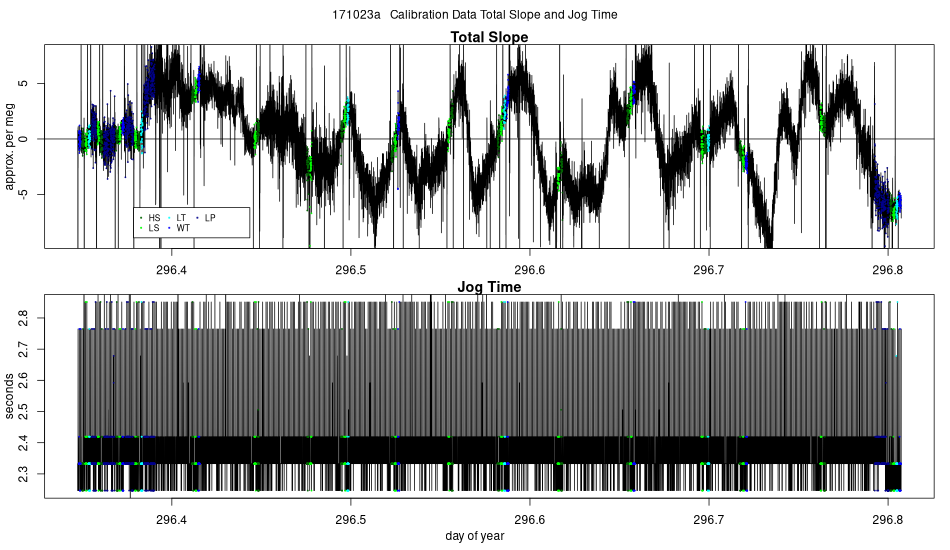

 Total Slope and Jog Time

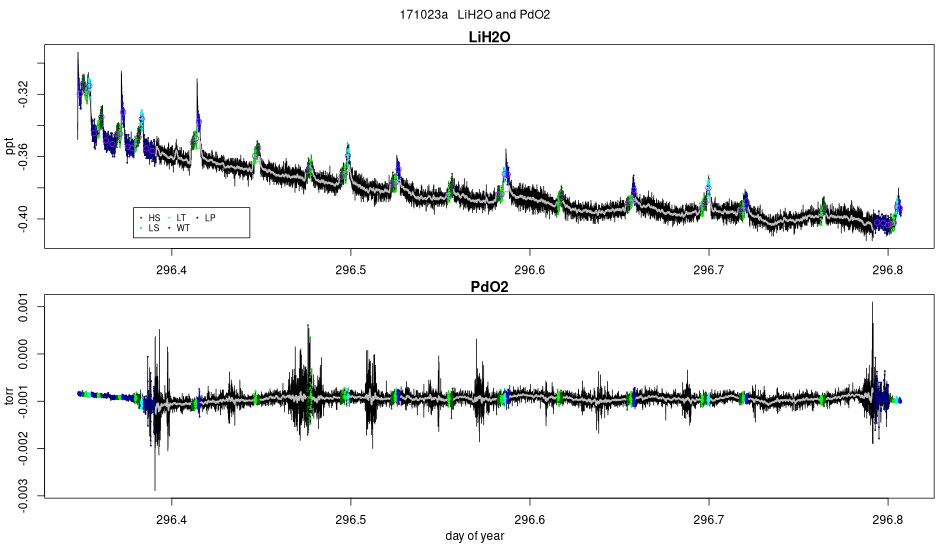

 LiH2O and PdO2

Calibration Figures

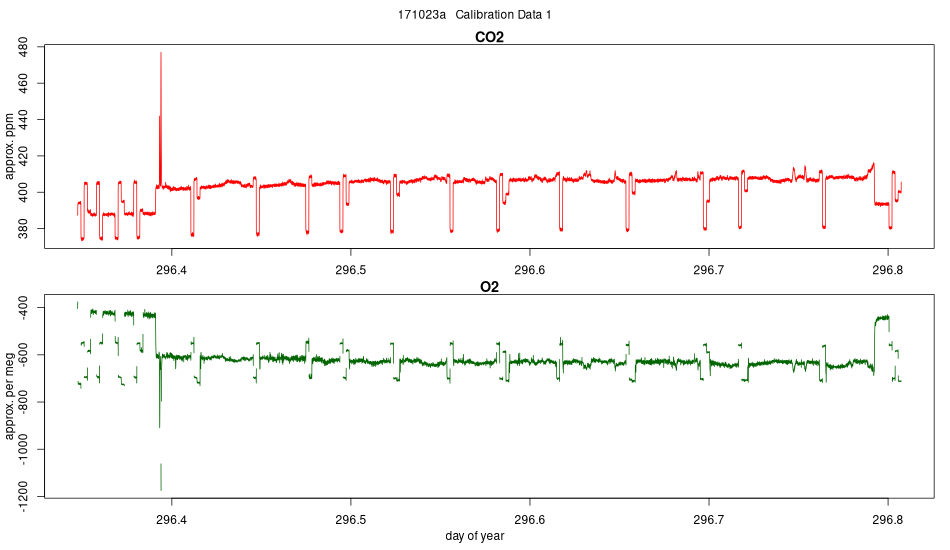

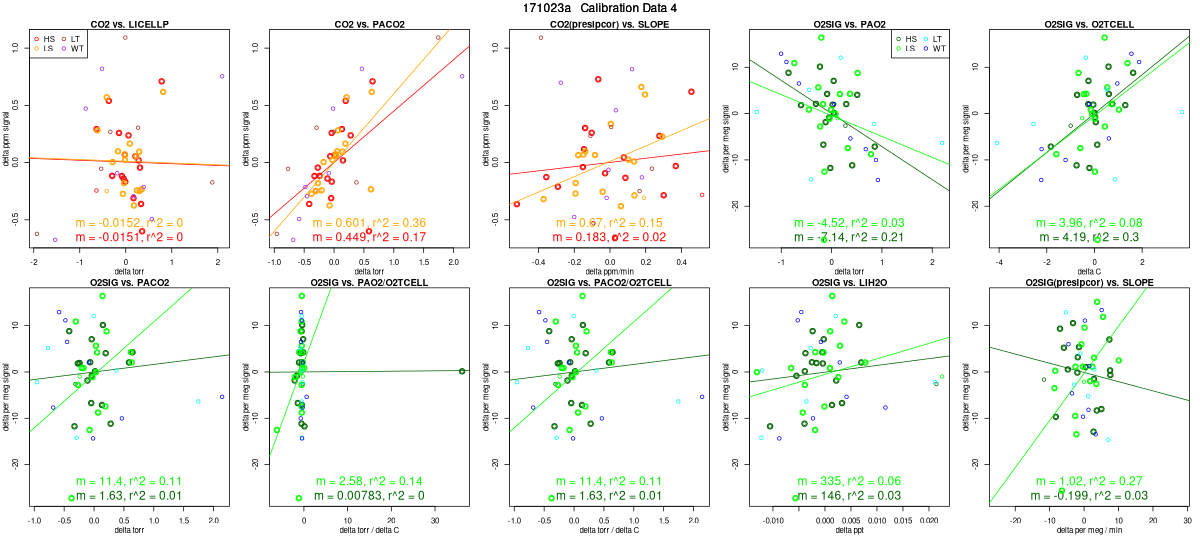

Calibration Data 1

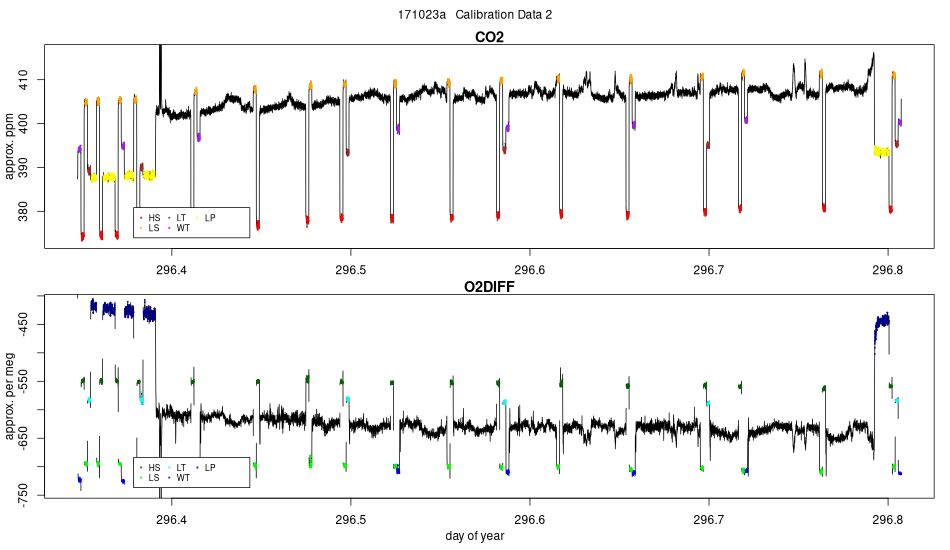

 Calibration Data 2

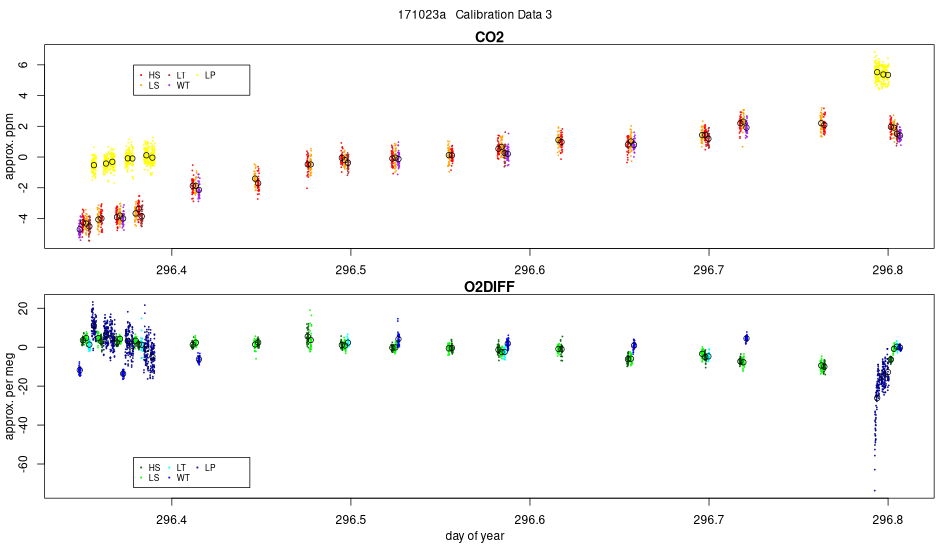

 Calibration Data 3
Calibration Data 4

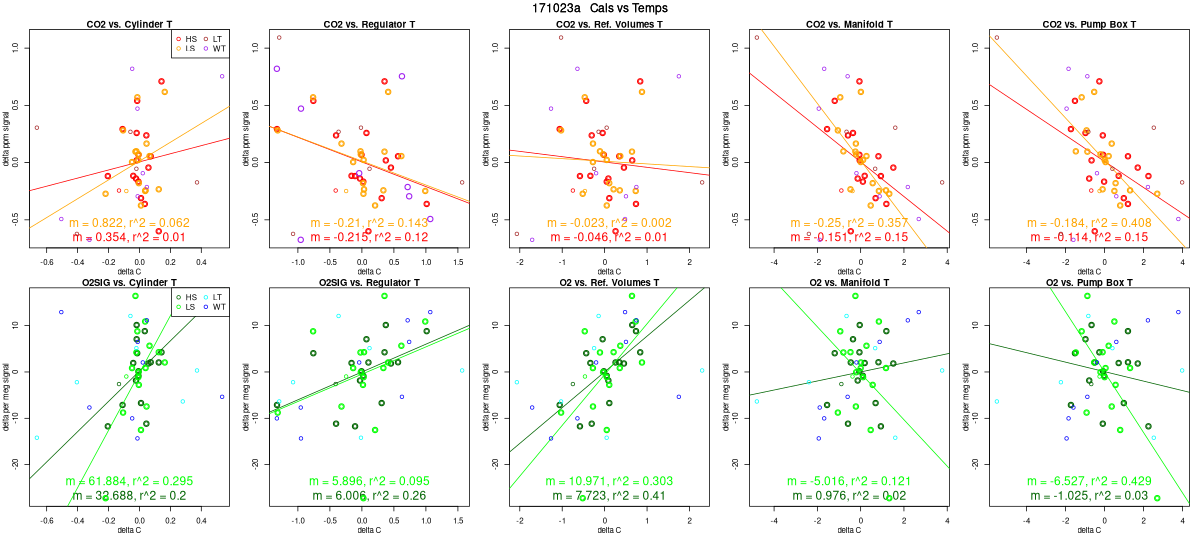

 Calibrations vs Cylinder Temps

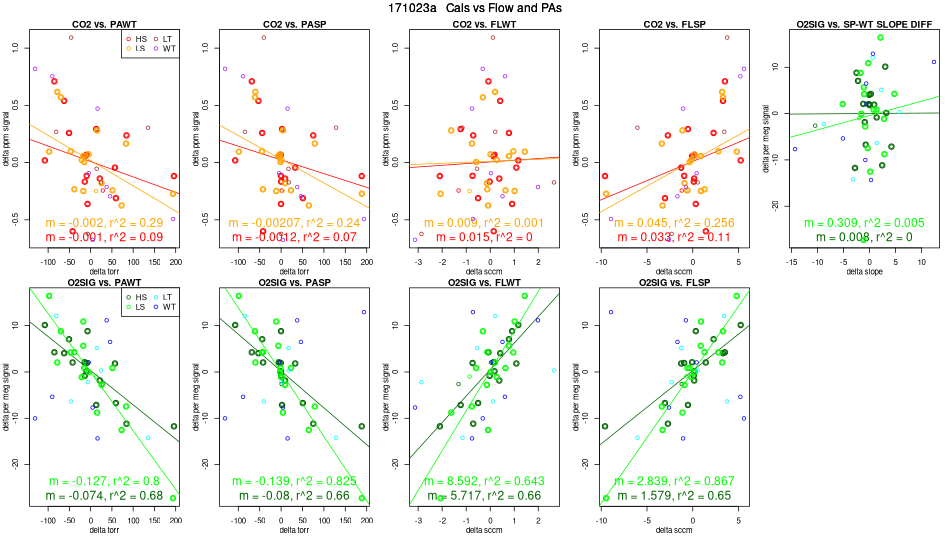

 Calibrations vs Cylinder Flows and PAs

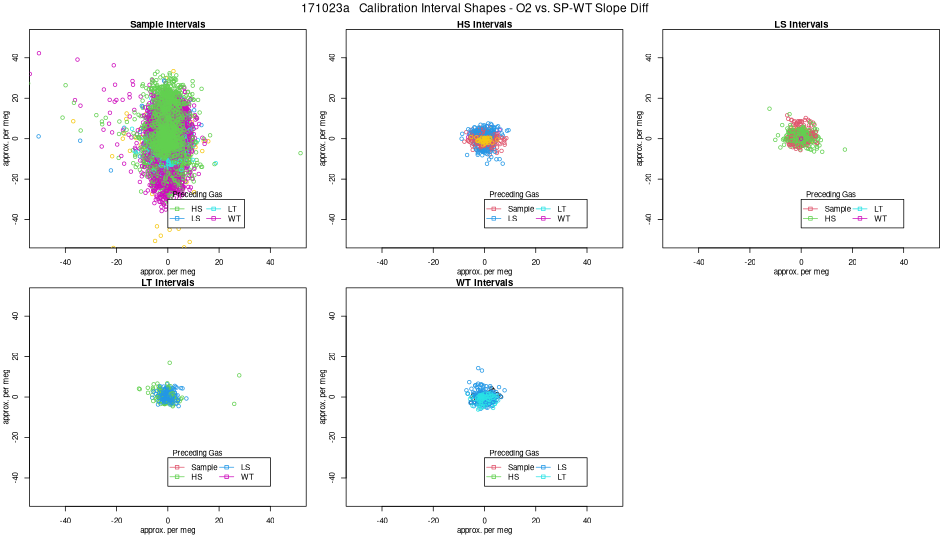

Calibration Interval Shapes - O2

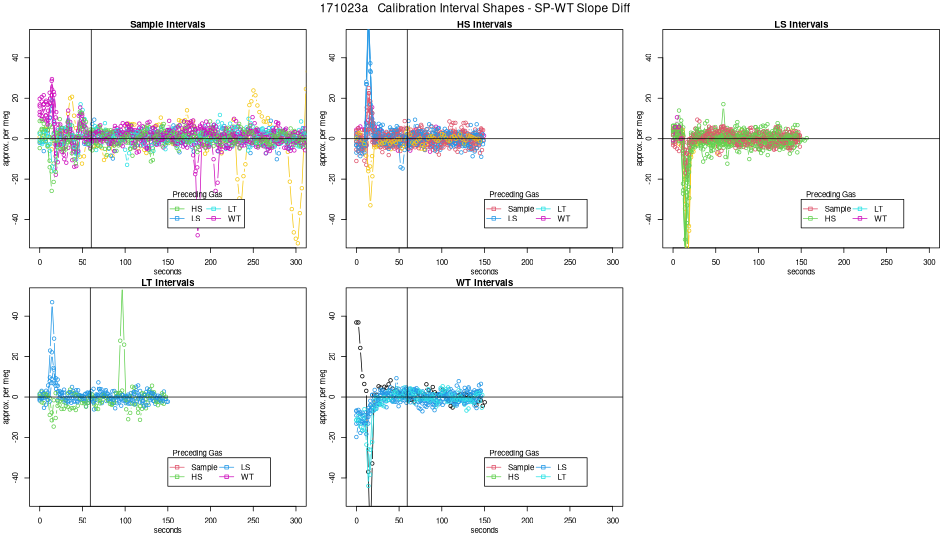

 Calibration Interval Shapes - SP-WT Slope Diff
 Calibration Interval - O2 vs. SP-WT Slope Diff

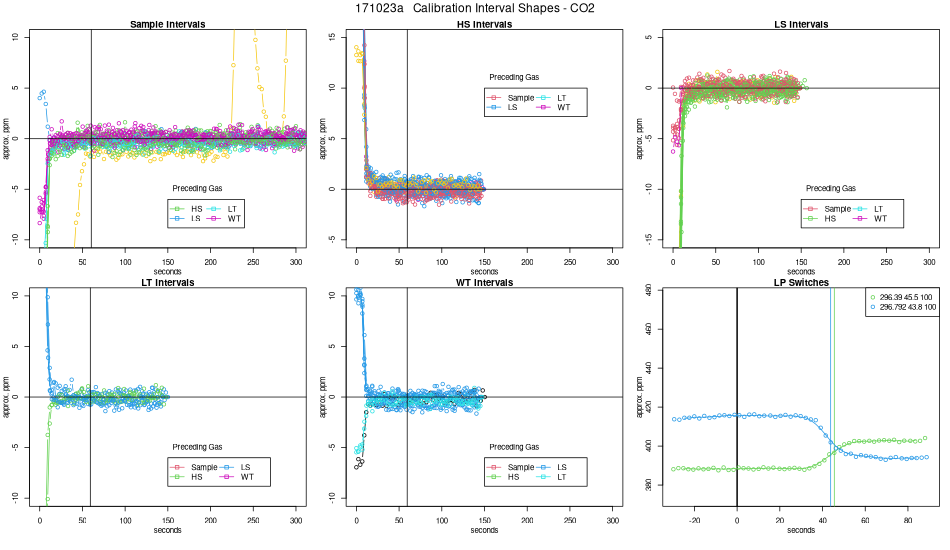

Calibration Interval Shapes - CO2

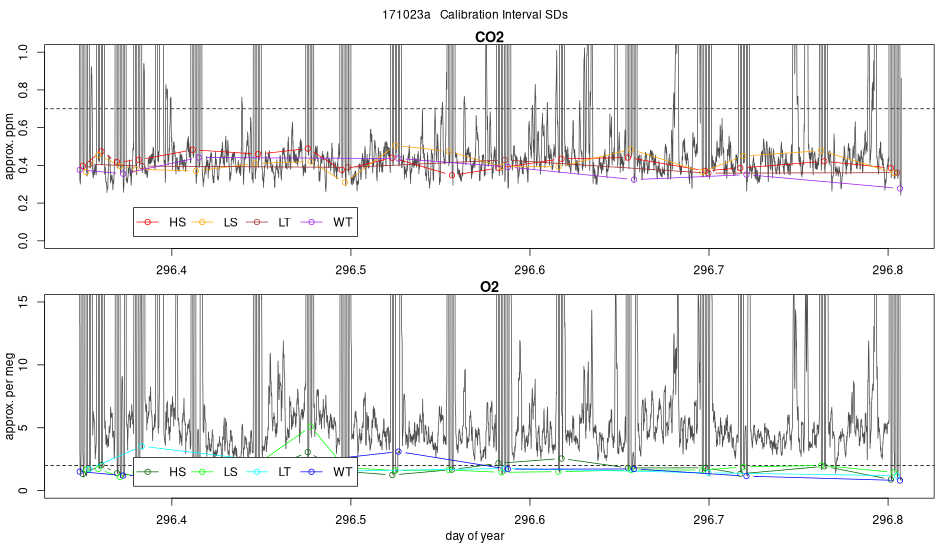

 Calibration Interval SDs

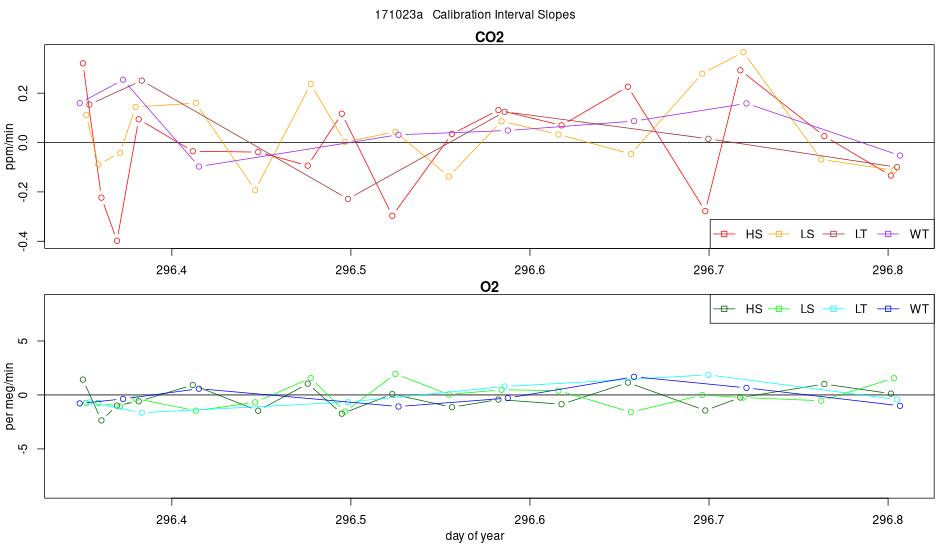

 Calibration Interval Slopes

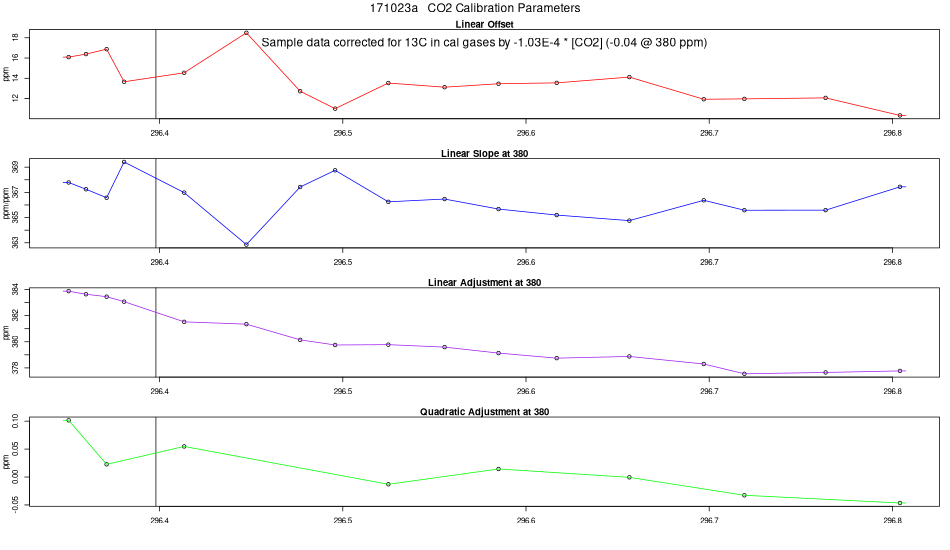

CO2 Fit Parameters

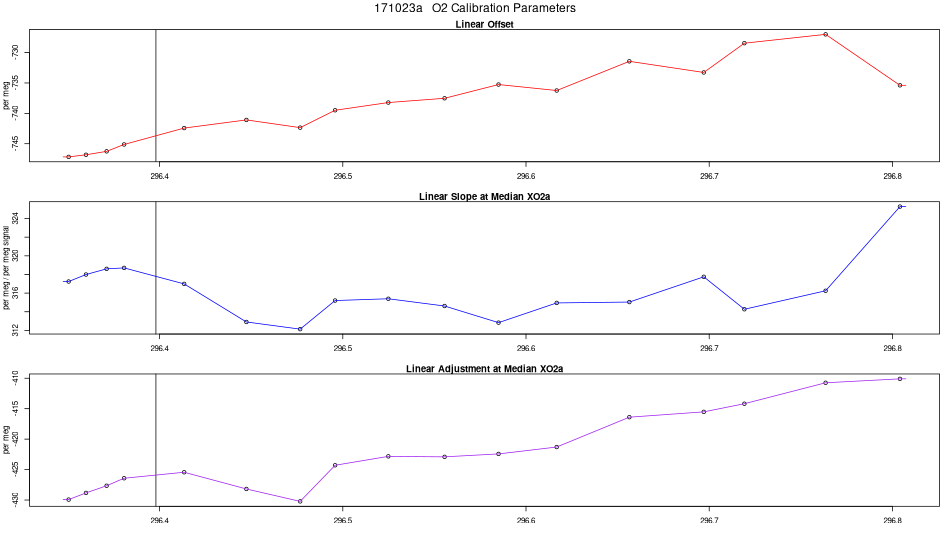

 O2 Fit Parameters

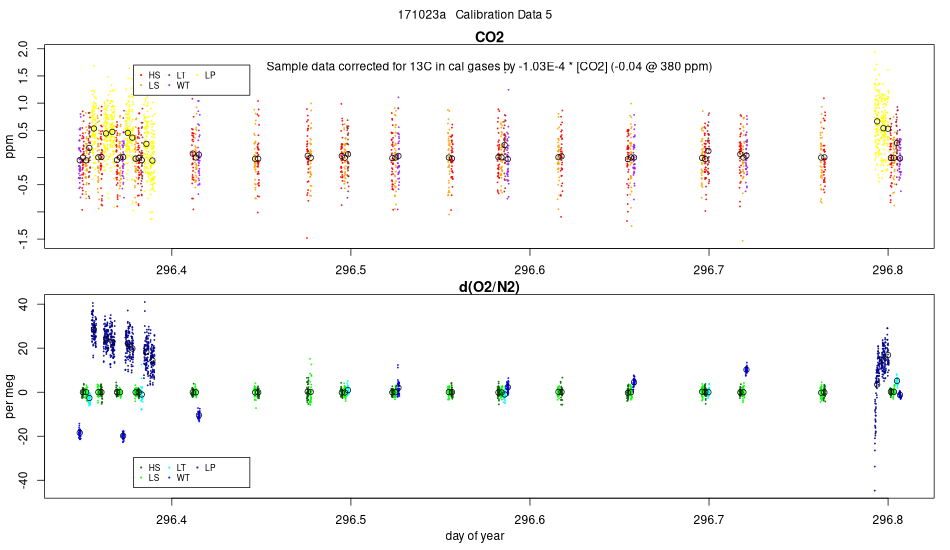

 Calibration Data 5

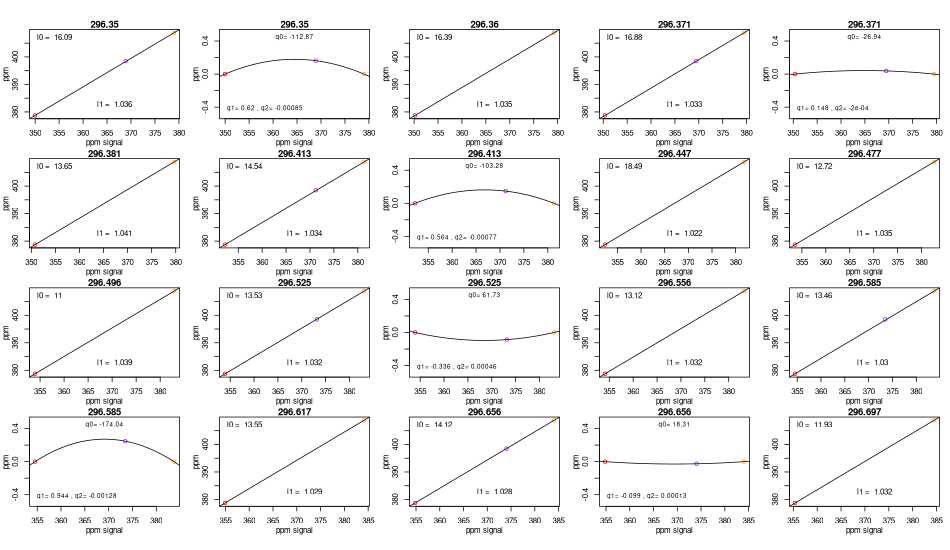

CO2 Fits 1

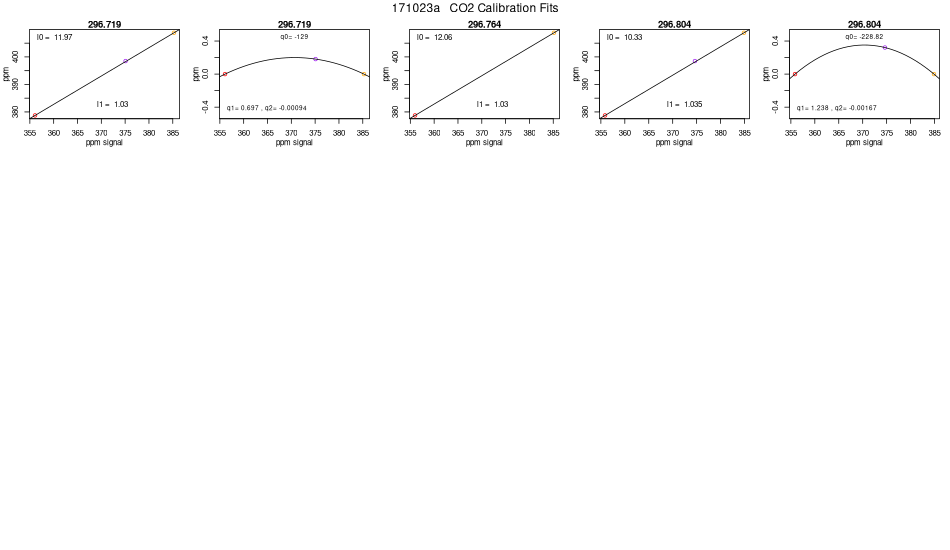

 CO2 Fits 2
O2 Fits 1


Aircraft Data Figures

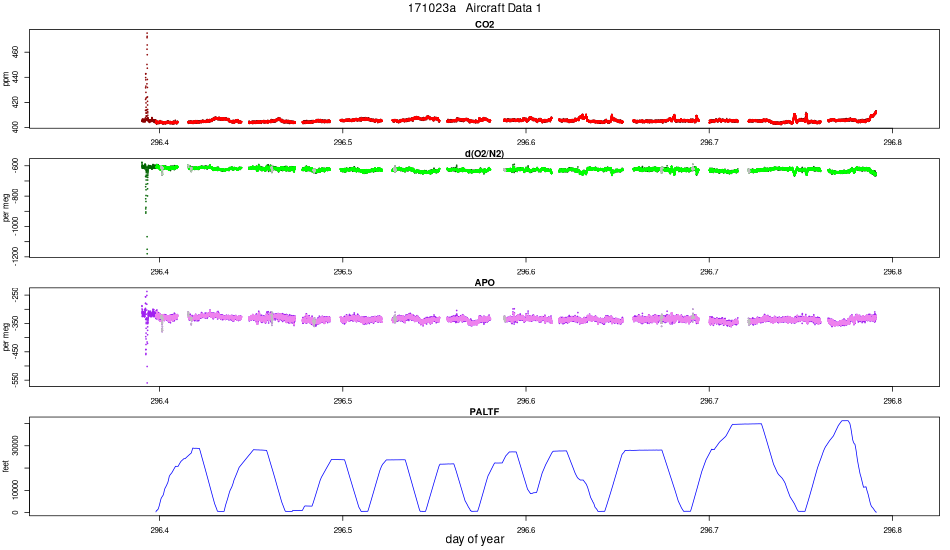

Aircraft Data 1

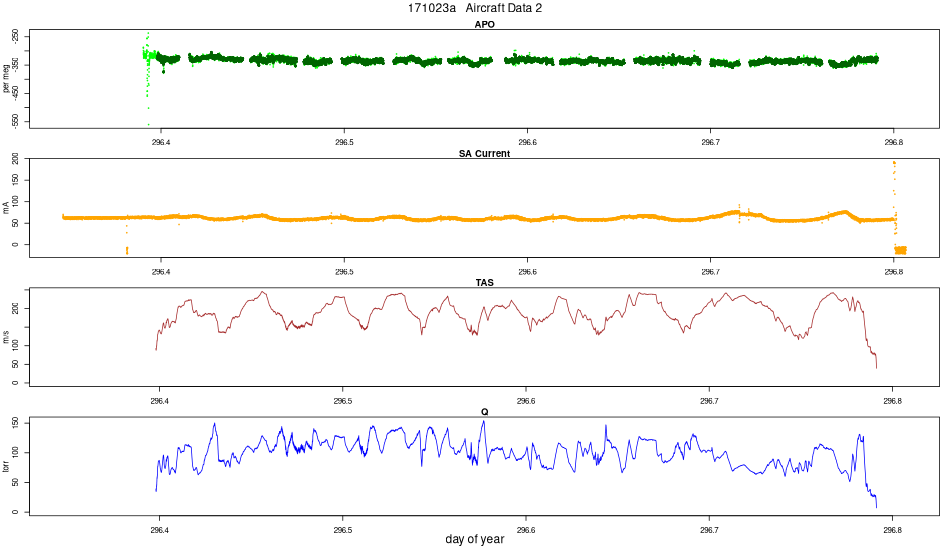

 Aircraft Data 2

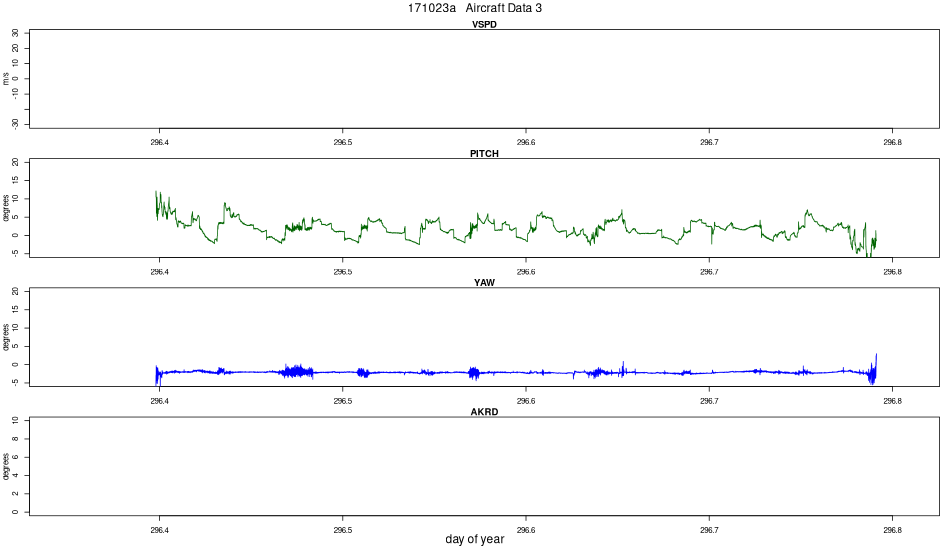

 Aircraft Data 3
Aircraft Data 4
 Aircraft Data 5
 Aircraft Data 6


Inlet P Corrections

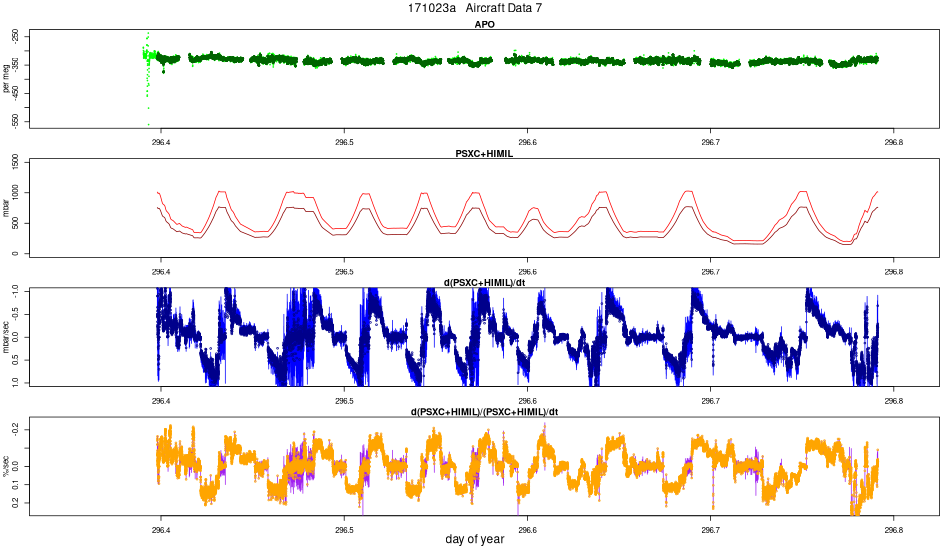

Aircraft Data 7

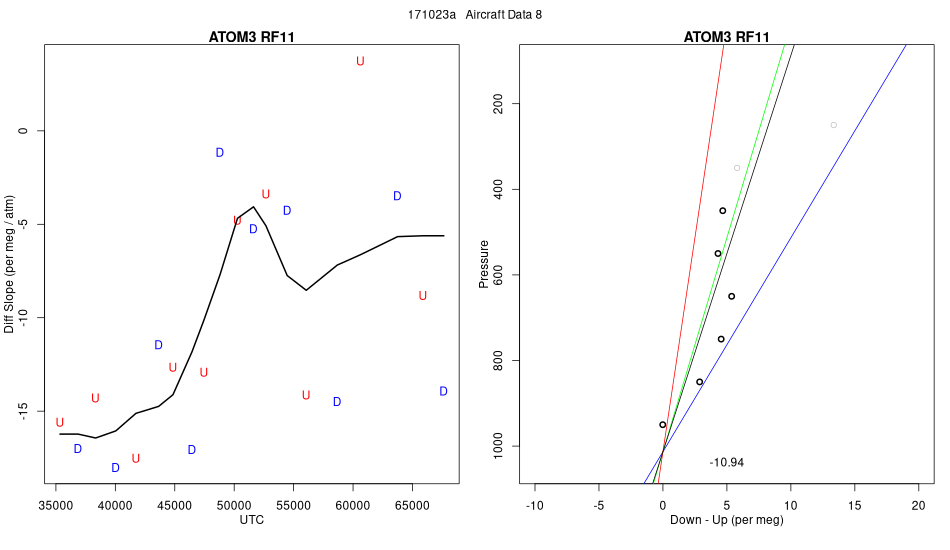

 Aircraft Data 8

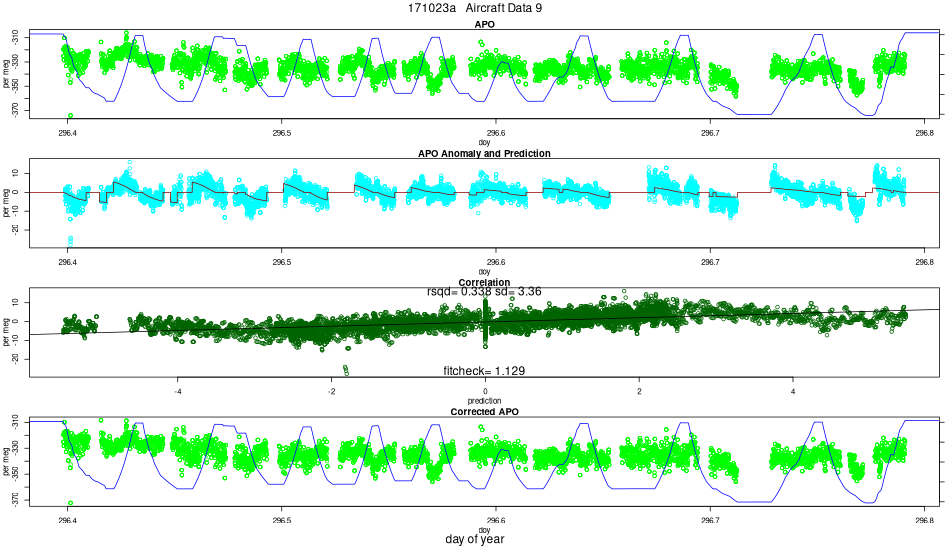

 Aircraft Data 9


Pressure / Latitude Cross-sections

O2 Cross Section

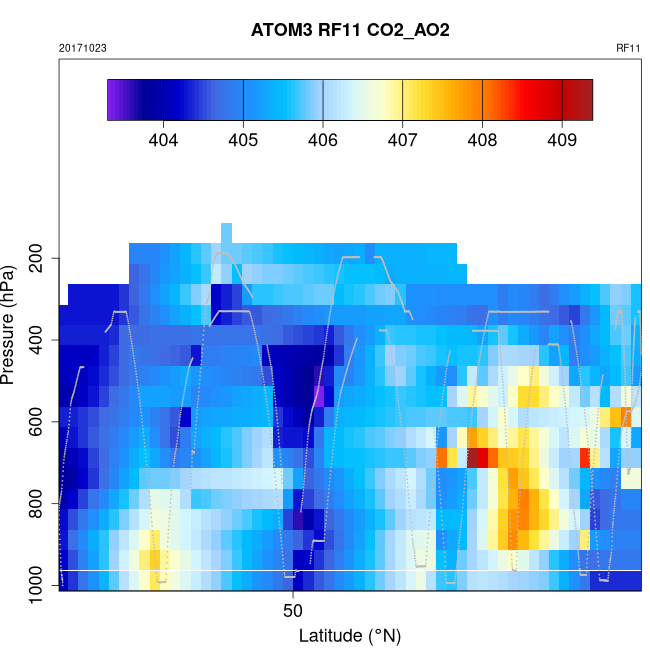

 CO2 Cross Section

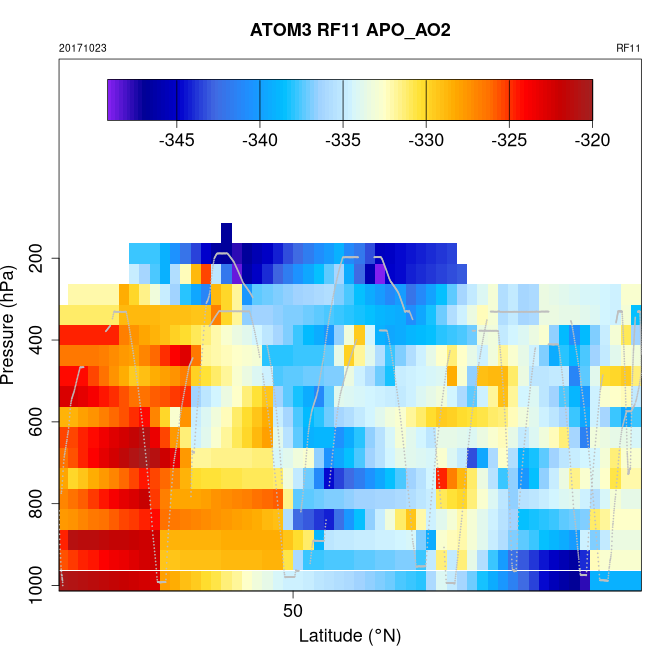

 APO Cross Section


Subinterval Figures

Subinterval preTOspike
Using data from 296.39043 to 296.39724 (Day of Year and Day Fraction)
Using data from 09:22:12 to 09:32:01 (HH:MM:SS)

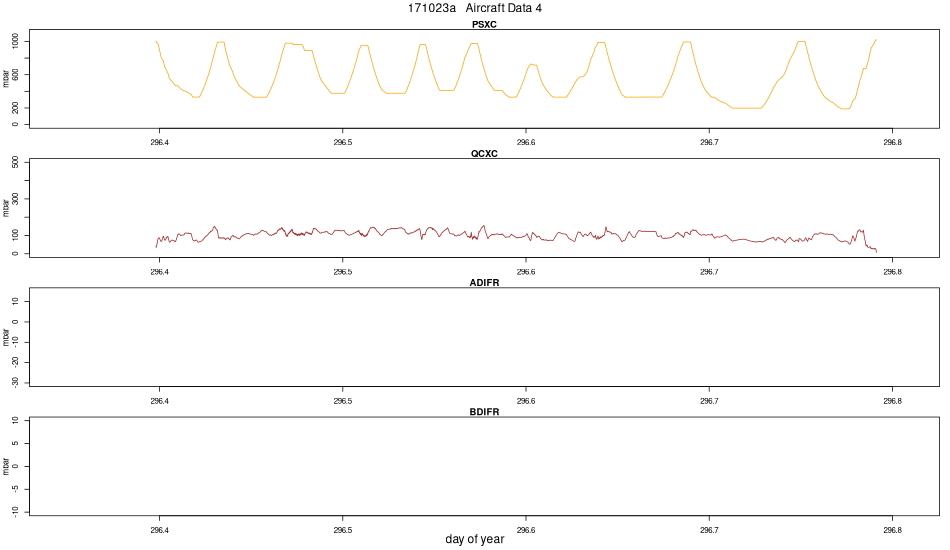

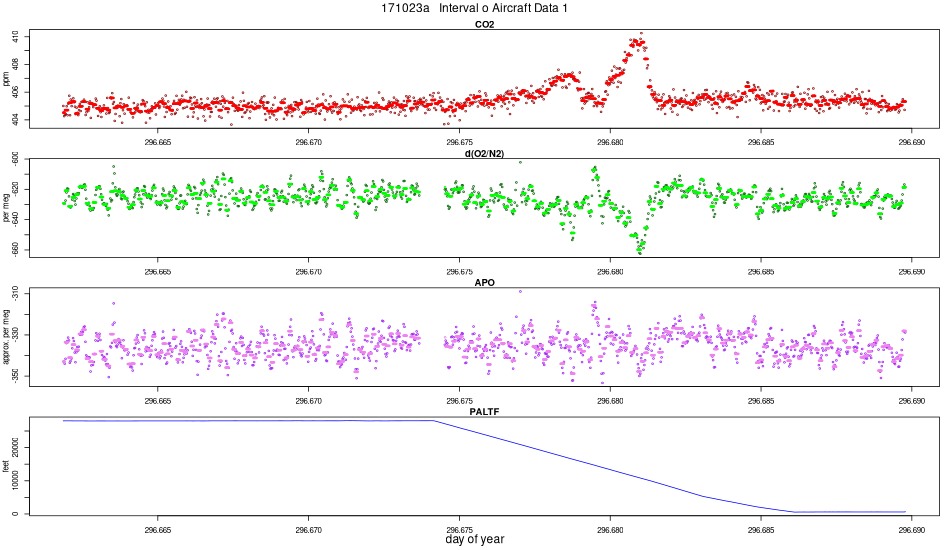

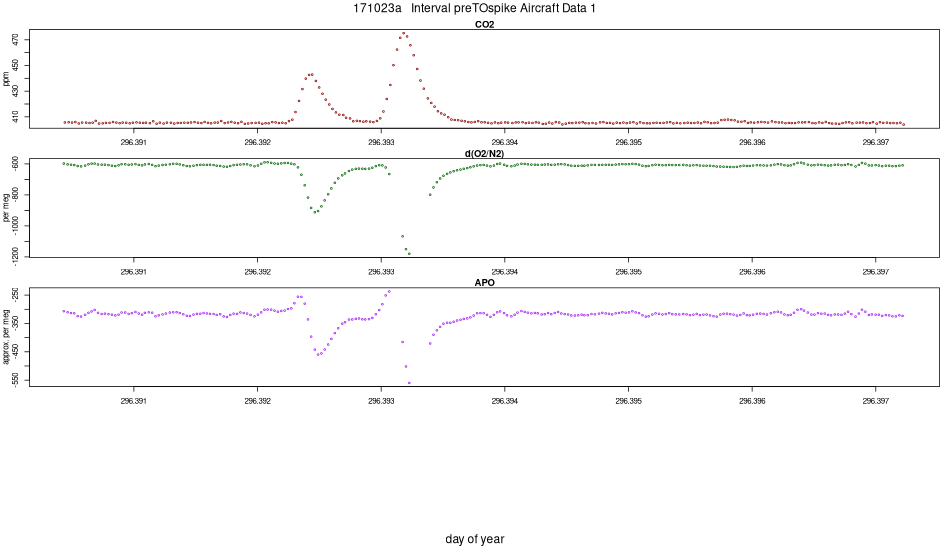

Aircraft Data 1

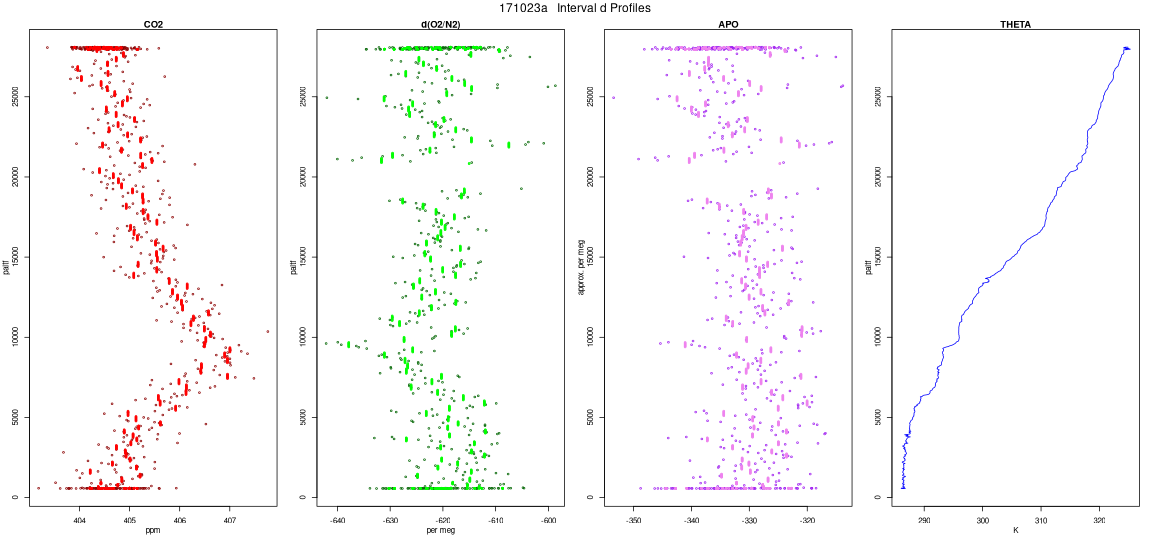

 Profiles

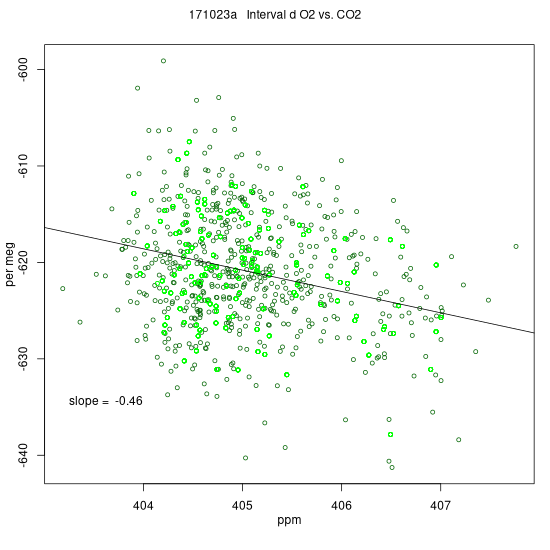

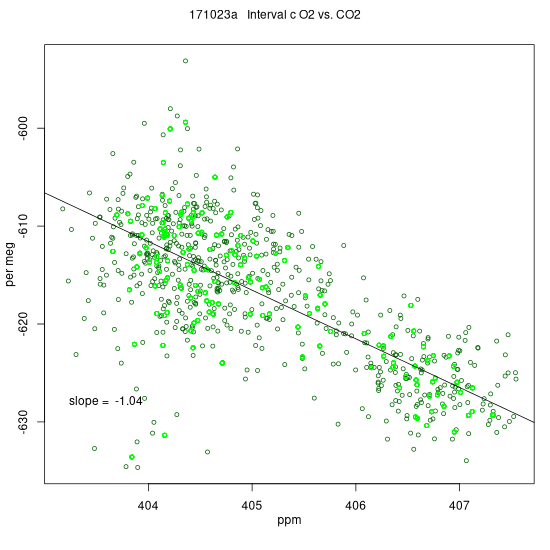

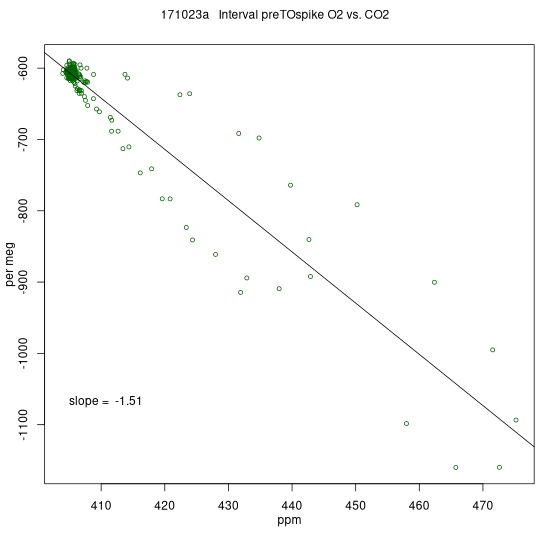

O2 vs. CO2


Subinterval flight
Using data from 296.39724 to 296.79185 (Day of Year and Day Fraction)
Using data from 09:32:01 to 19:00:15 (HH:MM:SS)

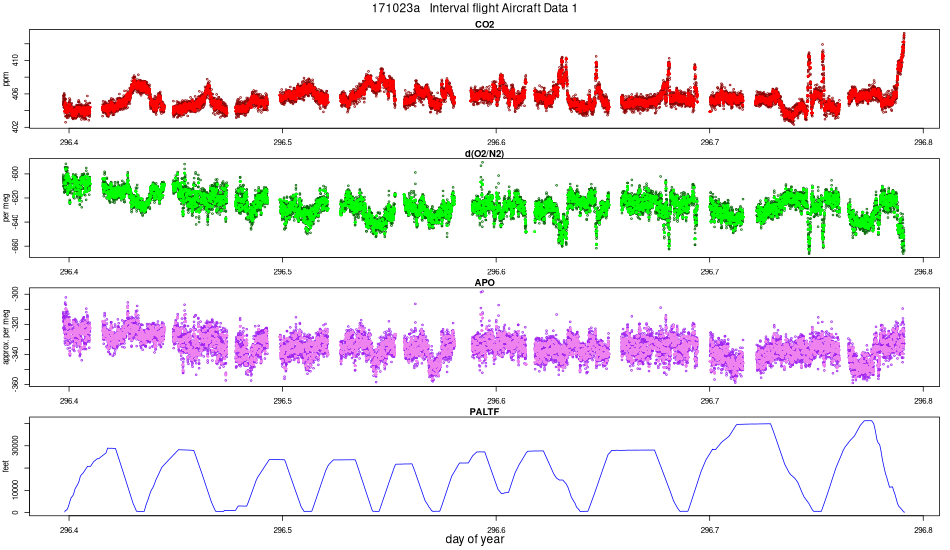

Aircraft Data 1
 Profiles

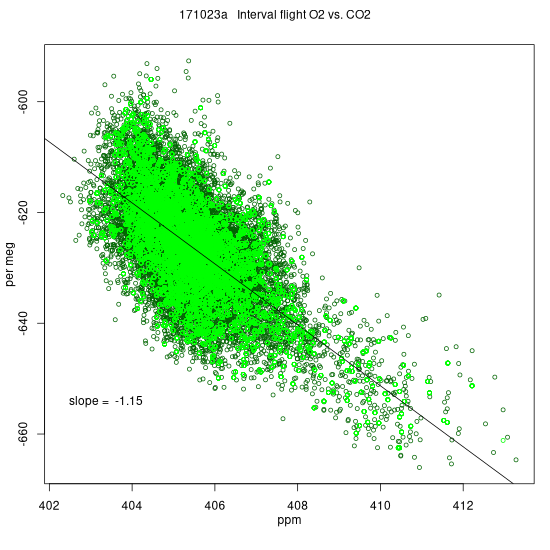

O2 vs. CO2


Subinterval a
Using data from 296.39724 to 296.41999 (Day of Year and Day Fraction)
Using data from 09:32:01 to 10:04:47 (HH:MM:SS)

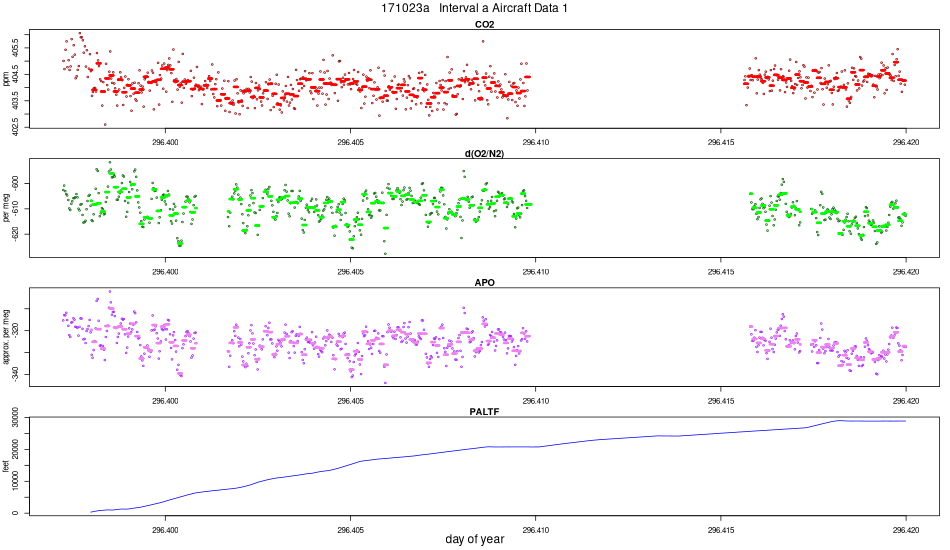

Aircraft Data 1

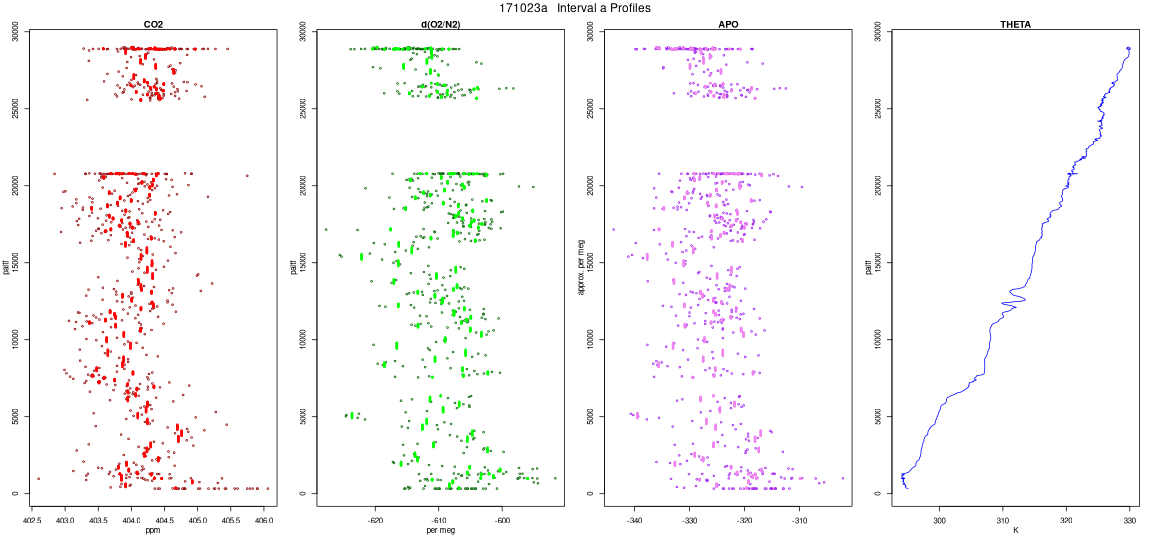

 Profiles

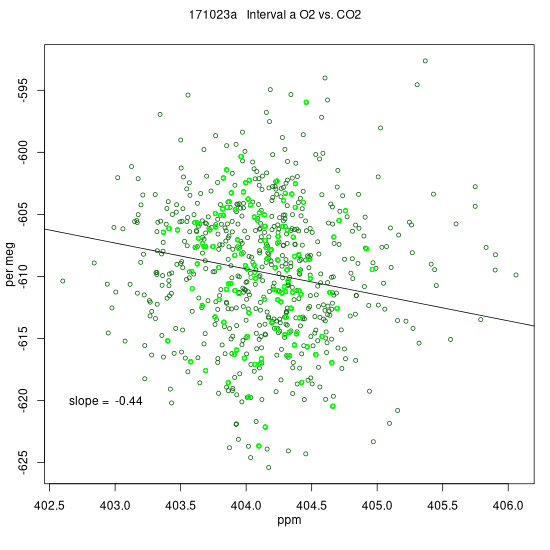

O2 vs. CO2


Subinterval b
Using data from 296.41999 to 296.43356 (Day of Year and Day Fraction)
Using data from 10:04:47 to 10:24:19 (HH:MM:SS)

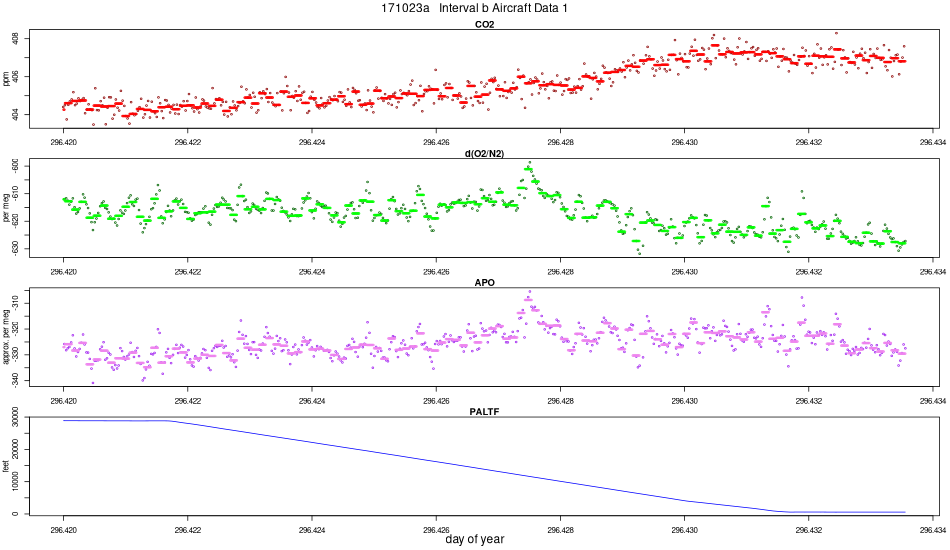

Aircraft Data 1

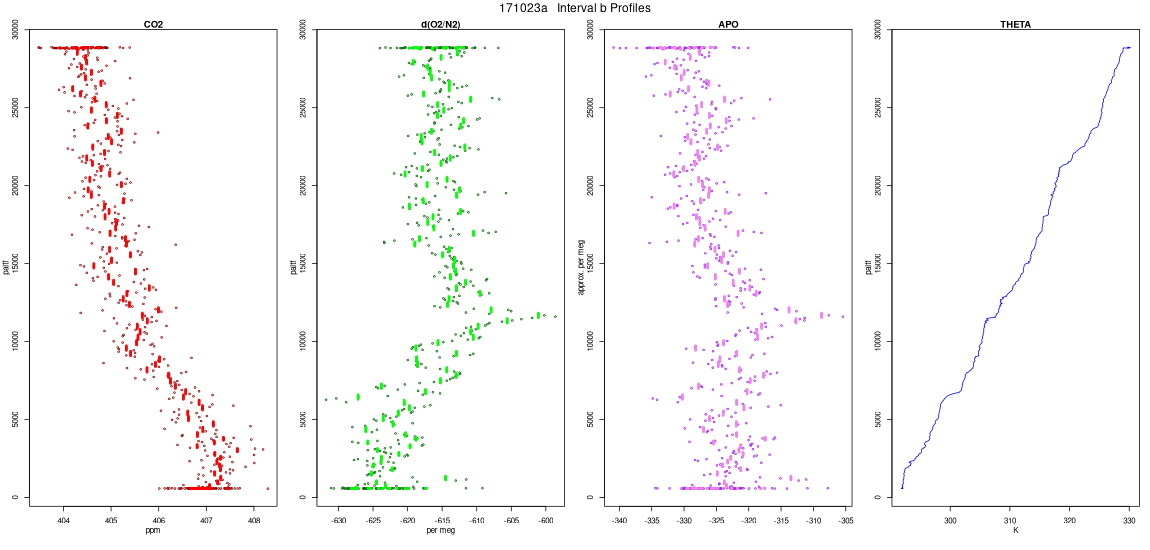

 Profiles

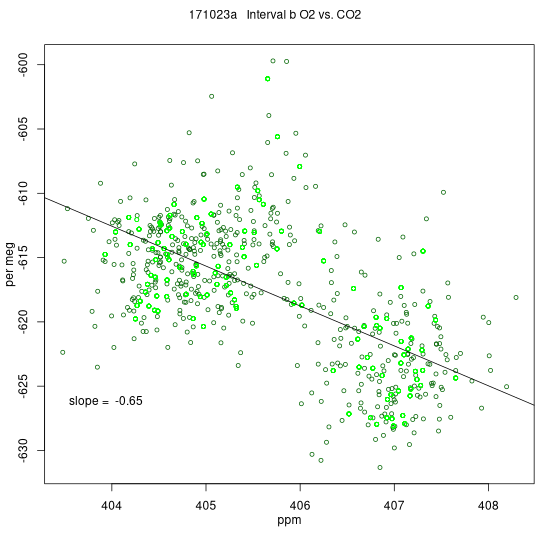

O2 vs. CO2


Subinterval c
Using data from 296.43356 to 296.45472 (Day of Year and Day Fraction)
Using data from 10:24:19 to 10:54:47 (HH:MM:SS)

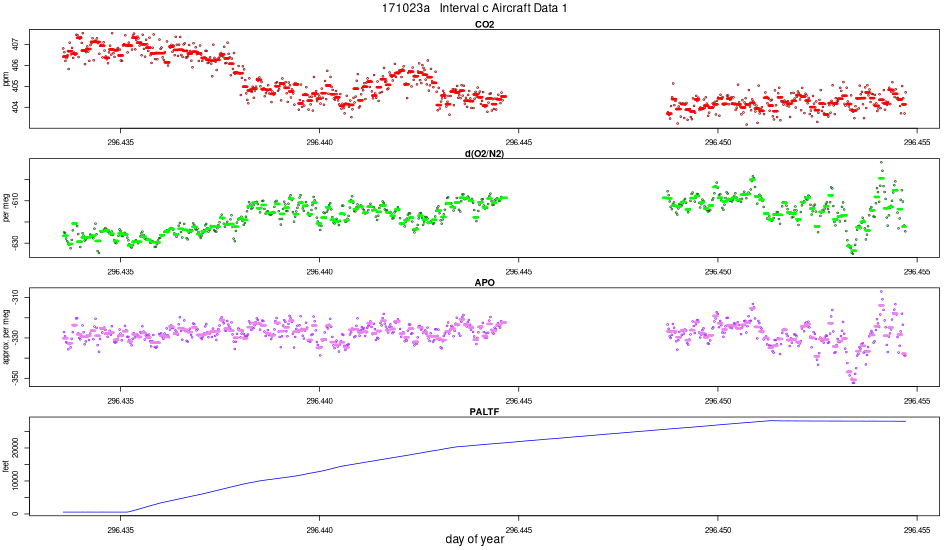

Aircraft Data 1

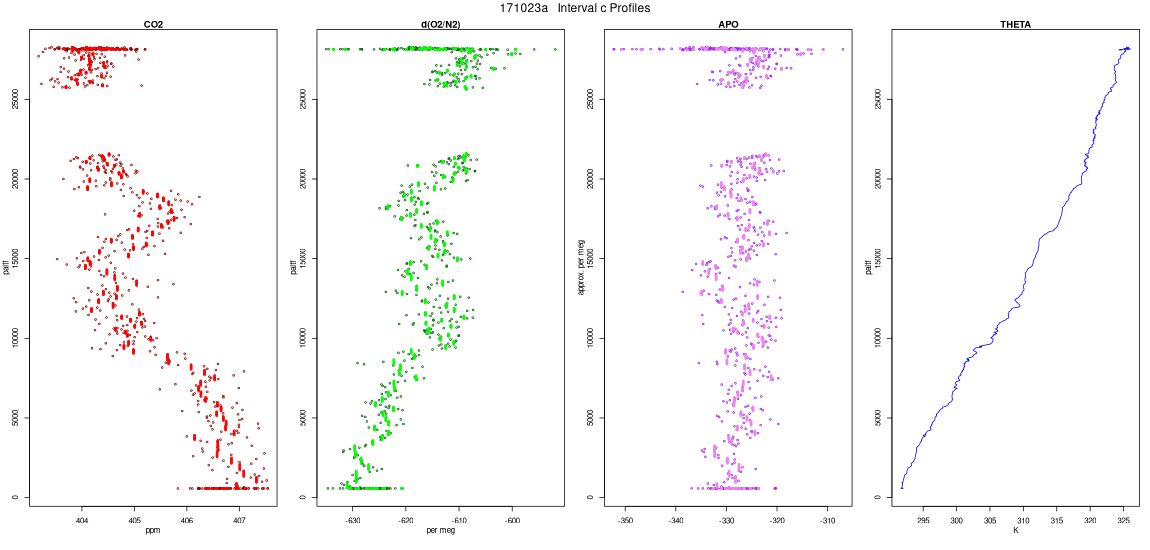

 Profiles
O2 vs. CO2


Subinterval d
Using data from 296.45472 to 296.47108 (Day of Year and Day Fraction)
Using data from 10:54:47 to 11:18:21 (HH:MM:SS)

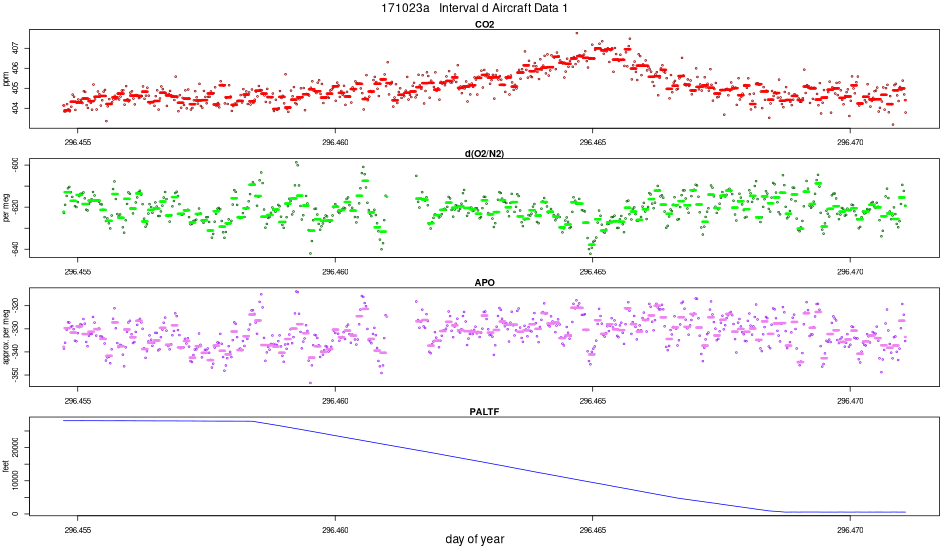

Aircraft Data 1
 Profiles
O2 vs. CO2


Subinterval e
Using data from 296.46948 to 296.49702 (Day of Year and Day Fraction)
Using data from 11:16:03 to 11:55:42 (HH:MM:SS)

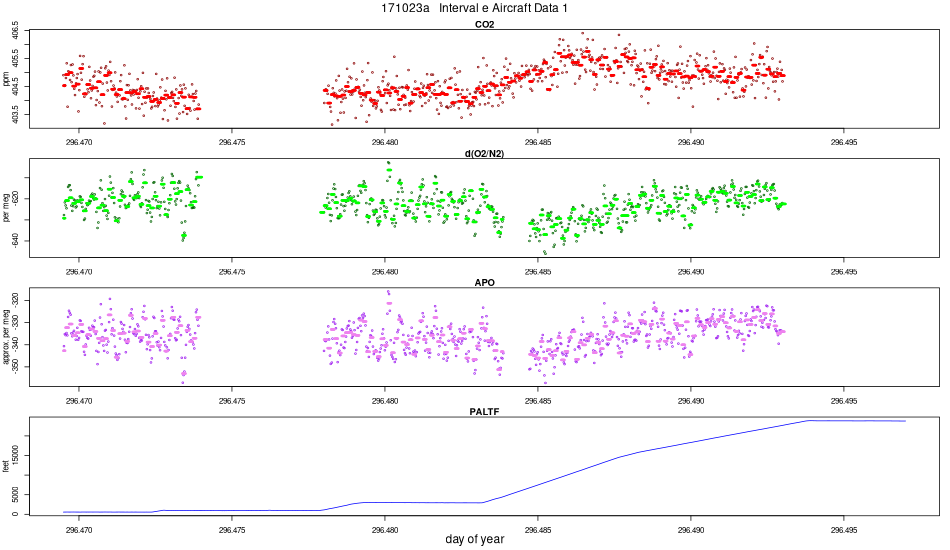

Aircraft Data 1

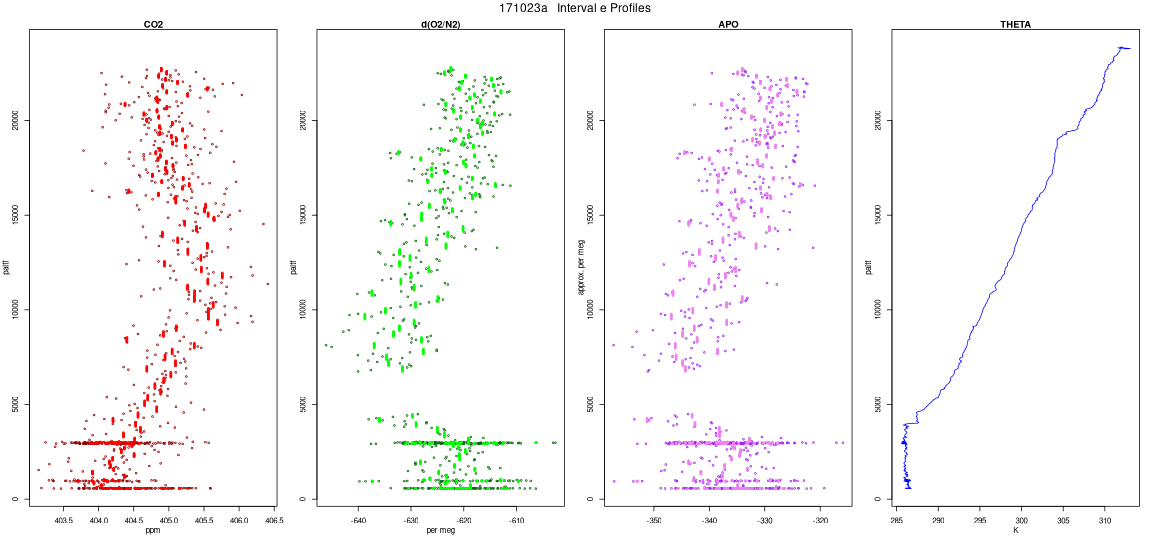

 Profiles

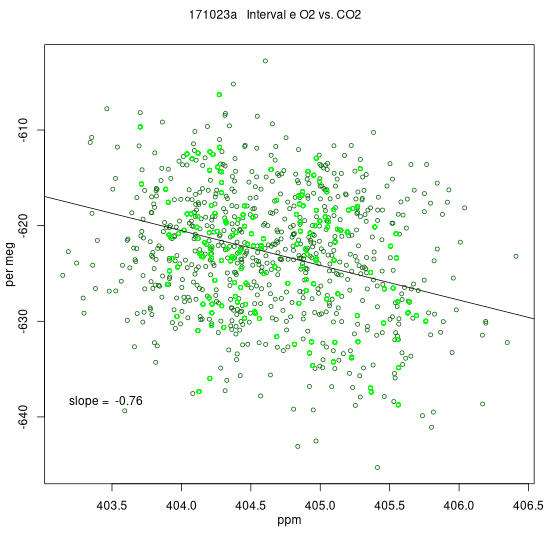

O2 vs. CO2

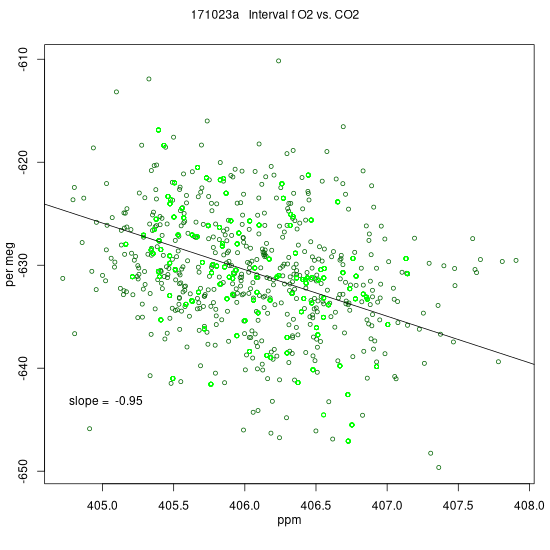

Subinterval f
Using data from 296.49702 to 296.51299 (Day of Year and Day Fraction)
Using data from 11:55:42 to 12:18:42 (HH:MM:SS)
Aircraft Data 1

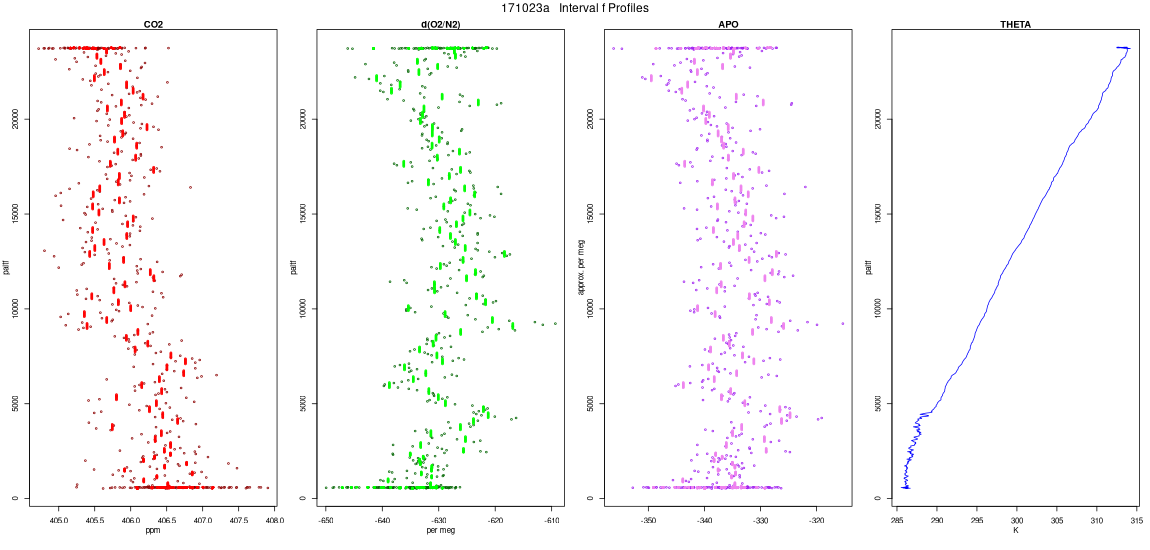

 Profiles
O2 vs. CO2


Subinterval g
Using data from 296.51099 to 296.52935 (Day of Year and Day Fraction)
Using data from 12:15:49 to 12:42:16 (HH:MM:SS)

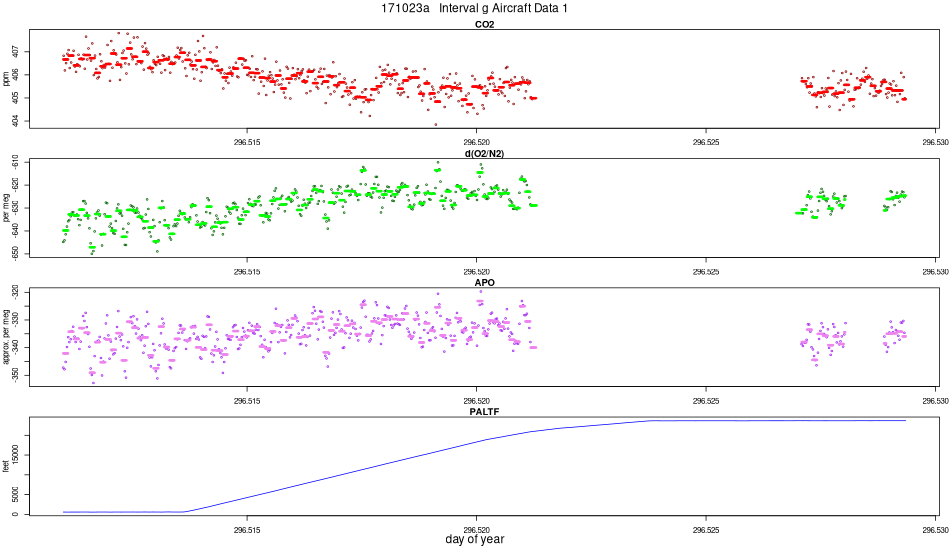

Aircraft Data 1

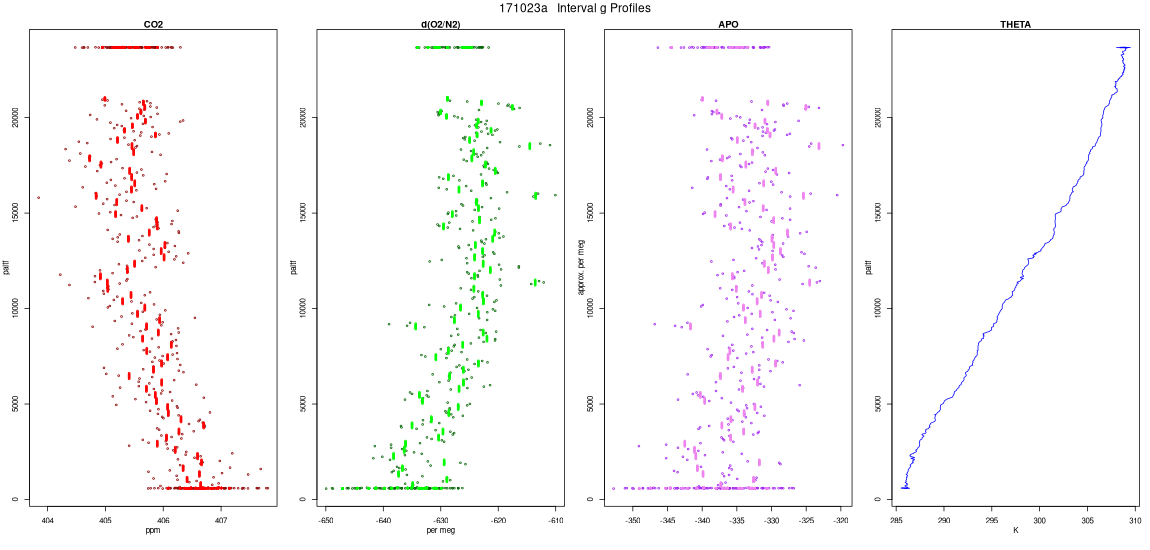

 Profiles
O2 vs. CO2


Subinterval h
Using data from 296.52935 to 296.54452 (Day of Year and Day Fraction)
Using data from 12:42:16 to 13:04:06 (HH:MM:SS)

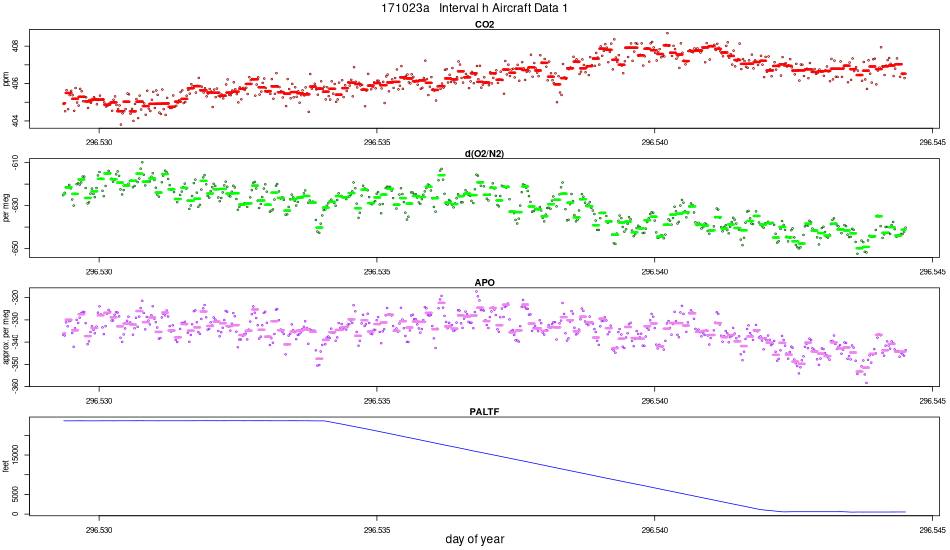

Aircraft Data 1

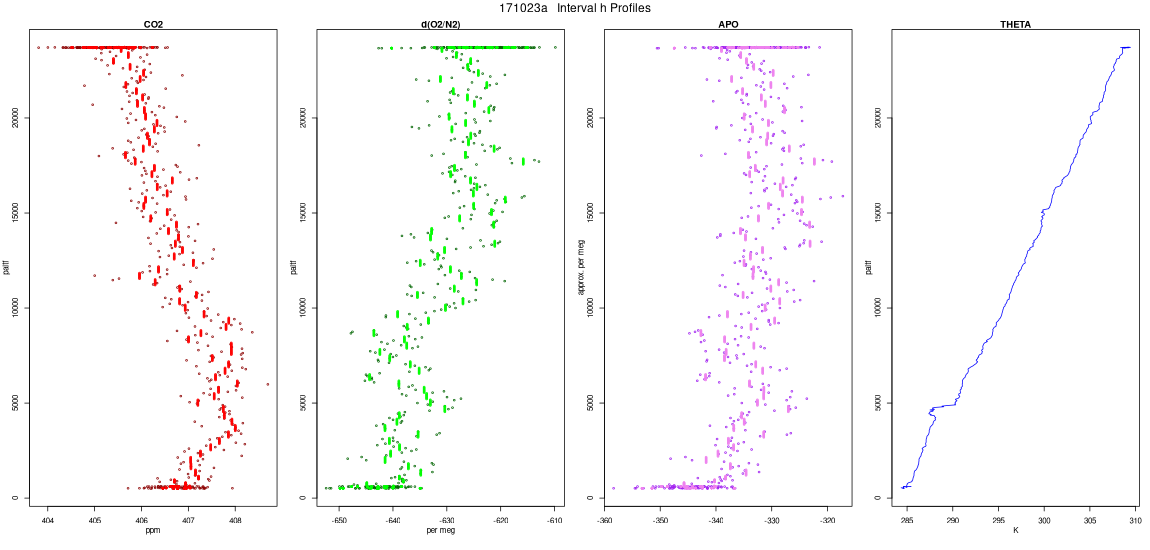

 Profiles

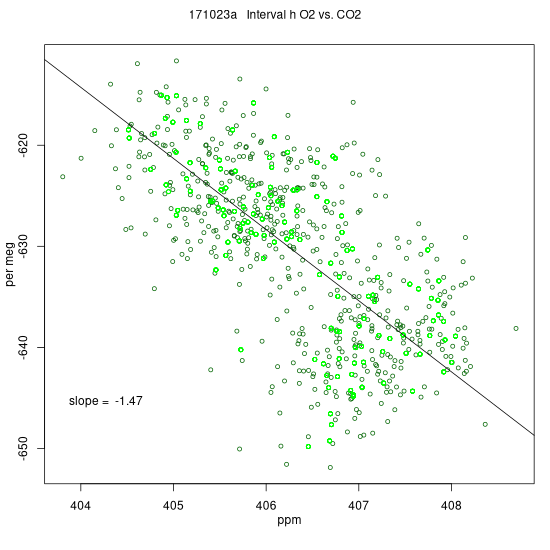

O2 vs. CO2


Subinterval i
Using data from 296.54252 to 296.55649 (Day of Year and Day Fraction)
Using data from 13:01:14 to 13:21:20 (HH:MM:SS)

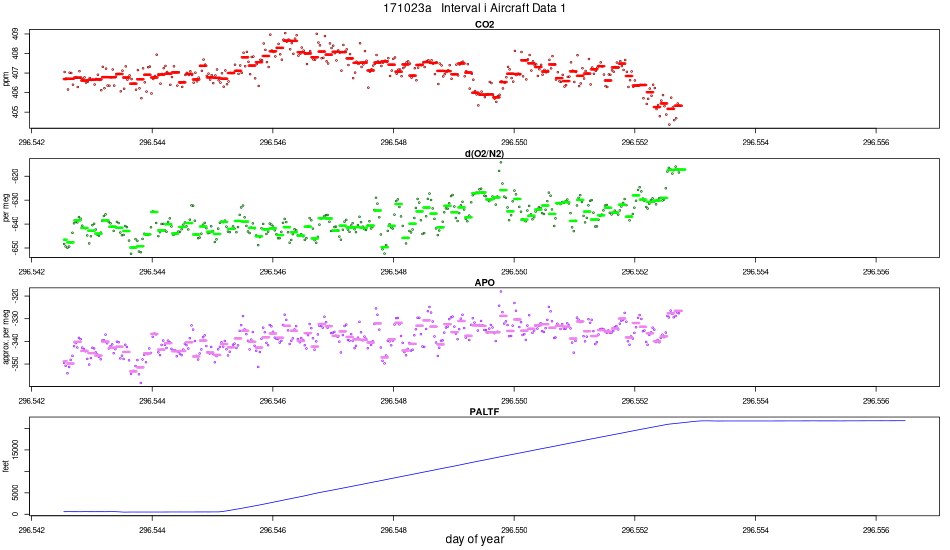

Aircraft Data 1
 Profiles
O2 vs. CO2

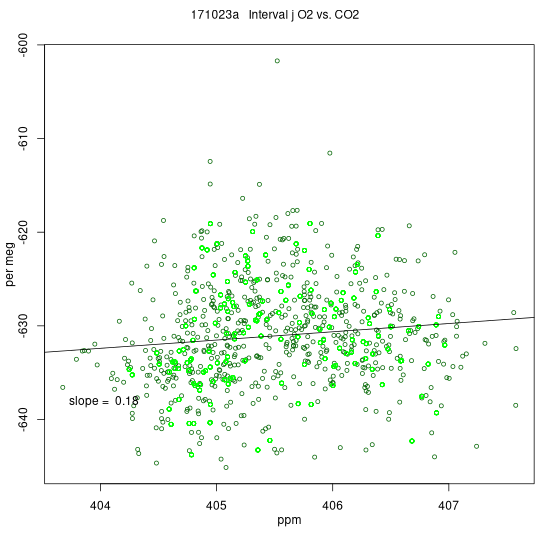

Subinterval j
Using data from 296.55649 to 296.57405 (Day of Year and Day Fraction)
Using data from 13:21:20 to 13:46:38 (HH:MM:SS)

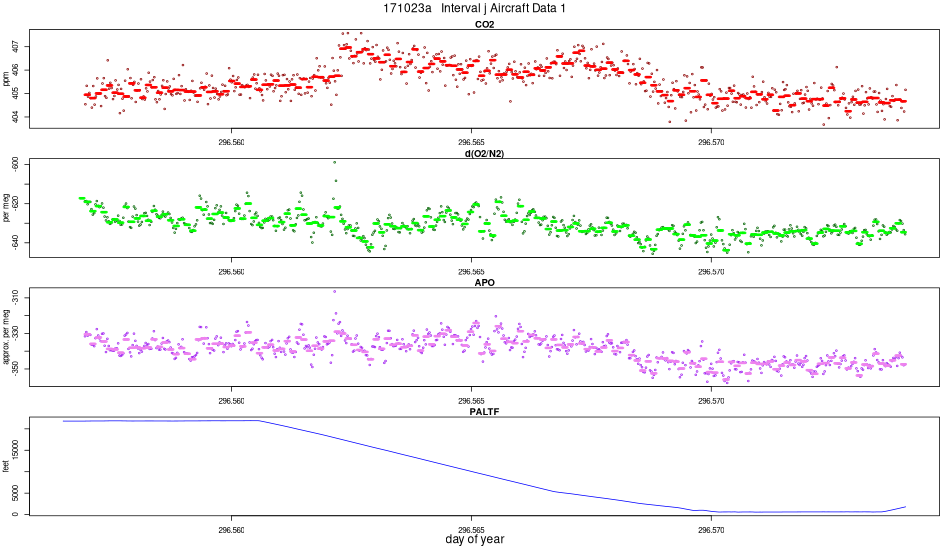

Aircraft Data 1

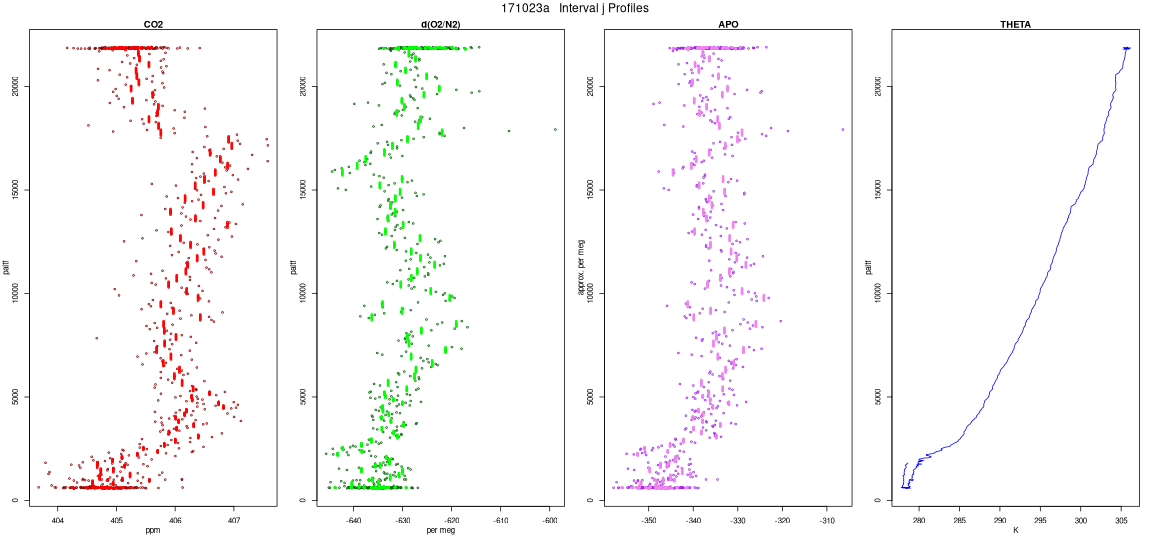

 Profiles
O2 vs. CO2


Subinterval k
Using data from 296.57086 to 296.59281 (Day of Year and Day Fraction)
Using data from 13:42:02 to 14:13:39 (HH:MM:SS)

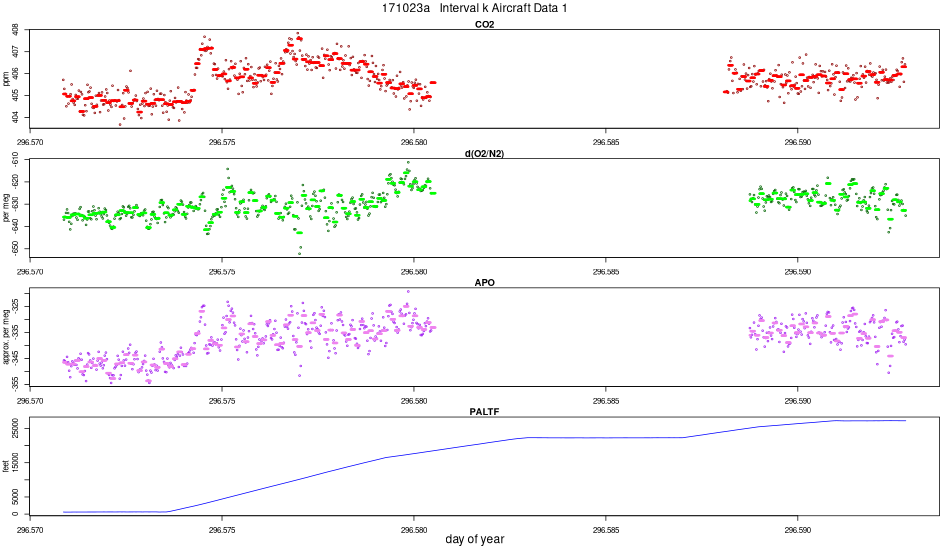

Aircraft Data 1

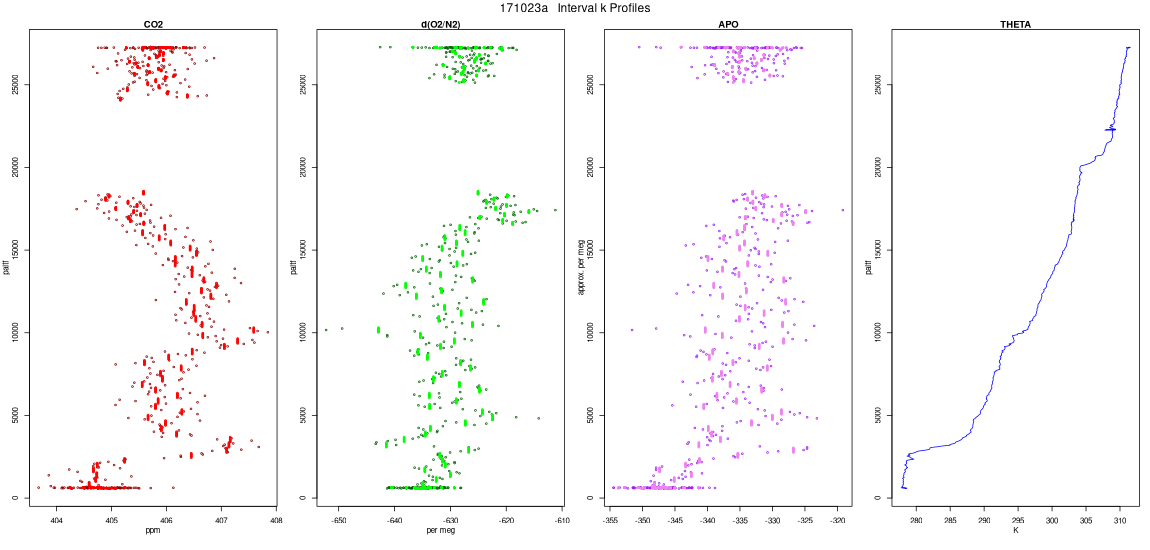

 Profiles

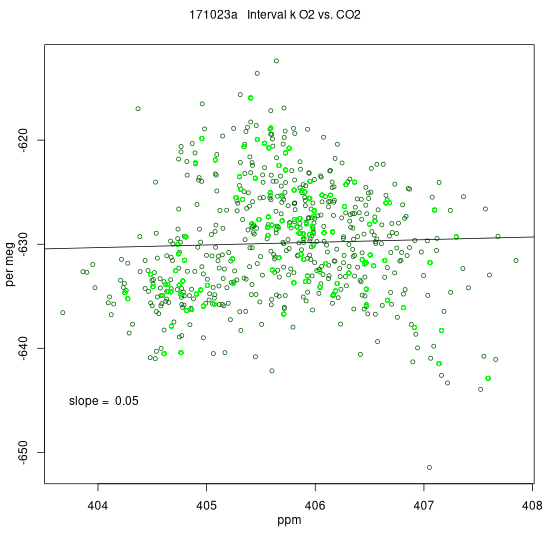

O2 vs. CO2


Subinterval l
Using data from 296.59281 to 296.61836 (Day of Year and Day Fraction)
Using data from 14:13:39 to 14:50:26 (HH:MM:SS)
Aircraft Data 1

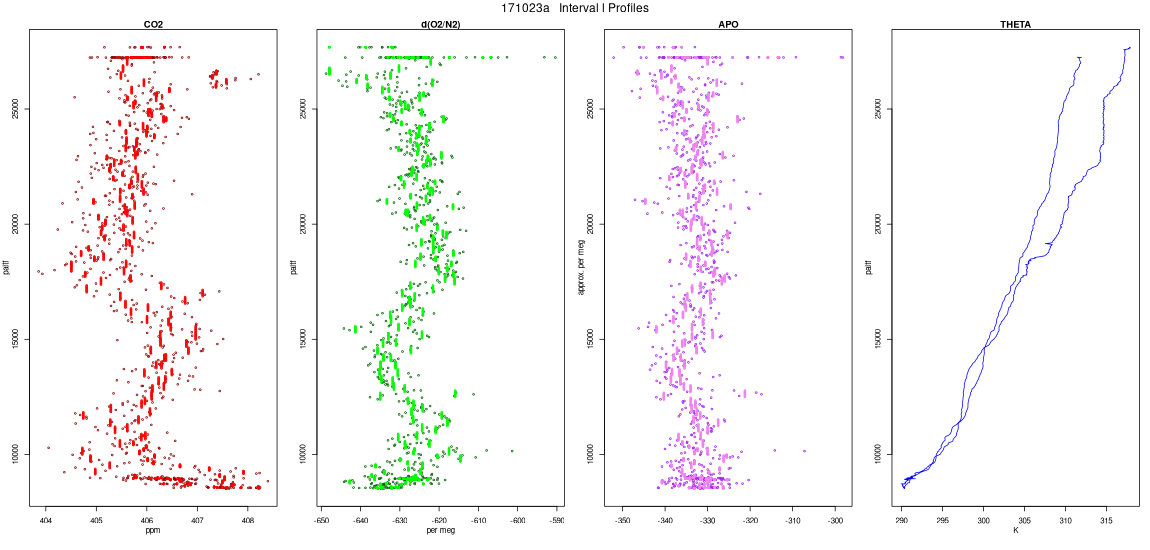

 Profiles

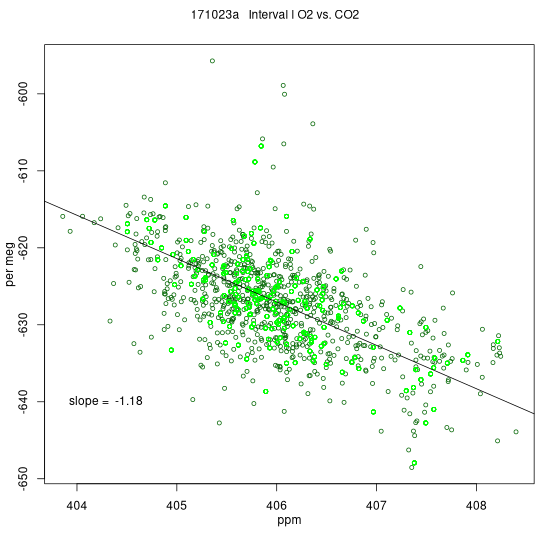

O2 vs. CO2


Subinterval m
Using data from 296.61836 to 296.6427 (Day of Year and Day Fraction)
Using data from 14:50:26 to 15:25:29 (HH:MM:SS)

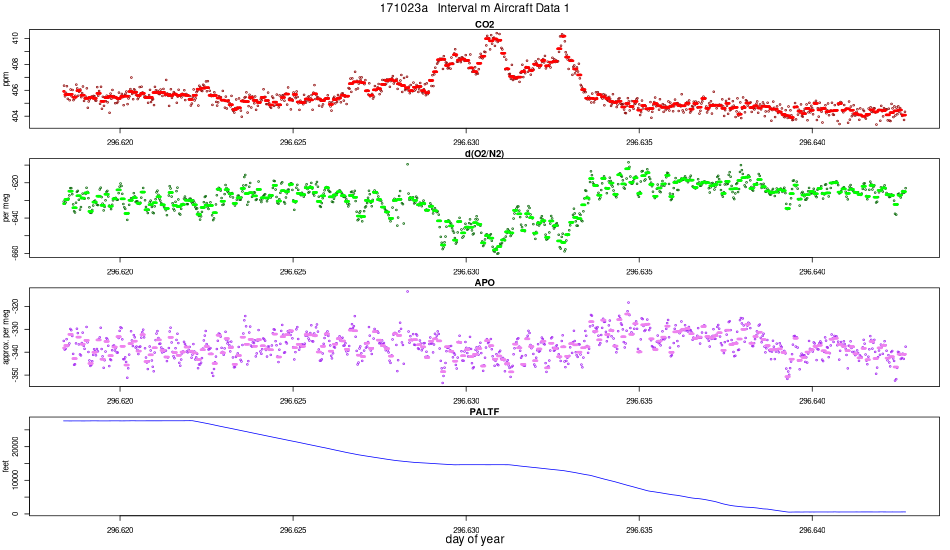

Aircraft Data 1

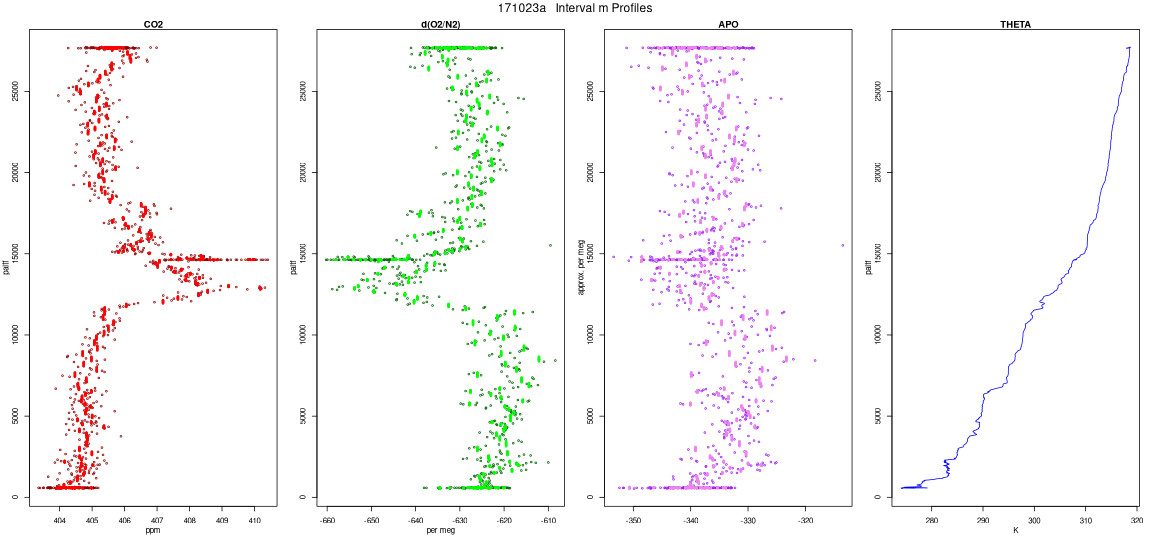

 Profiles

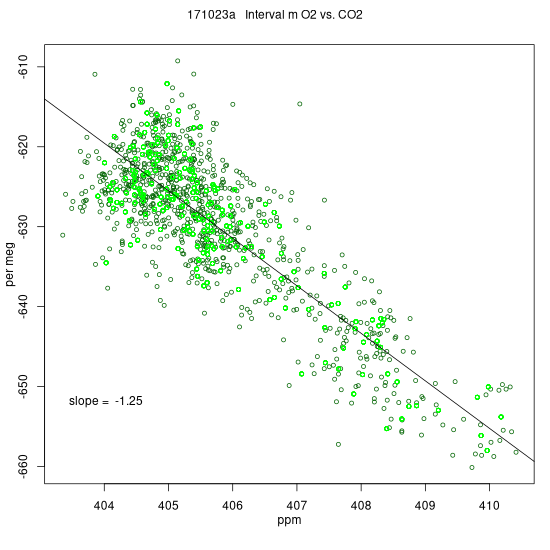

O2 vs. CO2


Subinterval n
Using data from 296.64071 to 296.66186 (Day of Year and Day Fraction)
Using data from 15:22:37 to 15:53:04 (HH:MM:SS)

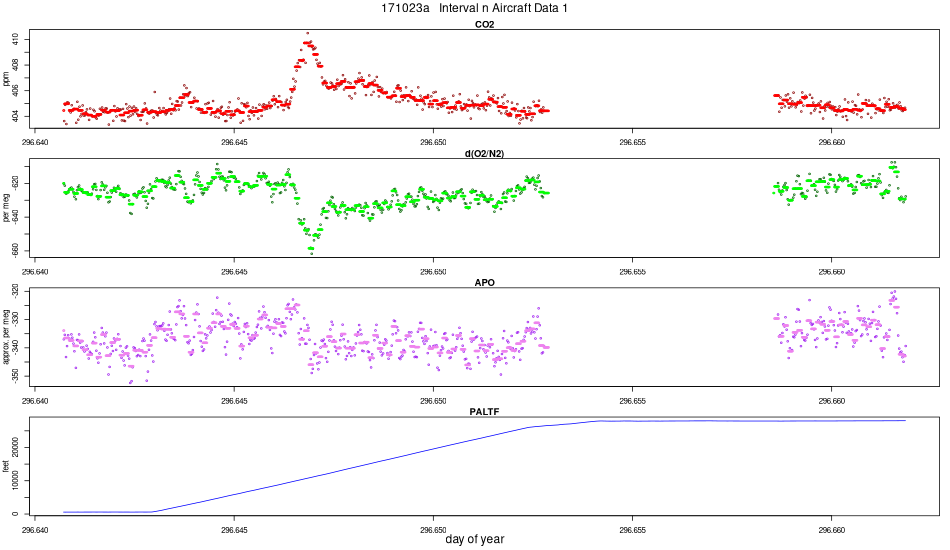

Aircraft Data 1

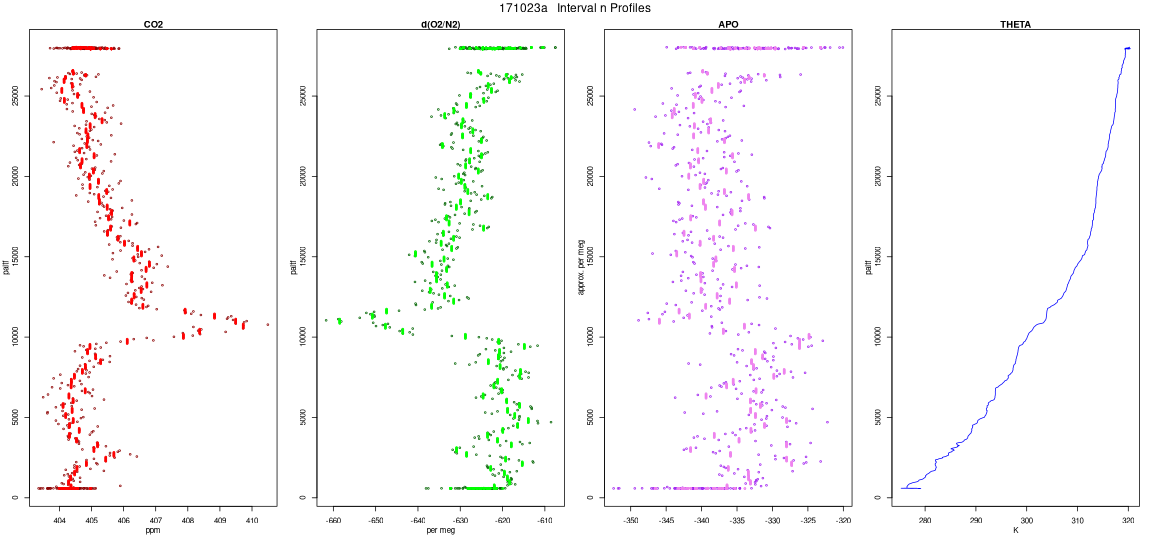

 Profiles
O2 vs. CO2


Subinterval o
Using data from 296.66186 to 296.6898 (Day of Year and Day Fraction)
Using data from 15:53:04 to 16:33:18 (HH:MM:SS)
Aircraft Data 1

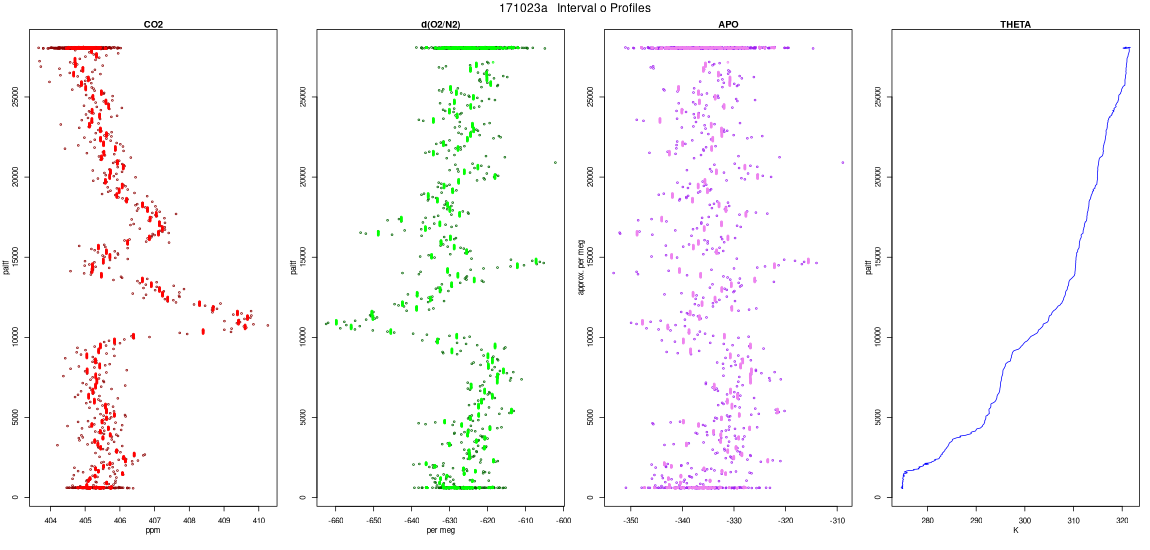

 Profiles

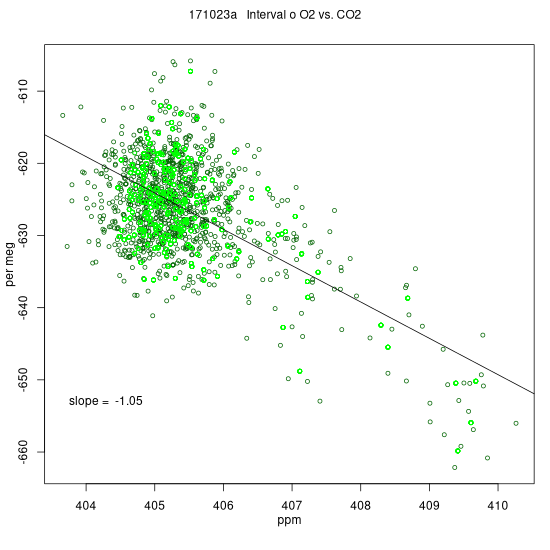

O2 vs. CO2


Subinterval p
Using data from 296.68701 to 296.72013 (Day of Year and Day Fraction)
Using data from 16:29:17 to 17:16:59 (HH:MM:SS)
Aircraft Data 1

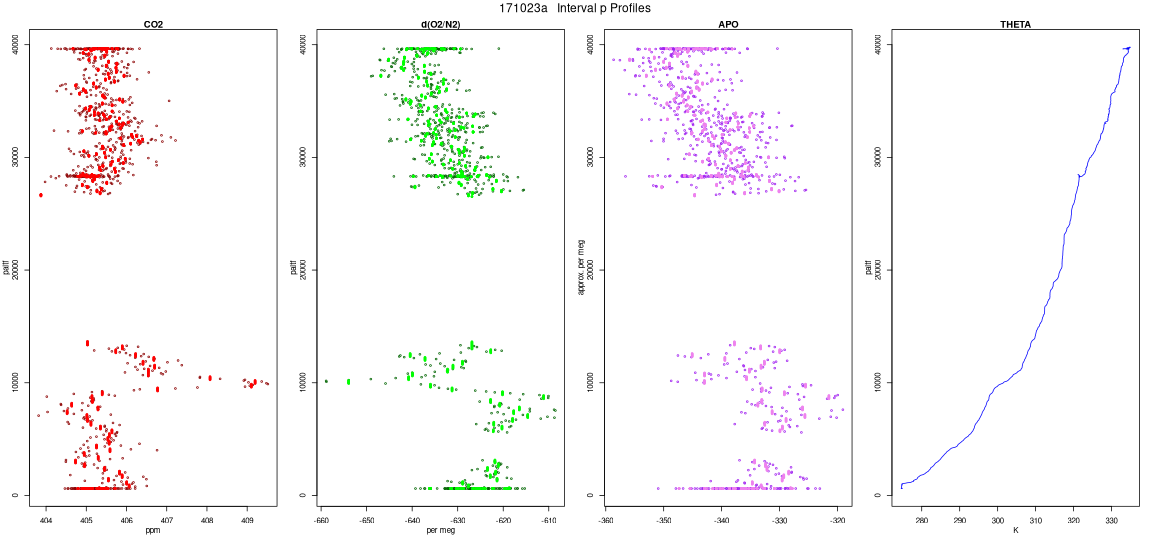

 Profiles

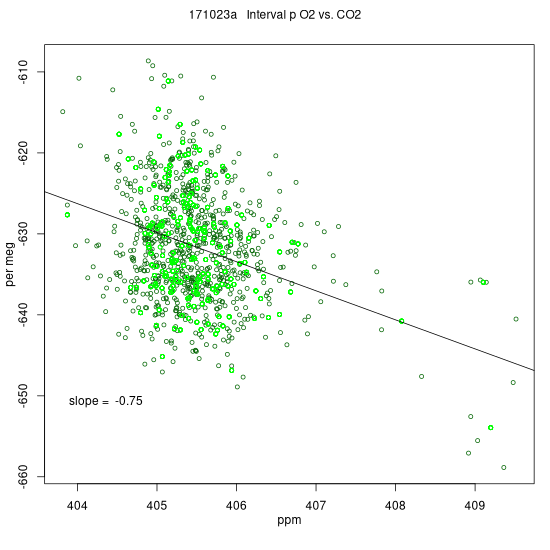

O2 vs. CO2


Subinterval q
Using data from 296.72013 to 296.75206 (Day of Year and Day Fraction)
Using data from 17:16:59 to 18:02:58 (HH:MM:SS)

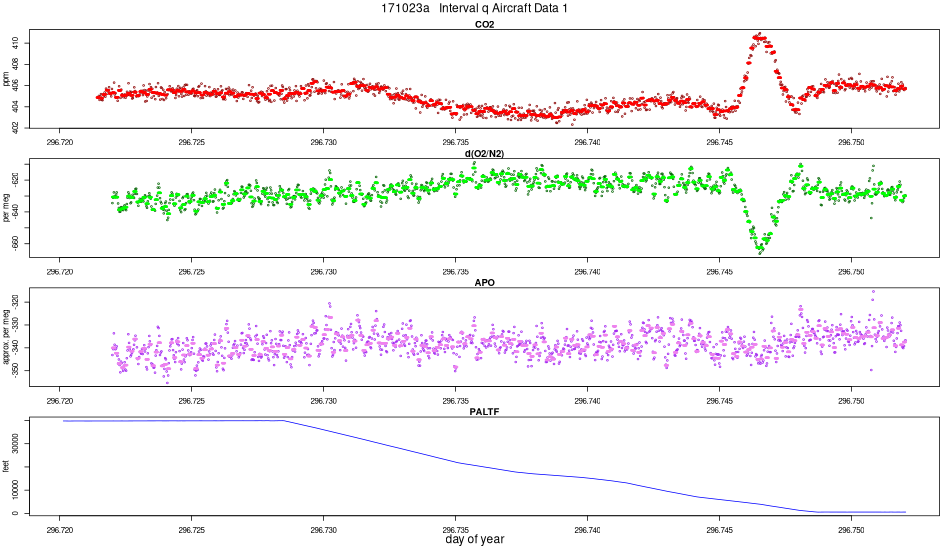

Aircraft Data 1

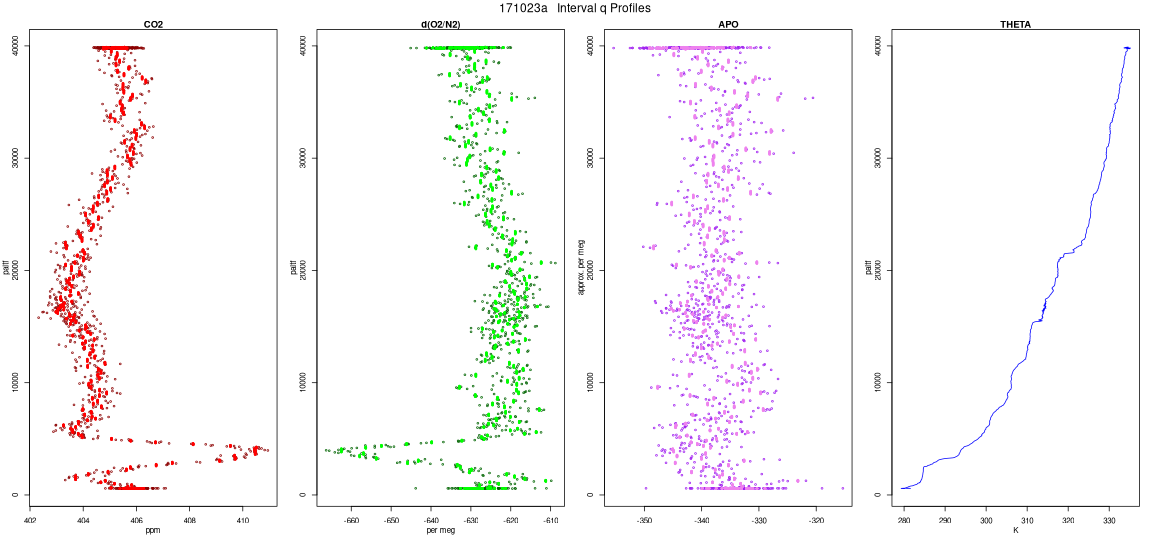

 Profiles

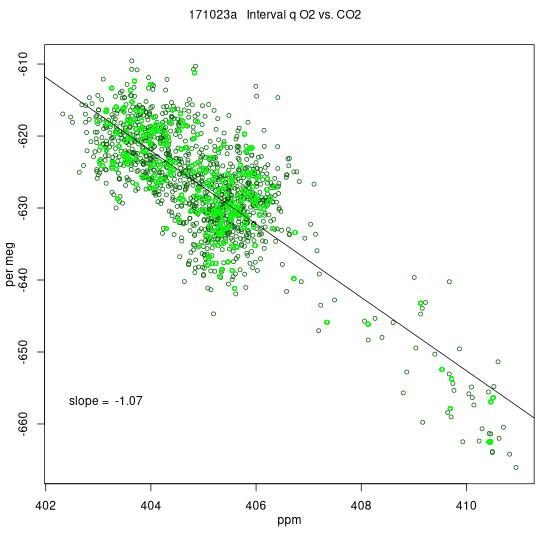

O2 vs. CO2


Subinterval r
Using data from 296.74967 to 296.77362 (Day of Year and Day Fraction)
Using data from 17:59:31 to 18:34:00 (HH:MM:SS)

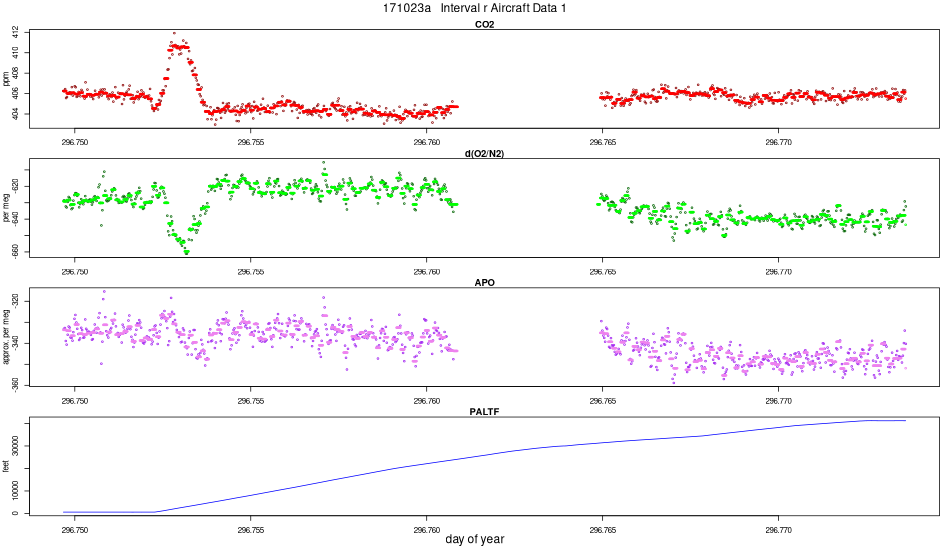

Aircraft Data 1

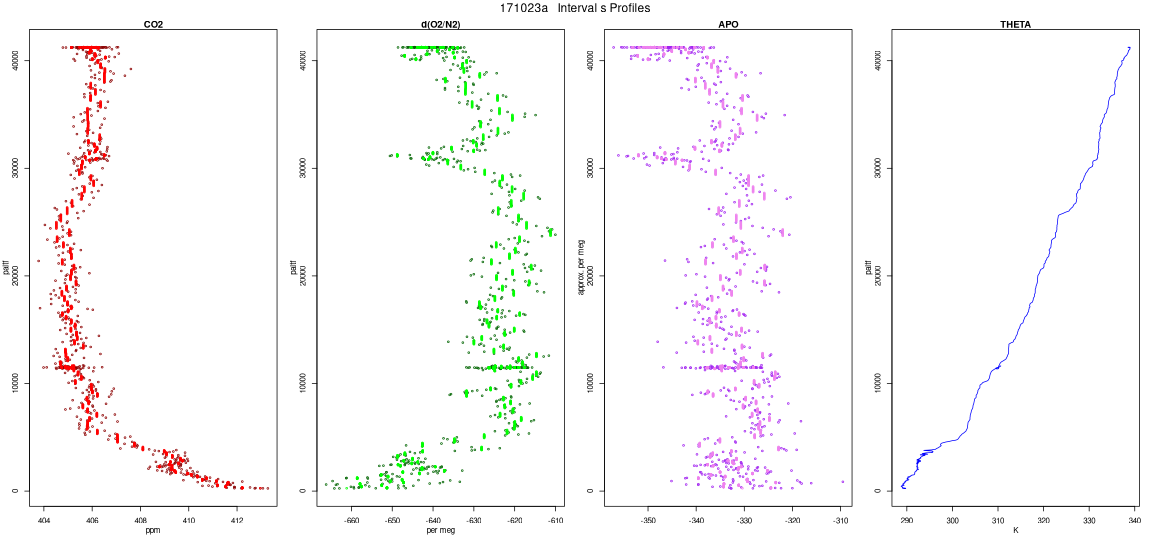

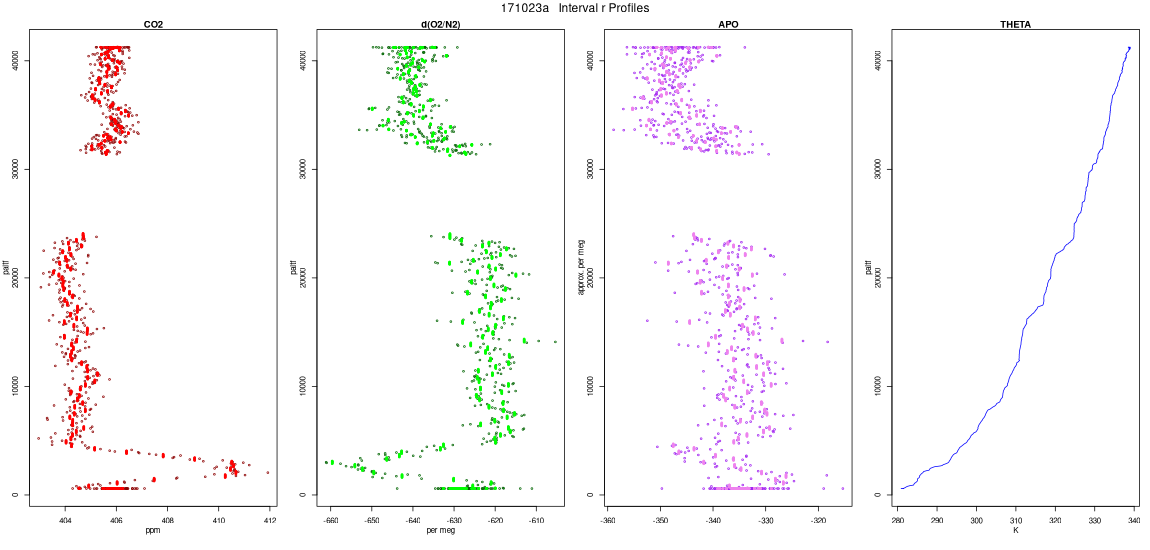

 Profiles
