NCAR AIRBORNE O2 INSTRUMENT RESULTS
PROJECT = ATOM3, FLIGHT = RF10, FILE = 171020a
PROCESSED Sat Feb 6 07:42:25 MST 2021

Notes
Logfile
All Periods Data
Calibration Data
Calibration Parameters
Assigned Cylinder Values
~ 0.5 Hz Measured Data File
1 Hz 10-sec Median Data File - plain text format
1 Hz Interpolated Data File - ICARTT format
1 Hz Interpolated Data File - ICARTT format - O2 adjusted / CO2 screened (from medcomp.r)

Results

Using data from 0 to 367 (Day of Year and Day Fraction)
Using data from 00:00:00 to 00:00:00 (HH:MM:SS)
Calibration gases:
HS: OK30767, CO2 (GMD) = 378.56, O2 (SIO) = -548.2
LS: OK30768, CO2 (GMD) = 408.58, O2 (SIO) = -692.6
LT: OK30772, CO2 (GMD) = 393.23, O2 (SIO) = -578.9
WT: OK30770, CO2 (GMD) = 398.3, O2 (SIO) = -702.6
LP: OK30769, CO2 (GMD) = 404.77, O2 (SIO) = -708.9

Raw Data and Diagnostics Figures

High Rate Data
 Medium Rate Data 1
 Medium Rate Data 2
Medium Rate Data 3
 Medium Rate Data 4
 Medium Rate Data 5


Recalculated Data Figures

PdO2 and PdRef Corrections
 All Flight HR Jog Shape
 HR Jog Shapes by NGAS
 HR Jog Shapes by NGAS 2
 HR PdO2 Jog Shapes by NGAS
HR Jog Shapes by Individual NGAS
 HR Jog Shapes by Individual NGAS
 HR Jog Shapes by Individual NGAS
 HR Jog Shapes by Individual NGAS
 HR Jog Shapes by Individual NGAS
 HR Jog Shapes by Individual NGAS
Jog Shape Trends


Data Filtering Figures

Jog SD Filter
 Spikes and Level Shifts
 Li840 Cabin Pressure Senisitivity
 O2 PCab, H2O, PaO2 Senisitivity
SP-WT Slope Diff
 SP and WT Slopes

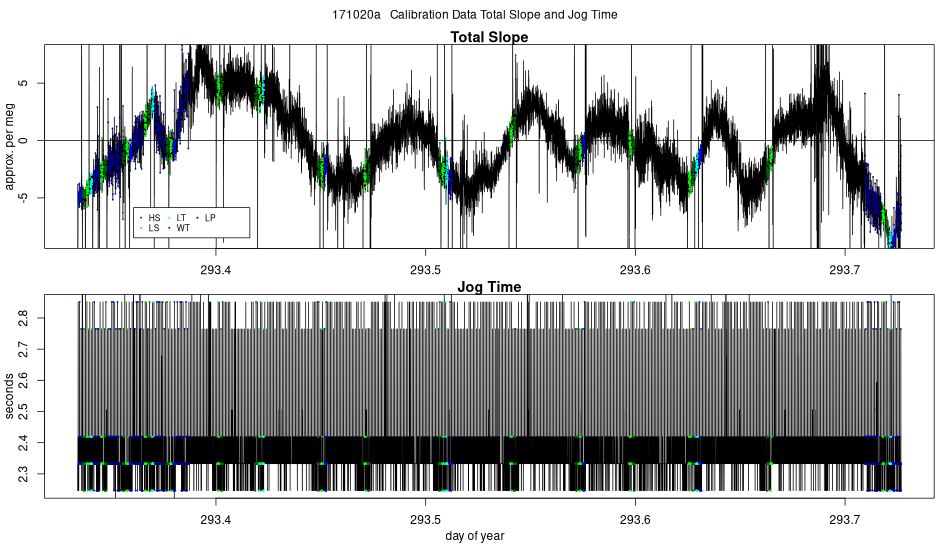

 Total Slope and Jog Time
 LiH2O and PdO2

Calibration Figures

Calibration Data 1
 Calibration Data 2
 Calibration Data 3
Calibration Data 4
 Calibrations vs Cylinder Temps
 Calibrations vs Cylinder Flows and PAs
Calibration Interval Shapes - O2
 Calibration Interval Shapes - SP-WT Slope Diff
 Calibration Interval - O2 vs. SP-WT Slope Diff
Calibration Interval Shapes - CO2
 Calibration Interval SDs

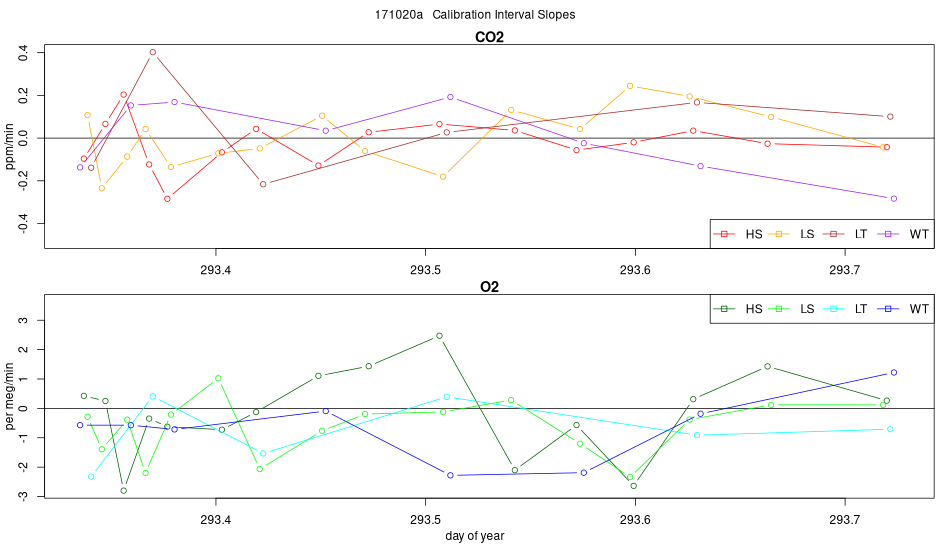

 Calibration Interval Slopes
