ORCAS Flight Planning Page for flight RF09_flight_plan

CREATED Fri Feb 5 06:30:29 MST 2016

Output Files

Selected Waypoints
All Waypoints
KML Output
Input File
Modified Input File
Full Output File
Unique Lat/Lon Pairs

Totals

Total Hours = 7.3
Total Dist = 2512.3 nmi
Average Speed = 346 kts
Total Fuel = 31173.2 lbs
Remaining Fuel = 5826.8 lbs
Average Burn = 4292.8 lbs/hr

Assumptions

Ascent/Descent Rate = 1500 ft/min
41000 Ft. Alt. Ground Speed = 460 kts
500 Ft. Alt. Ground Speed = 220 kts
Full Fuel = 37000 lbs.
41000 Ft. Alt. Fuel Burn = 3200 lbs/hr
500 Ft. Alt. Fuel Burn = 5500 lbs/hr

Graphics

Map

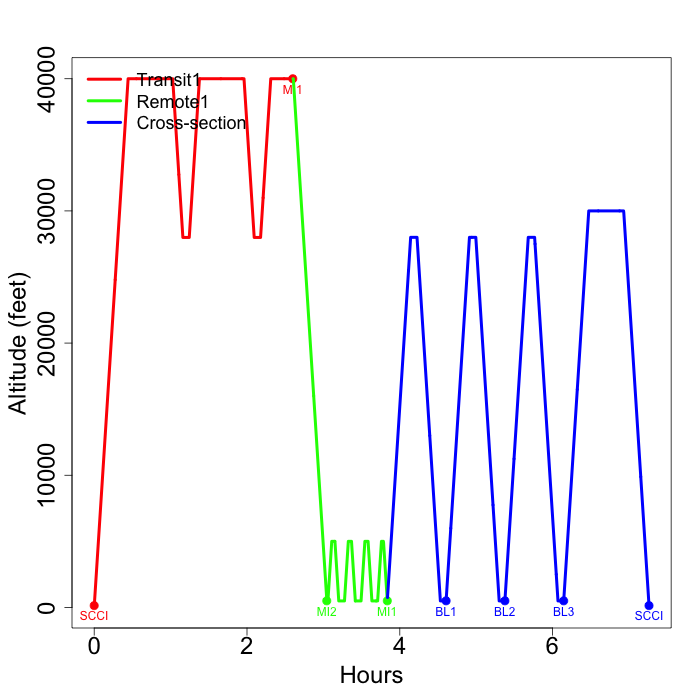

 Alt Timeseries

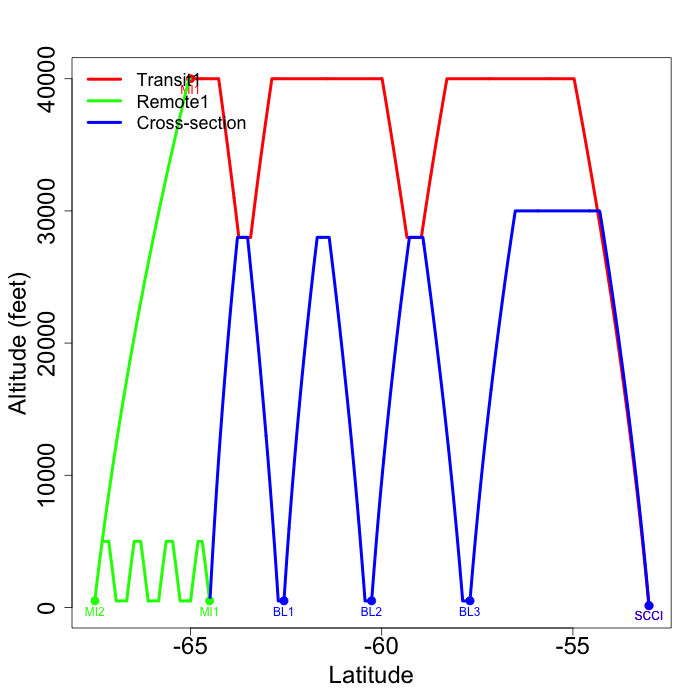

Alt / Lat Cross Section

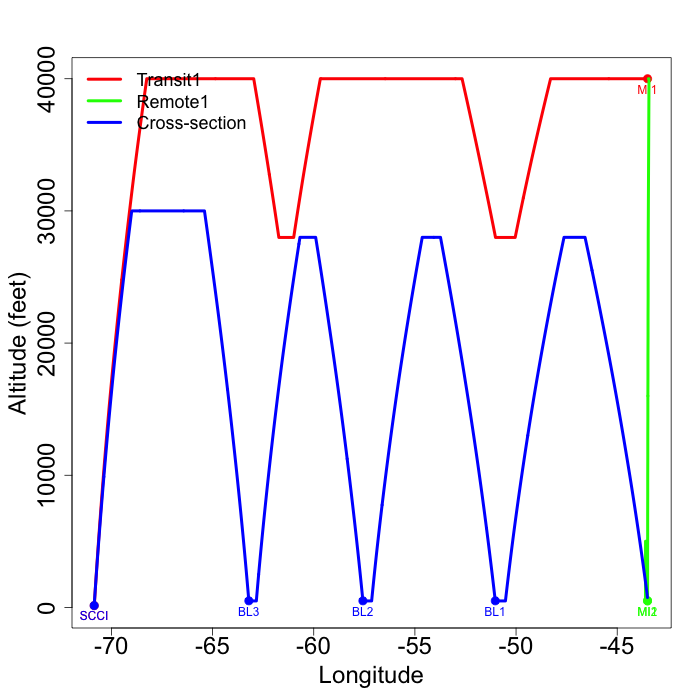

 Alt / Lon Cross Section
