NCAR AIRBORNE O2 INSTRUMENT RESULTS
PROJECT = ATOM2, FLIGHT = RF10, FILE = 170219a
PROCESSED Sat Feb 6 04:58:46 MST 2021

Notes
Logfile
All Periods Data
Calibration Data
Calibration Parameters
Assigned Cylinder Values
~ 0.5 Hz Measured Data File
1 Hz 10-sec Median Data File - plain text format
1 Hz Interpolated Data File - ICARTT format
1 Hz Interpolated Data File - ICARTT format - O2 adjusted / CO2 screened (from medcomp.r)

Results

Using data from 0 to 367 (Day of Year and Day Fraction)
Using data from 00:00:00 to 00:00:00 (HH:MM:SS)
Calibration gases:
HS: OK30762, CO2 (GMD) = 385.18, O2 (SIO) = -504
LS: OK30761, CO2 (GMD) = 419.73, O2 (SIO) = -729.4
LT: OK30772, CO2 (GMD) = 393.23, O2 (SIO) = -579.9
WT: OK30770, CO2 (GMD) = 398.13, O2 (SIO) = -783.2
LP: OK30766, CO2 (GMD) = 398.79, O2 (SIO) = -746.4

Raw Data and Diagnostics Figures

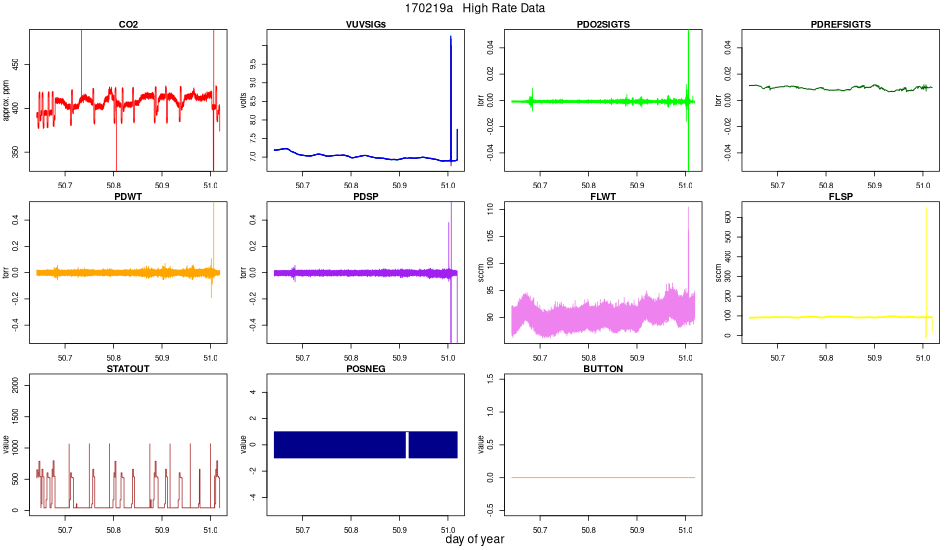

High Rate Data

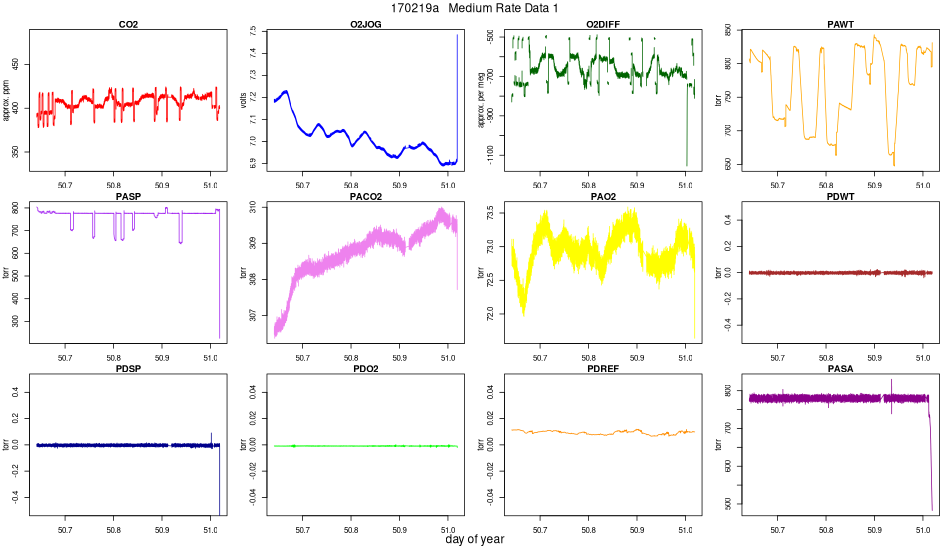

 Medium Rate Data 1

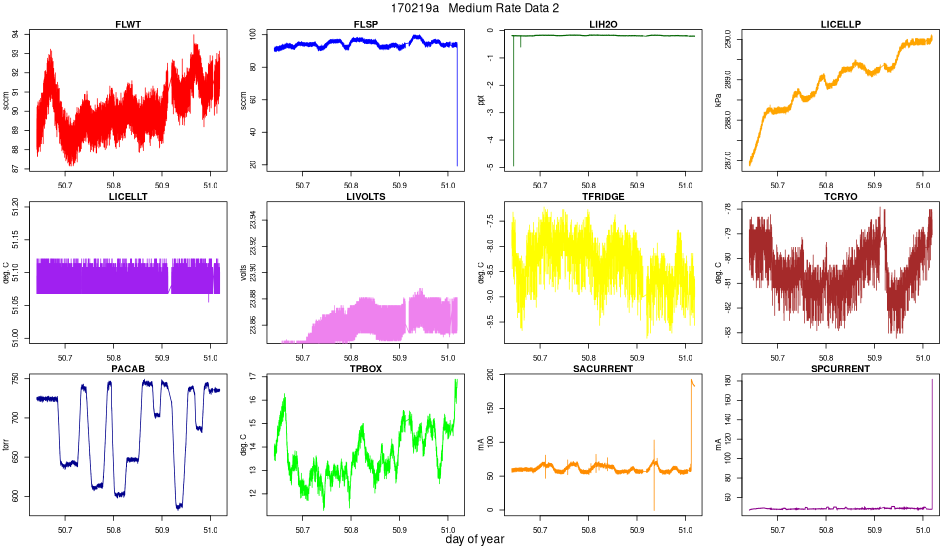

 Medium Rate Data 2

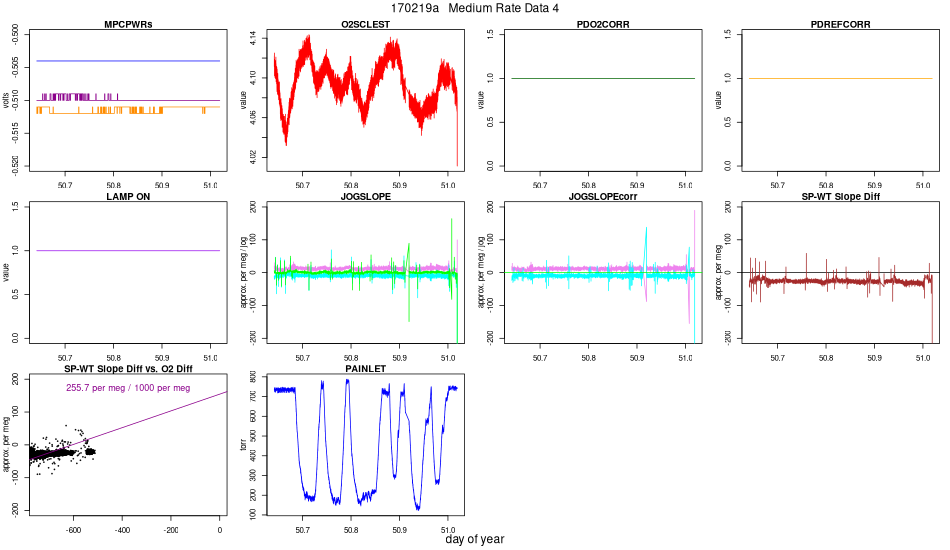

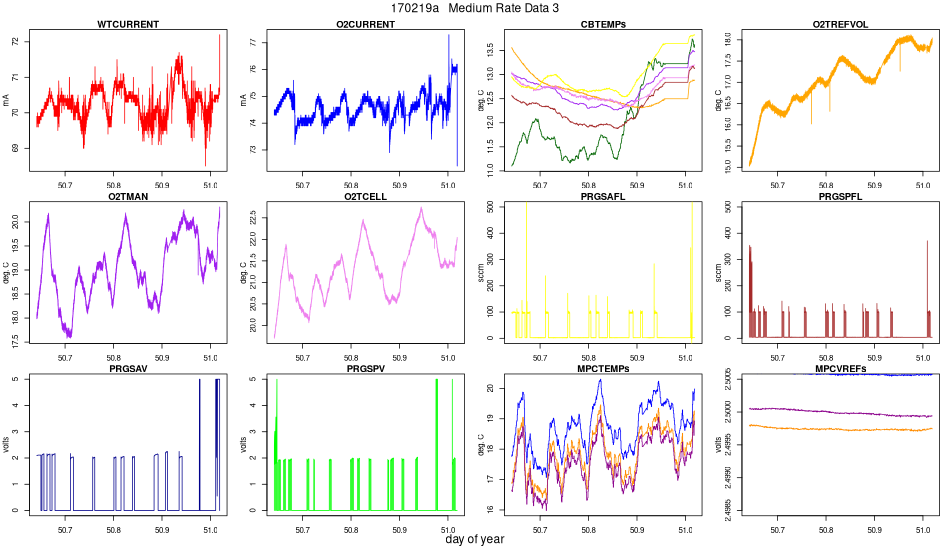

Medium Rate Data 3
 Medium Rate Data 4

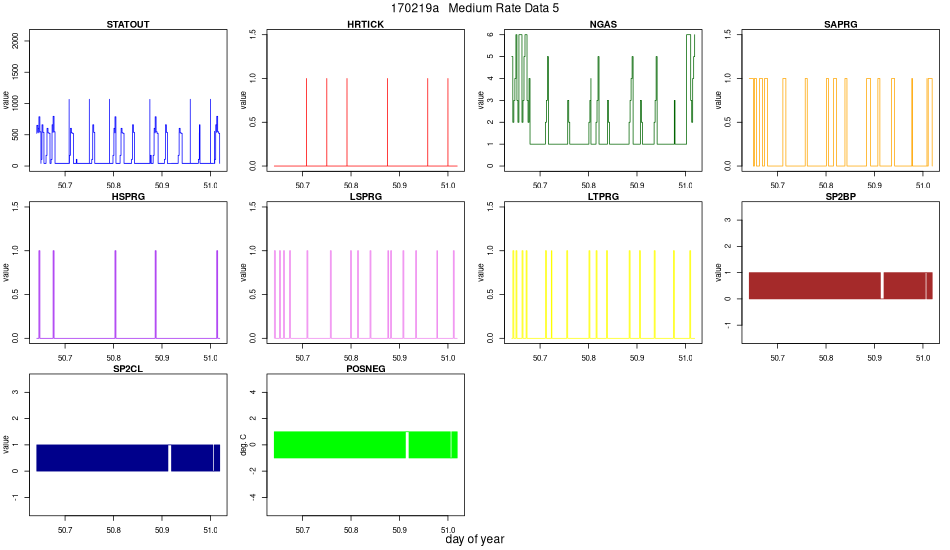

 Medium Rate Data 5


Recalculated Data Figures

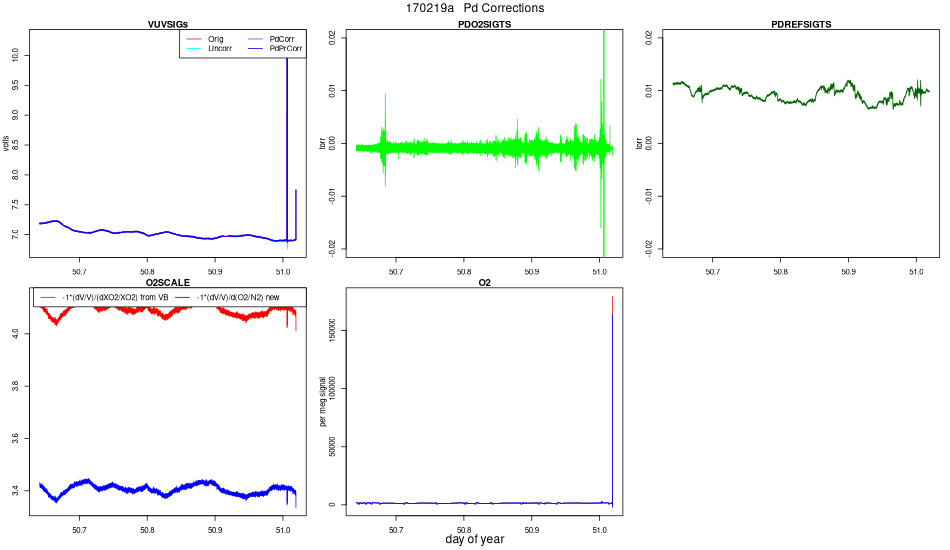

PdO2 and PdRef Corrections

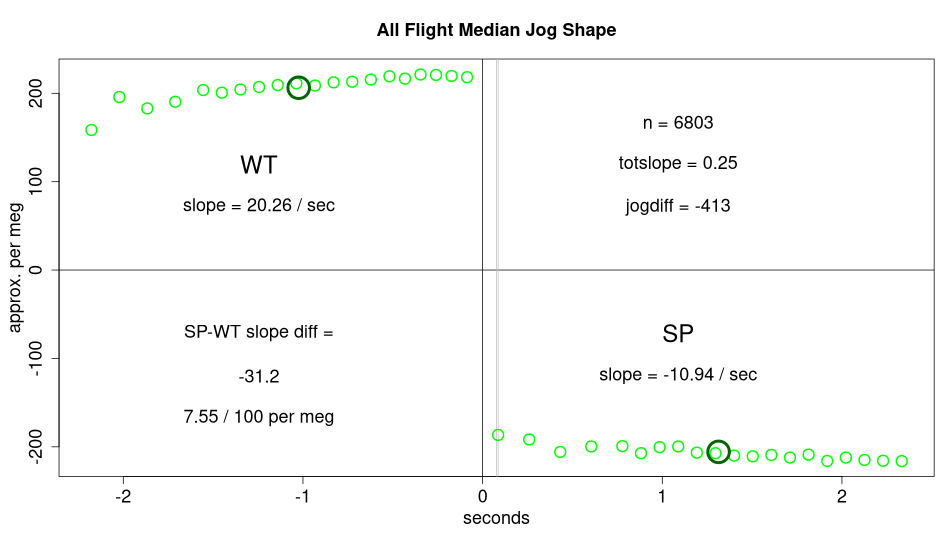

 All Flight HR Jog Shape

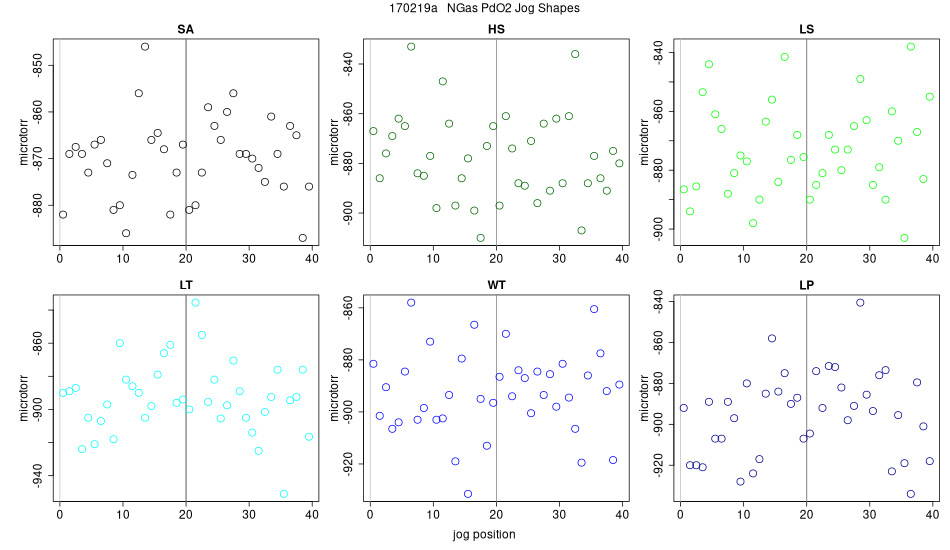

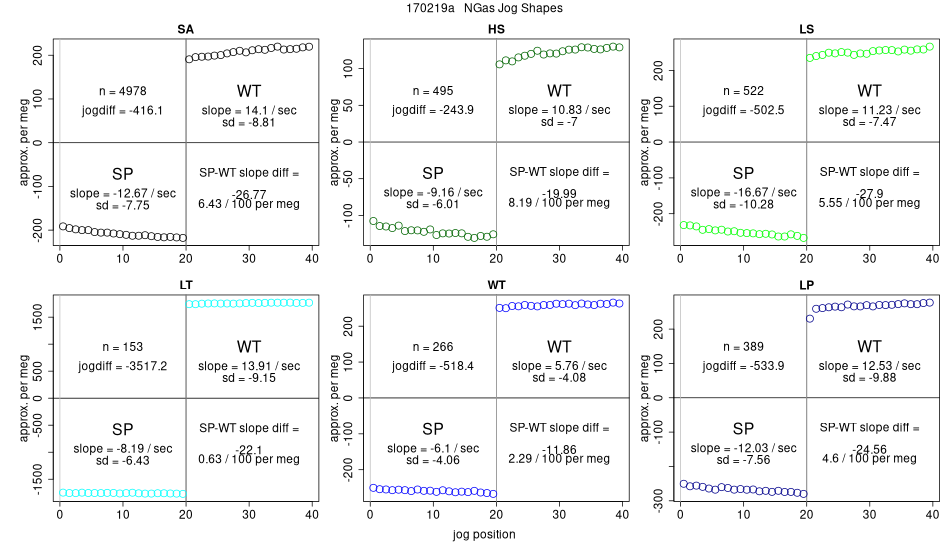

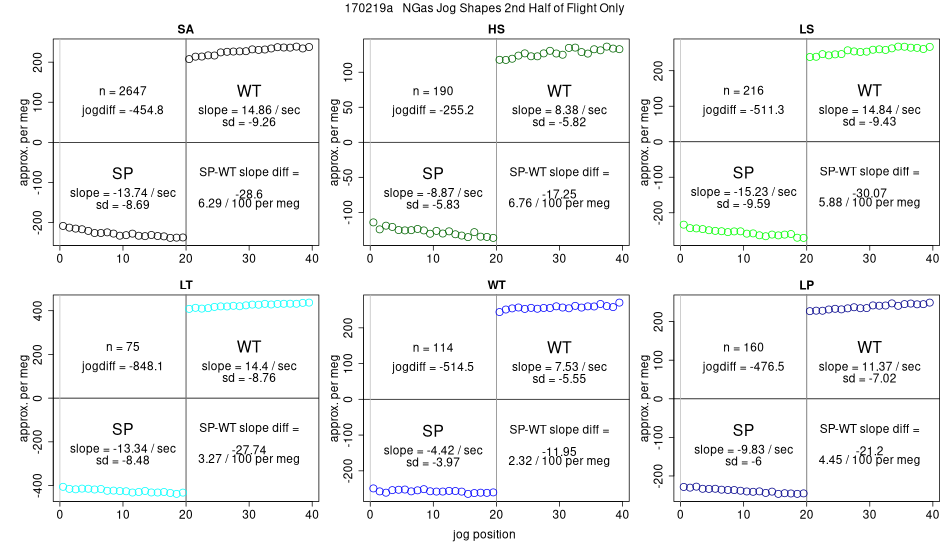

 HR Jog Shapes by NGAS
 HR Jog Shapes by NGAS 2
 HR PdO2 Jog Shapes by NGAS

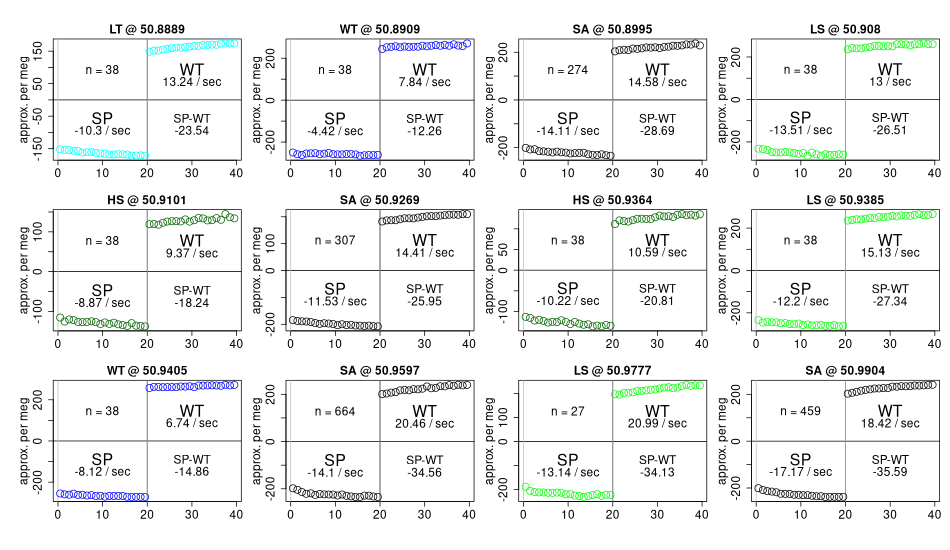

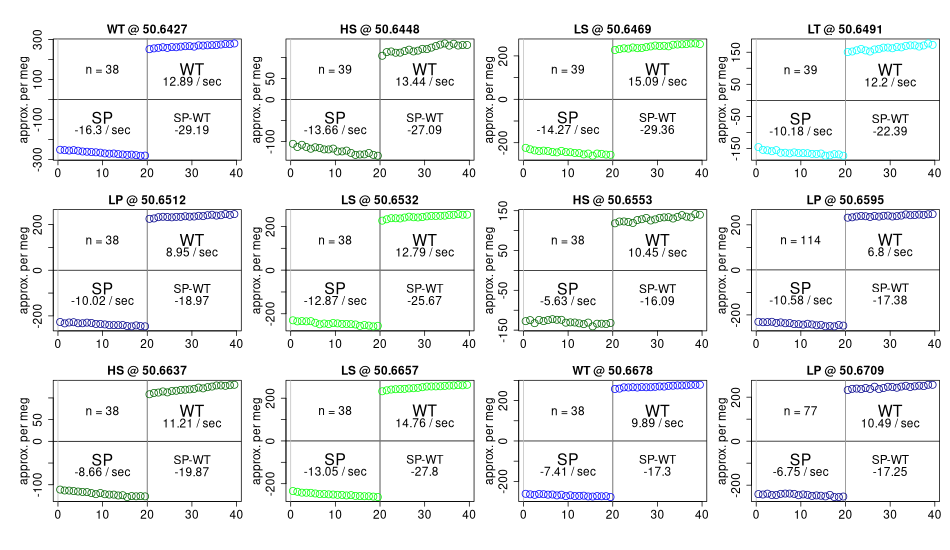

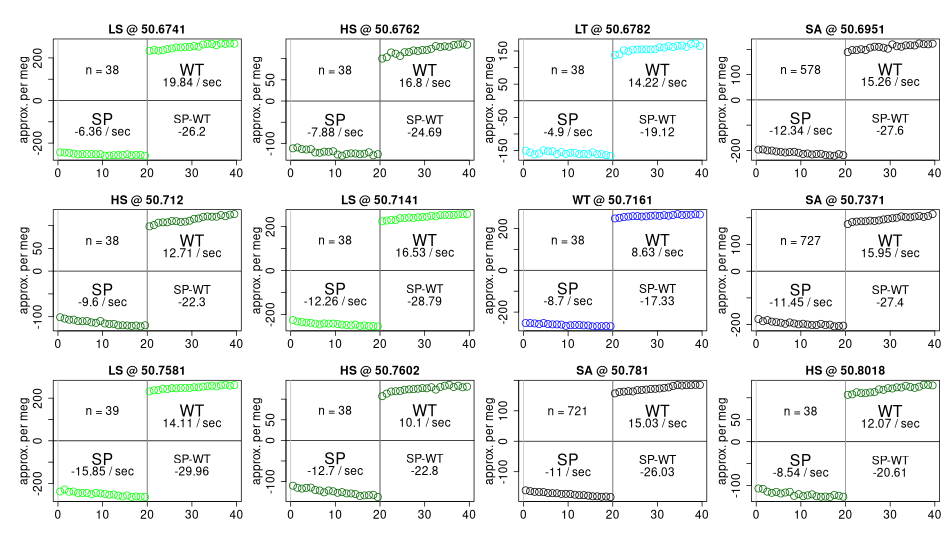

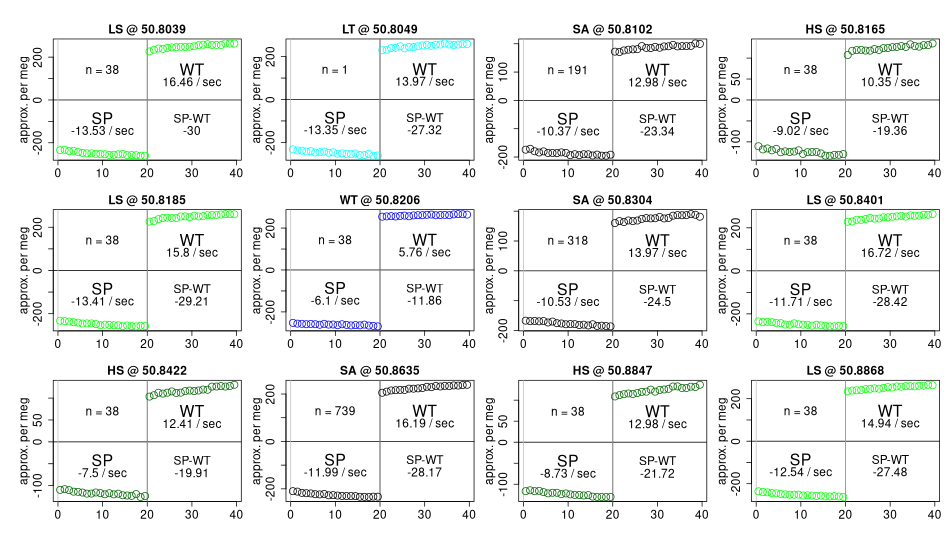

HR Jog Shapes by Individual NGAS
 HR Jog Shapes by Individual NGAS
 HR Jog Shapes by Individual NGAS
 HR Jog Shapes by Individual NGAS

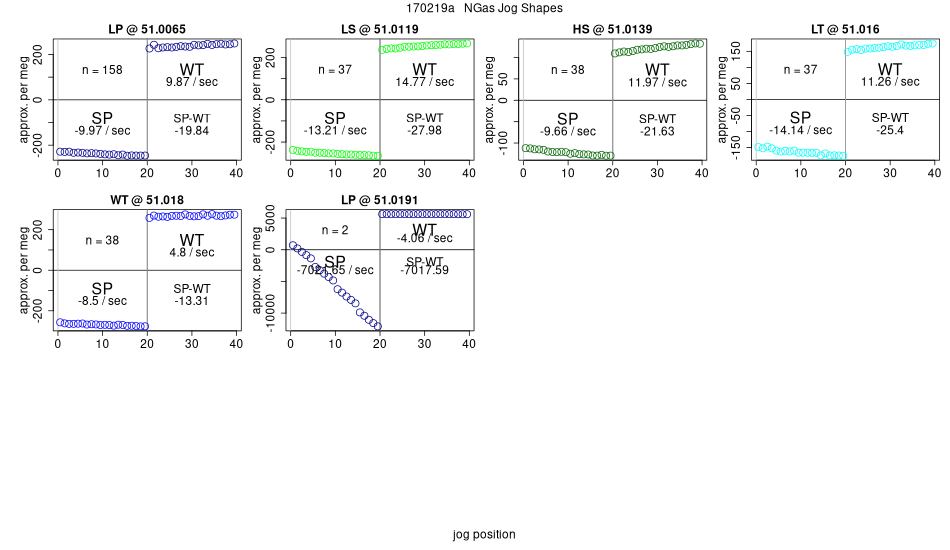

 HR Jog Shapes by Individual NGAS

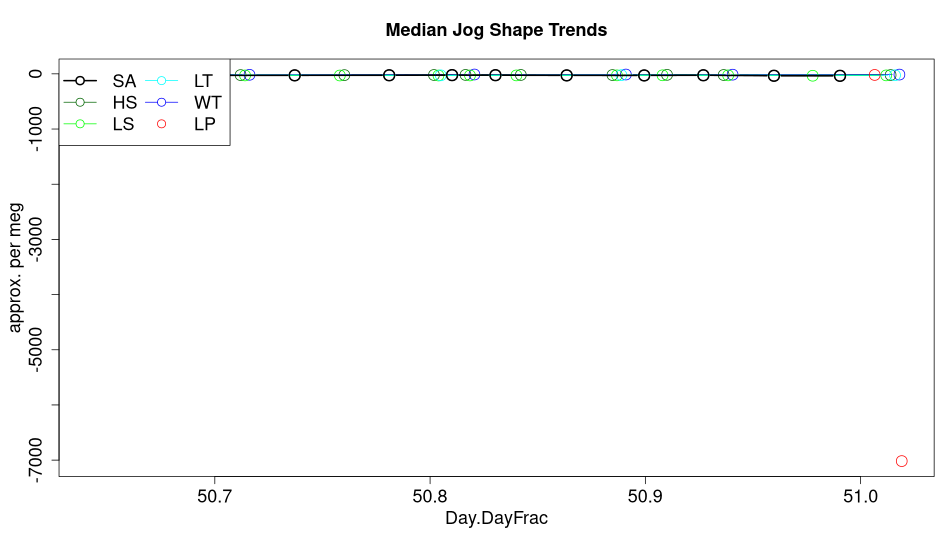

Jog Shape Trends


Data Filtering Figures

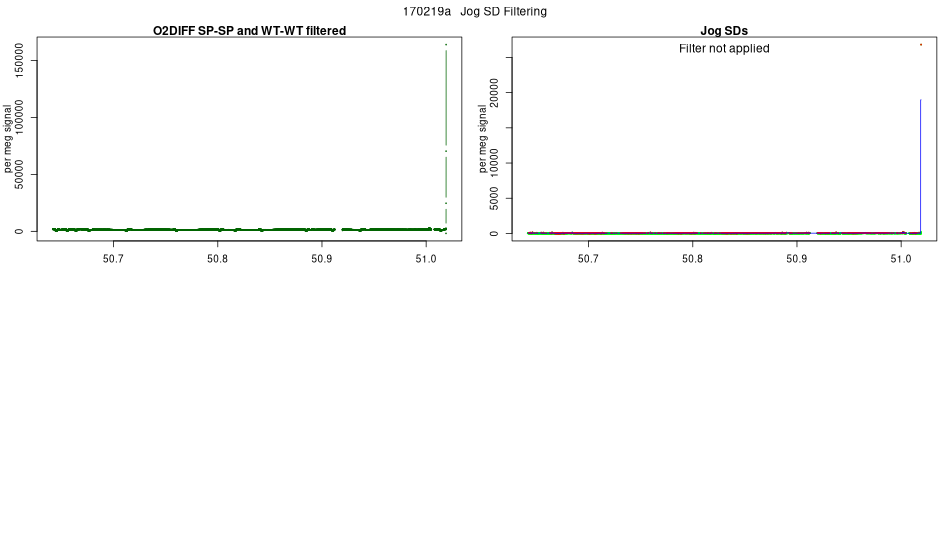

Jog SD Filter
 Spikes and Level Shifts

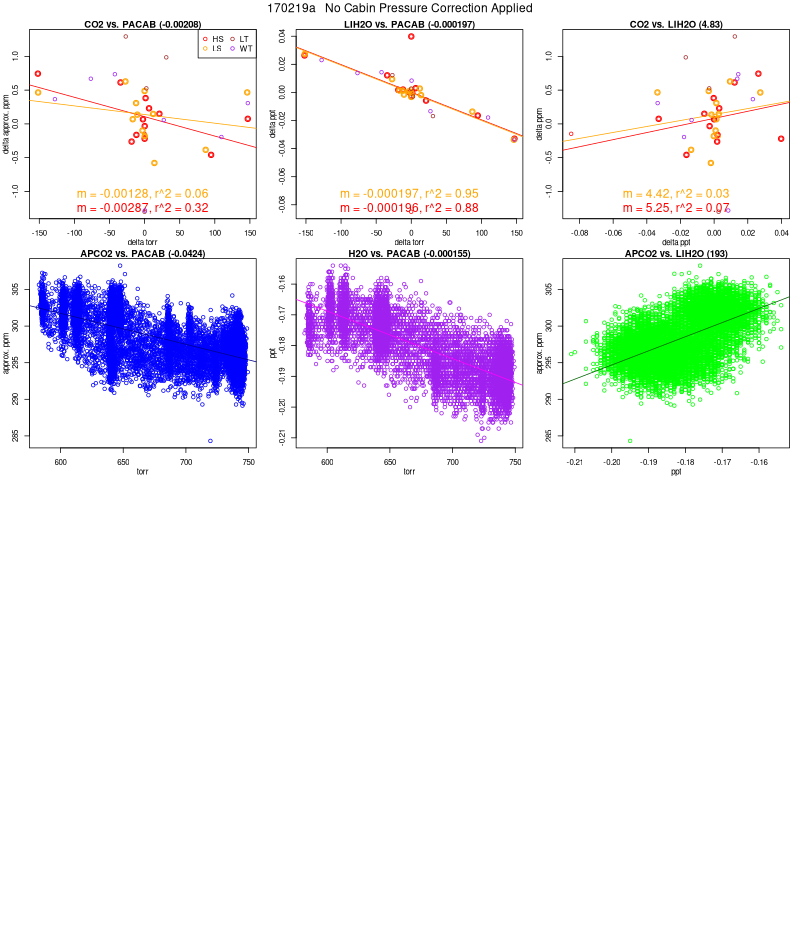

 Li840 Cabin Pressure Senisitivity

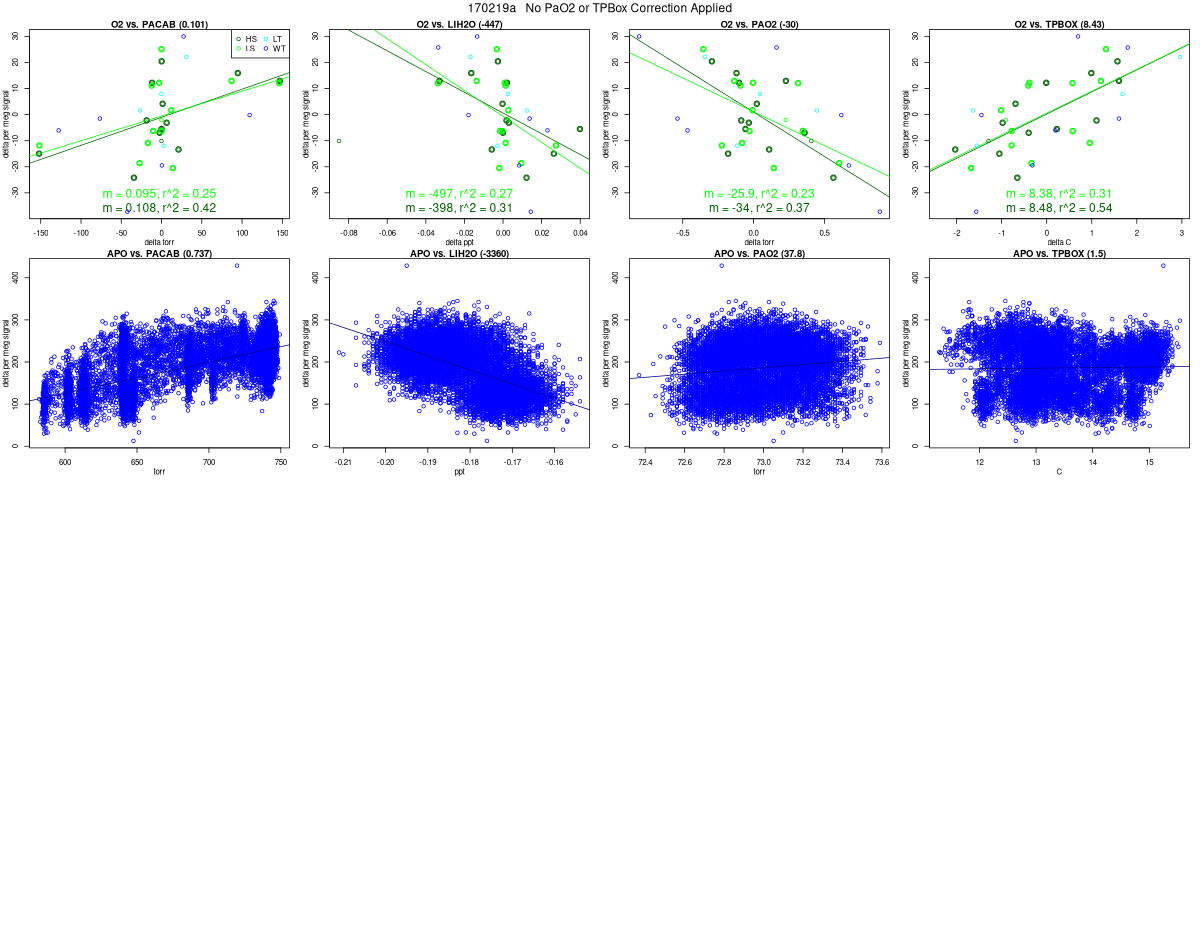

 O2 PCab, H2O, PaO2 Senisitivity

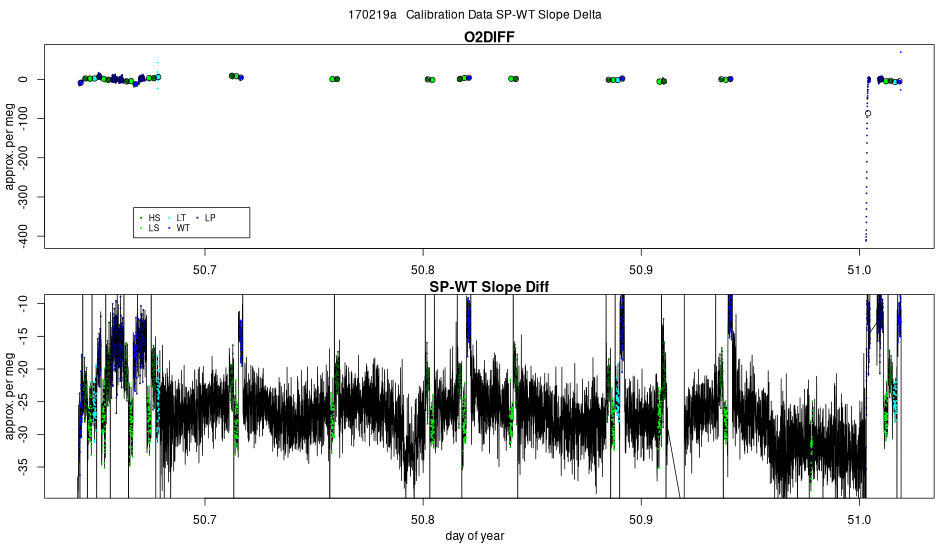

SP-WT Slope Diff

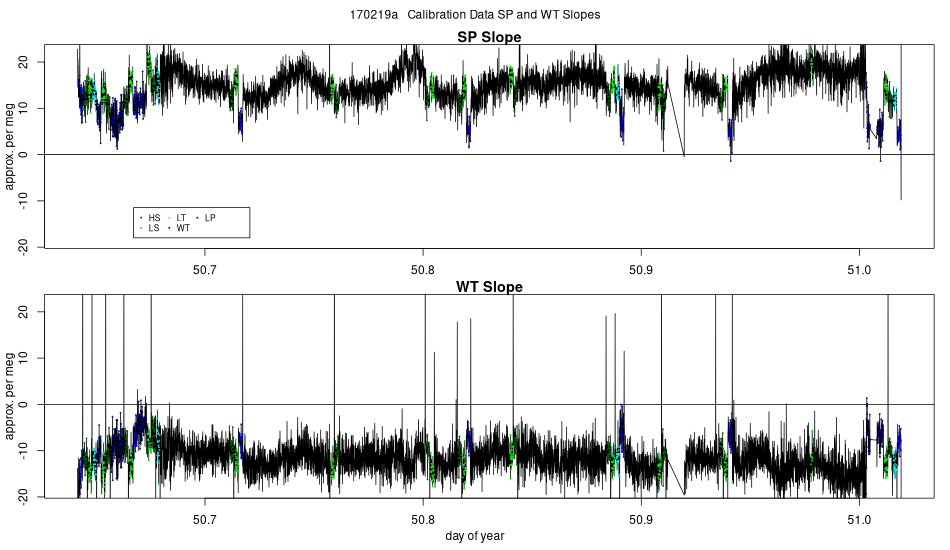

 SP and WT Slopes

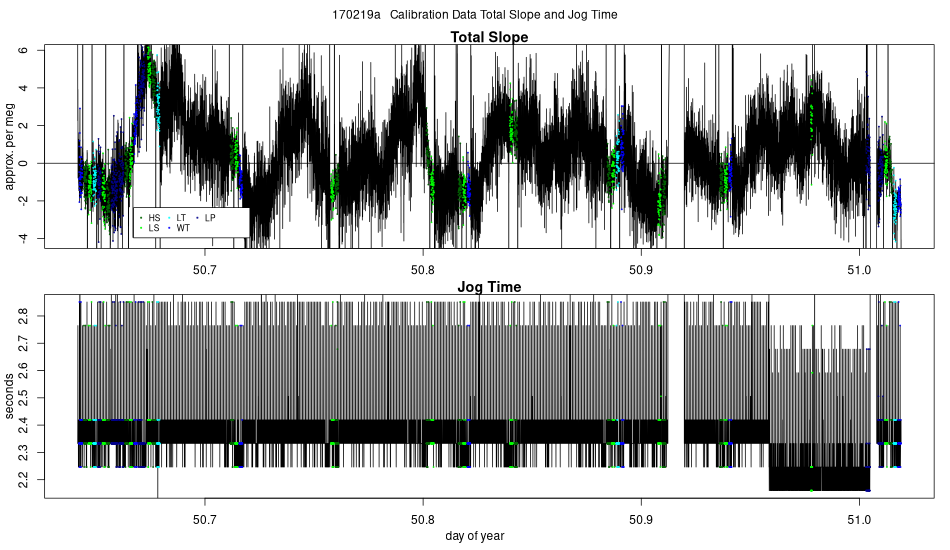

 Total Slope and Jog Time

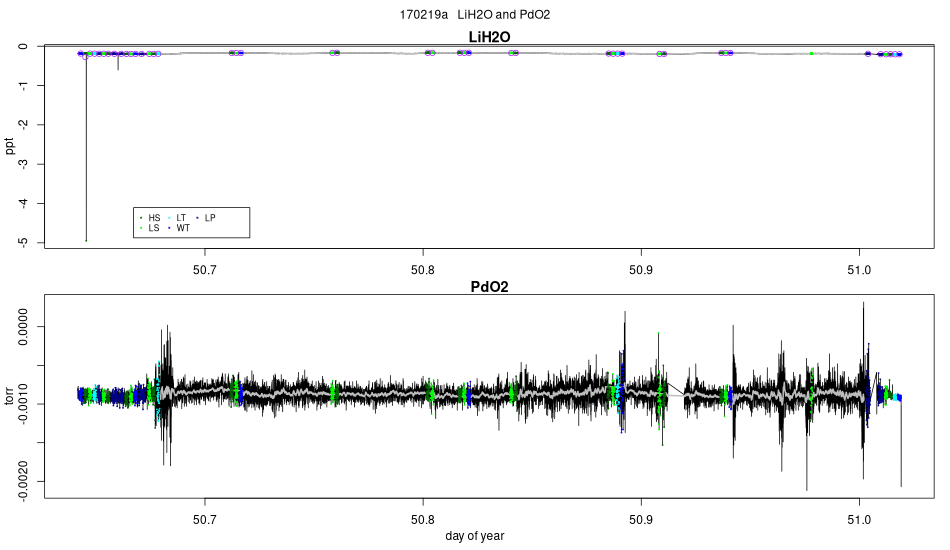

 LiH2O and PdO2

Calibration Figures

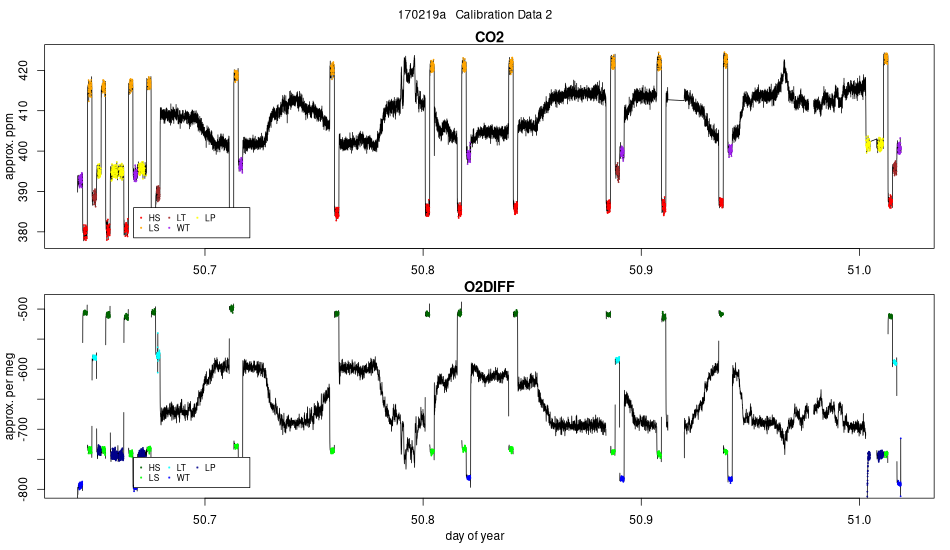

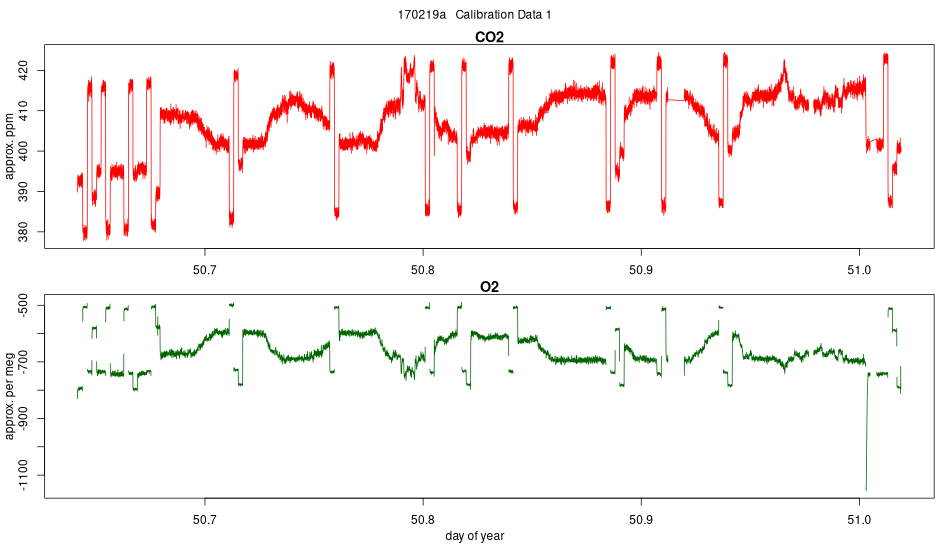

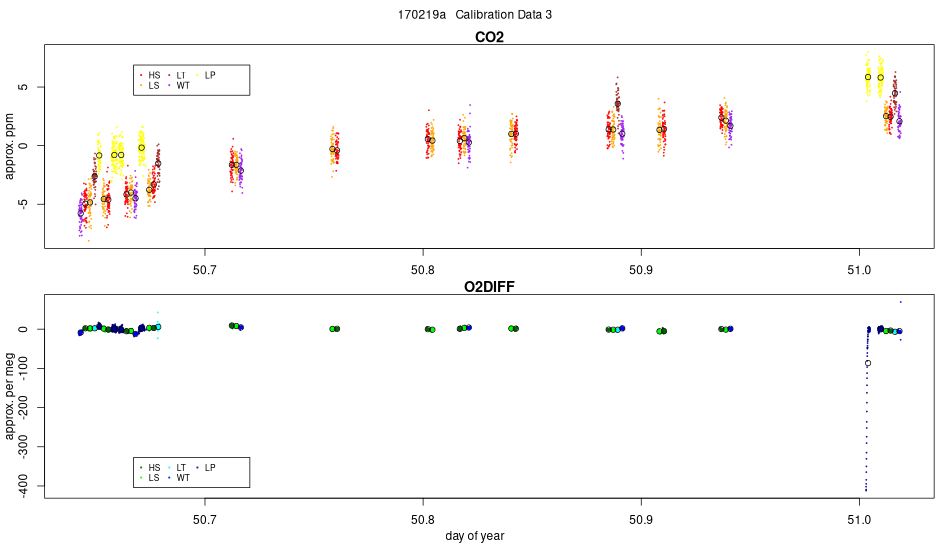

Calibration Data 1
 Calibration Data 2
 Calibration Data 3

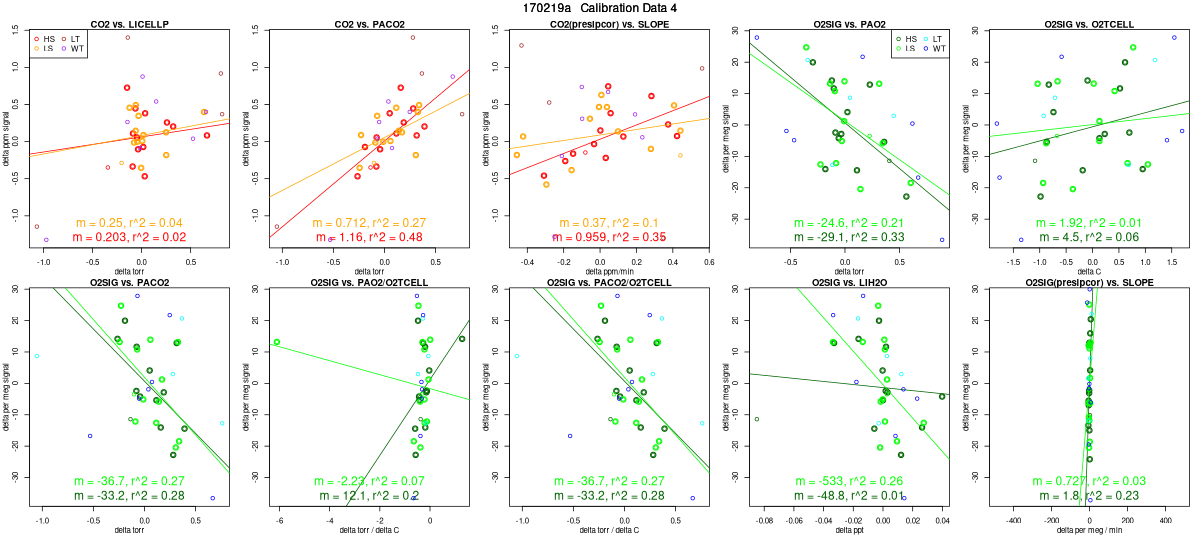

Calibration Data 4

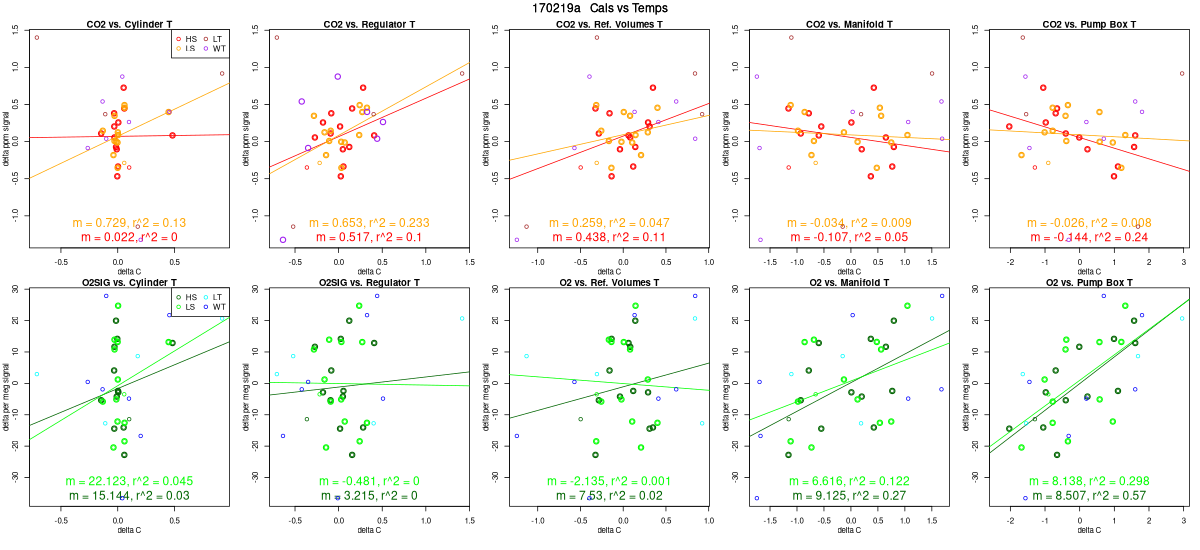

 Calibrations vs Cylinder Temps

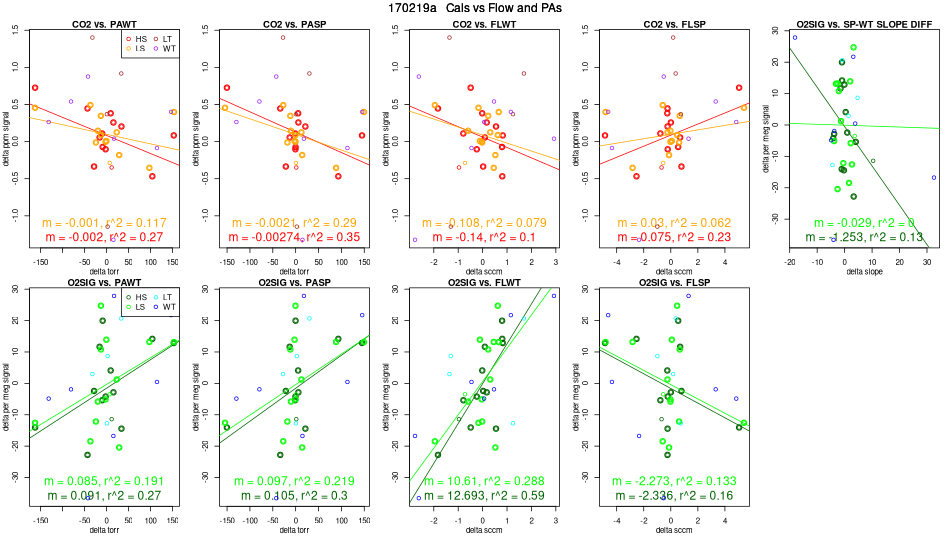

 Calibrations vs Cylinder Flows and PAs

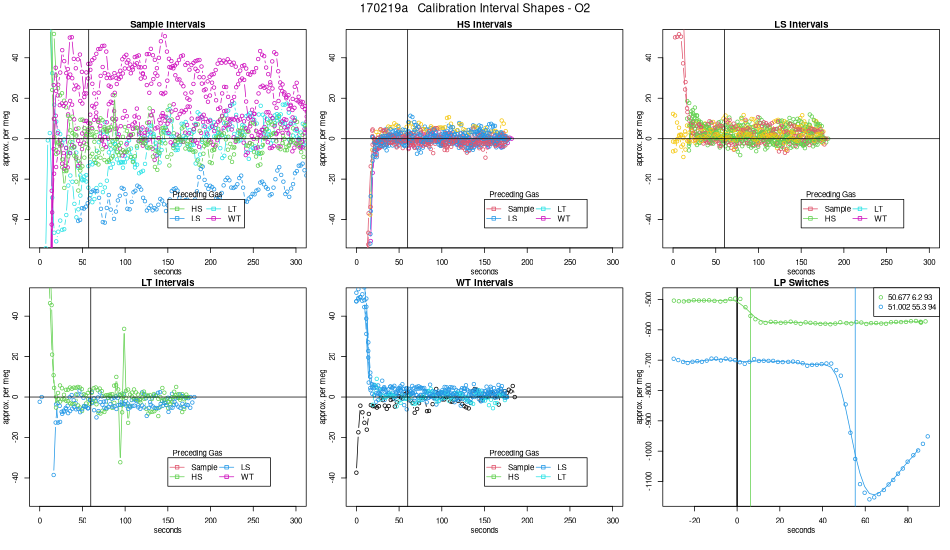

Calibration Interval Shapes - O2
 Calibration Interval Shapes - SP-WT Slope Diff

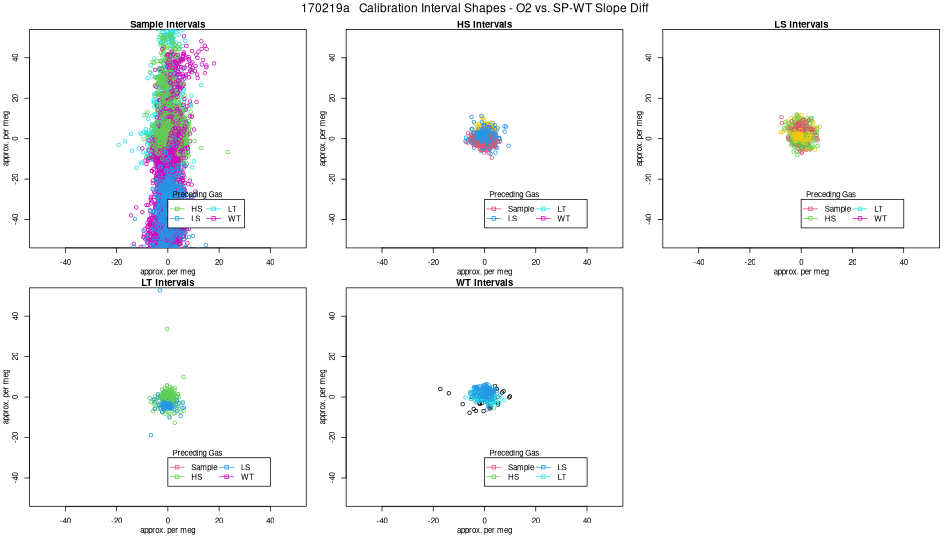

 Calibration Interval - O2 vs. SP-WT Slope Diff

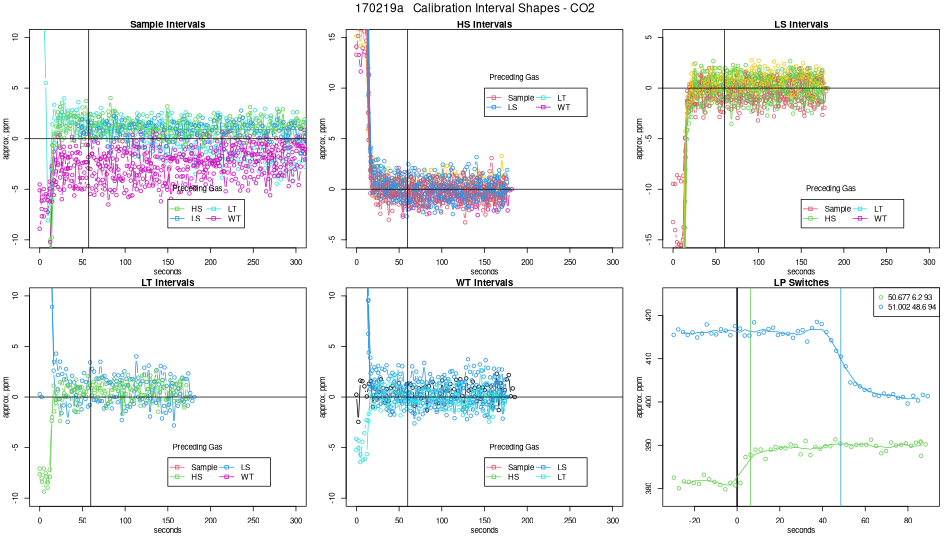

Calibration Interval Shapes - CO2

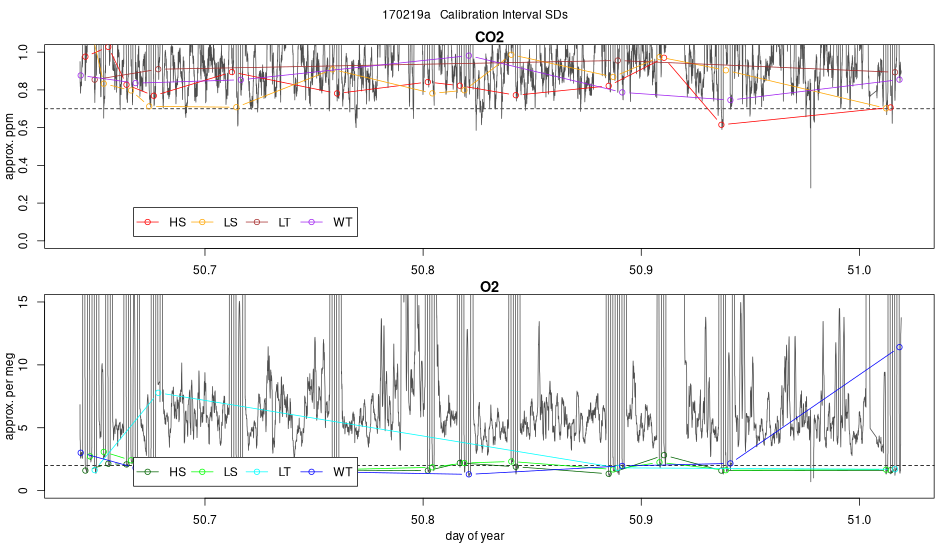

 Calibration Interval SDs

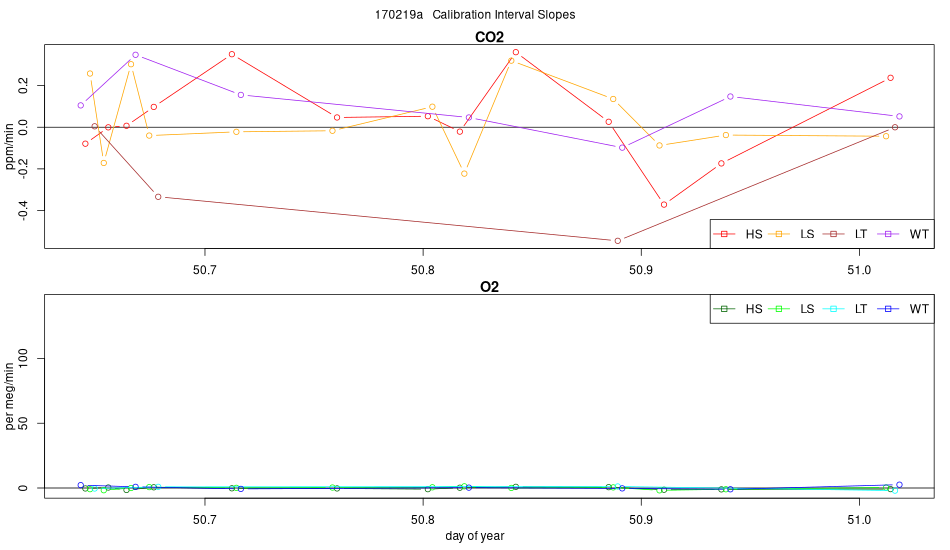

 Calibration Interval Slopes

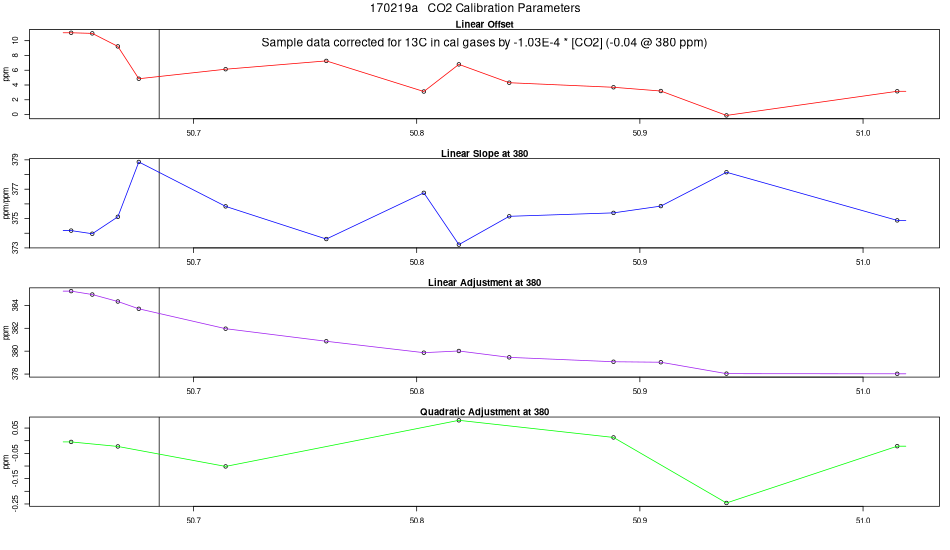

CO2 Fit Parameters

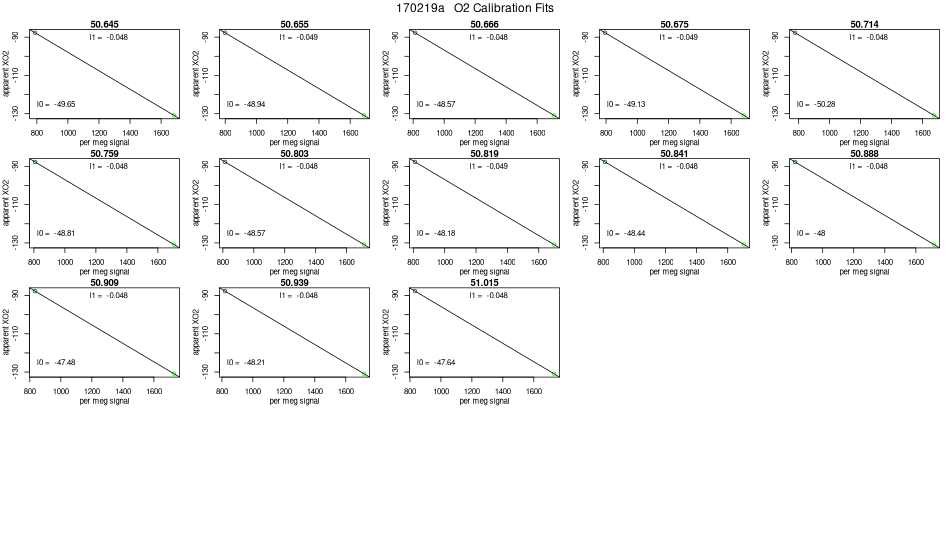

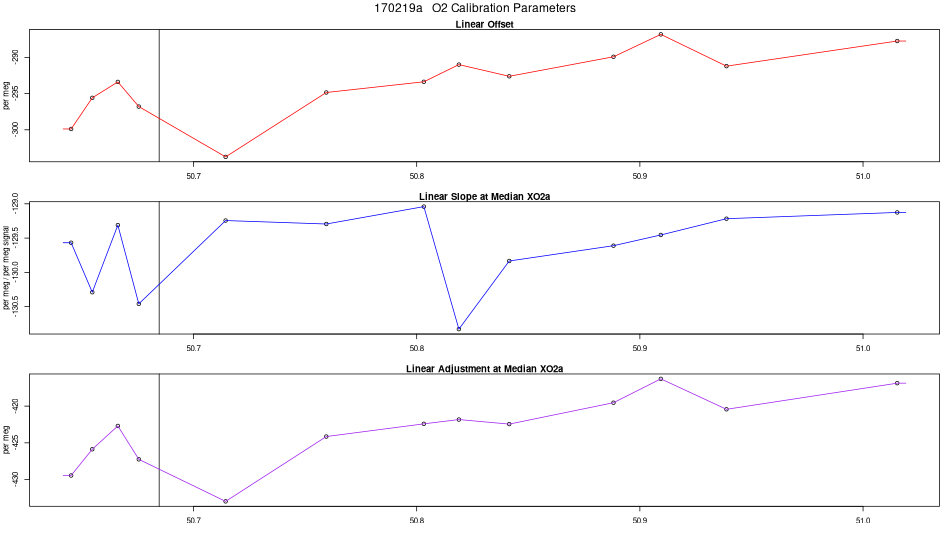

 O2 Fit Parameters

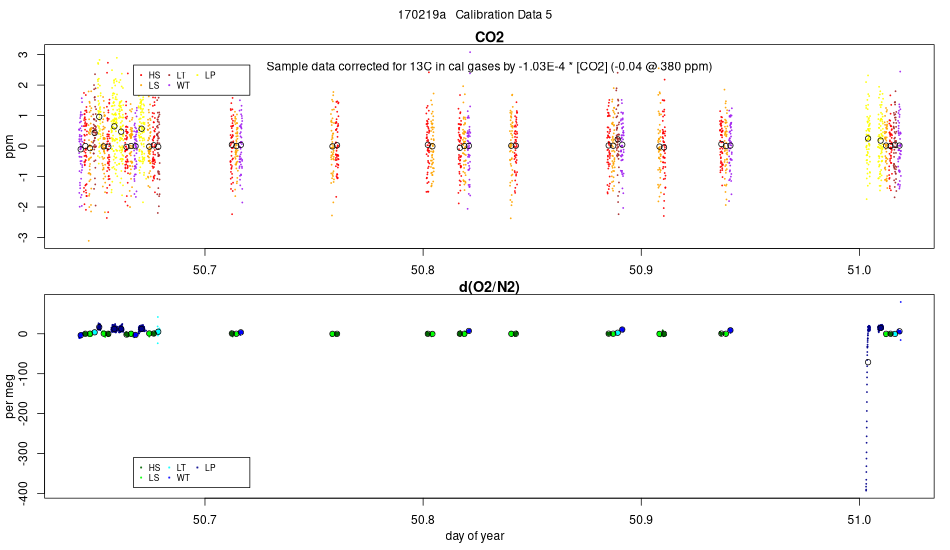

 Calibration Data 5

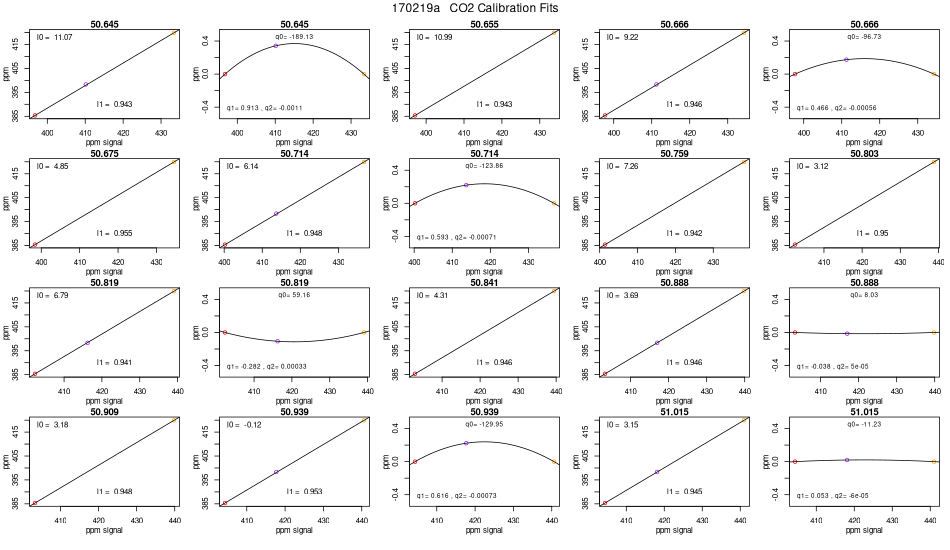

CO2 Fits 1
 O2 Fits 1


Aircraft Data Figures

Aircraft Data 1
 Aircraft Data 2

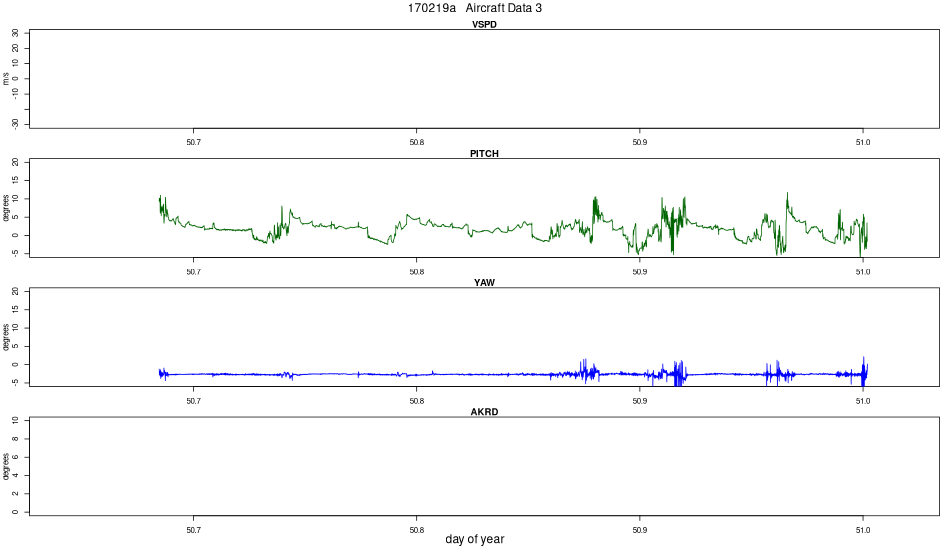

 Aircraft Data 3

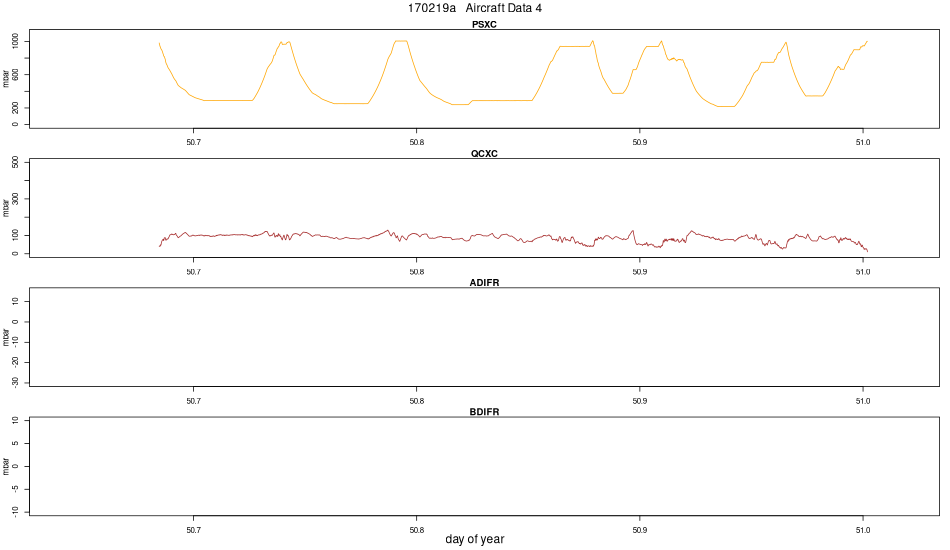

Aircraft Data 4

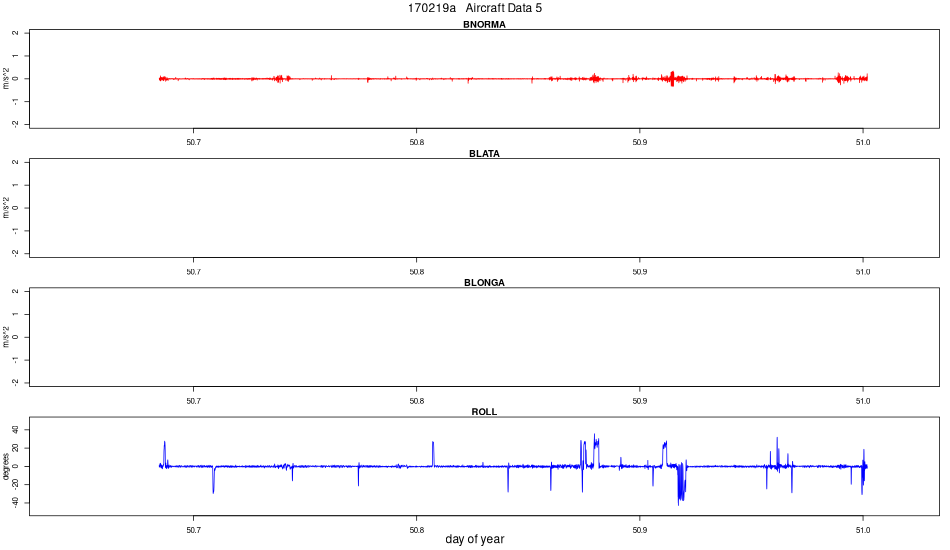

 Aircraft Data 5
 Aircraft Data 6


Inlet P Corrections

Aircraft Data 7

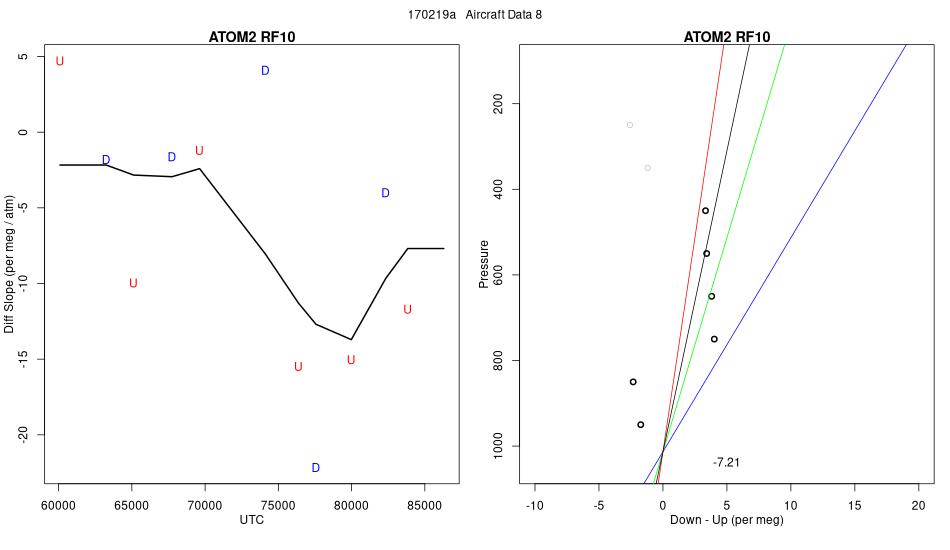

 Aircraft Data 8

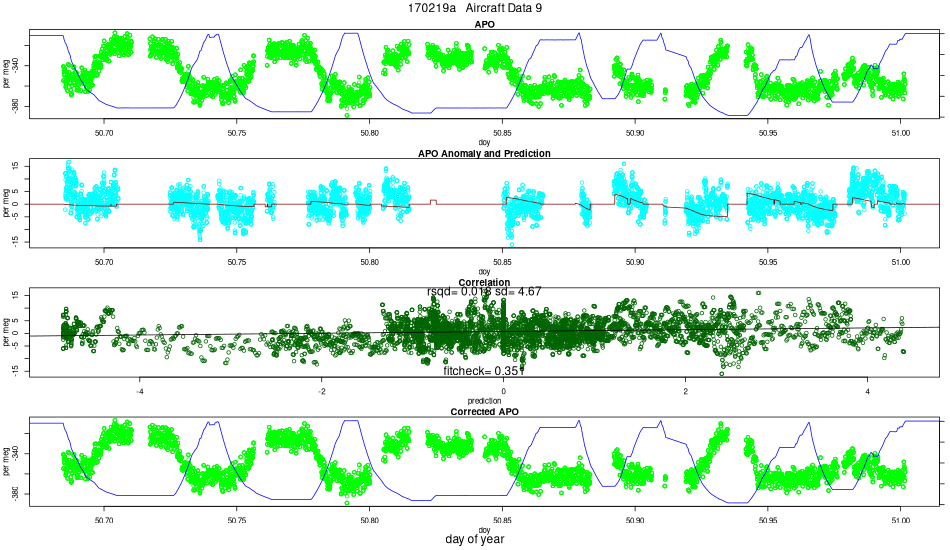

 Aircraft Data 9


Pressure / Latitude Cross-sections

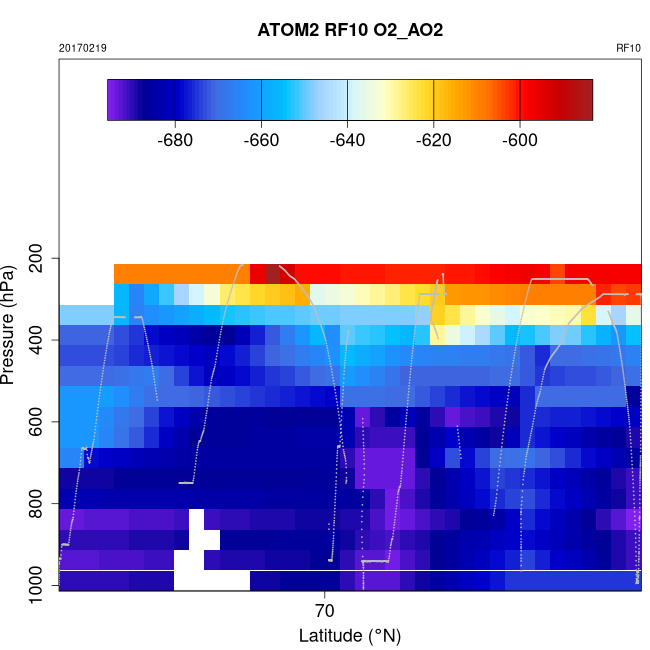

O2 Cross Section

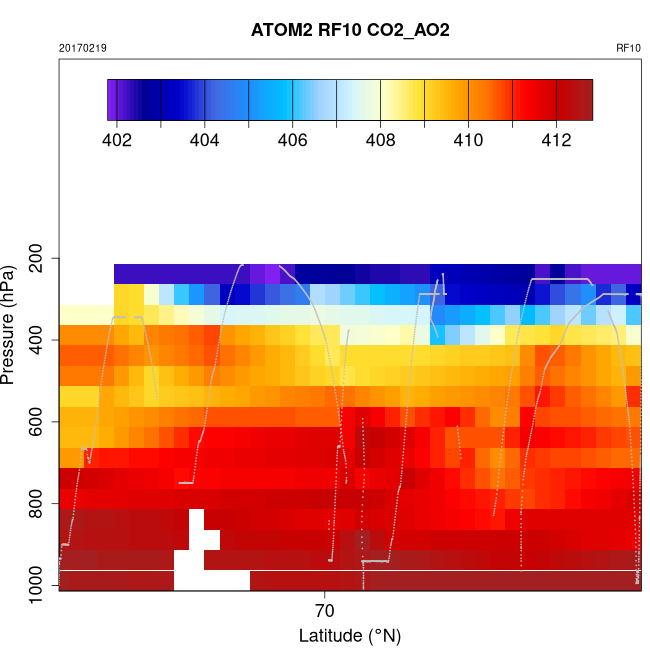

 CO2 Cross Section

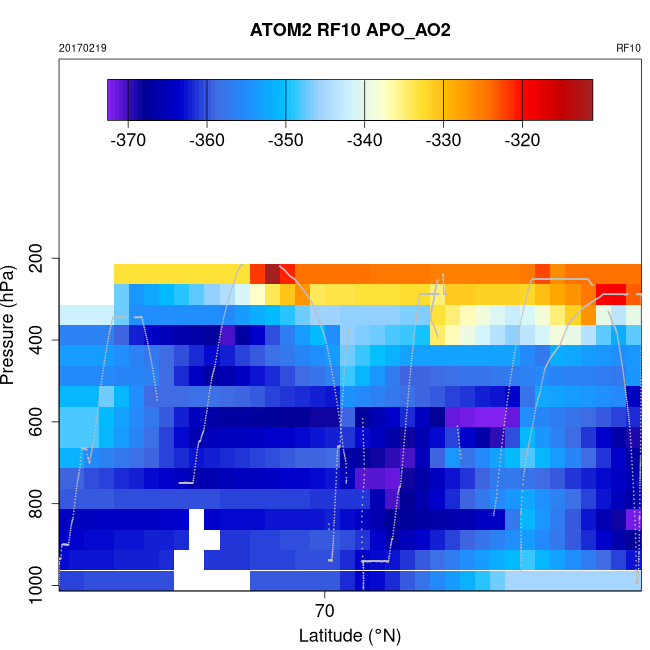

 APO Cross Section


Subinterval Figures

Subinterval flight
Using data from 50.67737 to 51.0024 (Day of Year and Day Fraction)
Using data from 16:15:24 to 00:03:26 (HH:MM:SS)

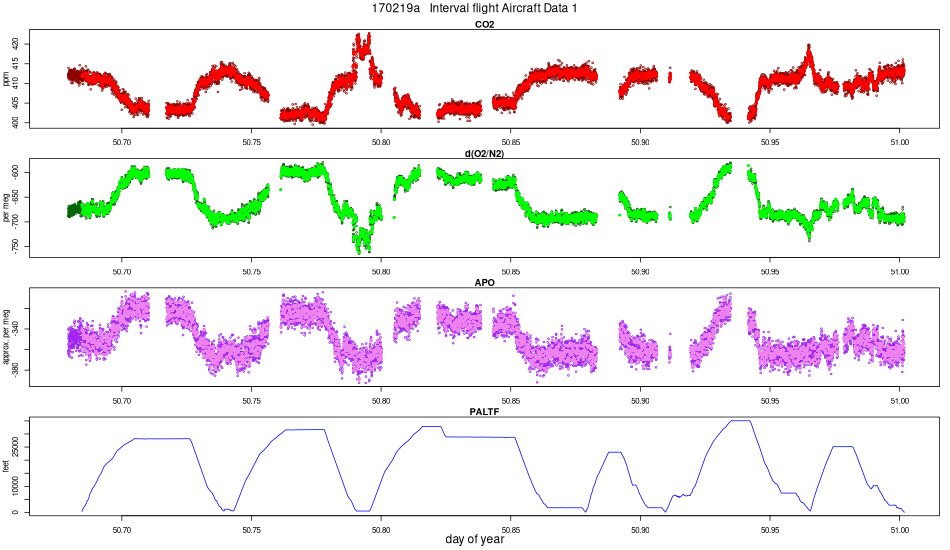

Aircraft Data 1

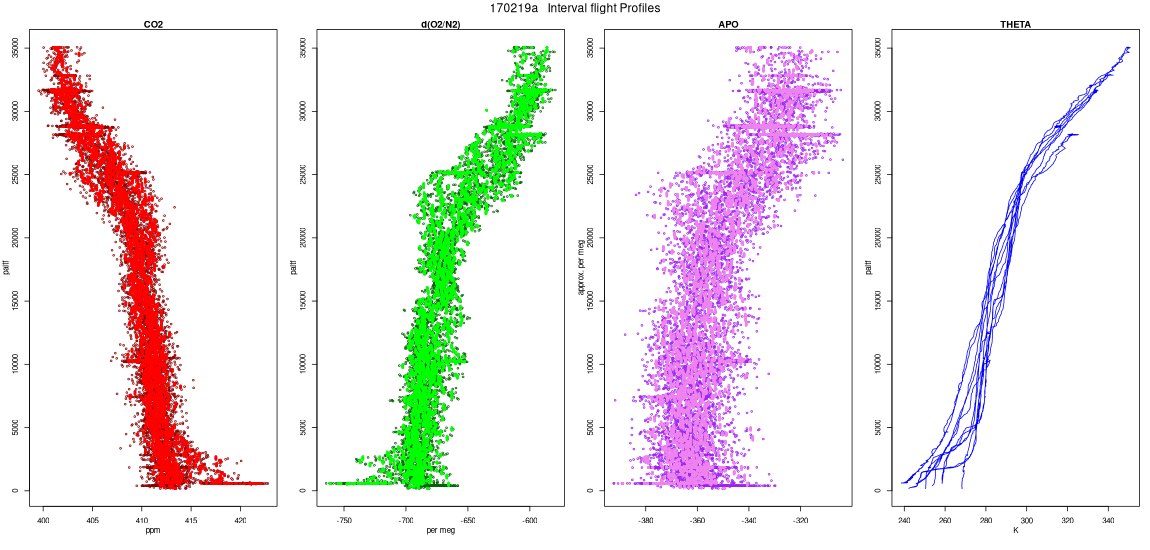

 Profiles

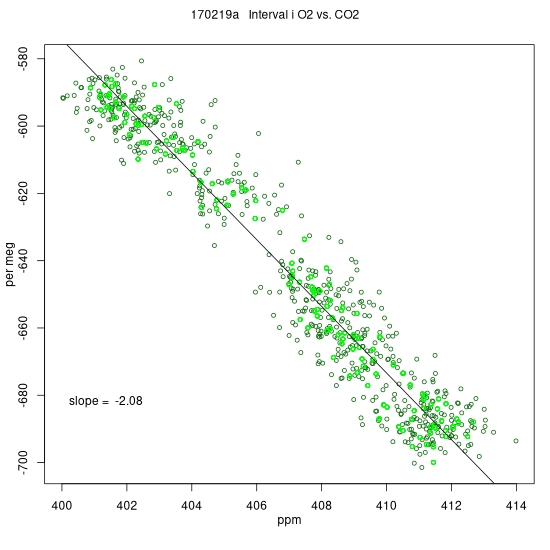

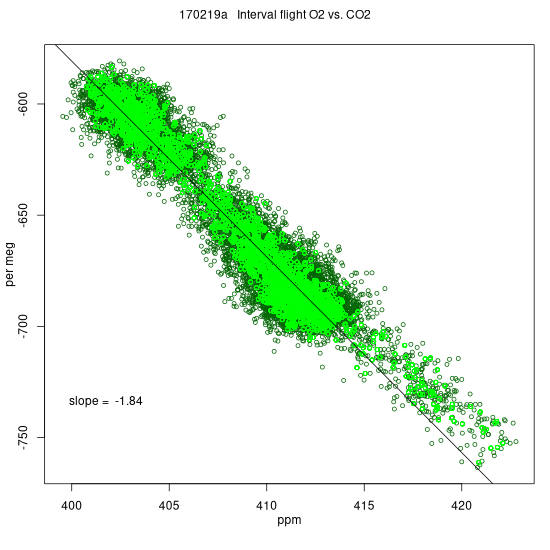

O2 vs. CO2


Subinterval a
Using data from 50.6843 to 50.71464 (Day of Year and Day Fraction)
Using data from 16:25:23 to 17:09:04 (HH:MM:SS)
Aircraft Data 1

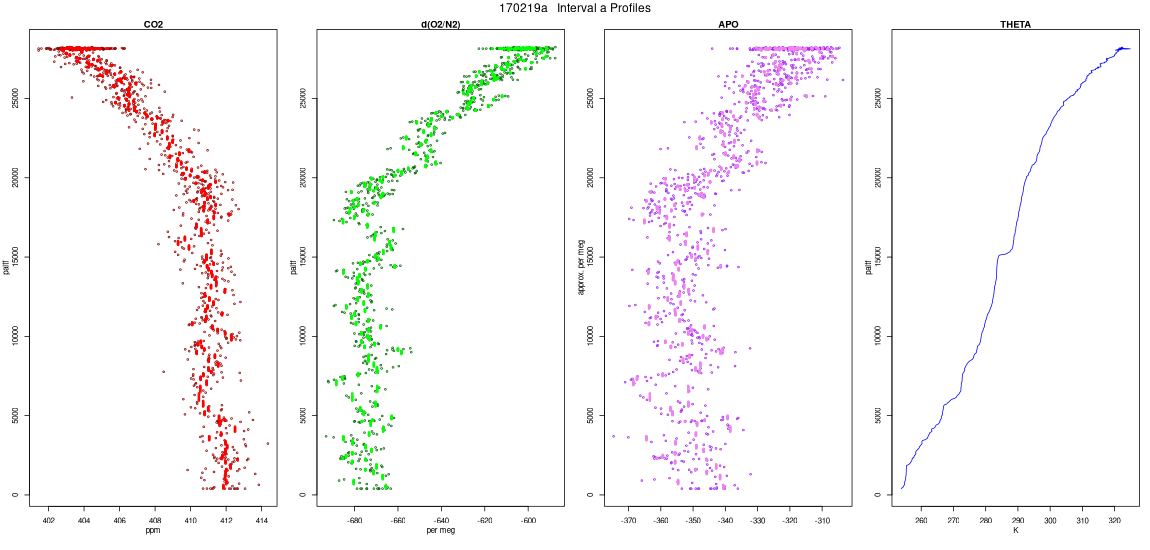

 Profiles

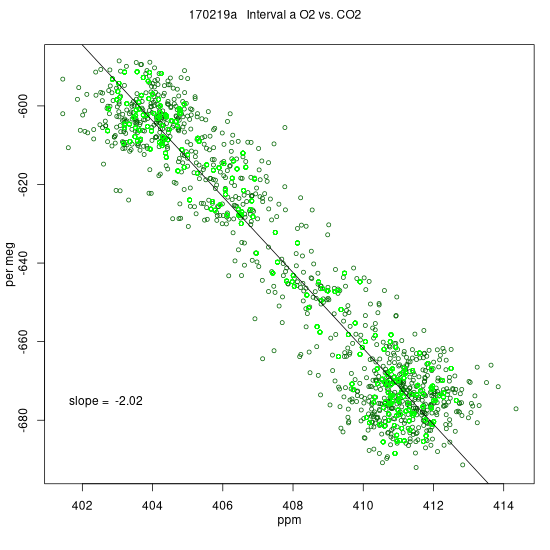

O2 vs. CO2


Subinterval b
Using data from 50.71464 to 50.74317 (Day of Year and Day Fraction)
Using data from 17:09:04 to 17:50:09 (HH:MM:SS)

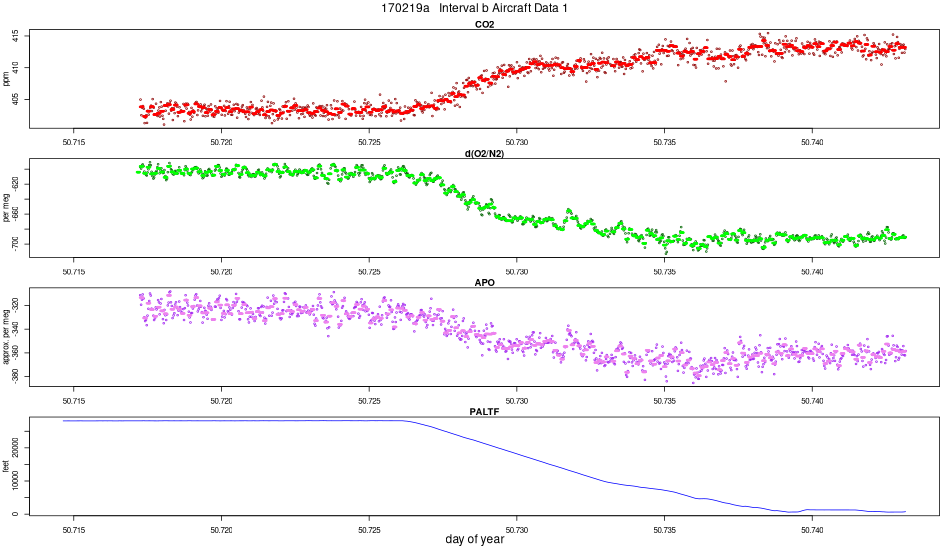

Aircraft Data 1

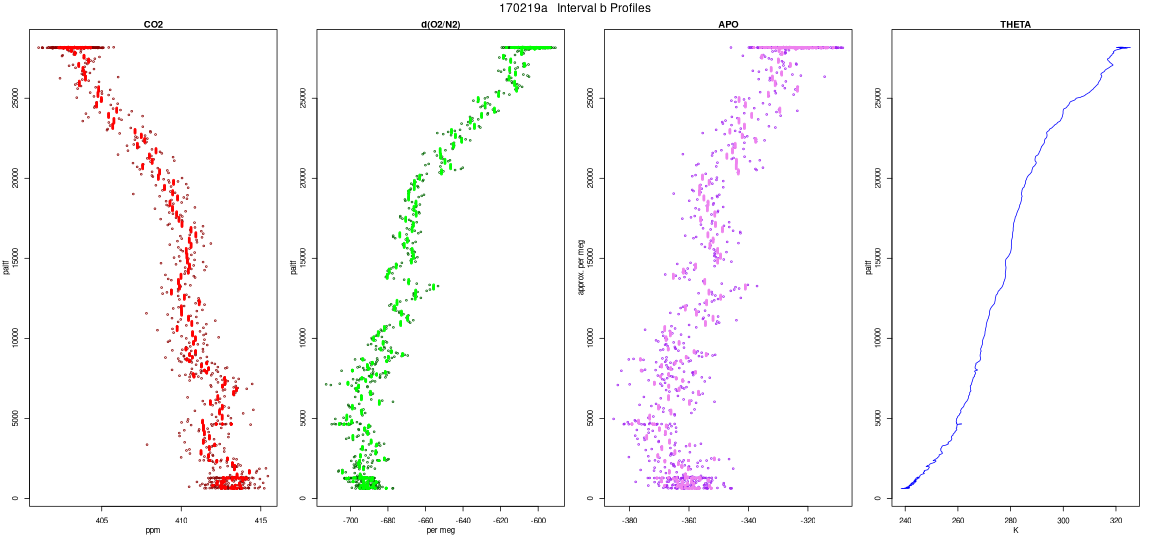

 Profiles

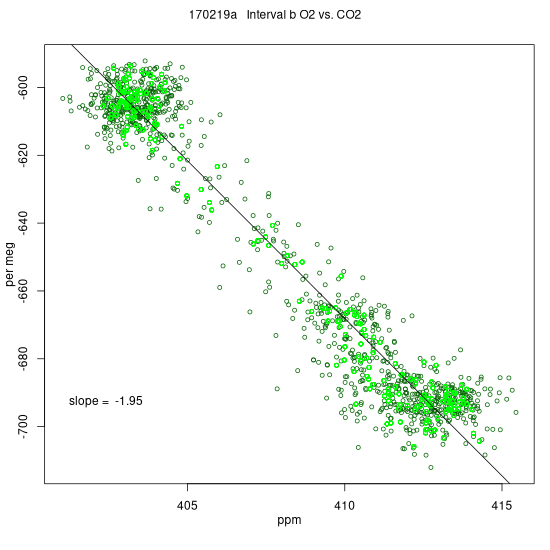

O2 vs. CO2


Subinterval c
Using data from 50.73864 to 50.76966 (Day of Year and Day Fraction)
Using data from 17:43:38 to 18:28:18 (HH:MM:SS)

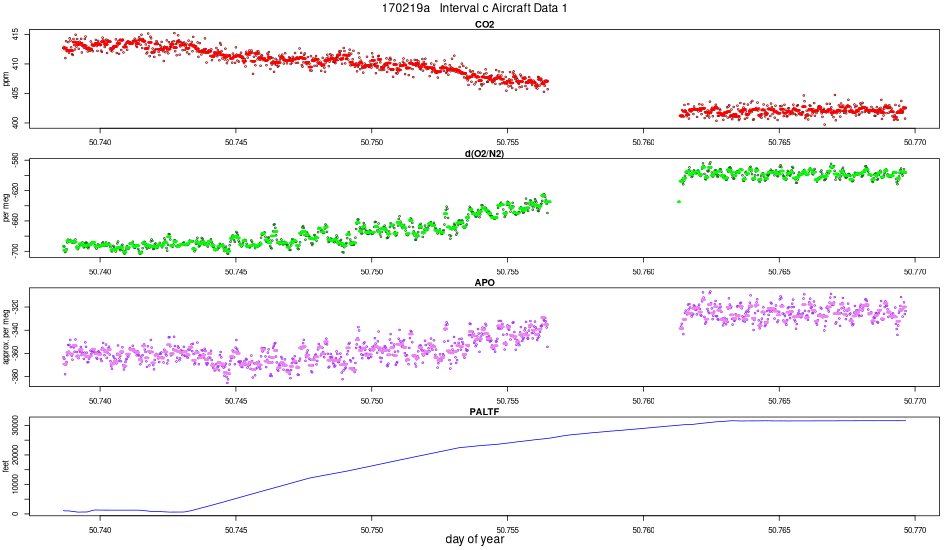

Aircraft Data 1

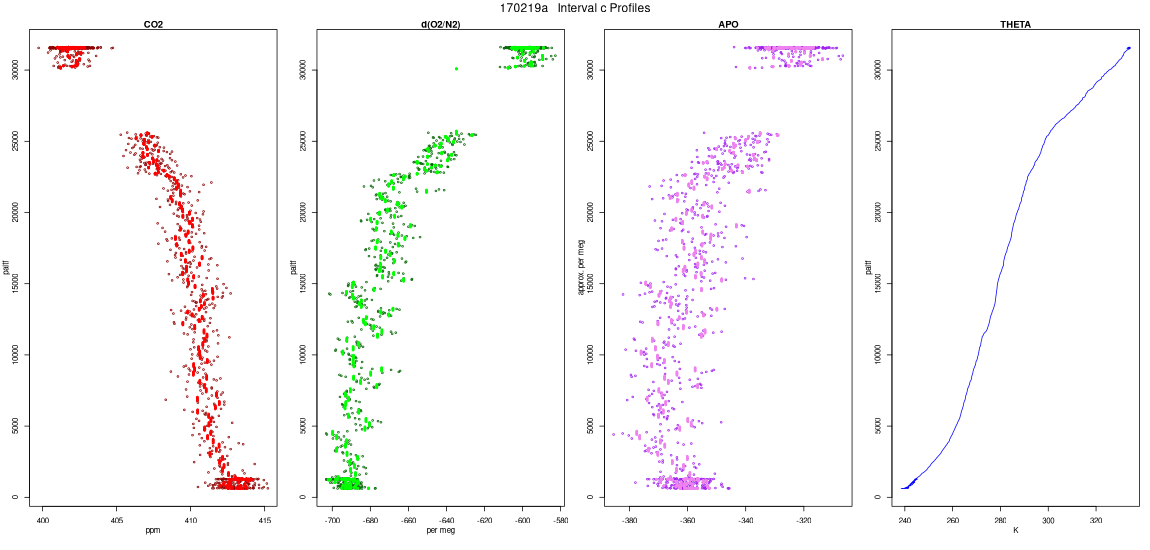

 Profiles

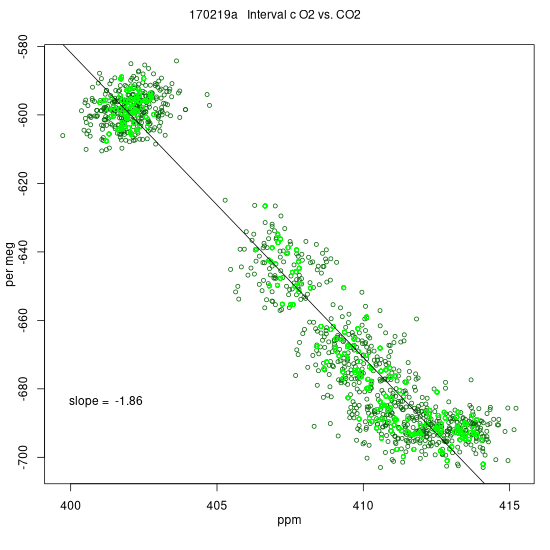

O2 vs. CO2


Subinterval d
Using data from 50.76966 to 50.79525 (Day of Year and Day Fraction)
Using data from 18:28:18 to 19:05:09 (HH:MM:SS)

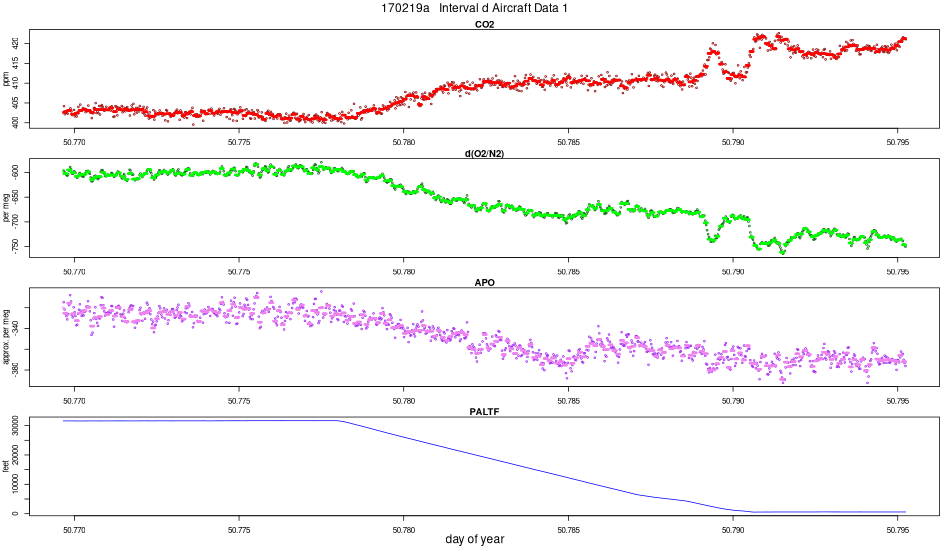

Aircraft Data 1

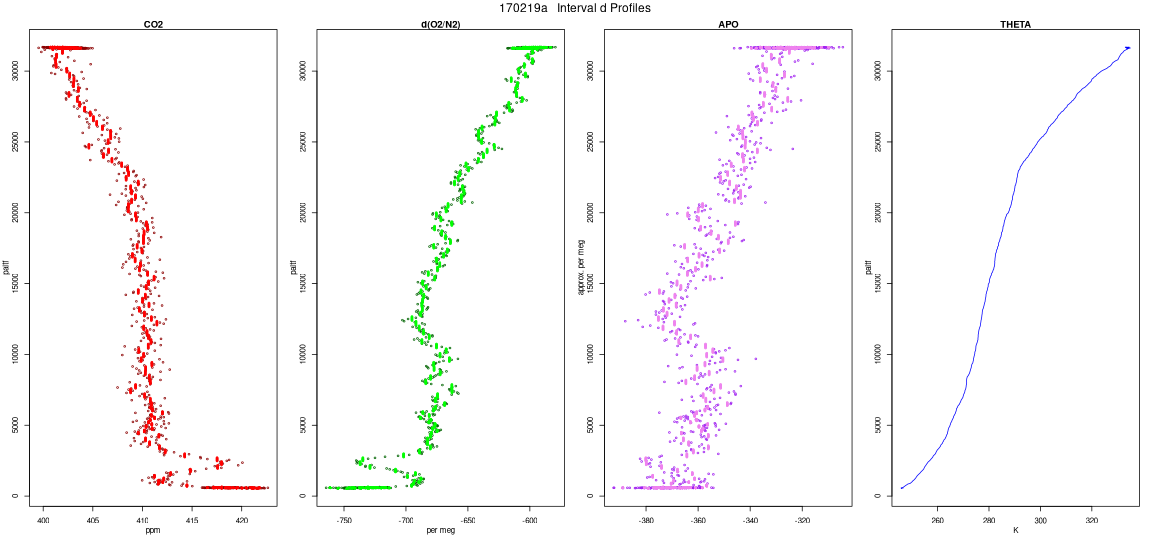

 Profiles
O2 vs. CO2


Subinterval e
Using data from 50.79117 to 50.81947 (Day of Year and Day Fraction)
Using data from 18:59:17 to 19:40:02 (HH:MM:SS)

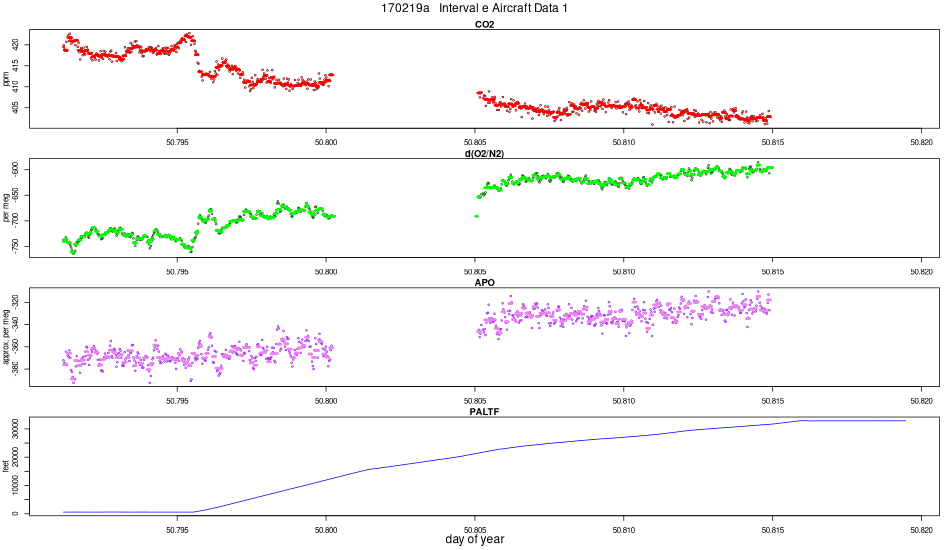

Aircraft Data 1
 Profiles

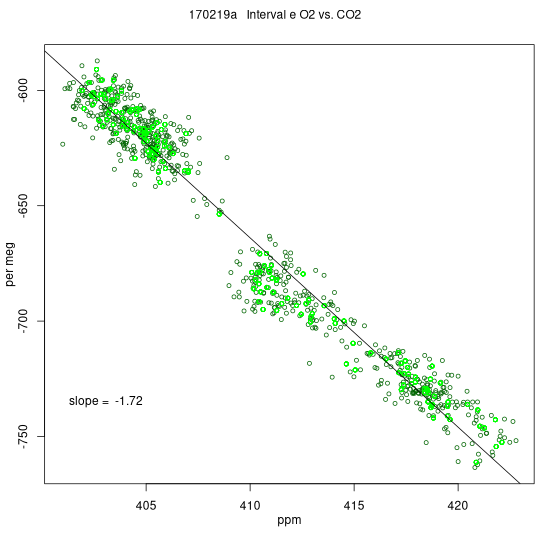

O2 vs. CO2


Subinterval f
Using data from 50.81947 to 50.87902 (Day of Year and Day Fraction)
Using data from 19:40:02 to 21:05:47 (HH:MM:SS)

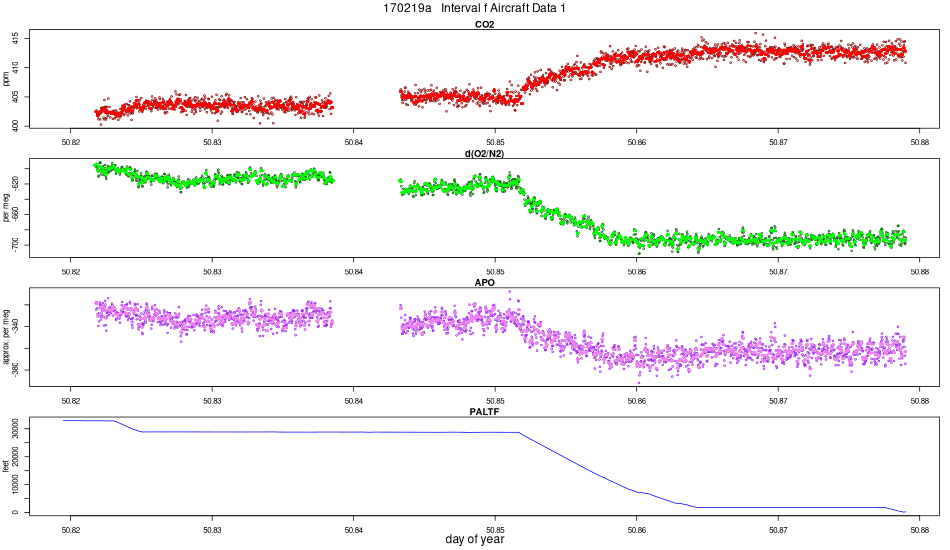

Aircraft Data 1

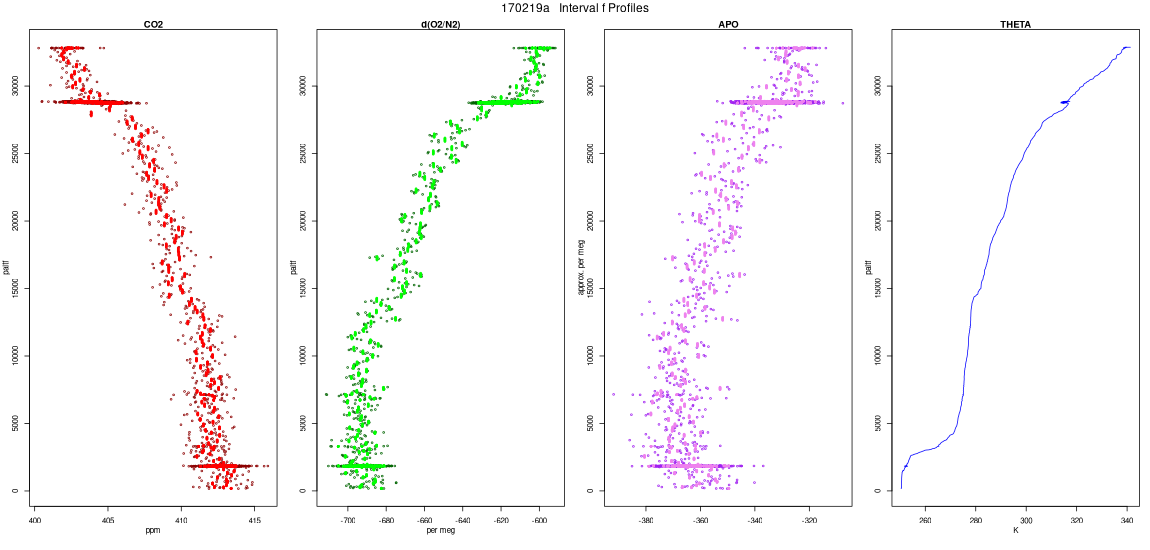

 Profiles

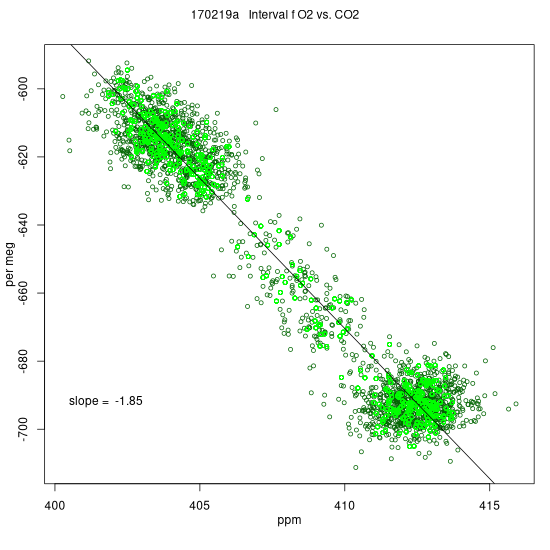

O2 vs. CO2


Subinterval g
Using data from 50.87902 to 50.89012 (Day of Year and Day Fraction)
Using data from 21:05:47 to 21:21:45 (HH:MM:SS)

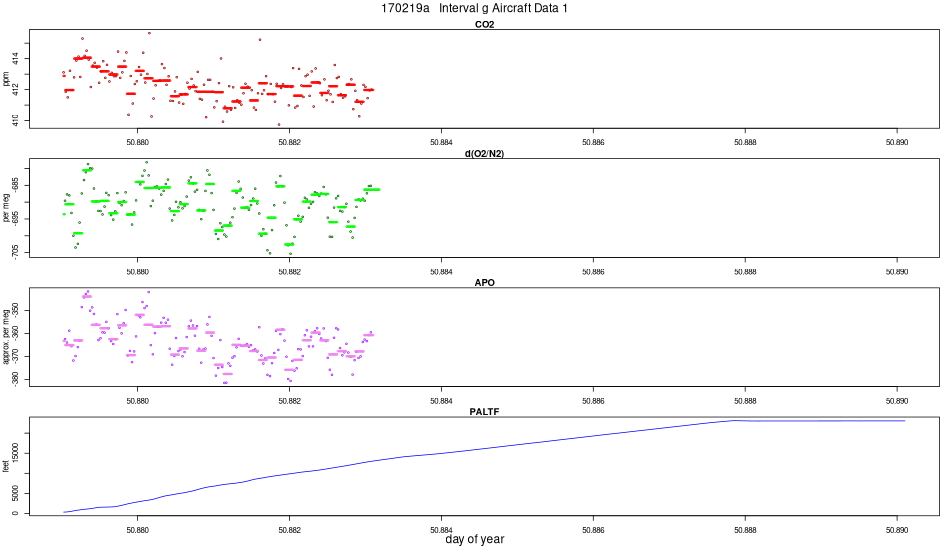

Aircraft Data 1

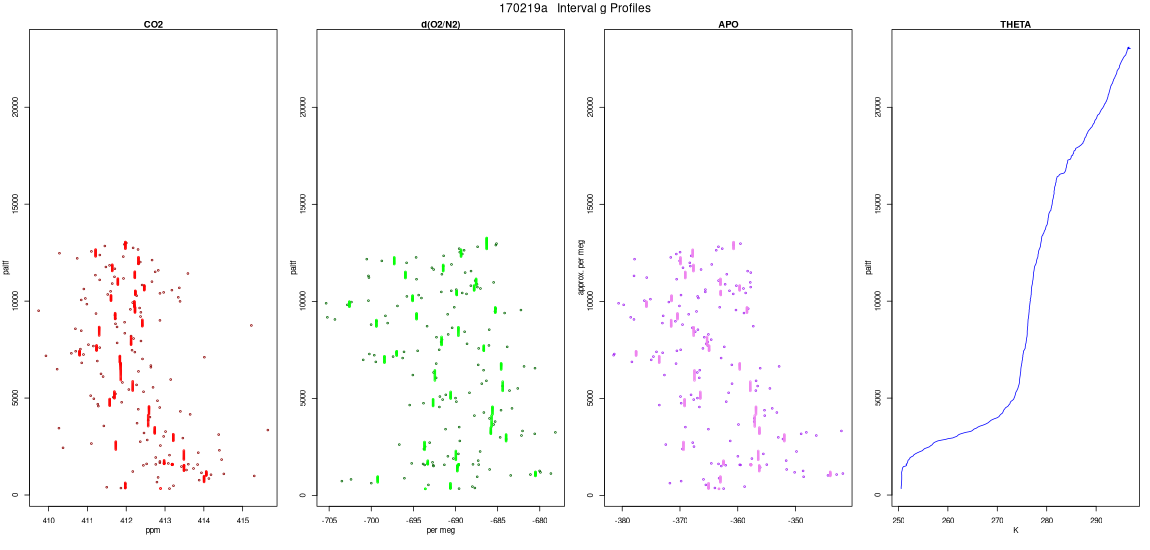

 Profiles

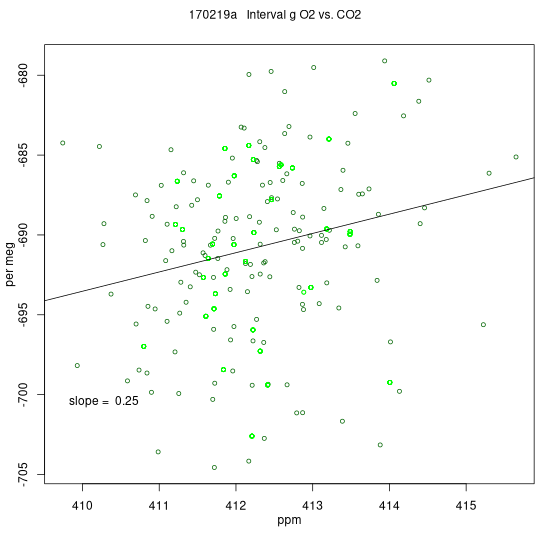

O2 vs. CO2


Subinterval h
Using data from 50.89012 to 50.91004 (Day of Year and Day Fraction)
Using data from 21:21:45 to 21:50:27 (HH:MM:SS)

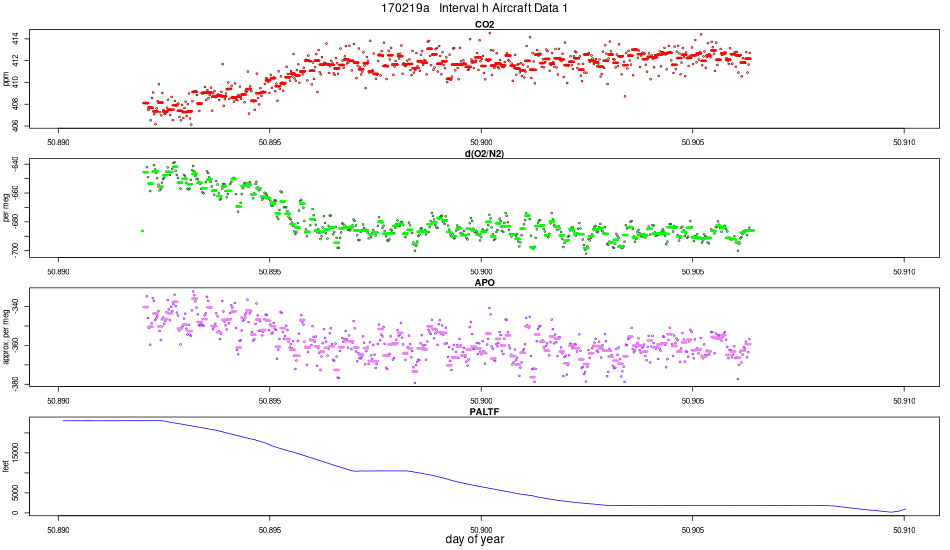

Aircraft Data 1

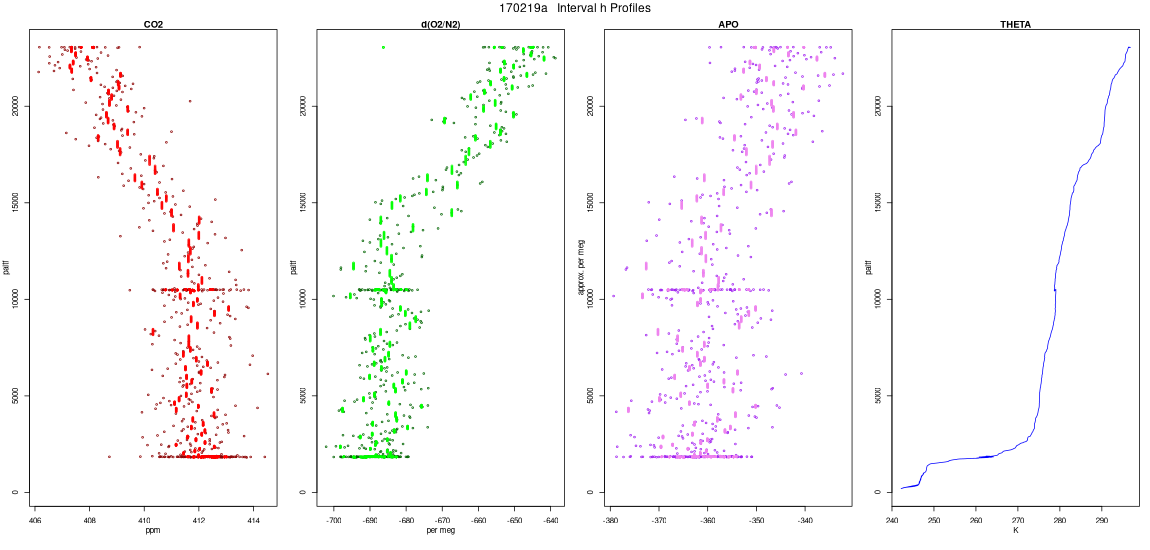

 Profiles

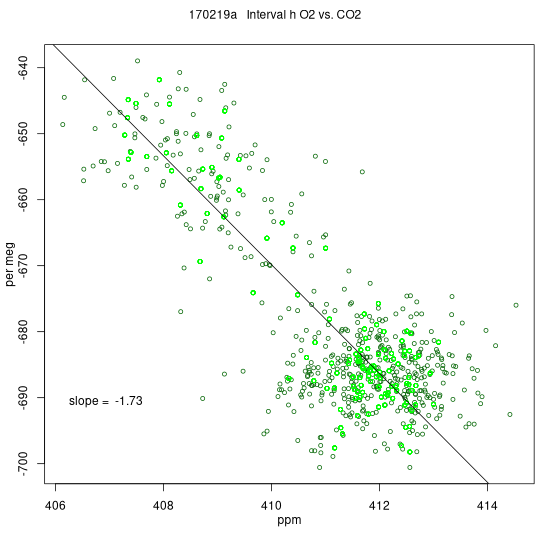

O2 vs. CO2


Subinterval i
Using data from 50.91004 to 50.93925 (Day of Year and Day Fraction)
Using data from 21:50:27 to 22:32:31 (HH:MM:SS)

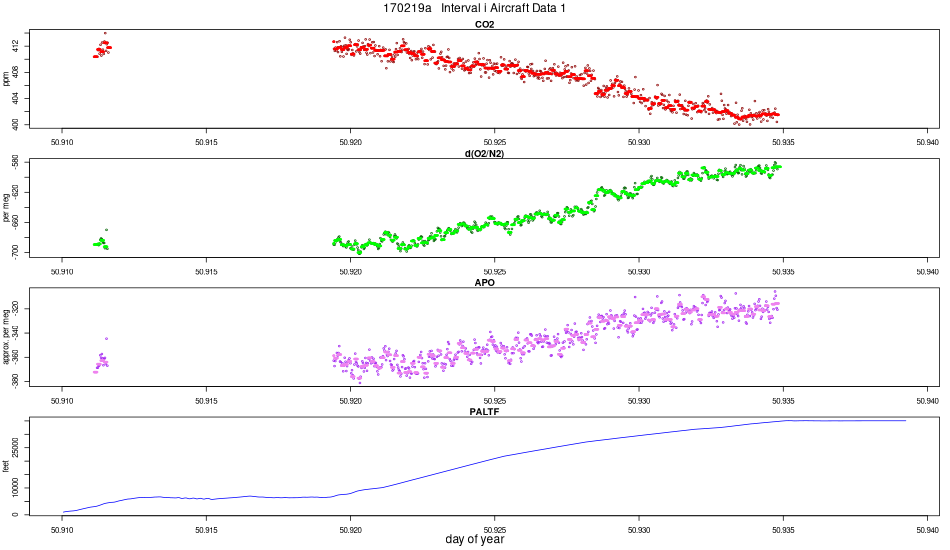

Aircraft Data 1

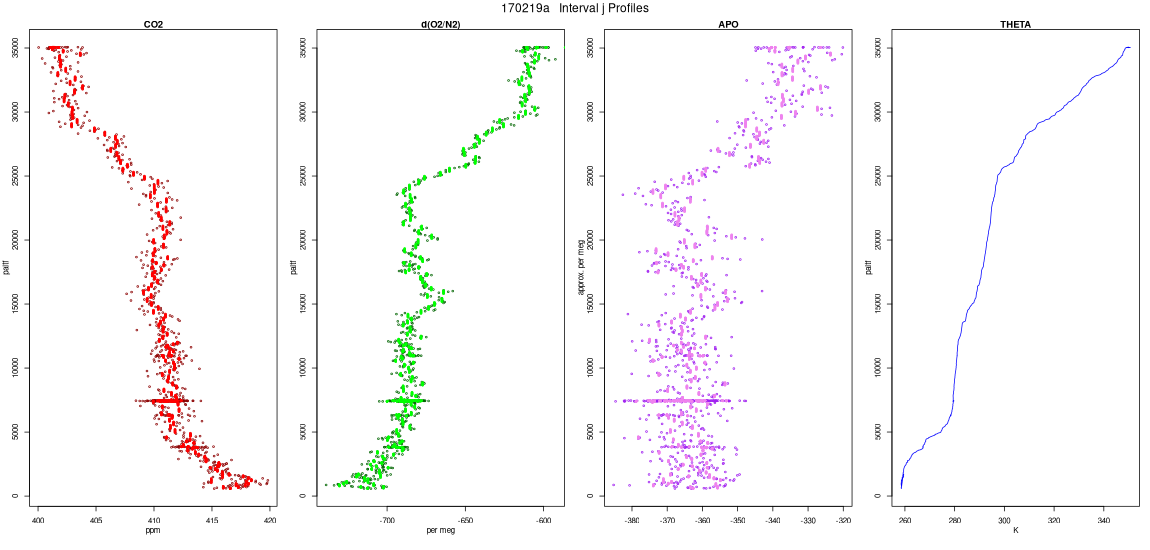

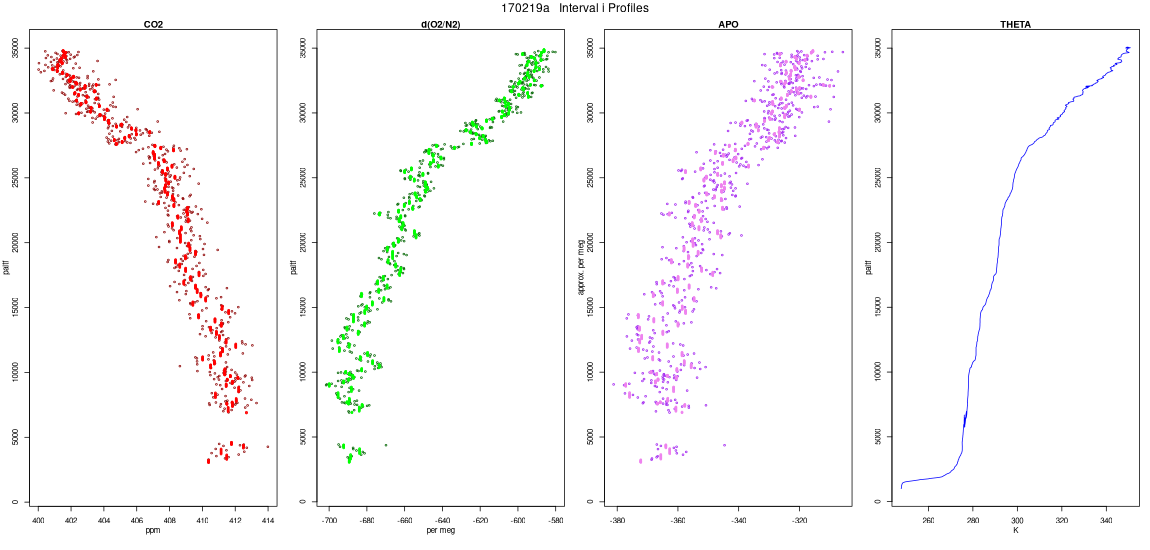

 Profiles

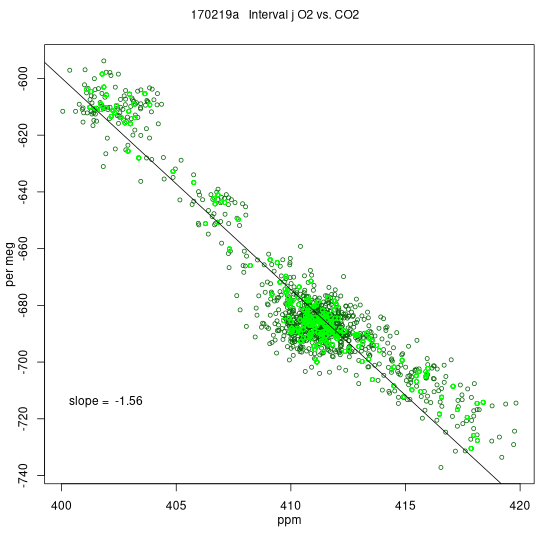

O2 vs. CO2


Subinterval j
Using data from 50.93925 to 50.96597 (Day of Year and Day Fraction)
Using data from 22:32:31 to 23:10:59 (HH:MM:SS)
Aircraft Data 1
 Profiles
O2 vs. CO2


Subinterval k
Using data from 50.96597 to 50.97751 (Day of Year and Day Fraction)
Using data from 23:10:59 to 23:27:37 (HH:MM:SS)

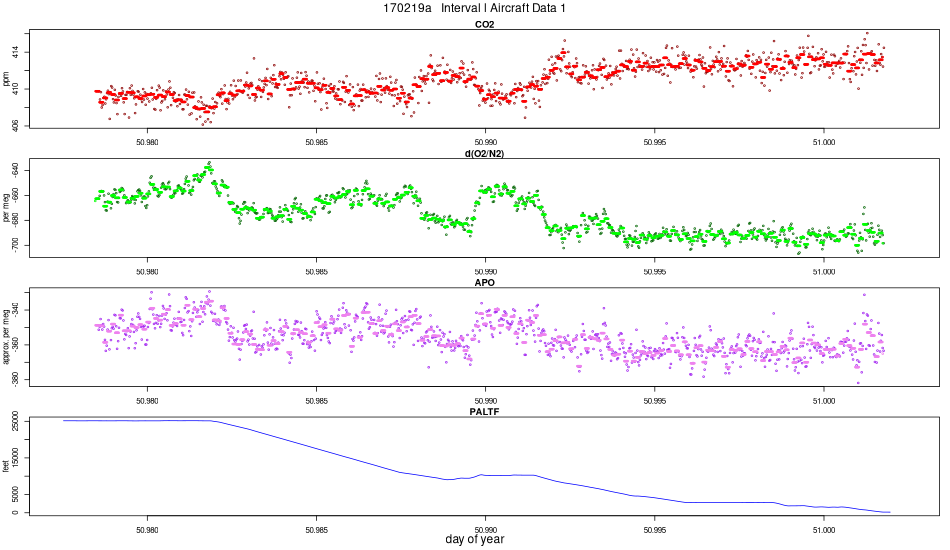

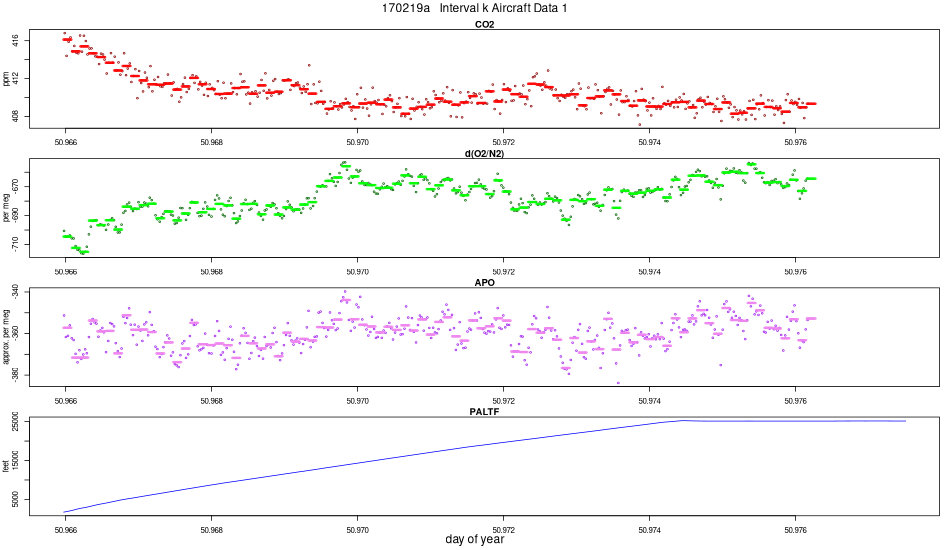

Aircraft Data 1
 Profiles

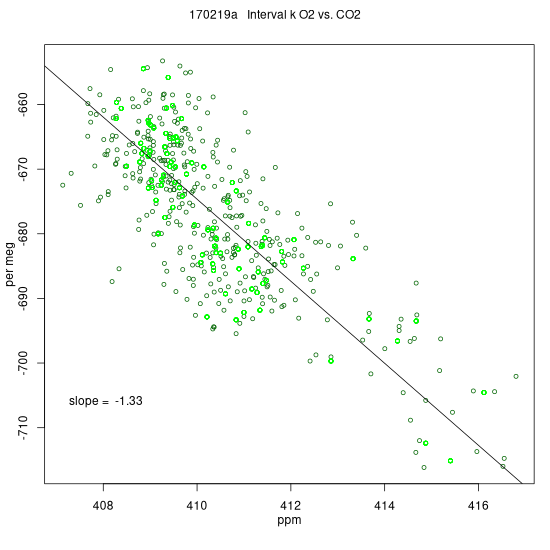

O2 vs. CO2


Subinterval l
Using data from 50.97751 to 51.00242 (Day of Year and Day Fraction)
Using data from 23:27:37 to 00:03:29 (HH:MM:SS)
Aircraft Data 1

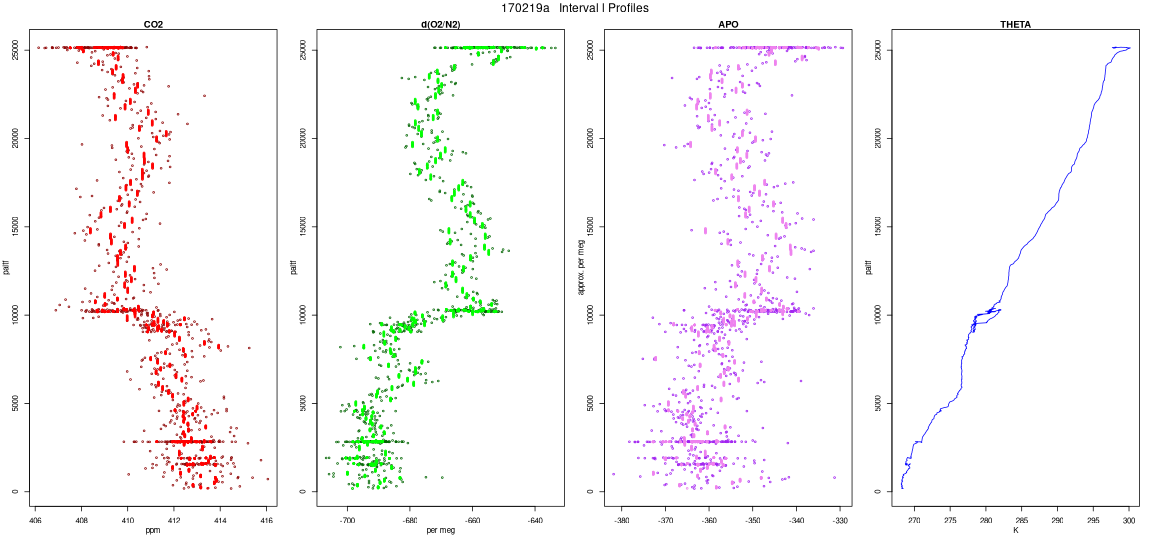

 Profiles

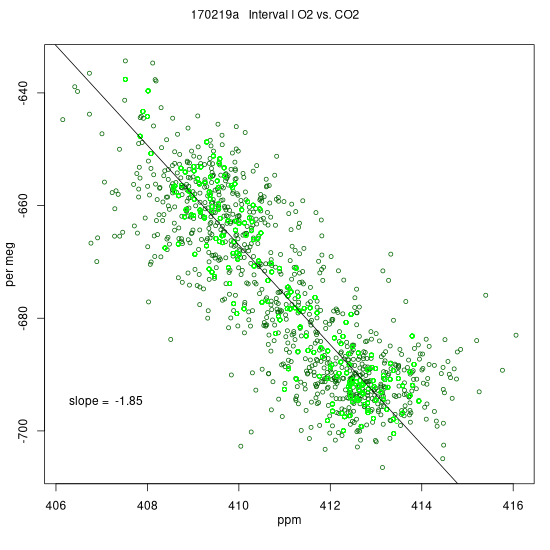

O2 vs. CO2


Subinterval MMS
Using data from 50.91285 to 50.91944 (Day of Year and Day Fraction)
Using data from 21:54:30 to 22:03:59 (HH:MM:SS)

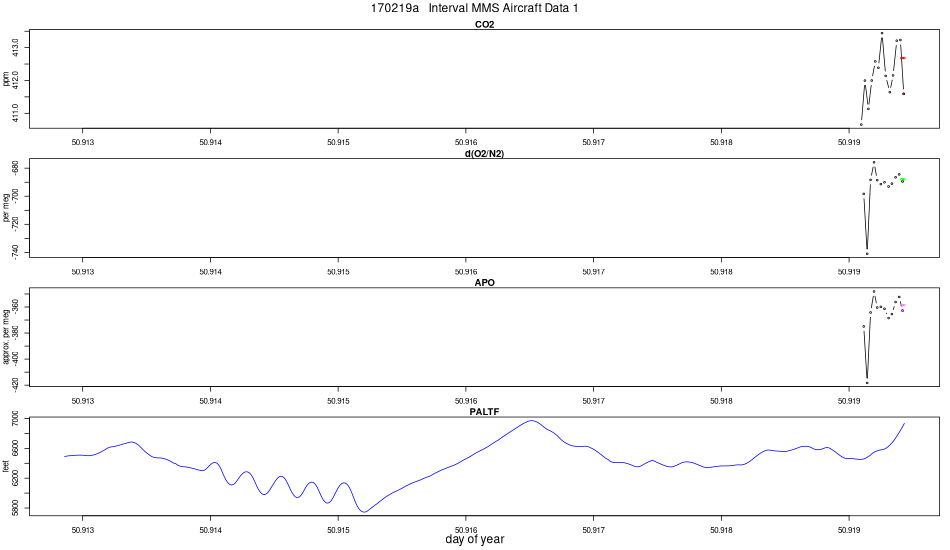

Aircraft Data 1

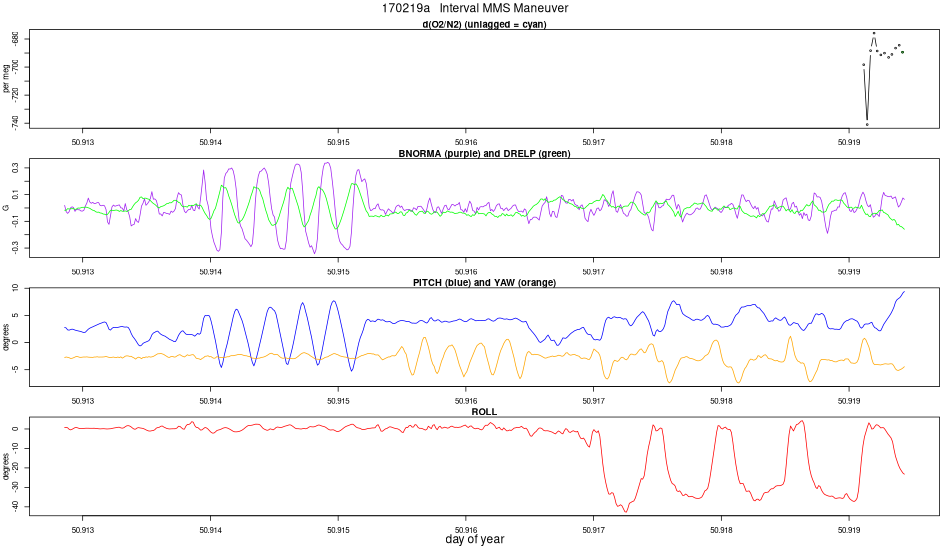

 Pitch/Roll/Yaw
